AHM Corp · AX-12B · 1-Ton B&S Engine Mini Excavator

EPA Certified Engine · 2,585 lbf Digging Force

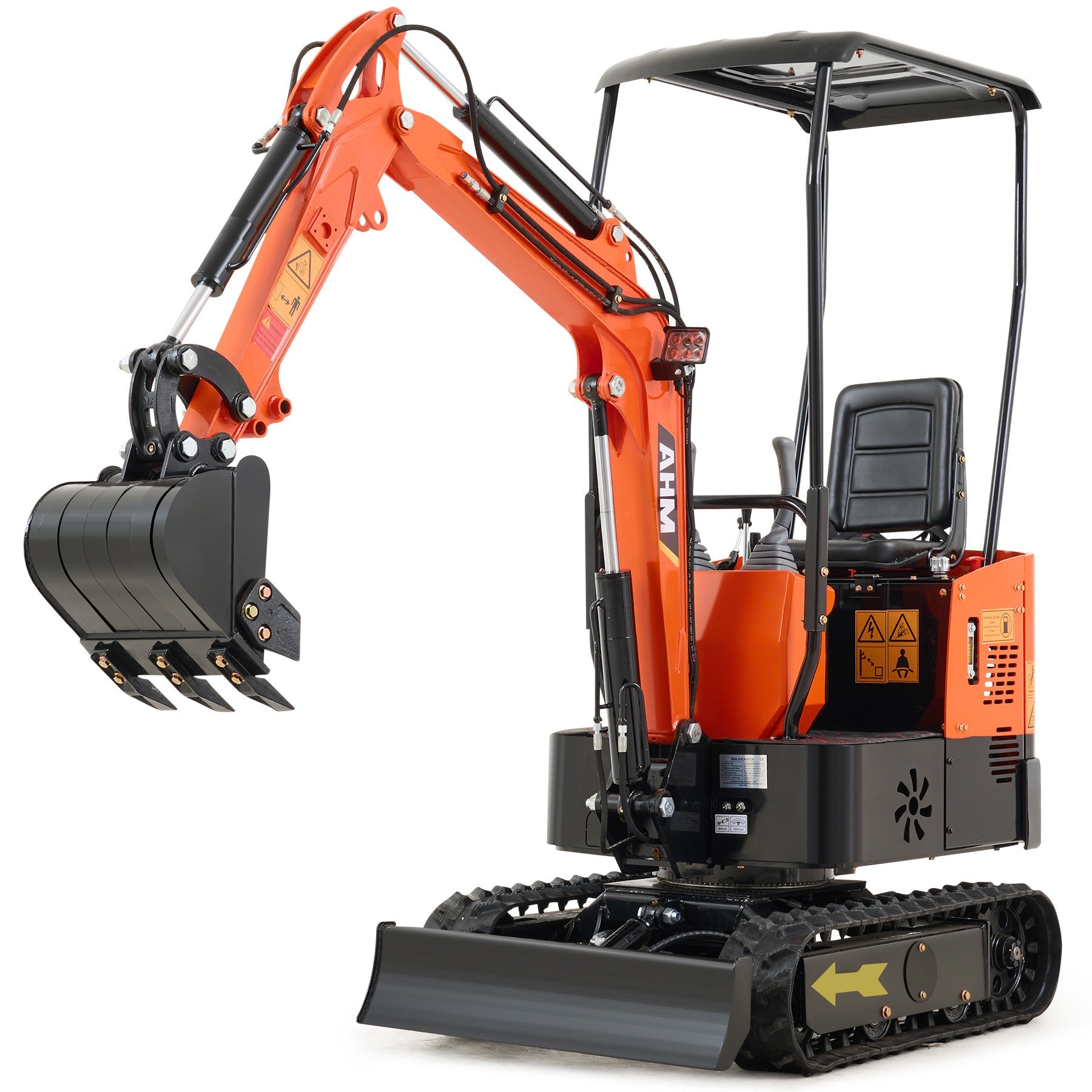

AHM AX-12B Mini Excavator

Name: AX-12B | 13.5 HP B&amp;S Engine Mini Excavator
SKU: EXC-1201-A1&SER-FKLT-US-[gslily]1+1
Availability: InStock

B&S 13.5 HP — Narrow Space Design — Enhanced Hydraulics — Multi-Attachment Ready

Built for exceptional maneuverability in tight spaces — backyards, narrow alleys, and urban sites. The AX-12B delivers 2,585 lbf of digging force from a 13.5 HP EPA-certified B&S engine, with enhanced hydraulics that support high-flow attachments including augers, rippers, and mulcher heads. Cut-and-wear-resistant rubber tracks operate on turf, paved surfaces, and rocky terrain without damage.

Digging Force

2,585

lbf (11.5 kN)

Powerful excavation force from a 13.5 HP EPA-certified B&S engine.

Max Dig Depth

68.9″

1,750 mm

Deep enough for foundations, utility lines, and drainage installation.

Max Reach

120″

3,050 mm

10 feet of ground reach for working at distance without repositioning.

Load Capacity

264.5

lbs (120 kg)

Rated lift capacity for moving materials and equipment on site.

B&S Engine — EPA Certified

Briggs & Stratton 13.5 HP (10 kW) — Gasoline — EPA Certified · Exceptional heat dissipation · Enhanced hydraulic system · High-flow attachment compatibility · 6.6 L fuel tank · ~1 L/hr consumption

13.5 HP

B&S EPA Engine

850 kg

Net Weight

15.7″

Bucket Width

30°

Max Slope Grade

Key Features

Designed for Narrow Spaces

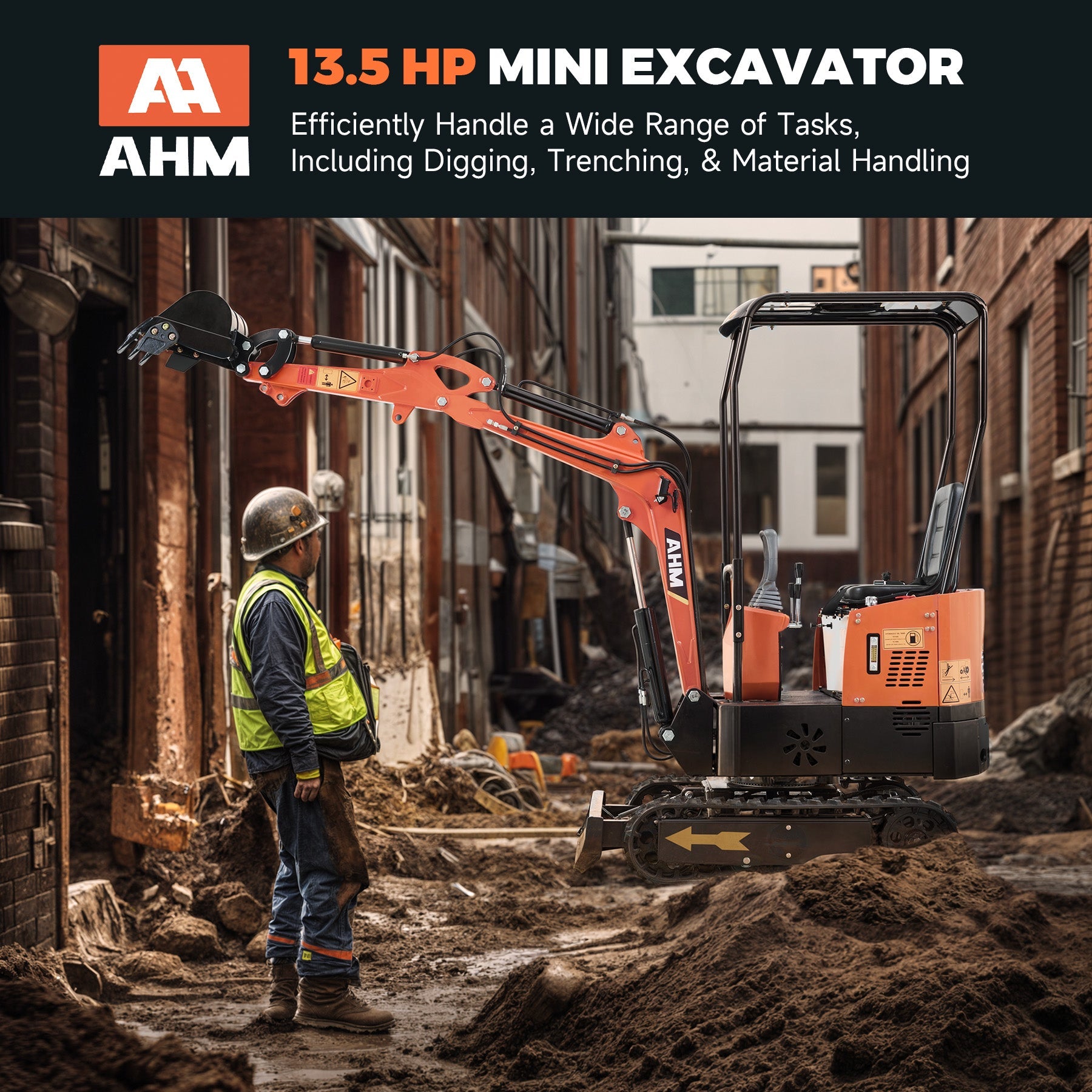

Compact chassis purpose-built for tight construction sites — narrow lanes, alleys, backyards, and gardens. The AX-12B accesses areas that standard machines can’t, without sacrificing digging depth or reach.

2,585 lbf Digging Force

Maximum digging force of 2,585 lbf (11.5 kN) from a 13.5 HP EPA-certified B&S engine with exceptional heat dissipation. Powerful and precise performance for demanding excavation tasks including foundation digging and hard-ground trenching.

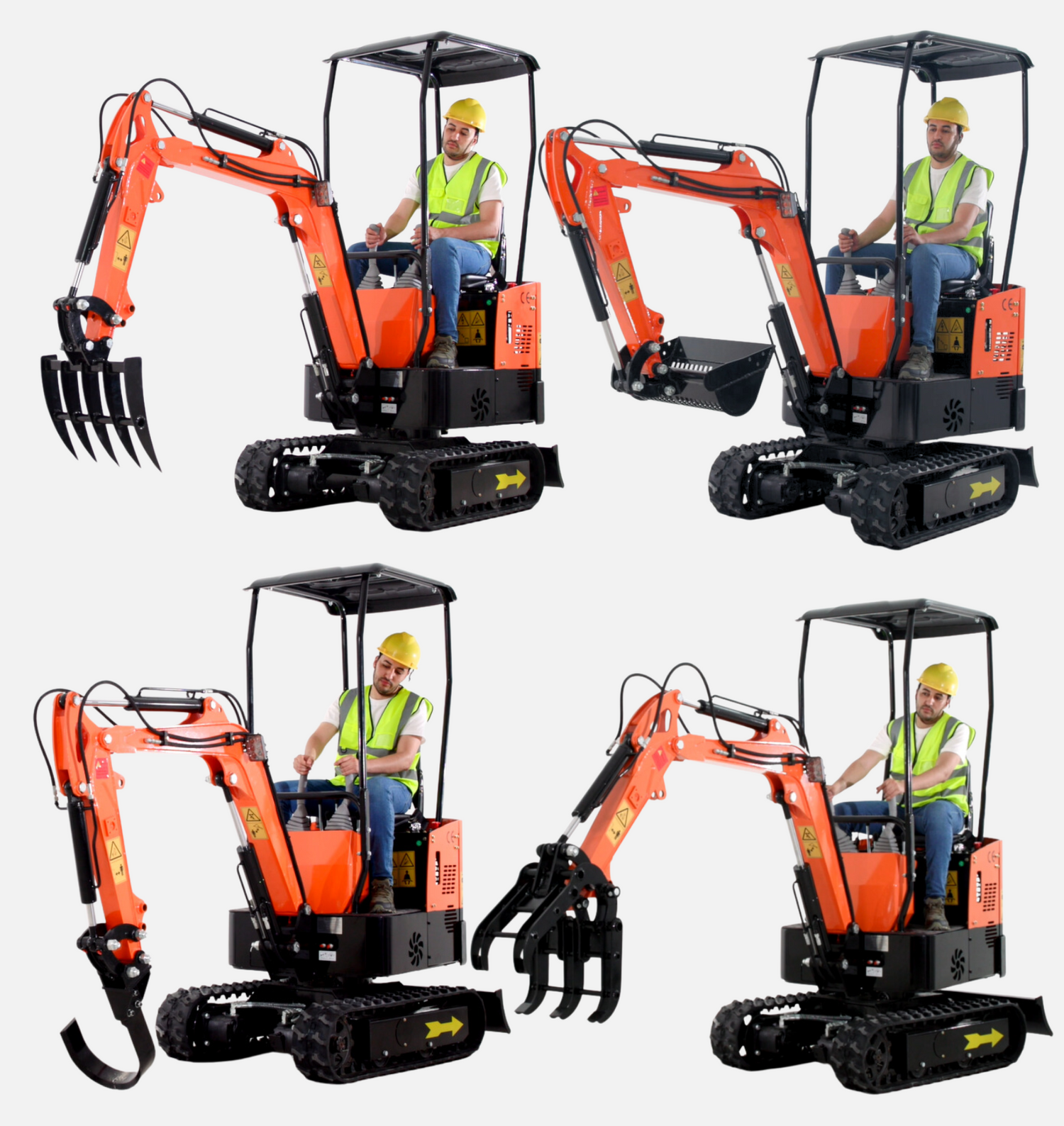

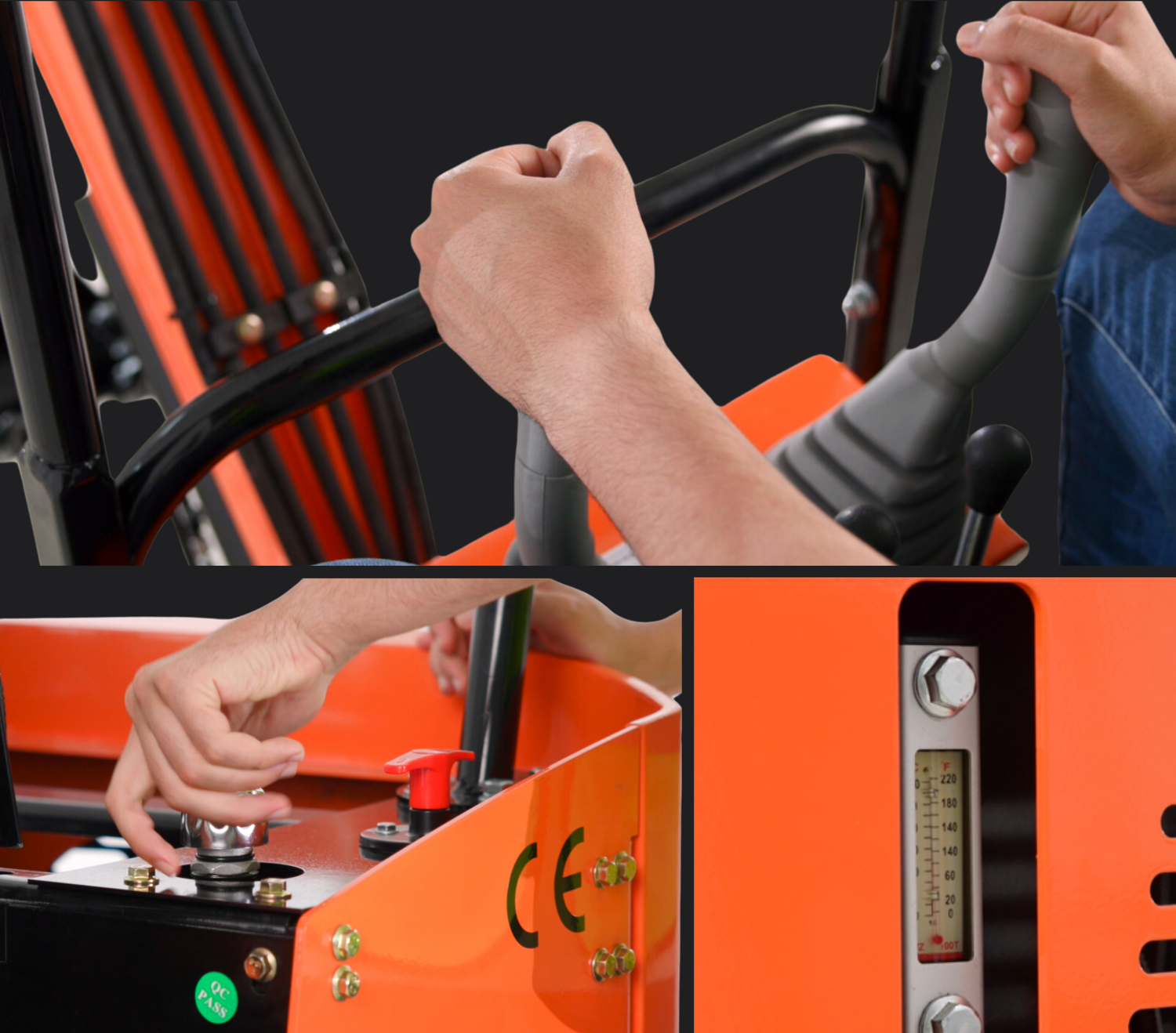

Enhanced Hydraulics — Multi-Attachment Ready

Enhanced hydraulic system designed to support high-flow attachments — augers, rippers, and mulcher heads compatible. Quickly adapts to concrete cutting, tree mulching, and other powered attachment tasks without additional hydraulic modifications.

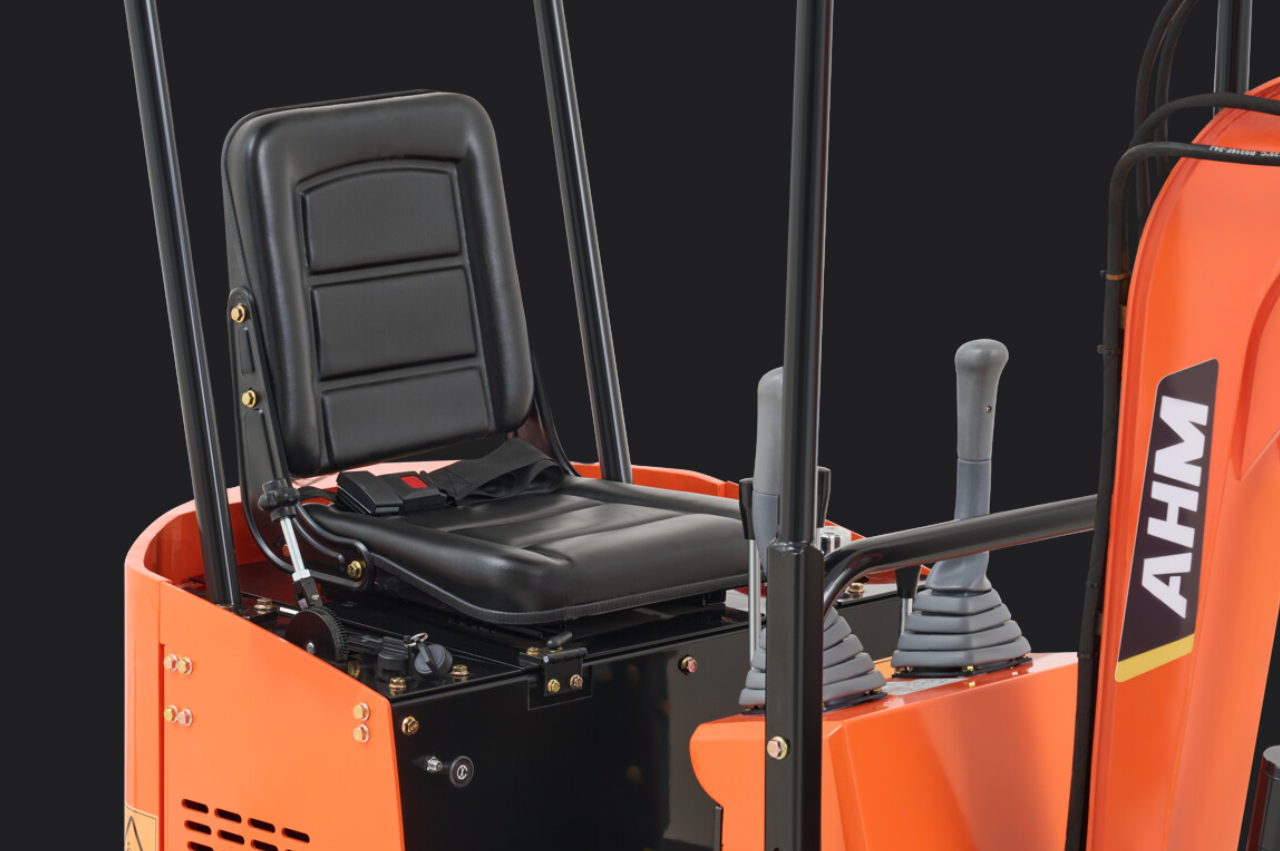

360° Visibility — Open Design

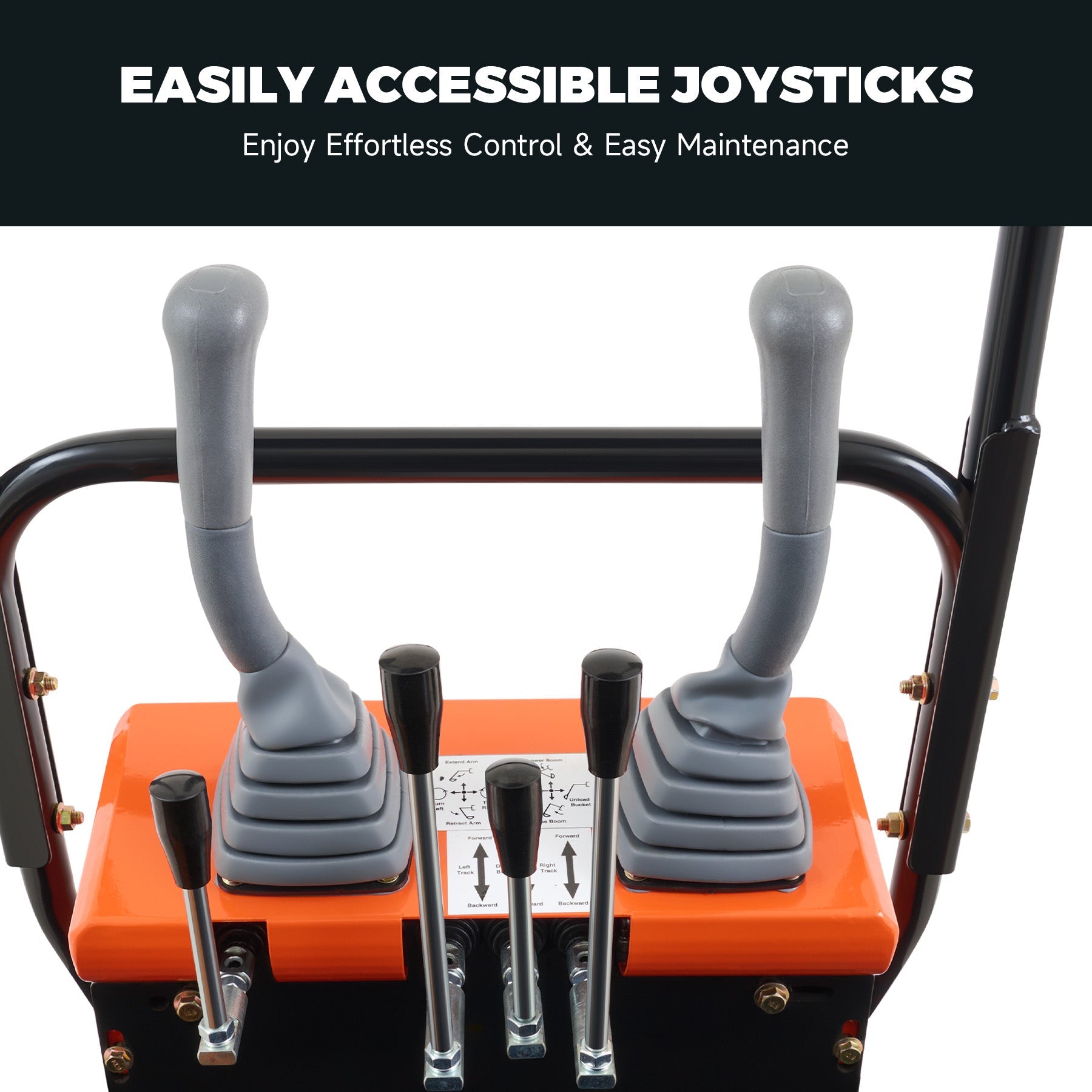

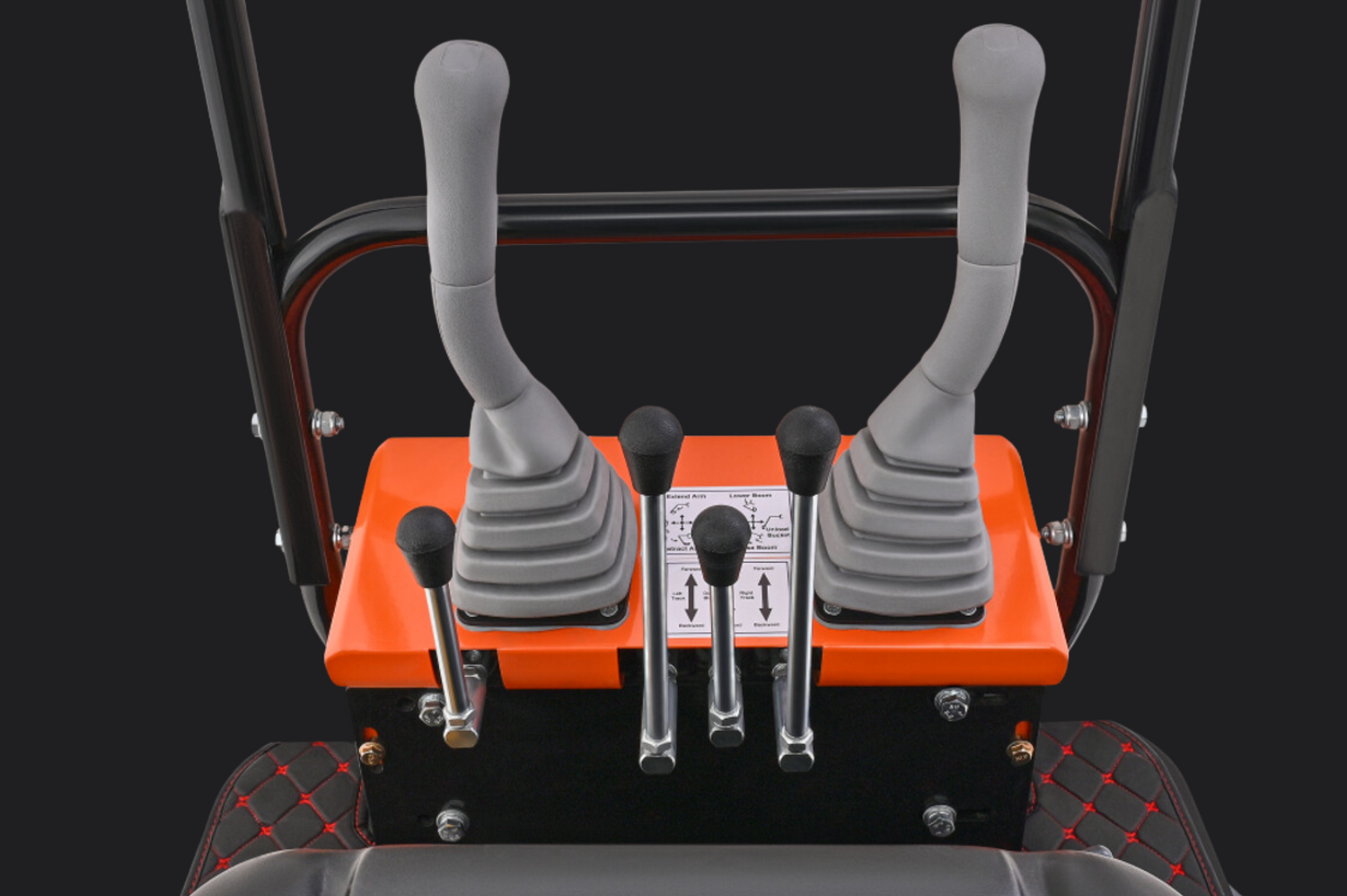

Open operator station provides 360-degree visibility from the seat. User-friendly joystick controls suitable for operators of all skill levels. Full site visibility ensures precision in digging, trenching, material handling, and landscaping tasks.

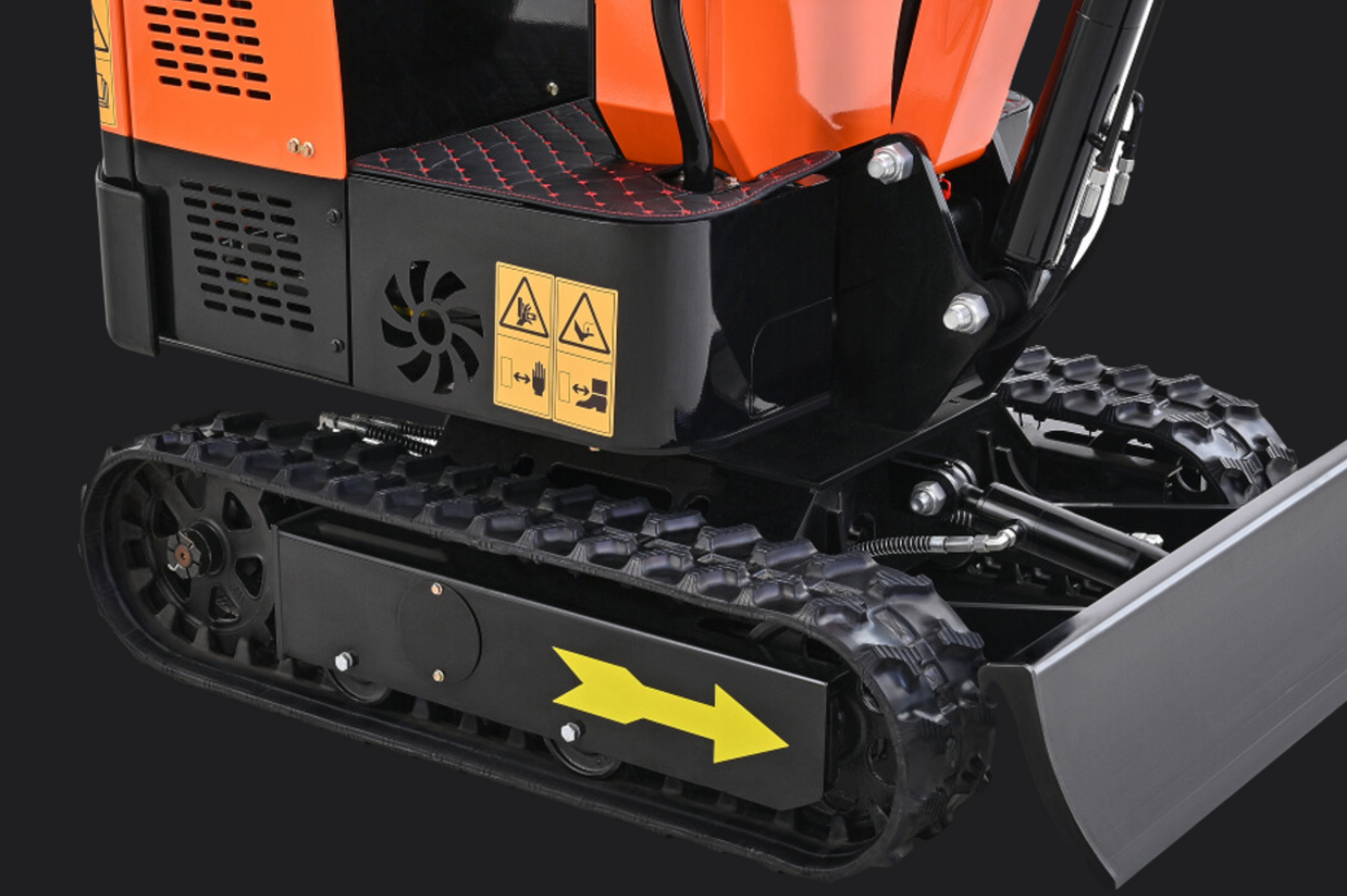

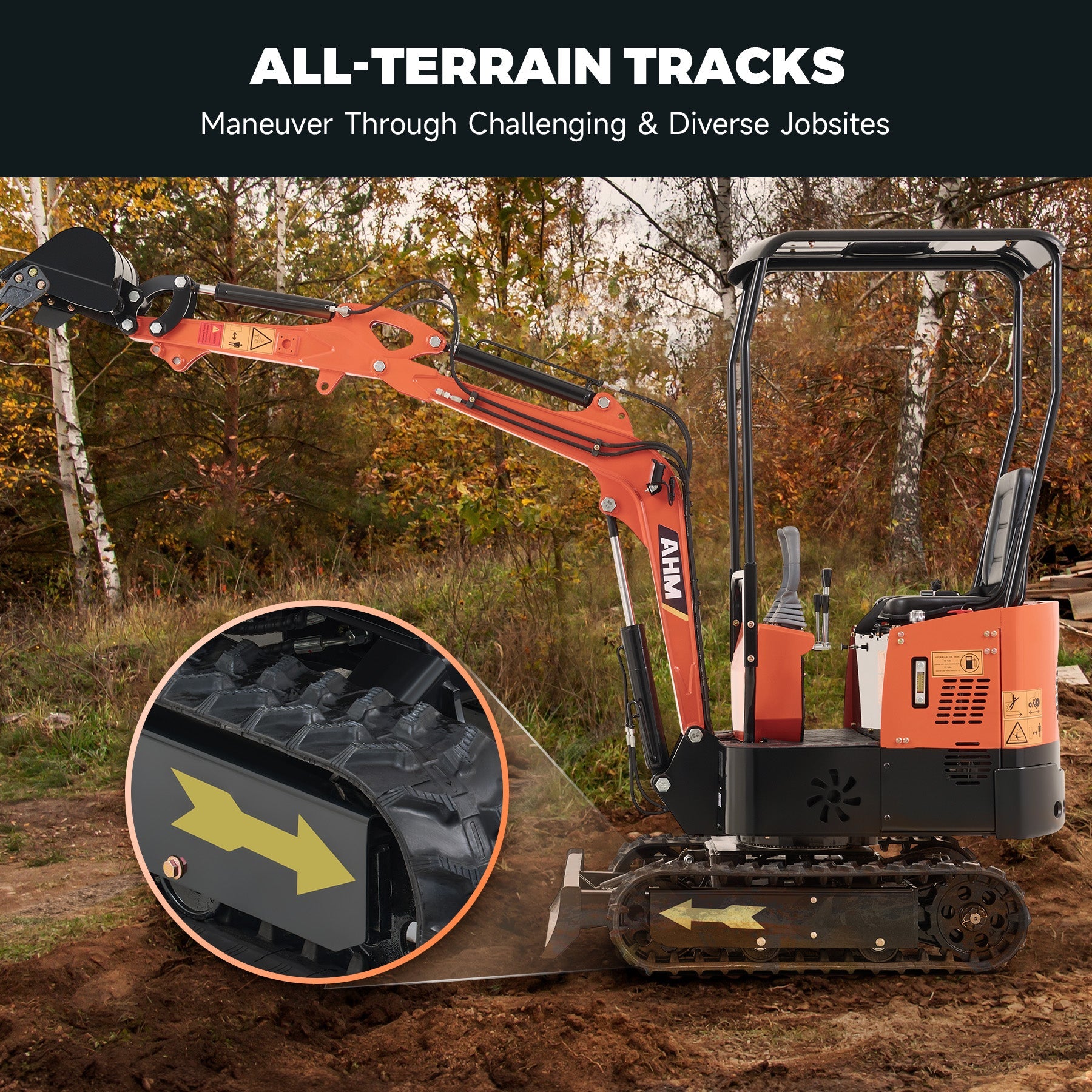

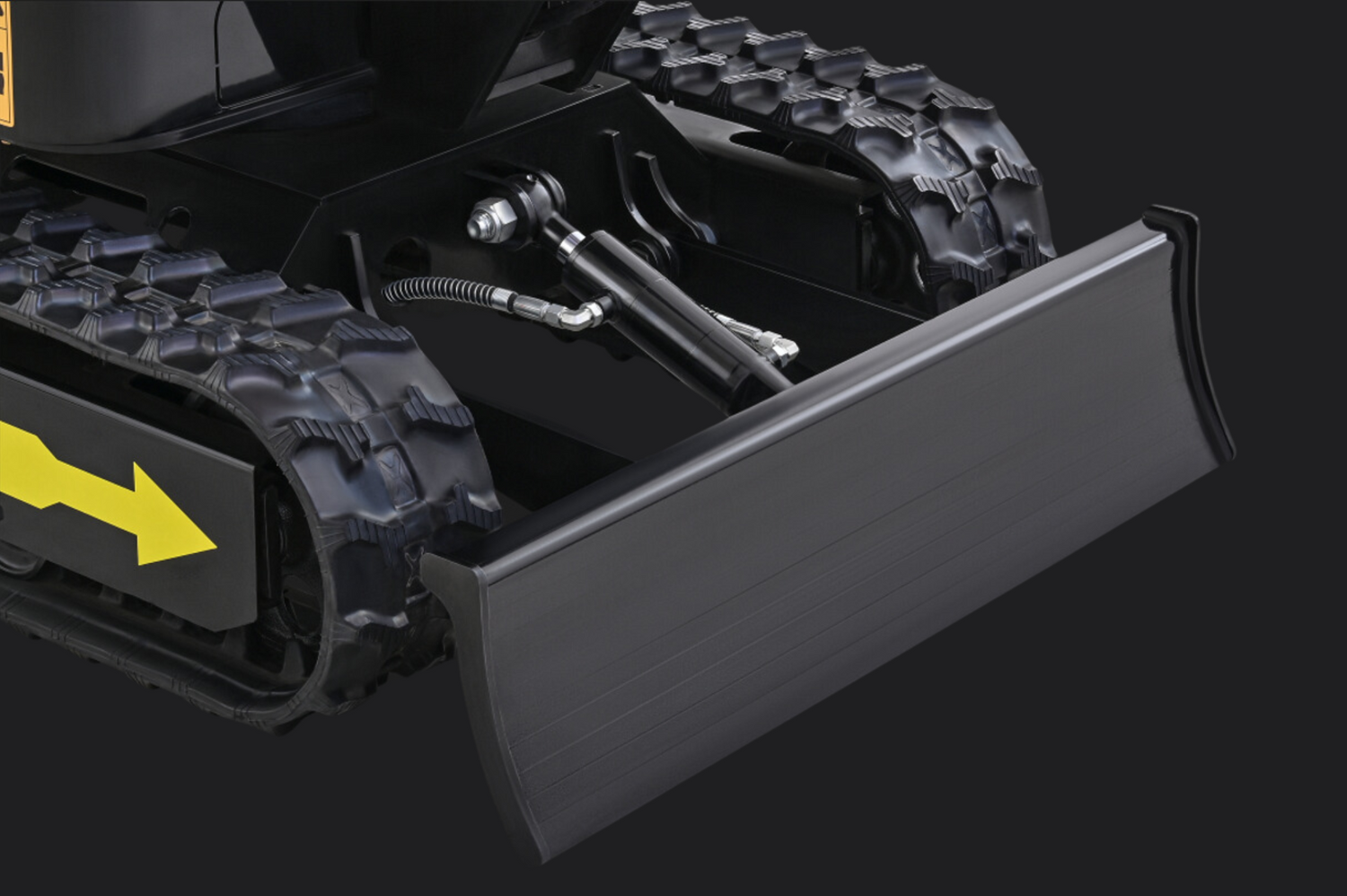

Cut & Wear Resistant Rubber Tracks

Heavy-duty rubber tracks operate on manicured turf, rocky hills, paved surfaces, and indoor flooring without causing damage. Exceptional traction across varied terrain types — ideal for residential sites where surface protection is essential.

15.7″ Grading Bucket Included

15.7 in. (400mm) wide grading bucket included as standard — optimal for precise excavation and grading tasks. 0.025 m³ (0.9 ft³) bucket volume for efficient material movement per dig cycle.

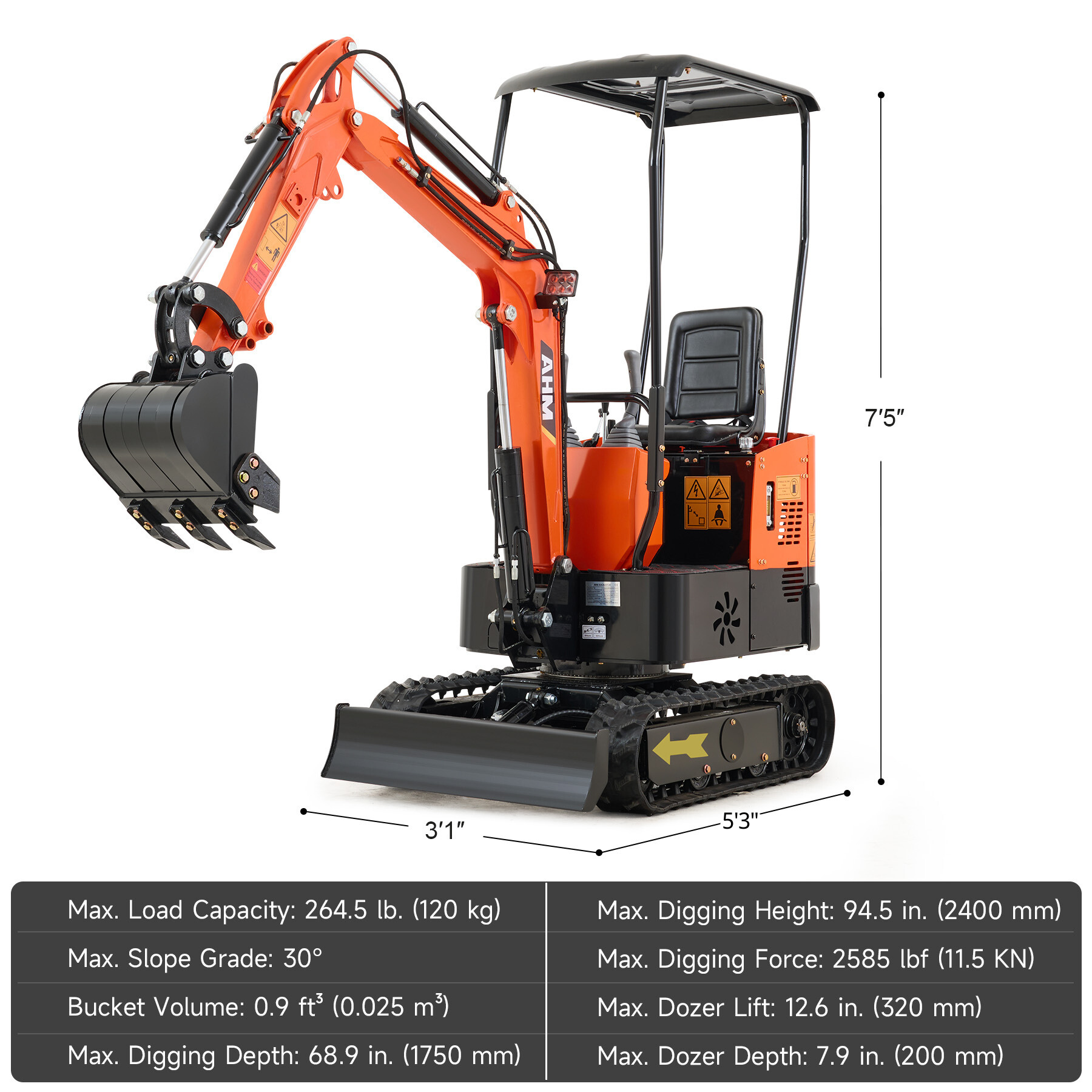

Full Specifications

Engine

Engine Brand	Briggs & Stratton
Engine Power	13.5 HP (10 kW)
Emissions	EPA Certified
Fuel Type	Gasoline
Fuel Tank	6.6 L / 1.74 gal
Fuel Consumption	~1 L/hr (0.26 gal/hr)

Performance

Net Weight	850 kg / 1,874 lbs
Max Digging Force	2,585 lbf (11.5 kN)
Max Load Capacity	264.5 lbs (120 kg)
Max Slope Grade	30°
Max Digging Depth	1,750 mm / 68.9 in
Max Vertical Digging Depth	1,550 mm / 61 in
Max Digging Height	2,400 mm / 94.5 in
Max Dumping Height	1,590 mm / 62.6 in
Max Digging Radius	3,050 mm / 120 in
