AHM Corp · AY-25 · 2.5-Ton Perkins Diesel Mini Excavator

Perkins Diesel · Load-Sensing Hydraulics · 2-Speed Travel · Open Canopy

AHM AY-25 Mini Excavator

Name: AY-25 | 25 HP Perkins Diesel Engine 2.5 Ton Mini Excavator with Swing Boom &amp; Adjustable Speed
SKU: EXC-2501-A1&SER-FKLT-US-[gslily]1+1
Availability: InStock

Perkins 25 HP EPA — 2.5 Ton — Swing Boom — Open Canopy — 9 ft Dig Depth

The same 2.5-ton Perkins diesel platform as the AY-25J — with open canopy for maximum visibility and natural ventilation. Perkins 25 HP EPA engine, load-sensing hydraulics, 2-speed travel (2.8 / 1.6 mph), asymmetric swing boom (45° left / 55° right), pilot controls, hydraulic oil cooler, and safety lock. The AY-25 is the open-canopy choice; choose the AY-25J for the enclosed cab with fan.

Perkins Diesel

25 HP

18.4 kW — EPA

The industrial diesel brand trusted by Caterpillar, JCB, and major OEMs globally. Only AHM model with Perkins.

360° Visibility

Open

Canopy Design

Full natural ventilation and unobstructed sightlines for fair-weather use — the open-canopy Perkins option.

Dig Depth

9 ft

2,752 mm / 108.3 in

Deepest reach in the AHM range — foundations, utility corridors, and drainage channels.

Load Capacity

772 lb

350 kg

Heavy material handling capacity for pipe, rock, and construction material placement on site.

Perkins Diesel — 25 HP (18.4 kW) — EPA Certified · Trusted by Caterpillar, JCB, Massey Ferguson, and major OEMs globally · Exceptional reliability, low emissions, and worldwide parts availability · Load-sensing hydraulics · 16 L fuel tank · ~3 L/hr consumption

25 HP

Perkins Diesel

2.5 Ton

Operating Weight

108.3″

Max Dig Depth

173″

Max Ground Reach

AY-25 vs AY-25J — One Difference

AY-25 ▲ This Model

AY-25J

Cab

Open canopy — 360° visibility

Enclosed cab + fan

Load Capacity

772 lb (350 kg)

992 lb (450 kg)

Engine

Perkins 25 HP EPA

Swing Boom

45°L / 55°R

2-Speed Travel

2.8 / 1.6 mph

Load-Sensing Hydraulics

Yes

Best For

Fair weather & max visibility

All-weather & comfort

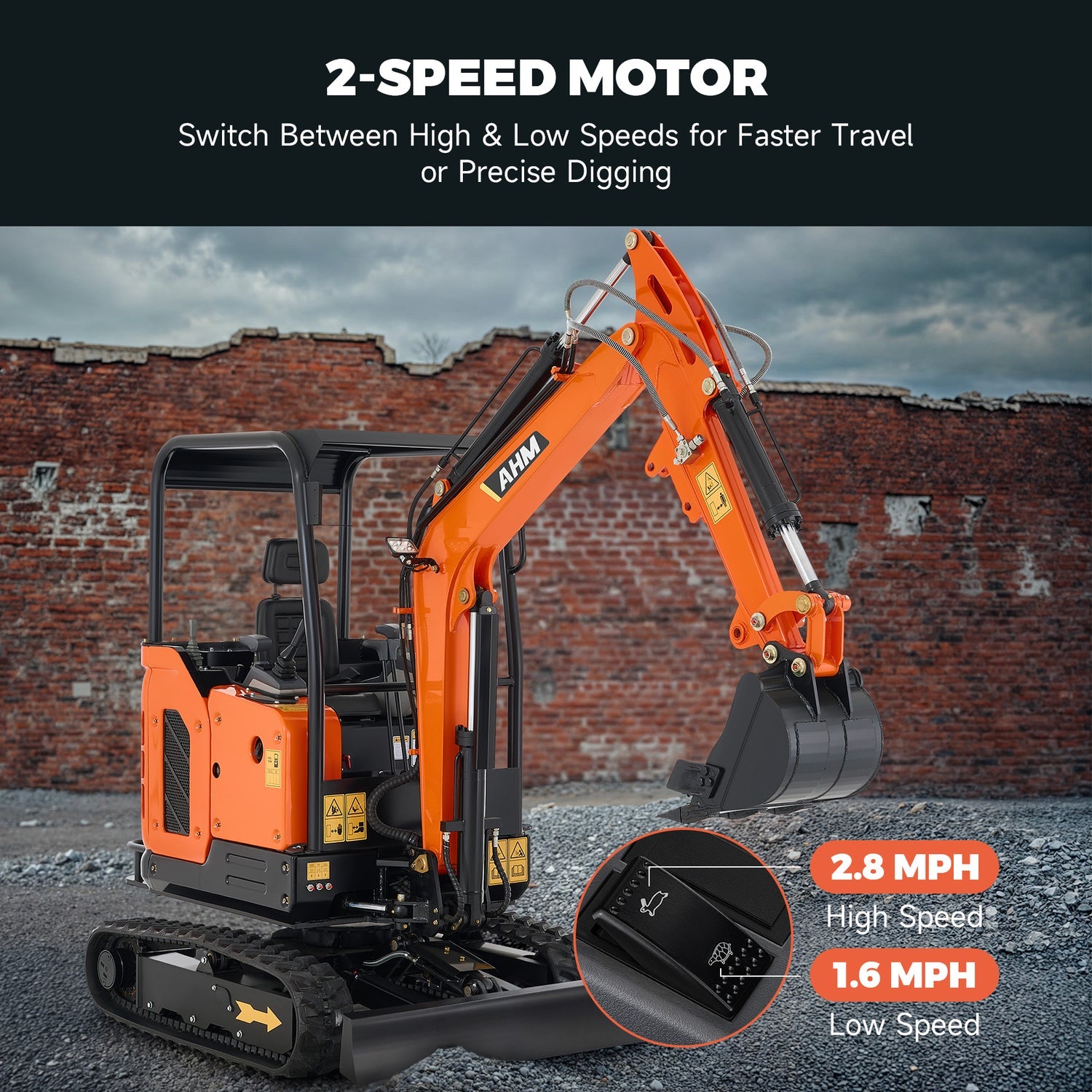

2-Speed Adjustable Travel — Match Speed to the Task

2.8 mph

High Speed

Fast travel across large sites between dig positions — minimising repositioning time.

1.6 mph

Low Speed — Precision

Controlled movement for detailed digging, slopes, and maneuvering in confined spaces.

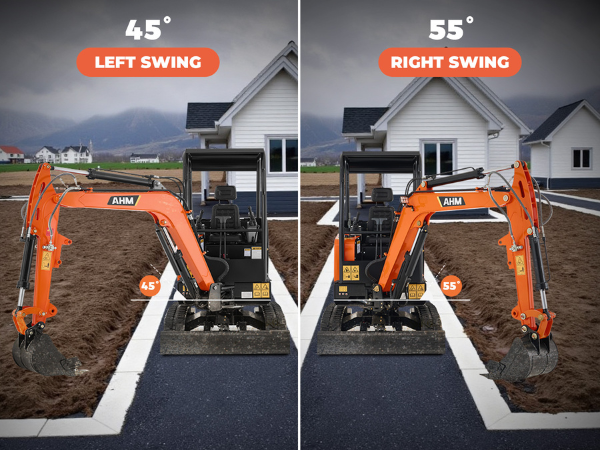

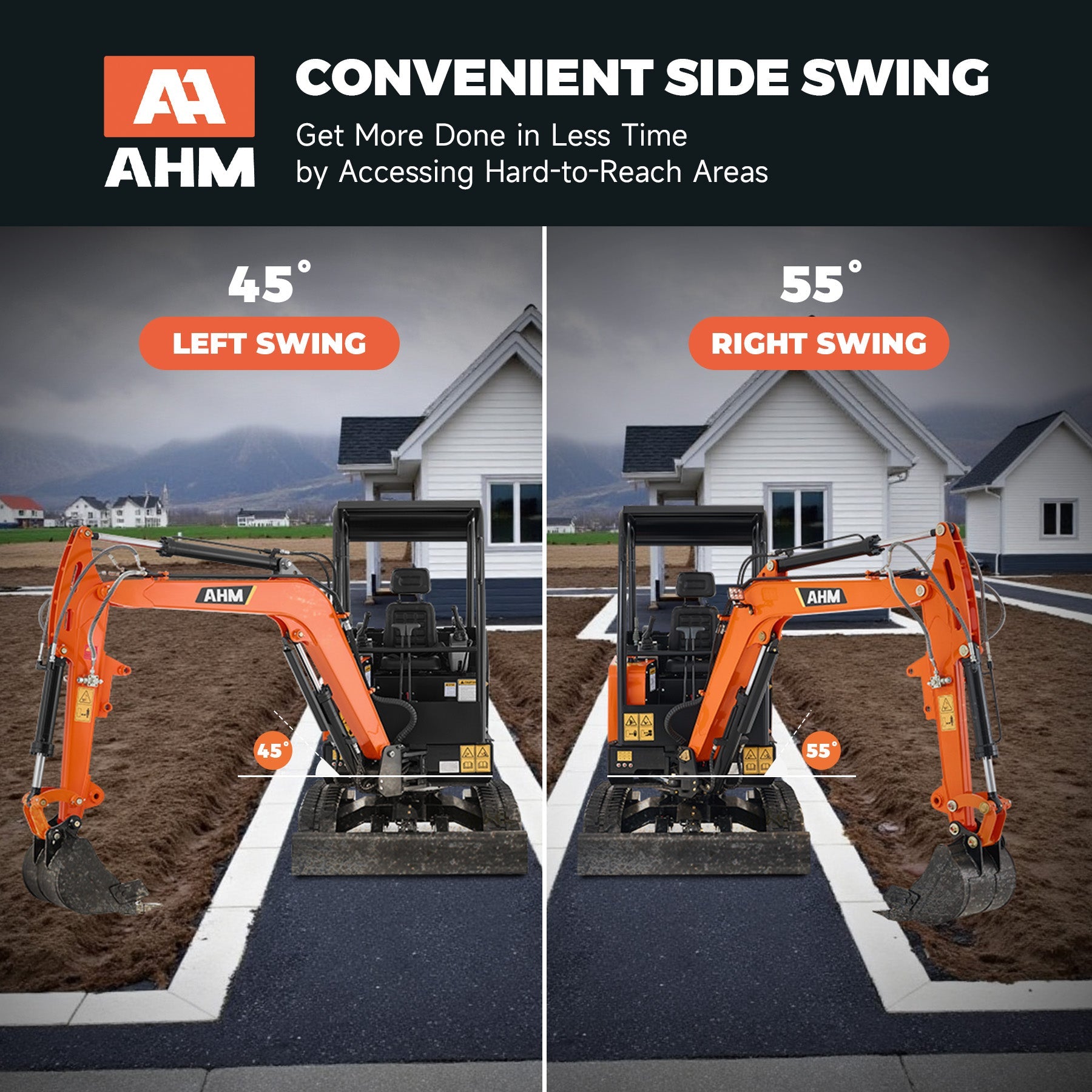

Swing Boom Arc

Asymmetric Swing Boom — 45° Left / 55° Right

45°

Left

55°

Right

More swing right where most operators work alongside walls, fences, and kerbs — maximise access without repositioning the machine.

Key Features

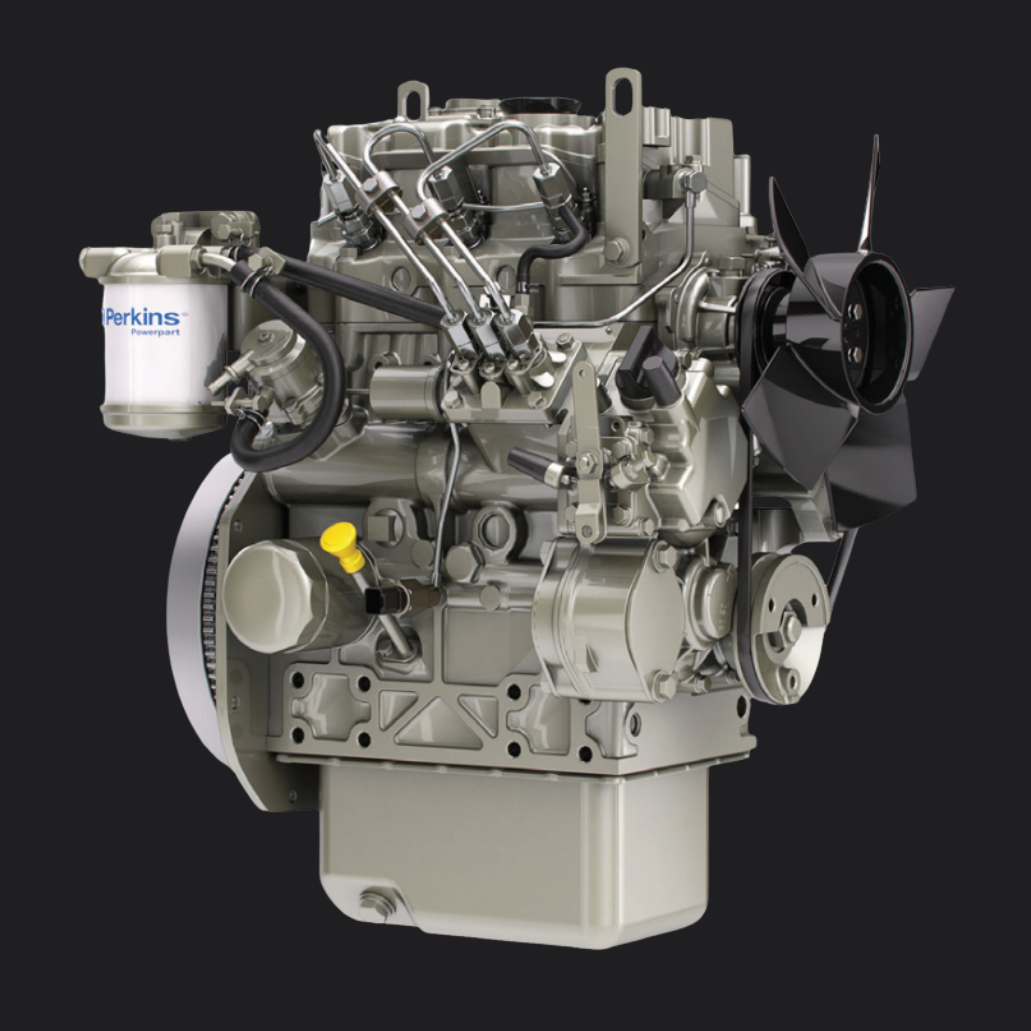

Perkins Diesel — Industrial Engine Pedigree

25 HP Perkins diesel — the engine brand trusted by Caterpillar, JCB, and major construction OEMs globally. Perkins engines are specified for exceptional reliability, low emissions, and global parts availability. The AY-25 brings this industrial-grade engine pedigree to the open-canopy Perkins option in the AHM range.

Open Canopy — 360° Visibility

Open operator station for full natural ventilation and 360-degree unobstructed visibility. The best choice for fair-weather operation where airflow and sightlines are the priority — without the weight and cost of an enclosed cab. Choose the AY-25J when all-weather protection and cooling fan comfort are needed.

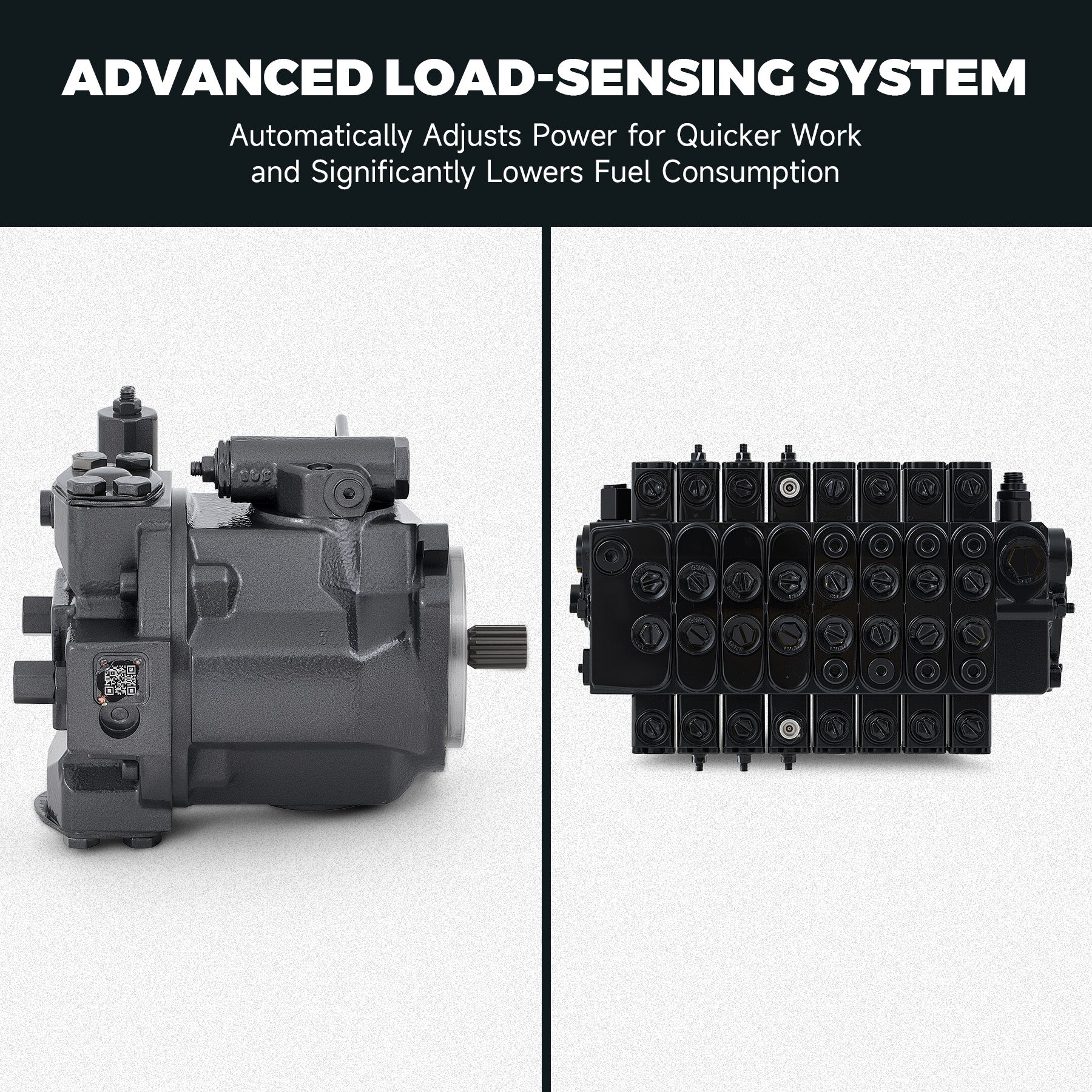

Load-Sensing Hydraulic System

Advanced load-sensing system automatically adjusts hydraulic power to match the current task demand — more power when working hard, less during lighter operation. Faster task completion, better fuel efficiency, and lower operational costs vs fixed-output hydraulic systems.

9 ft Dig Depth & 14’5″ Reach

2,752mm (9 ft) of maximum digging depth and 4,387mm (14’5″) of ground reach — the widest and deepest working range in the AHM lineup. Handles deep utility corridors, drainage channels, and foundation cuts that smaller machines cannot reach.

2-Speed Travel & Swing Boom

Two selectable travel speeds (2.8 mph high / 1.6 mph precision) for maximum flexibility on large and confined sites. Asymmetric swing boom (45° left / 55° right) for digging alongside walls and obstacles without repositioning — paired with pilot controls, oil cooler, and safety lock.

772 lb Load Capacity — 1.8 ft³ Bucket

350 kg (772 lb) rated load capacity for heavy material placement well beyond what smaller AHM models can safely handle. 430mm (16.9 in) wide bucket with 0.05 m³ (1.8 ft³) volume — a larger bucket than the AX-17 series for more material per dig cycle.

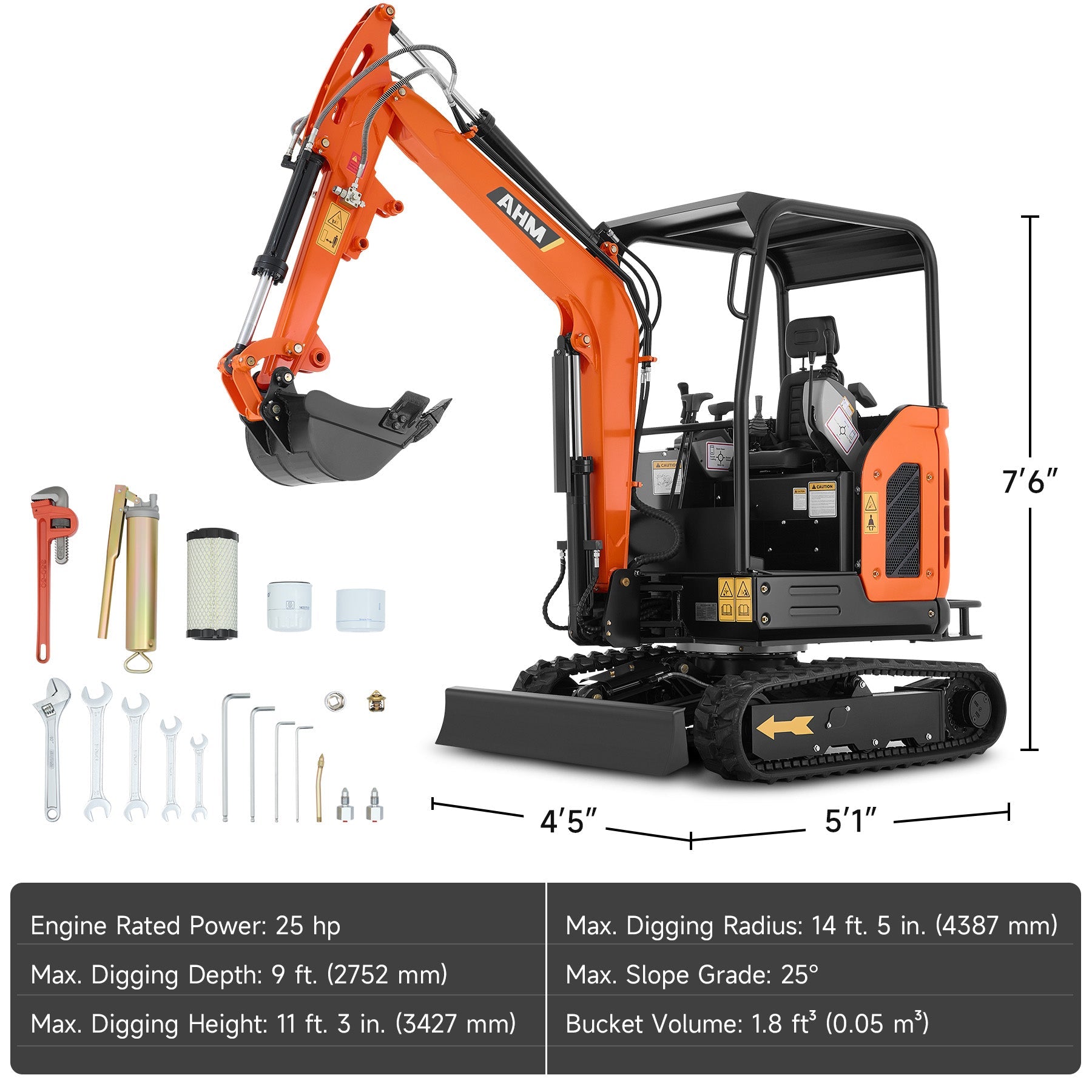

Full Specifications

Engine

Engine Brand	Perkins (Industrial Diesel)
Engine Power	25 HP (18.4 kW) — EPA Certified
Fuel Type	Diesel
Fuel Tank	16 L / 4.2 gal
Fuel Consumption	3 L/hr (0.8 gal/hr)

Hydraulic System

Hydraulic System Type	Load-Sensing (Auto Power Adjustment)

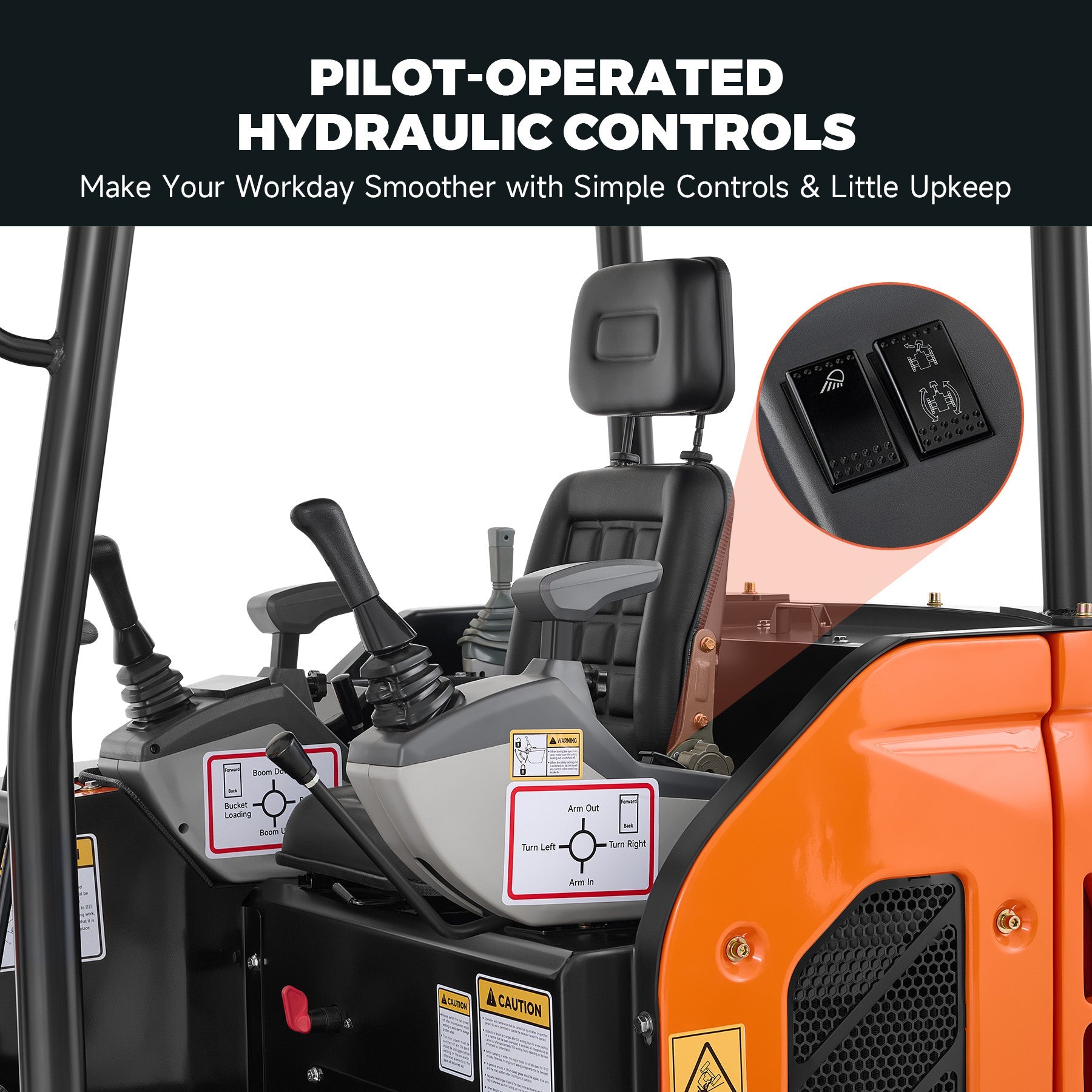

Hydraulic Controls	Pilot-Operated

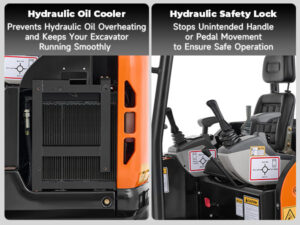

Hydraulic Oil Cooler	Included
Safety Lock	Included

Performance

Operating Weight	2.5 Ton
Max Load Capacity	772 lbs (350 kg)
Max Digging Depth	2,752 mm / 108.3 in / 9 ft
Max Digging Height	3,427 mm / 134.9 in / 11.2 ft
Max Digging Radius	4,387 mm / 172.7 in / 14.4 ft
Travel Speed — High	2.8 mph
Travel Speed — Low	1.6 mph
Max Slope Grade	25°
Side Swing — Left	45°
Side Swing — Right	55°

Bucket & Construction

Bucket Width	430 mm / 16.9 in
Bucket Volume	0.05 m³ / 1.8 ft³
Frame Material	Steel

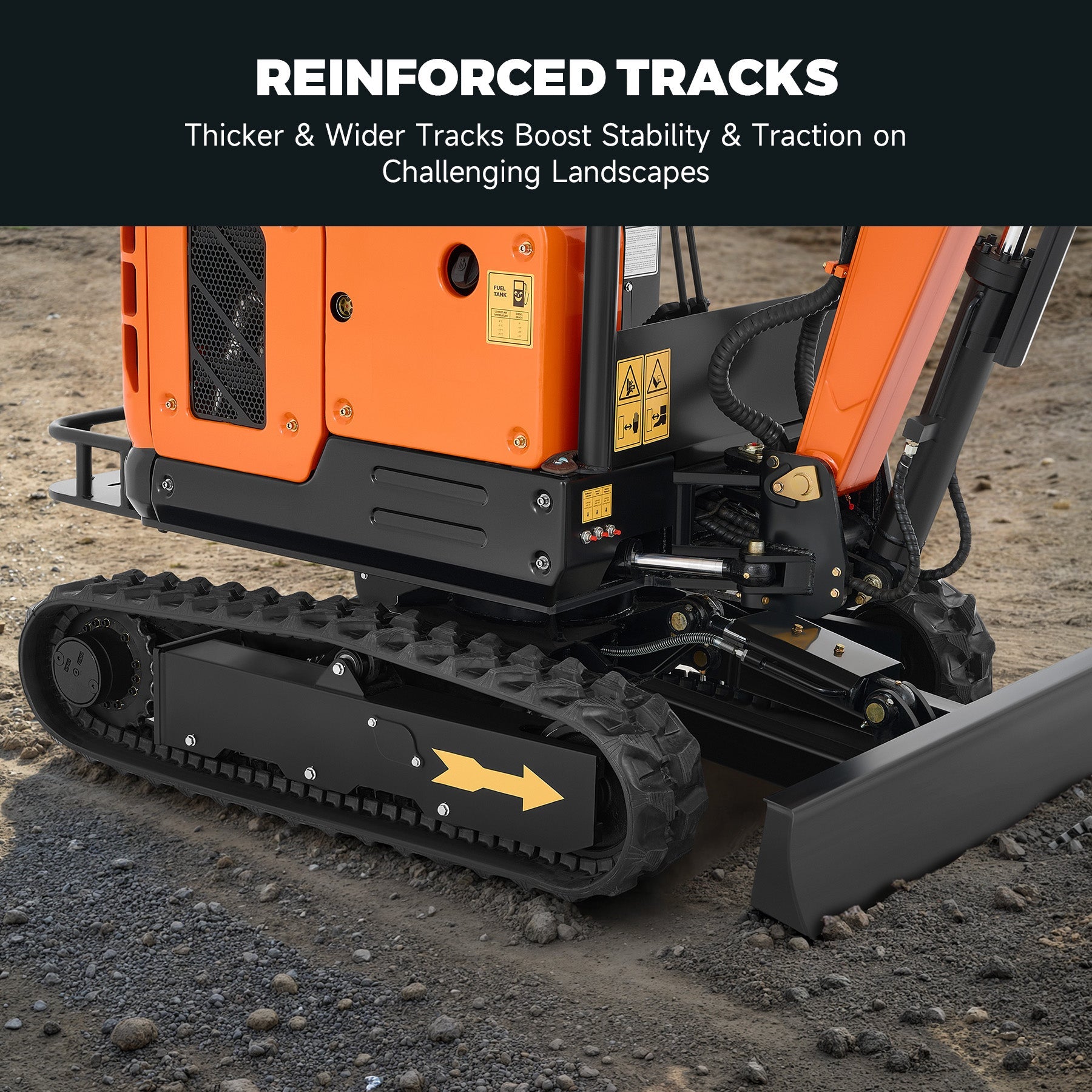

Track Material	All-Terrain Rubber
Cab Type	Open Canopy — 360° Visibility
Warranty	1 Year
