Description
AGT Equipment · AGT-QH12 · 1-Ton B&S Mini Excavator

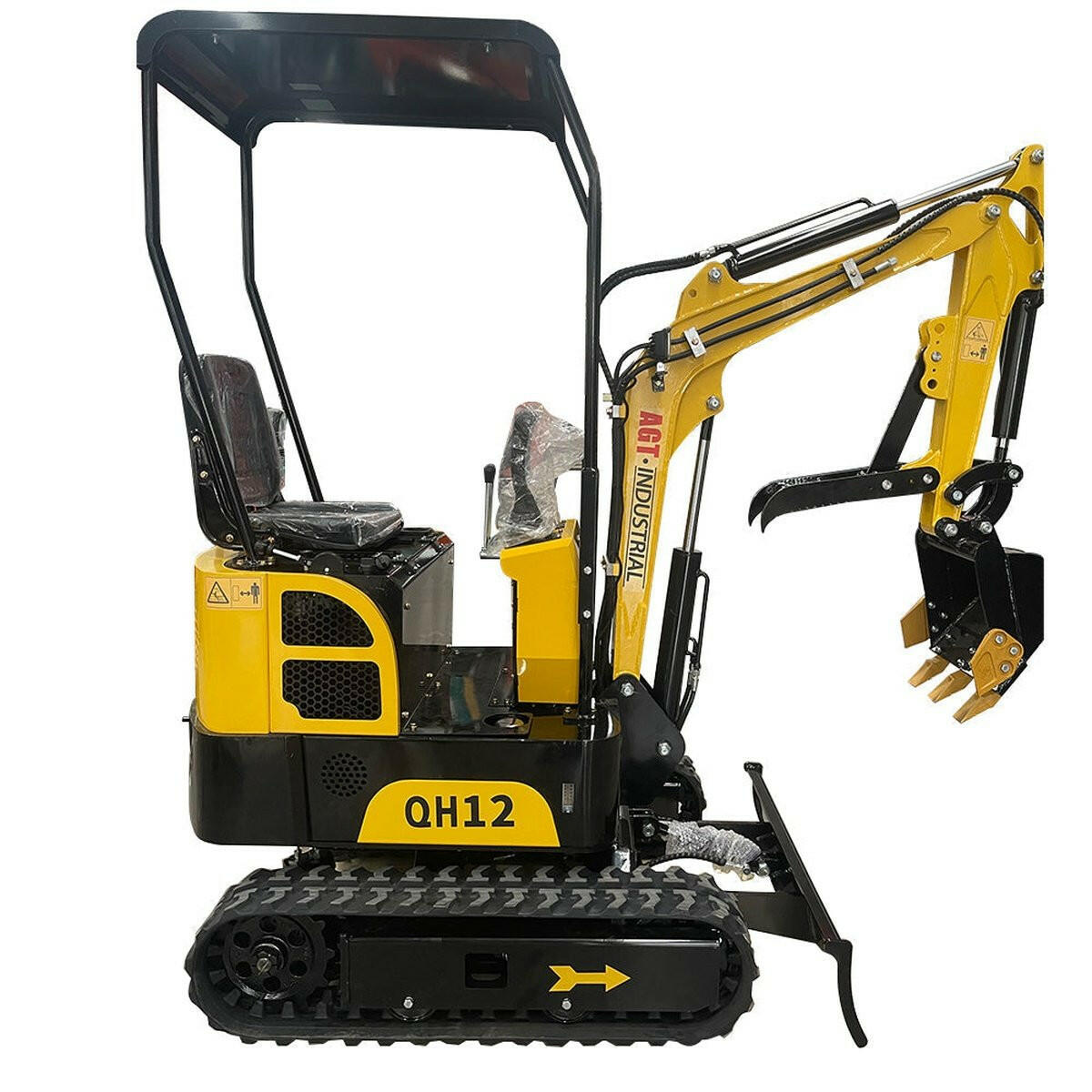

AGT QH12 1-Ton Mini Excavator
B&S XR 420cc — 13.5 HP — 25.5″ Tail Swing — 134″ Ground Reach — 87″ Overall Length
A compact and agile 1-ton mini excavator built for tight spaces — on farms, residential sites, and confined construction zones. The AGT-QH12 runs a B&S XR 420cc gasoline engine with a notably tight 25.5″ tail swing radius, an exceptional 134″ of ground reach, and an 87″ overall length that makes it one of the most maneuverable machines in the AGT range.
B&S XR Engine
Briggs & Stratton XR — 420cc · 13.5 HP (10 kW) · Gasoline · 6.6 L fuel tank · 0.5–1.2 L/hr consumption · 25.5″ tail swing radius · 87″ overall length · 134″ max ground reach
13.5 HP
B&S XR 420cc
1 Ton
Operating Weight
25.5″
Tail Swing Radius
134″
Max Ground Reach
Key Features
25.5″ Tail Swing Radius
A 25.5″ (648mm) minimum tail swing radius is tight even for a 1-ton class machine — allowing the QH12 to rotate freely in confined spaces without the counterweight striking walls, fences, or adjacent structures. Critically useful on tight farm lanes, residential gardens, and congested construction sites.
134″ Maximum Ground Reach
3,400mm (134″) of maximum reach at ground level — one of the longest reaches among 1-ton class machines in the AGT range, matching the DM12-C. Covers more ground per operating position and reduces repositioning time on larger excavation areas.
87″ Overall Length — Highly Compact
At just 2,220mm (87″) overall length, the QH12 is one of the shortest machines in the entire AGT range — easier to transport on a trailer, navigate through tight site access, and work in restricted areas where longer machines can’t position effectively.

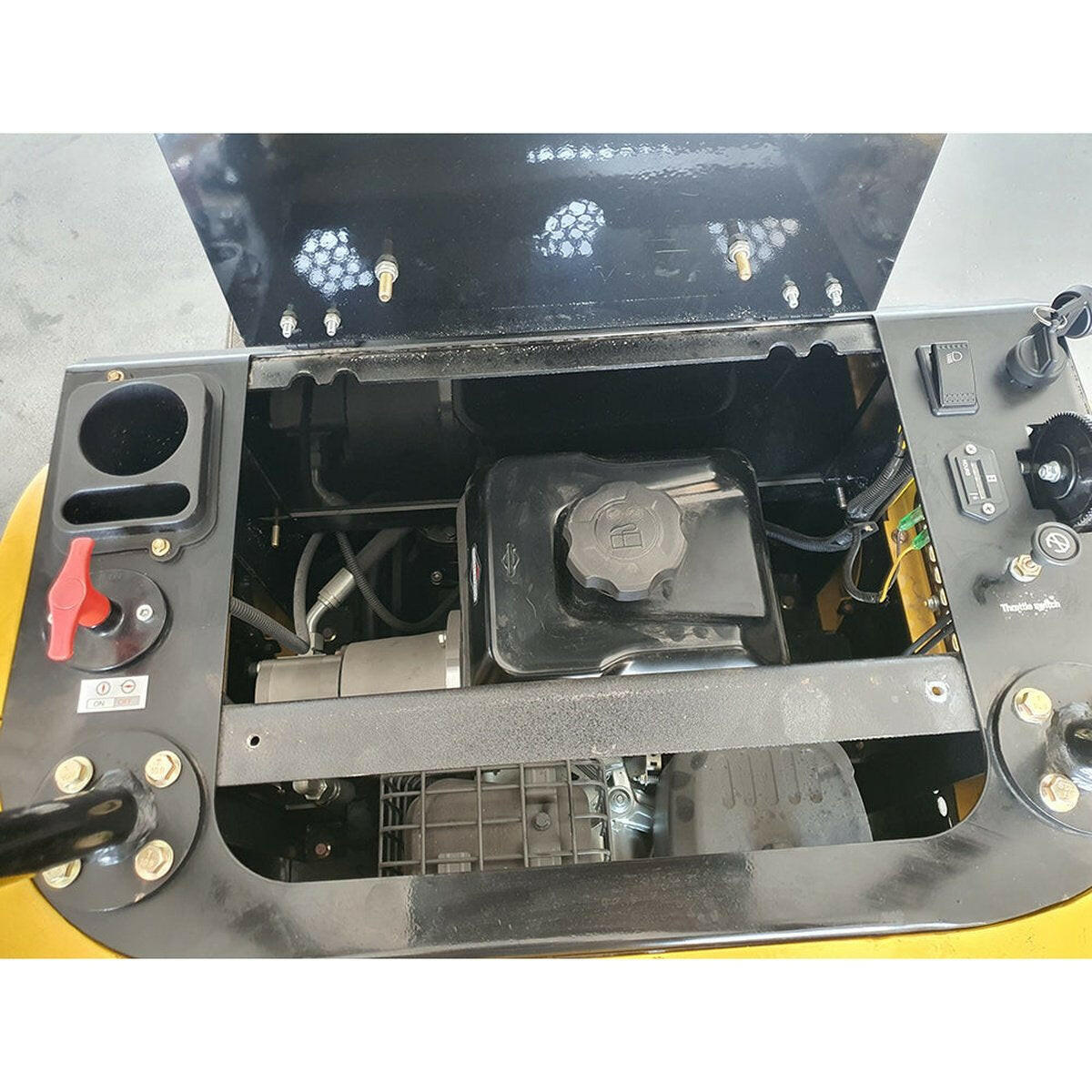

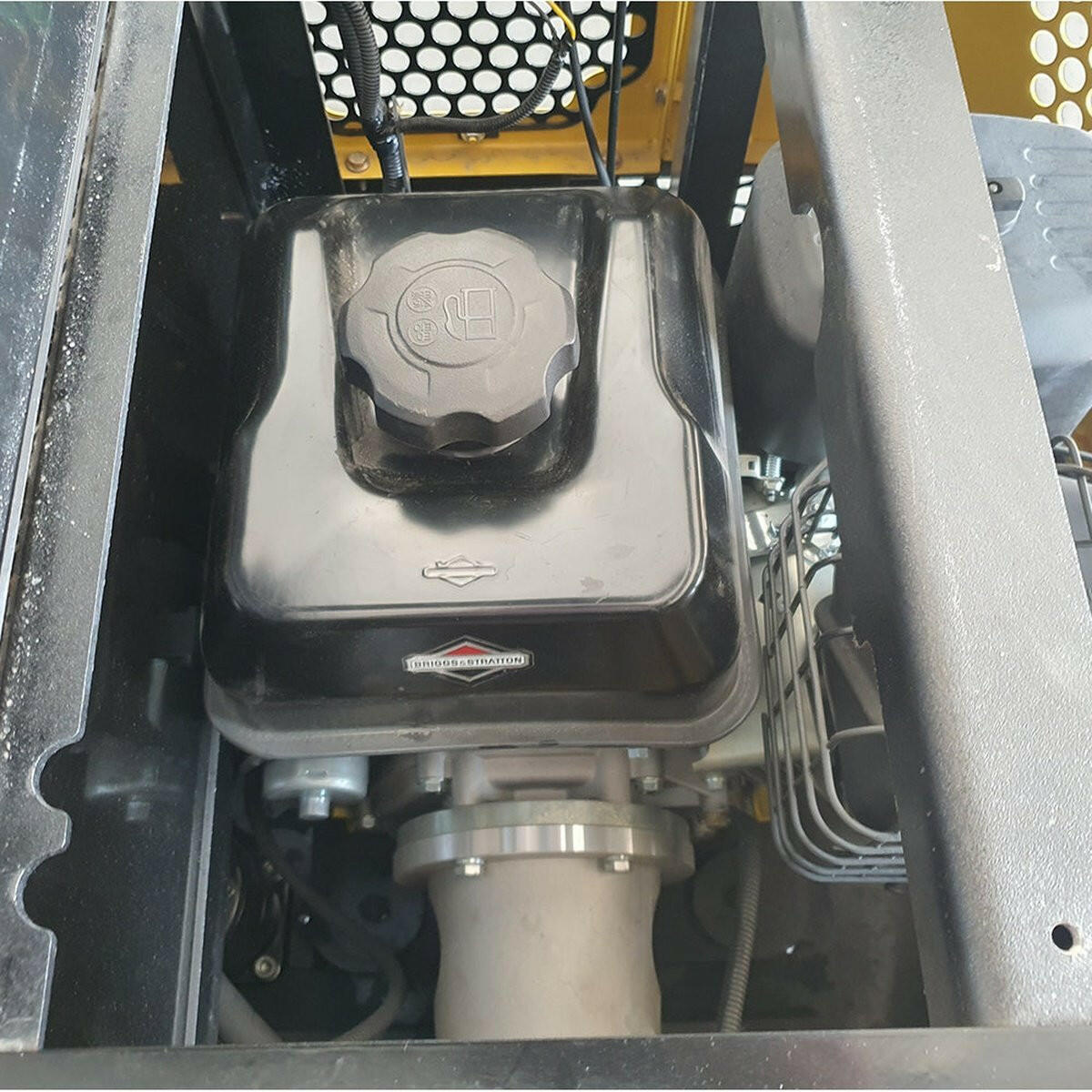

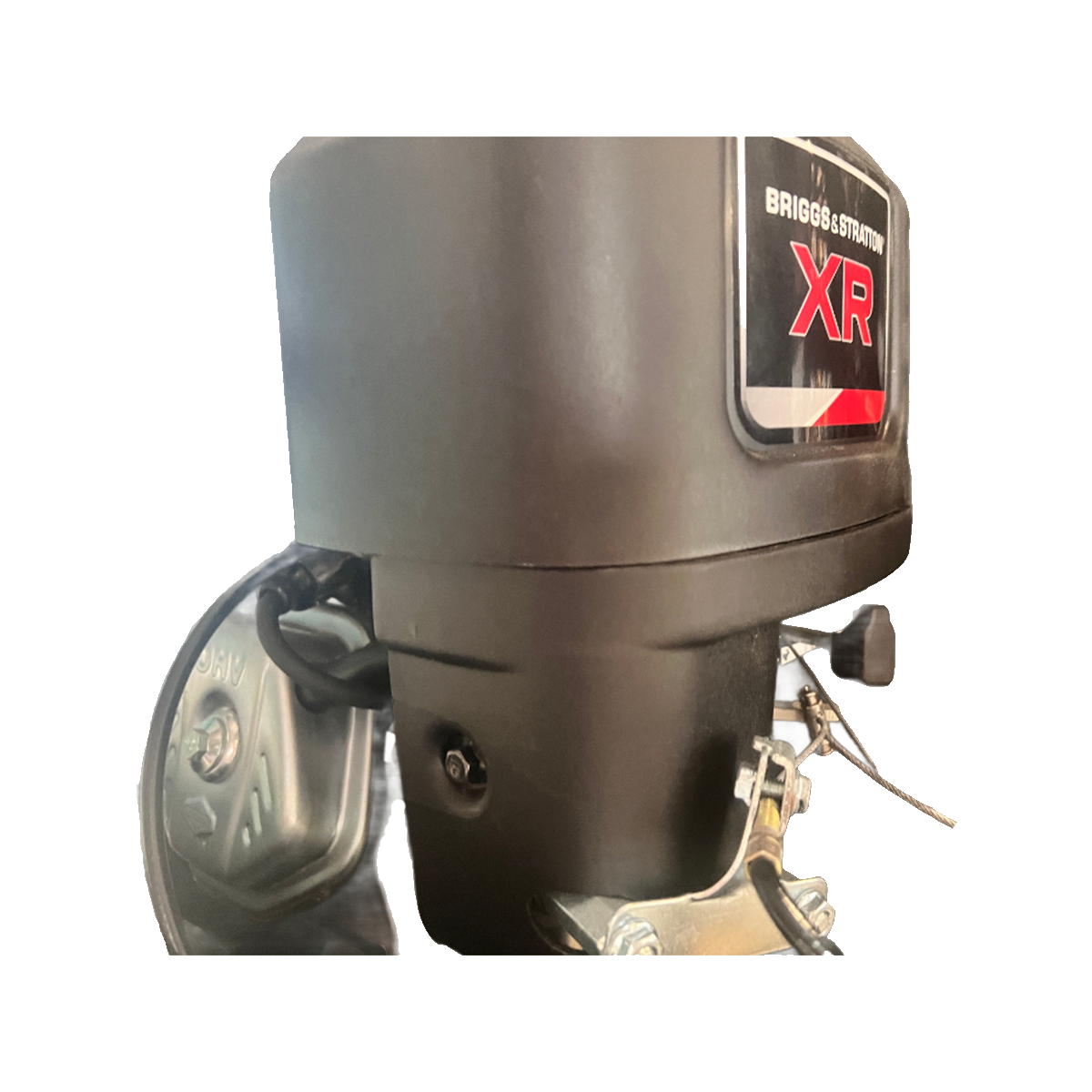

B&S XR 420cc Engine
Briggs & Stratton XR series 420cc gasoline engine at 13.5 HP (10 kW) — the commercial-tier B&S line built for professional equipment durability. 0.5–1.2 L/hr fuel consumption and 6.6 L tank for practical daily runtime.
Farm & Tight Site Agility
At 1 ton with a 25.5″ tail swing and 87″ overall length, the QH12 navigates farm lanes, orchard rows, greenhouse paths, and residential gardens where larger machines are impractical. Compact enough to be agile, capable enough for daily professional excavation and digging tasks.
65″ Maximum Digging Depth
1,650mm (65″) of maximum digging depth — sufficient for drainage, small utilities, garden earthwork, and foundation prep at typical residential and agricultural depths. Paired with the 134″ reach for effective coverage across a wide digging arc.
Full Specifications
Engine
| Engine Brand & Model | Briggs & Stratton XR |
| Fuel Type | Gasoline |
| Rated Power | 13.5 HP (10 kW) |
| Displacement | 420 cc |
| Fuel Tank | 6.6 L / 1.7 gal |
| Fuel Consumption | 0.5 – 1.2 L/hr |
Performance
| Operating Weight | 1 Ton / 2,200 lbs |
| Tail Swing Radius | 25.5 in / 648 mm |
| Max Digging Depth | 1,650 mm / 65 in |
| Max Digging Height | 2,400 mm / 94.5 in |
| Max Dumping Height | 1,670 mm / 66 in |
| Max Reach at Ground | 3,400 mm / 134 in |
Dimensions
| Overall Length | 2,220 mm / 87 in |
| Overall Width | 1,000 mm / 39 in |
| Overall Height | 2,220 mm / 87 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 37 |
Dozer Blade
| Blade Width | 910 mm / 35 in |
| Blade Height | 230 mm / 9 in |
Everything Included
✓
B&S XR 420cc 13.5 HP Engine
✓
Dozer Blade (35″ wide)
✓
Rubber Tracks (180×72×37)
✓
Bucket
✓
ROPS Canopy
✓
1-Year Warranty on Parts
Included — By Category
Engine & Hydraulics
B&S XR 420cc 13.5 HP Gasoline
Cab & Structure
ROPS Canopy
Rubber Tracks (180×72×37)
Dozer Blade (910mm / 35″)
Attachments
Bucket
Warranty
1-Year Warranty on Parts
Built For
Farm & Agricultural Work
Tight Access Sites
Residential Backyards
Gardens & Orchards
Light Trenching
Landscaping
Utility Installation
Surface-Sensitive Sites
Residential Construction
