AHM Corp · AX-16 · 1.3-Ton B&S Engine Mini Excavator

23 HP · 3,262 lbf Digging Force · External Hydraulic Hoses

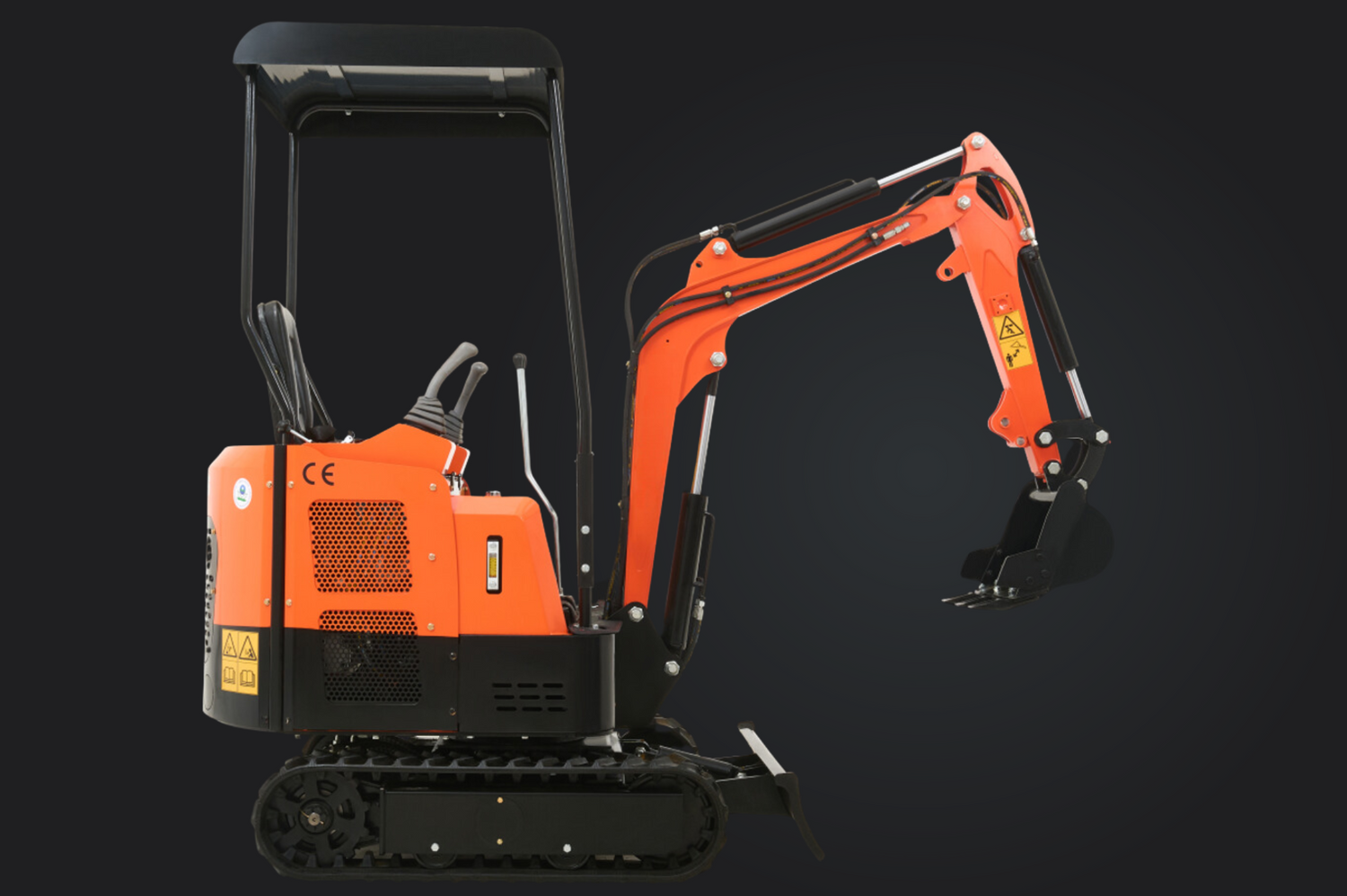

AHM AX-16 Mini Excavator

Name: AX-16 | 23 HP 1.3 Ton B&amp;S Engine Mini Excavator
SKU: EXC-1601-A1&AMP-W002-A1&SER-FKLT-US-[gslily]1+1+1
Availability: InStock

B&S 23 HP — 3,262 lbf Force — External Hose Maintenance — High-Flow Hydraulics

AHM’s most powerful compact excavator. The AX-16 steps up to a 23 HP B&S engine delivering 35 lb-ft of torque and 3,262 lbf (14.5 kN) of bucket digging force — 61% more force than the AX-12C. External hydraulic hoses enable easy maintenance access, while enhanced hydraulics support high-flow attachments including augers, rippers, and mulcher heads. Black and yellow livery, sturdy steel construction.

Digging Force

3,262

lbf (14.5 kN)

61% more force than the AX-12C. Handles hard ground and demanding excavation with authority.

Engine Power

23 HP

35 lb-ft Torque

B&S engine with superior heat dissipation — the most powerful in the AHM compact range.

Max Dig Depth

70.6″

1,795 mm / 5.9 ft

Deep reach for foundations, utility corridors, and drainage installations.

Easy Maintenance

External

Hydraulic Hoses

External hose routing for quick routine checks — minimising downtime on busy job sites.

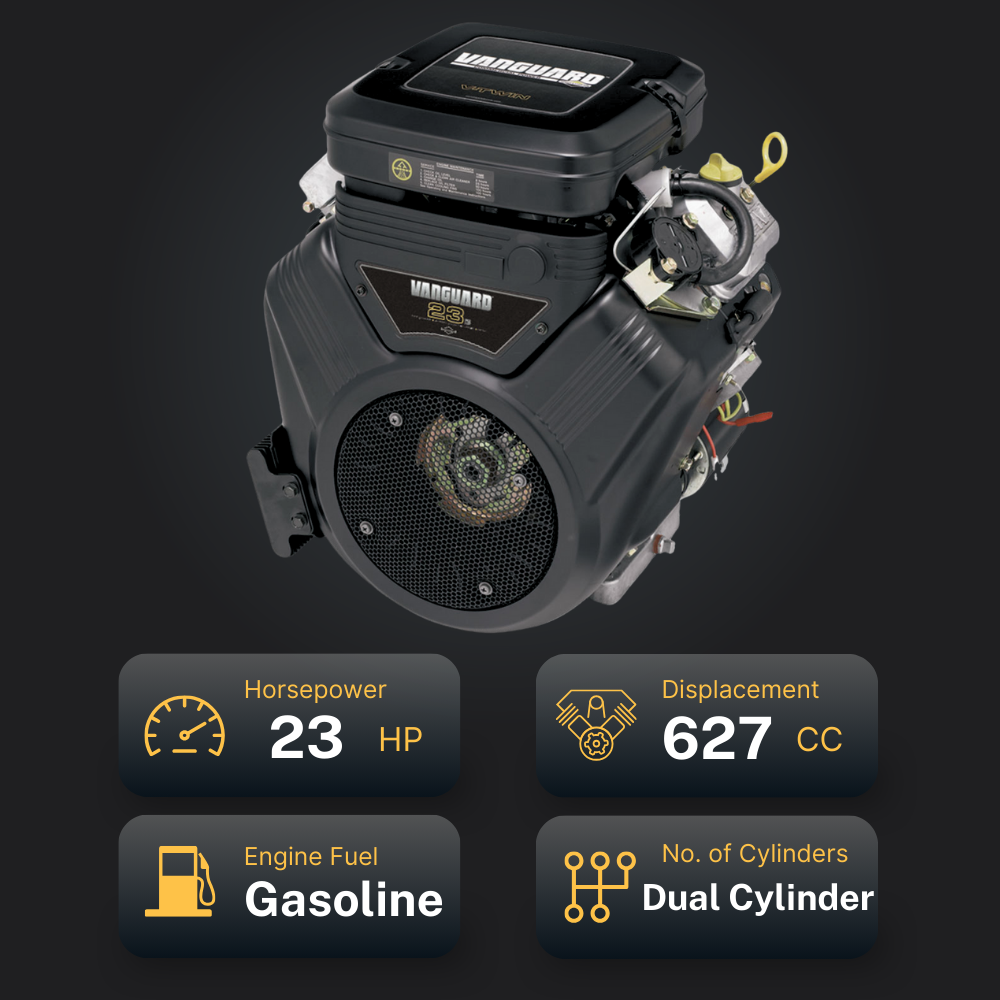

B&S Engine — 23 HP

Briggs & Stratton 23 HP — 35 lb-ft torque @ 3,060 RPM — Gasoline · 3,262 lbf (14.5 kN) bucket digging force · Enhanced high-flow hydraulics · External hydraulic hoses · 8 L fuel tank · ~1.5 L/hr consumption · 12.7 L hydraulic tank

23 HP

B&S Engine

3,262 lbf

Digging Force

70.6″

Max Dig Depth

30°

Max Slope Grade

AHM Compact Range — Where the AX-16 Sits

AX-12B

13.5 HP · 2,585 lbf · Open Canopy

AX-12C

13.5 HP · 2,023 lbf · Enclosed Cab

AX-16 ▲ You are here

23 HP · 3,262 lbf · External Hoses

Key Features

23 HP — Most Powerful in the AHM Range

B&S 23 HP engine with 35 lb-ft of torque at 3,060 RPM — significantly more power than the 13.5 HP engines in the AX-12 series. More horsepower means faster digging cycles, better performance in harder ground conditions, and the ability to run high-flow attachments with full authority.

3,262 lbf Digging Force

Maximum bucket digging force of 3,262 lbf (14.5 kN) — 61% more than the AX-12C’s 2,023 lbf. Handles compact clay, hardpan, and rocky ground conditions that the lighter AX-12 series struggles with. The step-up machine for demanding daily excavation.

External Hydraulic Hoses — Easy Maintenance

External hydraulic hose routing provides quick access for routine checks and maintenance without disassembling body panels. Easily accessible component compartment minimises downtime and keeps the machine running at peak performance on busy job sites.

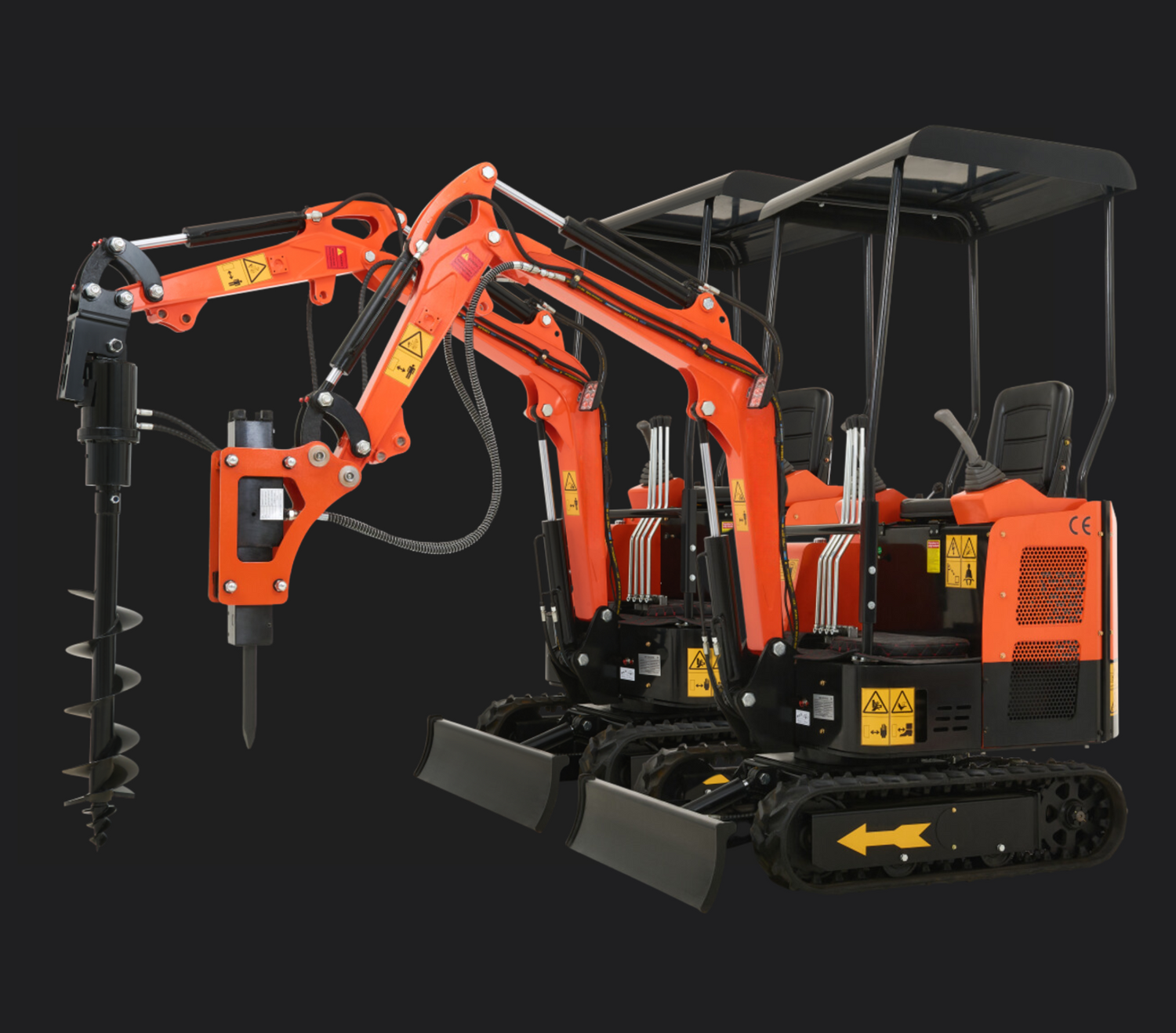

Enhanced Hydraulics — High-Flow Attachment Ready

Enhanced hydraulic system supporting high-flow attachments — augers, rippers, and mulcher heads compatible (not included). More power behind the hydraulics at 23 HP means faster, more capable attachment performance than the AX-12 platform.

Larger Fuel Tank — 8 L

8 L fuel tank vs the 6.6 L on the AX-12 series. More fuel capacity for extended daily operation without mid-shift refuelling stops — important given the higher fuel consumption at 23 HP (~1.5 L/hr vs ~1 L/hr).

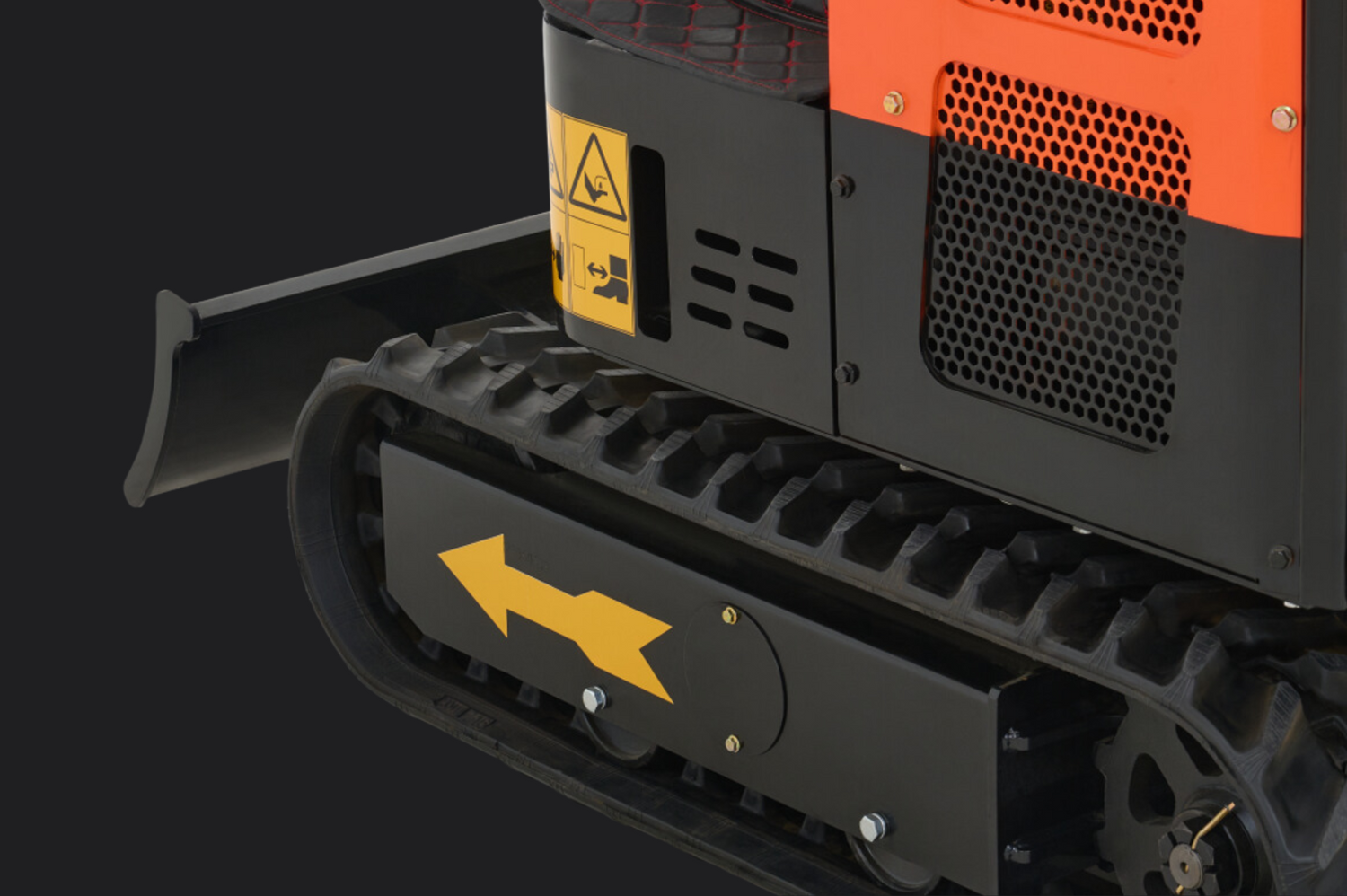

Cut & Wear Resistant Rubber Tracks

16.2 in. ground clearance on heavy-duty rubber tracks for operation on turf, paved surfaces, rocky terrain, and indoor flooring without damage. 48.5 in. track length for a stable, balanced footprint under heavier digging loads.

Full Specifications

Engine

Engine Brand	Briggs & Stratton
Rated Power	23 HP
Rated Torque	35 lb-ft at 3,060 RPM
Fuel Type	Gasoline
Fuel Tank	8 L / 2.1 gal
Fuel Consumption	~1.5 L/hr (0.4 gal/hr)
Hydraulic Tank	12.7 L / 3.4 gal

Performance

Load Capacity / Operating Weight	980 kg / 2,000 lbs (1 Ton)
Max Bucket Digging Force	3,262 lbf (14.5 kN)
Max Digging Depth	1,795 mm / 70.6 in / 5.9 ft
Max Dumping Height	1,505 mm / 59.2 in
Max Digging Radius	2,900 mm / 114.2 in / 9.5 ft
Overall Height	2,200 mm / 86.6 in / 7.3 ft
Max Slope Grade	30°
Platform Ground Clearance	410 mm / 16.2 in
Overall Track Length	1,230 mm / 48.5 in
