AHM Corp · AX-12 · 1-Ton B&S Engine Mini Excavator

2,586 lbf Digging Force · Internal Hydraulic Hoses · Rear-Opening Compartment

AHM AX-12 Mini Excavator

Name: AX-12 | 13.5 HP B&amp;S Engine Mini Excavator
SKU: EXC-1203-A1&SER-FKLT-US-[gslily]1+1
Availability: InStock

B&S 13.5 HP — Internal Hoses — Rear Service Access — 73″ Dig Depth — 123″ Reach

A refined 1-ton compact excavator with two specific upgrades over the AX-12B: internal hydraulic hoses for reduced damage risk, and a rear-opening maintenance compartment for fast access to critical components. With 2,586 lbf of digging force, 73″ of maximum dig depth, and 123″ of ground reach — slightly more reach and depth than the AX-12B — on the same proven B&S 13.5 HP platform.

Digging Force

2,586

lbf (11.5 kN)

Powerful excavation force from a 13.5 HP B&S engine with superior heat dissipation.

Internal Hoses

Safer

Reduced Damage Risk

Internal hydraulic hose routing protects lines from job site debris and impact.

Max Dig Depth

73″

1,855 mm / 6.1 ft

More depth than the AX-12B (68.9″) — better reach for foundations and utility work.

Max Reach

123″

3,130 mm / 10.3 ft

More ground reach than the AX-12B (120″) for fewer machine repositioning stops.

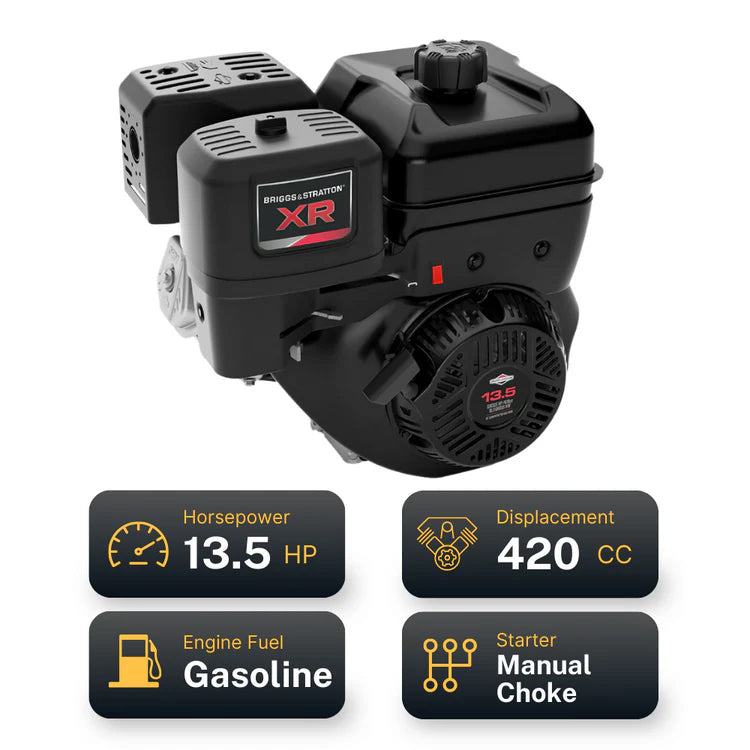

B&S Engine

Briggs & Stratton 13.5 HP — 21 lb-ft torque @ 3,060 RPM — Gasoline · 2,586 lbf digging force · Internal hydraulic hoses · Rear-opening service compartment · Enhanced high-flow hydraulics · 6.6 L fuel tank · ~1 L/hr · 14.7 L hydraulic tank

13.5 HP

B&S Engine

980 kg

Load Capacity

15.7″

Bucket Width

30°

Max Slope Grade

AHM Compact Range — Where the AX-12 Sits

AX-12B

13.5 HP · 2,585 lbf · Open canopy

AX-12 ▲ You are here

13.5 HP · 2,586 lbf · Internal hoses

AX-12C

13.5 HP · 2,023 lbf · Enclosed cab

AX-16

23 HP · 3,262 lbf · External hoses

Key Features

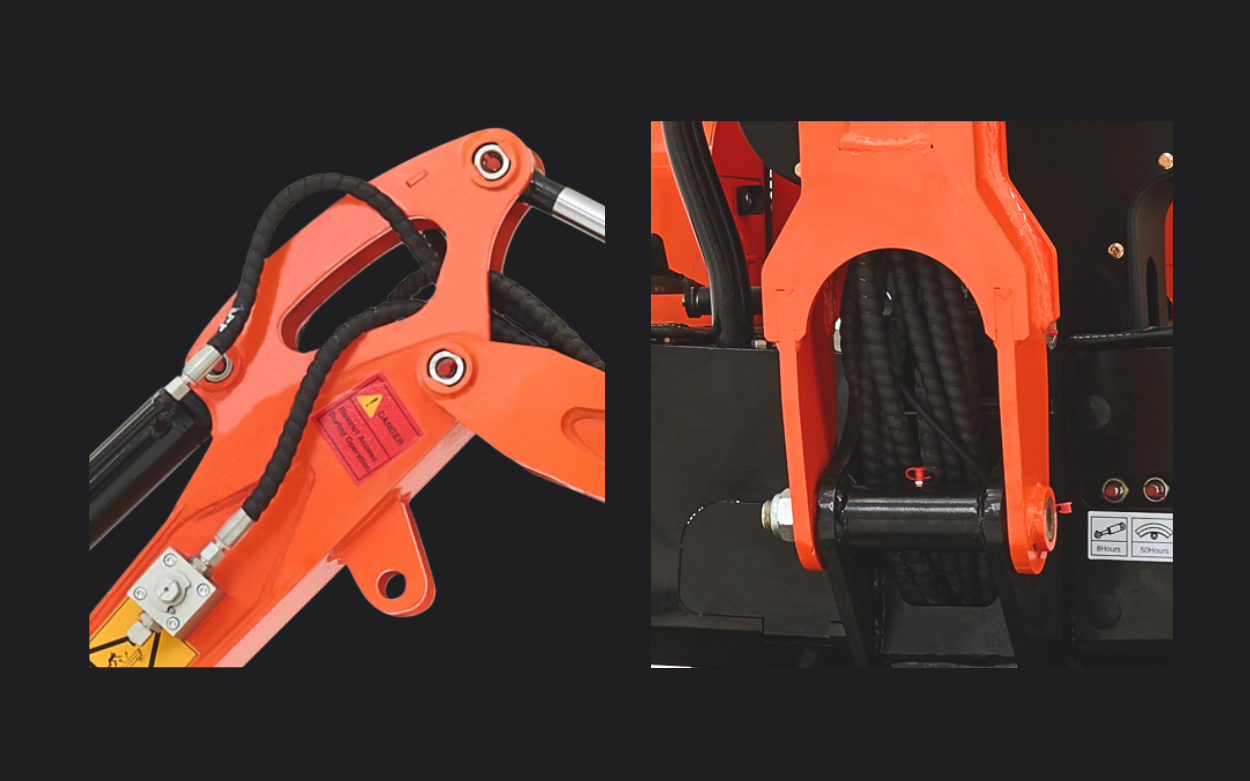

Internal Hydraulic Hoses — Safer by Design

Hydraulic hoses routed internally — protected from job site debris, tool impacts, and abrasion that can damage externally routed lines over time. Reduces the risk of hose damage on active construction and landscaping sites where lines are vulnerable to contact with materials, rocks, and equipment.

Rear-Opening Maintenance Compartment

Rear-access compartment opens for fast, tool-efficient access to critical hydraulic and engine components. Routine checks and maintenance are quicker and easier — minimising downtime and keeping the machine at peak performance without having to work around the boom or tracks.

2,586 lbf Digging Force

Maximum bucket digging force of 2,586 lbf (11.5 kN) from a 13.5 HP B&S engine with 21 lb-ft torque and superior heat dissipation. Handles foundations, compact soil, and hard-ground trenching with precise and powerful performance throughout the working day.

73″ Dig Depth & 123″ Reach

1,855mm (73″) of maximum digging depth and 3,130mm (123.2″) of ground reach — both slightly more than the AX-12B. More depth handles deeper utility trenches and foundation cuts; more reach reduces repositioning frequency on larger excavation areas.

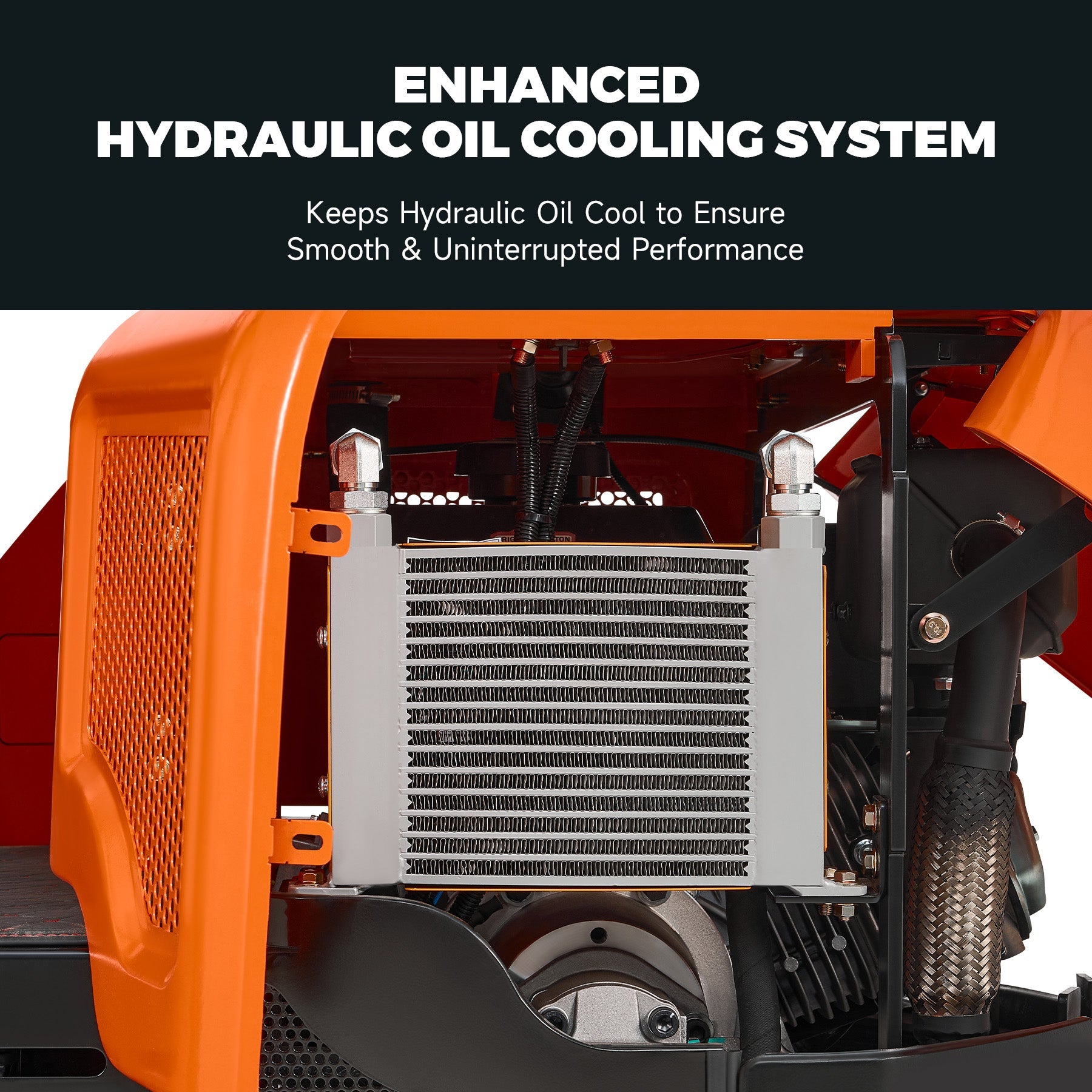

Enhanced Hydraulics — Attachment Ready

Enhanced hydraulic system supporting high-flow attachments including augers, rippers, and mulcher heads (not included). Ready for concrete cutting, tree mulching, and powered attachment work without additional hydraulic modifications.

Cut & Wear Resistant Rubber Tracks

Heavy-duty rubber tracks with 16.2 in. (410mm) ground clearance for operation on turf, paved surfaces, rocky terrain, and indoor flooring without surface damage. 48.5 in. (1,230mm) track length for a stable, balanced footprint under load.

Full Specifications

Engine

Engine Brand	Briggs & Stratton
Rated Power	13.5 HP
Rated Torque	21 lb-ft at 3,060 RPM
Fuel Type	Gasoline
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	~1 L/hr (0.3 gal/hr)
Hydraulic Tank	14.7 L / 3.9 gal

Performance

Load Capacity / Operating Weight	980 kg / 2,000 lbs (1 Ton)
Bucket Digging Force	2,586 lbf (11.5 kN)
Max Digging Depth	1,855 mm / 73 in / 6.1 ft
Max Dumping Height	1,605 mm / 63 in
Max Digging Radius	3,130 mm / 123.2 in / 10.3 ft
Overall Height	2,270 mm / 89.4 in / 7.5 ft
Max Slope Grade	30°
Platform Ground Clearance	410 mm / 16.2 in
Overall Track Length	1,230 mm / 48.5 in

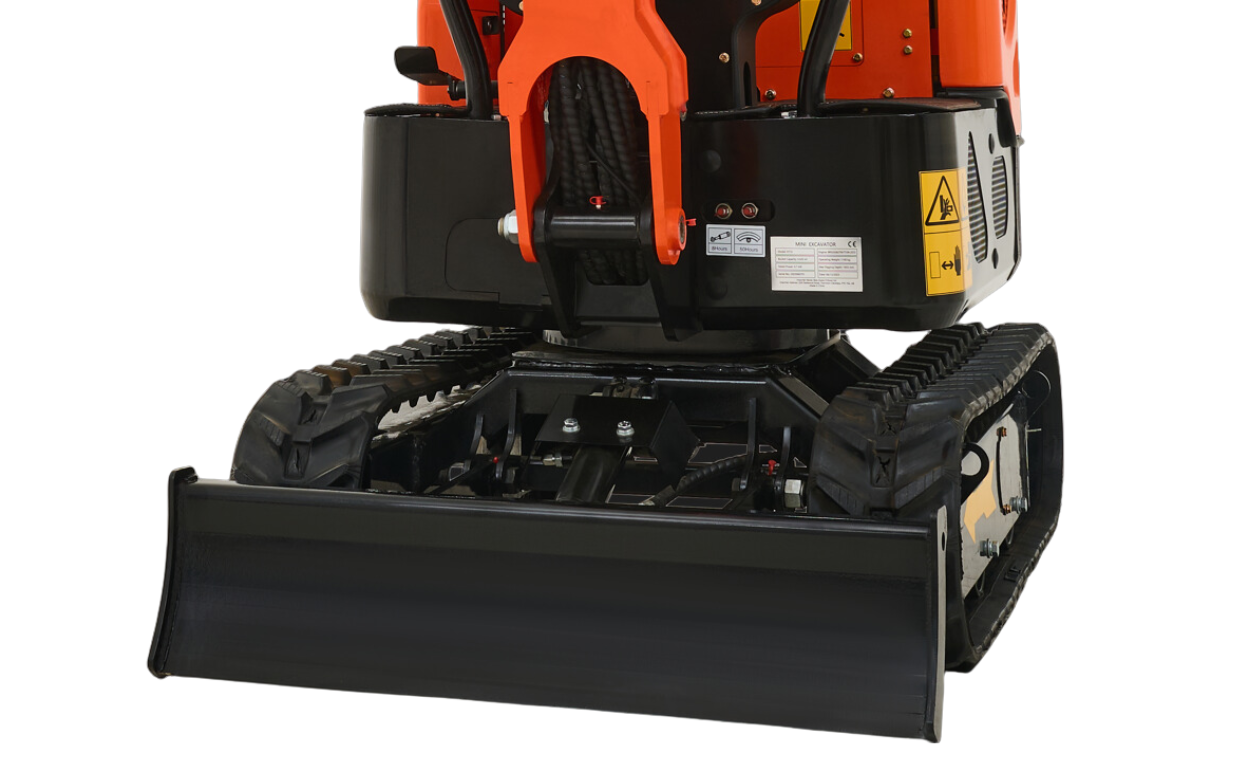

Bucket & Blade

Bucket Width	400 mm / 15.7 in
Bucket Volume	0.03 m³ / 0.9 ft³
Dozer Lift Height	320 mm / 12.6 in
Dozer Drop Depth	200 mm / 7.8 in

Construction & Maintenance

Frame Material	Steel
Track Material	Cut & Wear Resistant Rubber
Color	Black / Yellow
Hydraulic Hose Routing	Internal (Reduced Damage Risk)
Service Access	Rear-Opening Compartment
Warranty	1 Year
