AHM Corp · AY-25J · 2.5-Ton Perkins Diesel Mini Excavator

Perkins Diesel · Load-Sensing Hydraulics · 2-Speed Travel · 9 ft Dig Depth

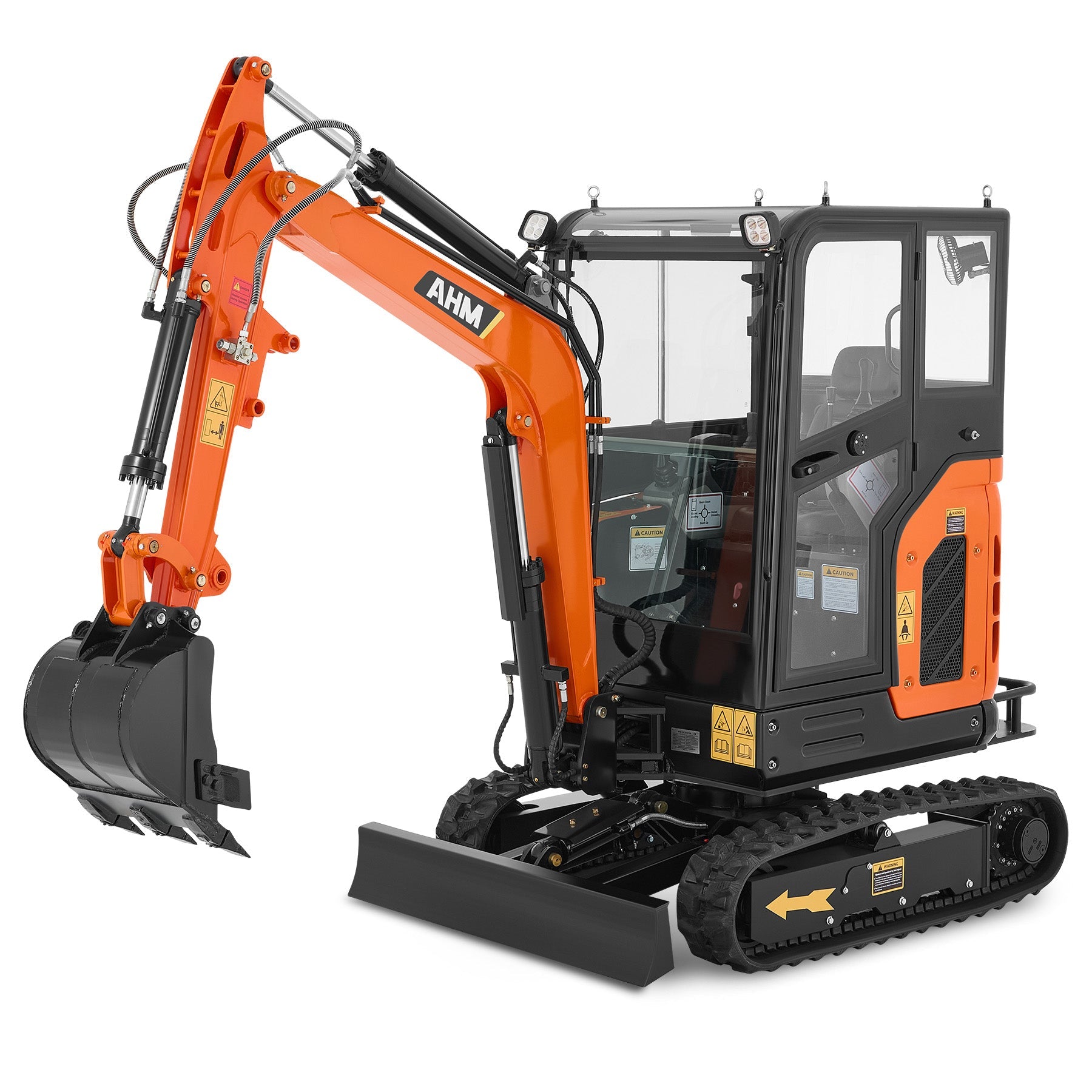

AHM AY-25J Mini Excavator

Name: AY-25J | 25 HP Perkins Diesel Engine 2.5 Ton Mini Excavator with Swing Boom &amp; Adjustable Speed
SKU: EXC-25E2-A1&SER-FKLT-US-[gslily]1+1
Availability: InStock

Perkins 25 HP EPA — 2.5 Ton — Swing Boom — Load-Sensing System — Enclosed Cab

AHM’s most capable excavator — and the only model in the range with a Perkins diesel engine. At 2.5 tons, the AY-25J delivers 9 feet of digging depth, 14’5″ of ground reach, 992 lb load capacity, a load-sensing hydraulic system that automatically adjusts power to match the task, 2-speed travel (2.8 mph / 1.6 mph), asymmetric swing boom, and a full enclosed cab with integrated fan.

Perkins Diesel

25 HP

18.4 kW — EPA

Perkins — the industrial diesel engine brand trusted by Caterpillar, JCB, and major OEMs globally.

Dig Depth

9 ft

2,752 mm / 108.3 in

The deepest digging reach in the AHM range — for deep foundations, utility corridors, and drainage.

Load Capacity

992 lb

450 kg

Nearly double the AX-17J’s 551 lb. Handles heavy pipe, rock, and timber placement with authority.

Load-Sensing

Auto

Hydraulic System

Automatically adjusts hydraulic power to match task demands — faster work, less fuel consumption.

Perkins Diesel Engine — 25 HP (18.4 kW) — EPA Certified
Perkins is the industrial diesel engine brand used by Caterpillar, JCB, Massey Ferguson, and major construction OEMs globally. Known for exceptional reliability, low emissions, long service life, and worldwide parts availability. The AY-25J is the only AHM model with a Perkins engine — a significant step up in engine pedigree from both B&S gasoline and Kubota diesel alternatives in the range.

25 HP

Perkins Diesel

2.5 Ton

Operating Weight

108.3″

Max Dig Depth

173″

Max Ground Reach

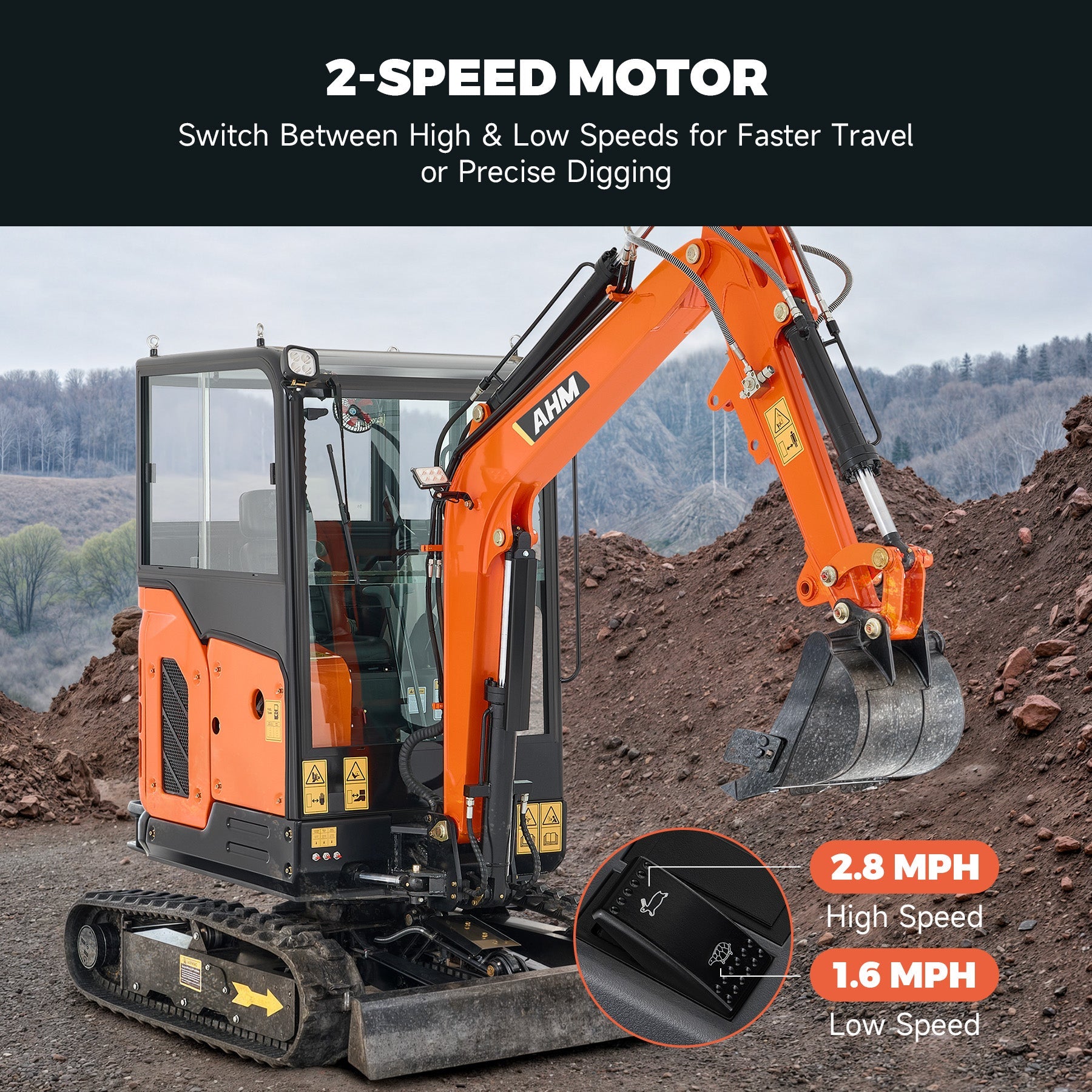

2-Speed Adjustable Travel — Match Speed to the Task

2.8 mph

High Speed

Fast travel across the job site between dig positions — minimising time spent repositioning on larger excavation areas.

1.6 mph

Low Speed — Precision

Controlled, precise movement for detailed digging, working on slopes, and maneuvering in confined spaces.

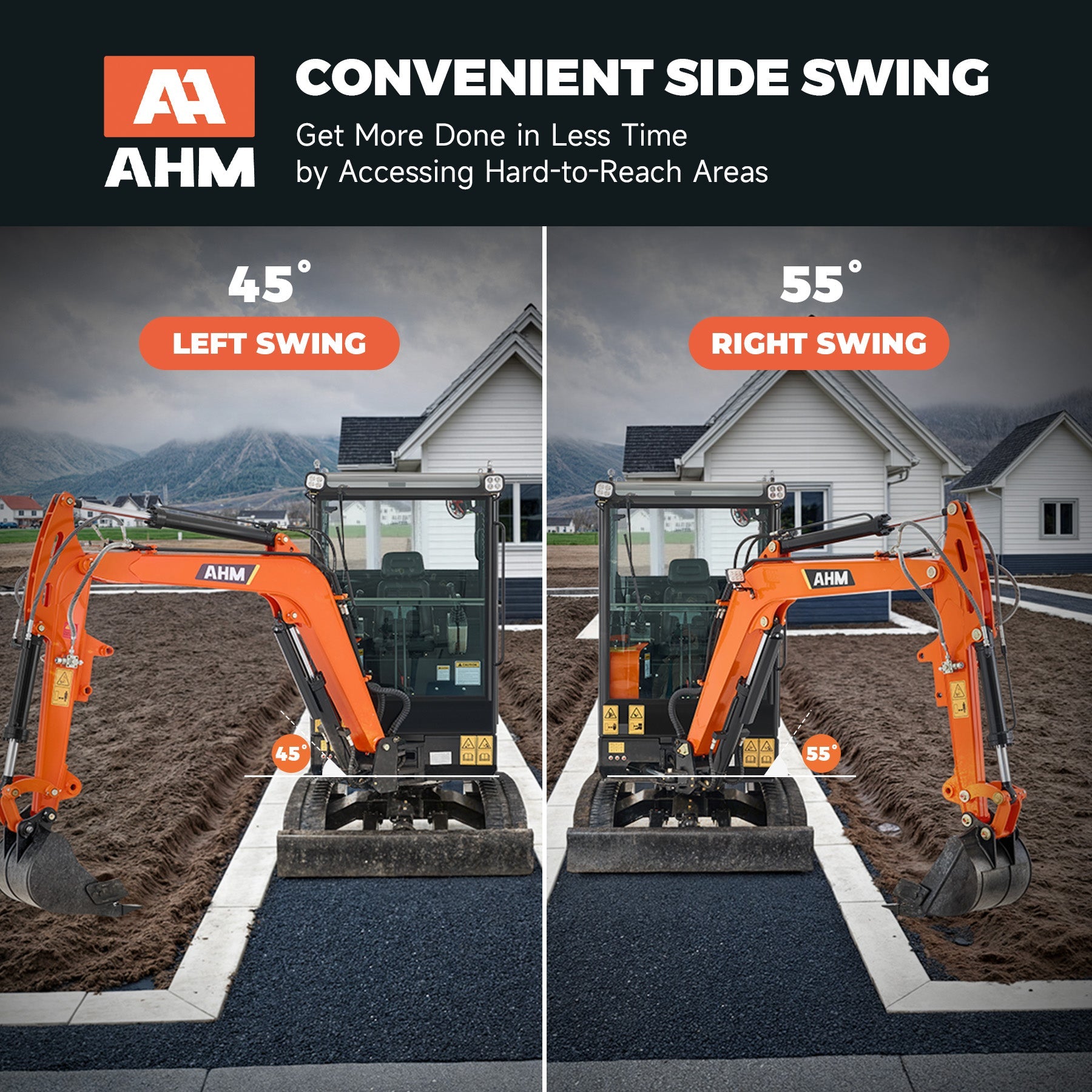

Swing Boom Arc

Asymmetric Swing Boom — 45° Left / 55° Right

45°

Left

55°

Right

Asymmetric swing optimised for working alongside walls and structures — 10° more reach to the right where operators most commonly need it. Maximise access in tight spaces without repositioning the machine.

AHM Range — The AY-25J at the Top

AX-12 Series

B&S 13.5 HP · 1 Ton · Various configs

AX-15 / AX-16

13.8–23 HP · 1.1–1.3 Ton

AX-17 / AX-17J

23 HP · 1.6 Ton · Swing Boom

AY-25J ▲ Flagship

Perkins 25 HP · 2.5 Ton · Load-Sensing

Key Features

Perkins Diesel — Industrial Engine Pedigree

25 HP Perkins diesel — the engine brand trusted by Caterpillar, JCB, Massey Ferguson, and major construction OEMs globally. Perkins engines are specified for their exceptional reliability, low emissions, long service life, and global parts network. The AY-25J is the only AHM model with a Perkins engine — a genuine step up in engine pedigree over B&S gasoline and Kubota diesel alternatives.

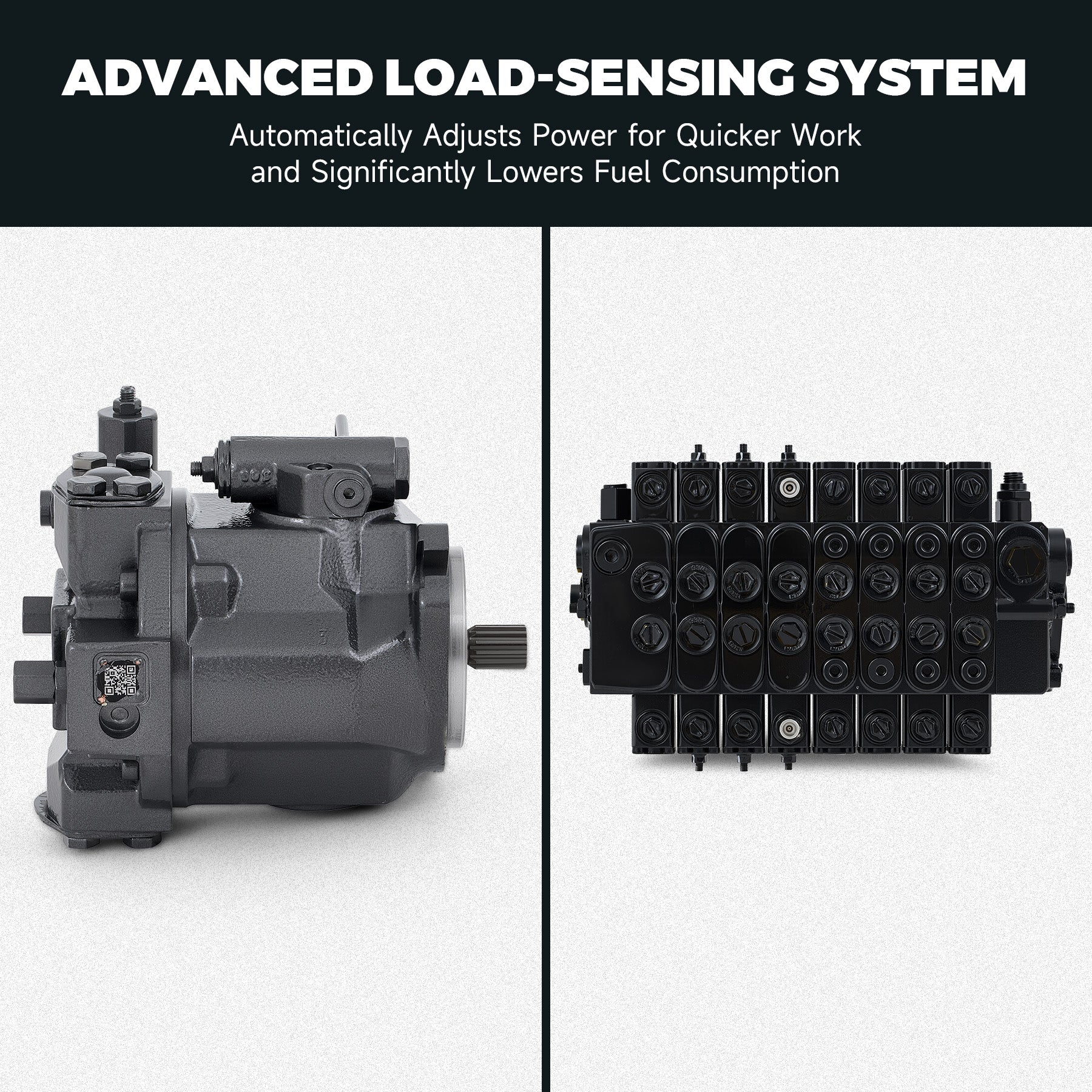

Load-Sensing Hydraulic System

Advanced load-sensing system automatically adjusts hydraulic power output to match the current task — delivering more power when the machine works hard and reducing output during lighter work. The result: faster task completion, better fuel efficiency, and lower operational costs compared to fixed-output hydraulic systems.

9 ft Maximum Digging Depth

2,752mm (9 ft / 108.3 in) of maximum digging depth — the deepest in the AHM range, significantly more than the 88.9 in of the AX-17 series. Handles deep utility corridors, drainage channels, and foundation cuts that smaller machines simply cannot reach. 4,387mm (173 in / 14’5″) of ground reach for working at distance.

2-Speed Travel — 2.8 mph / 1.6 mph

Two selectable travel speeds: 2.8 mph for fast movement between dig positions across large sites, and 1.6 mph for precise, controlled maneuvering on slopes, in confined spaces, and during detailed positioning. The AX-17 series has single-speed travel; the AY-25J adds genuine flexibility.

992 lb Load Capacity

450 kg (992 lb) rated load capacity — the highest in the AHM range, nearly double the AX-17J’s 551 lb. Safely handles heavy pipe sections, large rocks, timber, and construction materials that exceed the safe lifting capacity of lighter machines in the range.

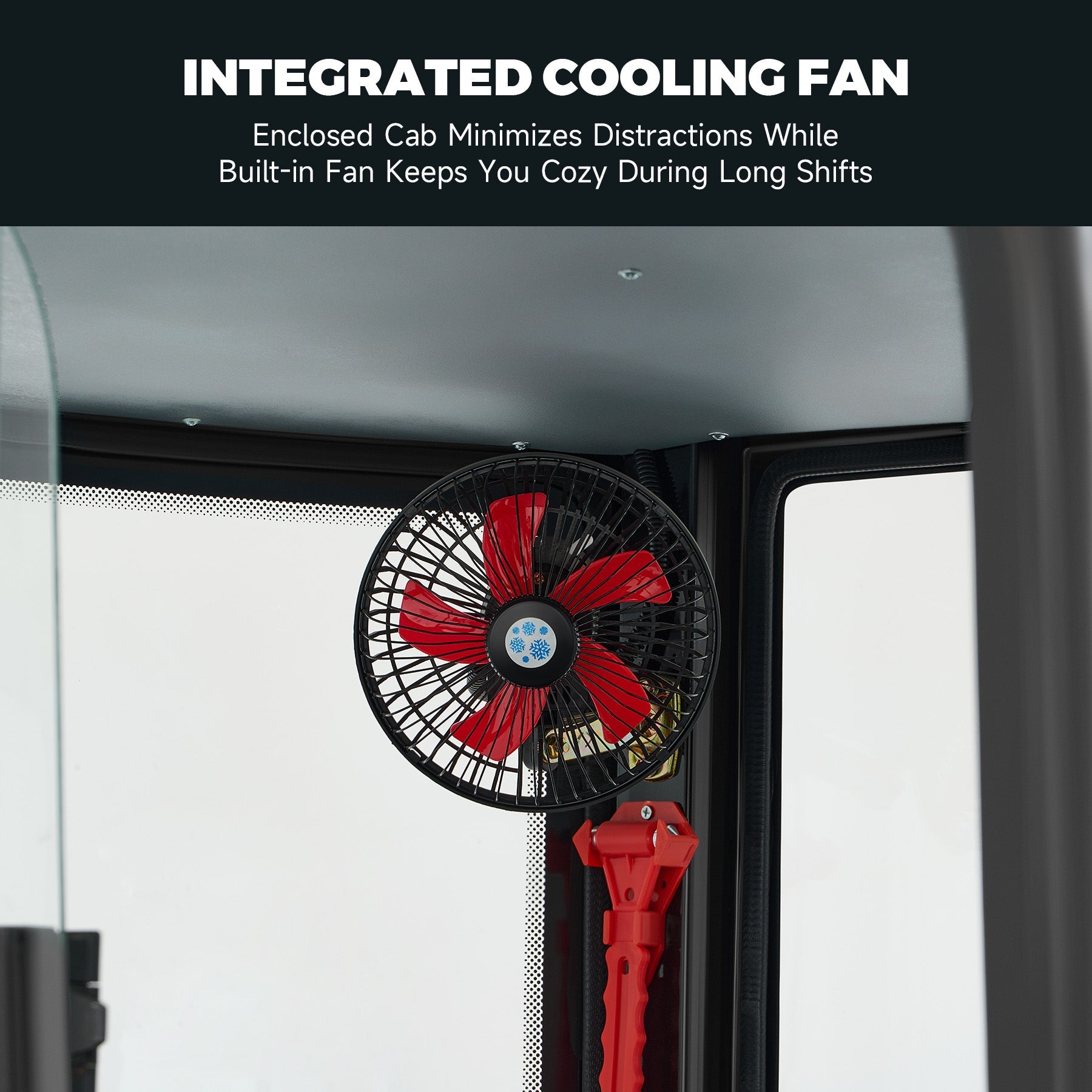

Enclosed Cab + Fan & Swing Boom

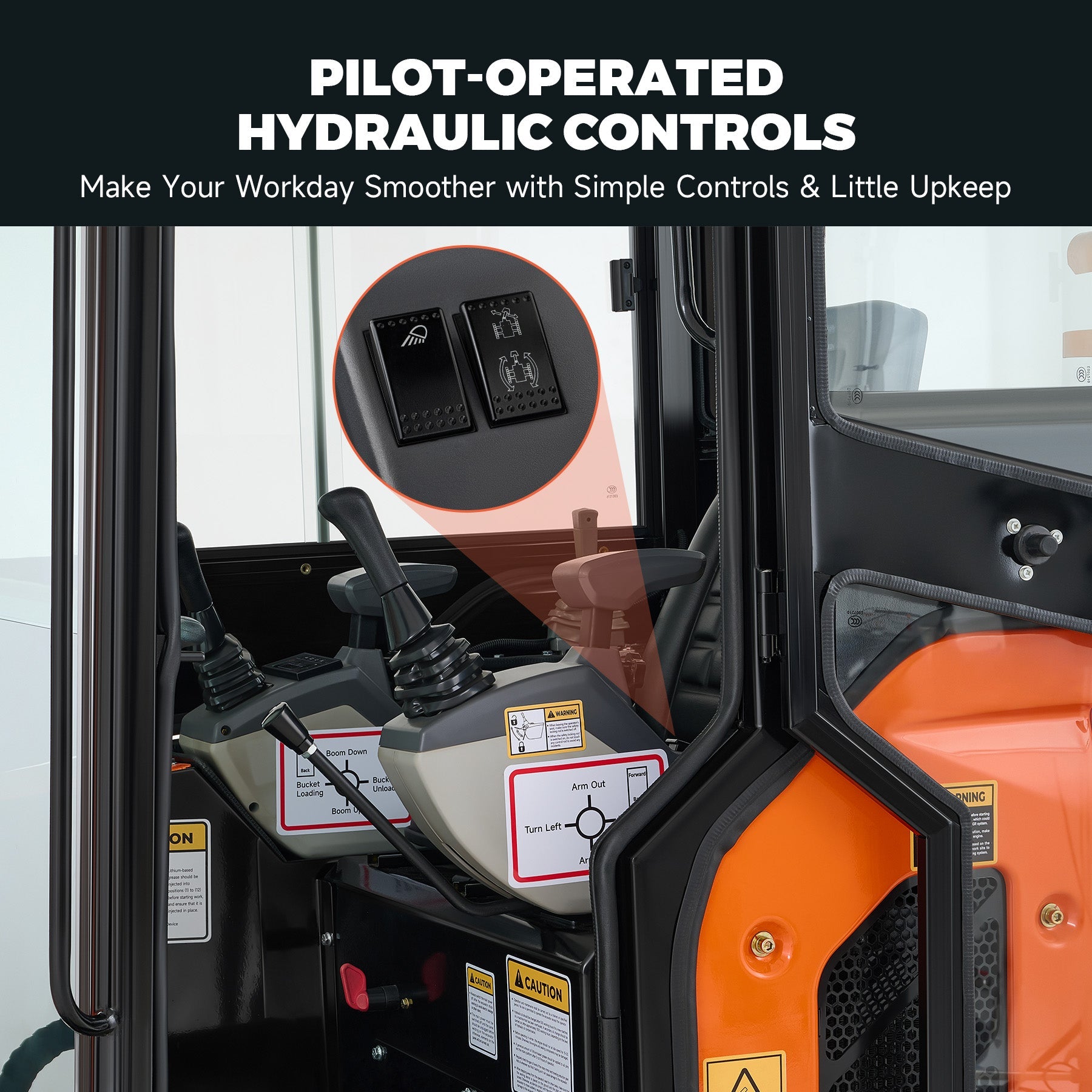

Fully enclosed operator cab with integrated fan for comfortable all-weather operation during extended shifts. Asymmetric swing boom (45° left / 55° right) for tight-access work alongside walls and obstacles. Pilot-operated hydraulic controls, hydraulic oil cooler, and safety lock complete a fully professional operator environment.

Full Specifications

Engine

Engine Brand	Perkins (Industrial Diesel)
Engine Power	25 HP (18.4 kW) — EPA Certified
Fuel Type	Diesel
Fuel Tank	16 L / 4.2 gal
Fuel Consumption	3 L/hr (0.8 gal/hr)

Hydraulic System

Hydraulic System Type	Load-Sensing (Auto Power Adjustment)
Hydraulic Controls	Pilot-Operated
Hydraulic Oil Cooler	Included
Safety Lock	Included

Performance

Operating Weight	2.5 Ton
Max Load Capacity	992 lbs (450 kg)
Max Digging Depth	2,752 mm / 108.3 in / 9 ft
Max Digging Height	3,427 mm / 134.9 in / 11.2 ft
Max Digging Radius	4,387 mm / 172.7 in / 14.4 ft
Travel Speed — High	2.8 mph
Travel Speed — Low	1.6 mph
Max Slope Grade	25°
Side Swing — Left	45°
Side Swing — Right	55°
