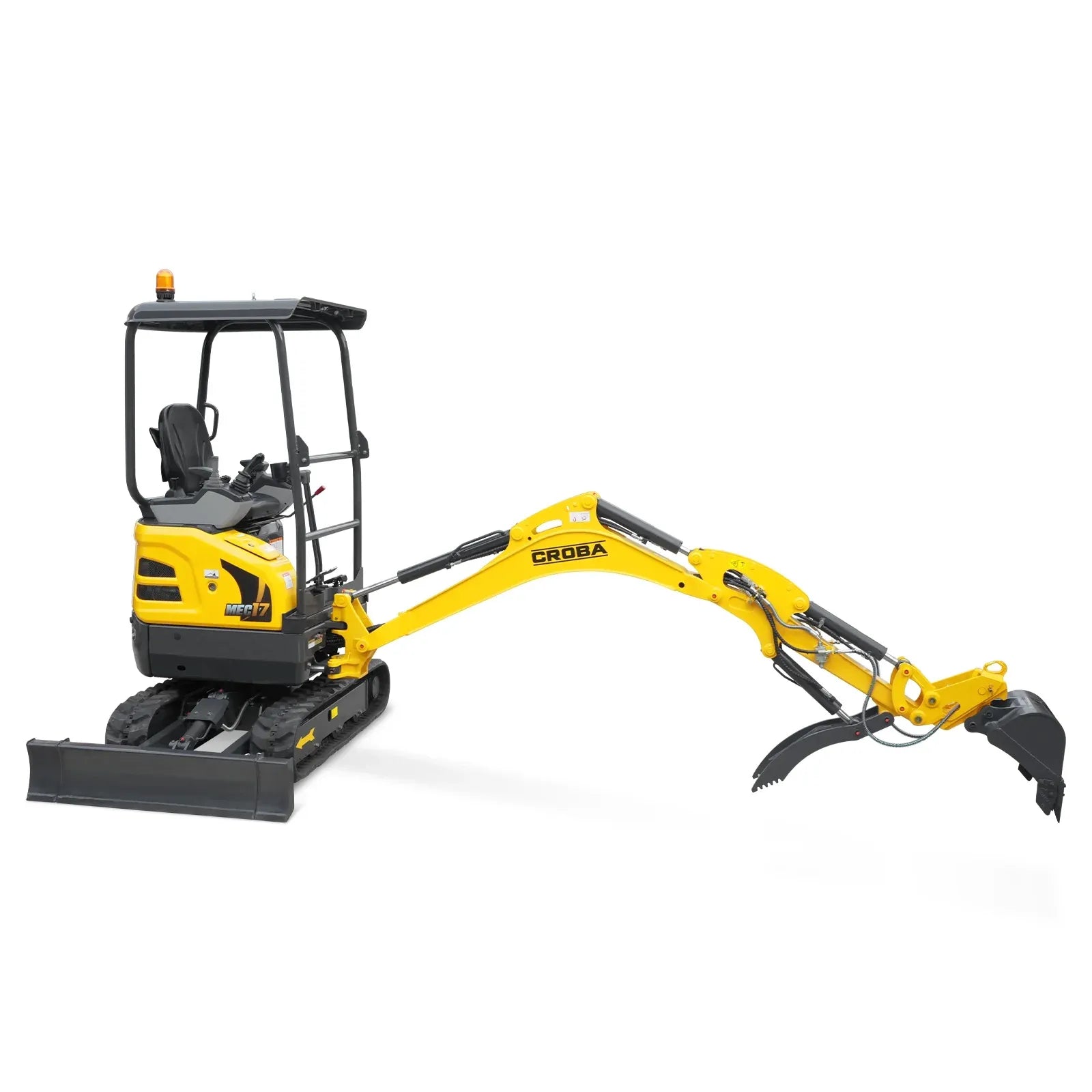

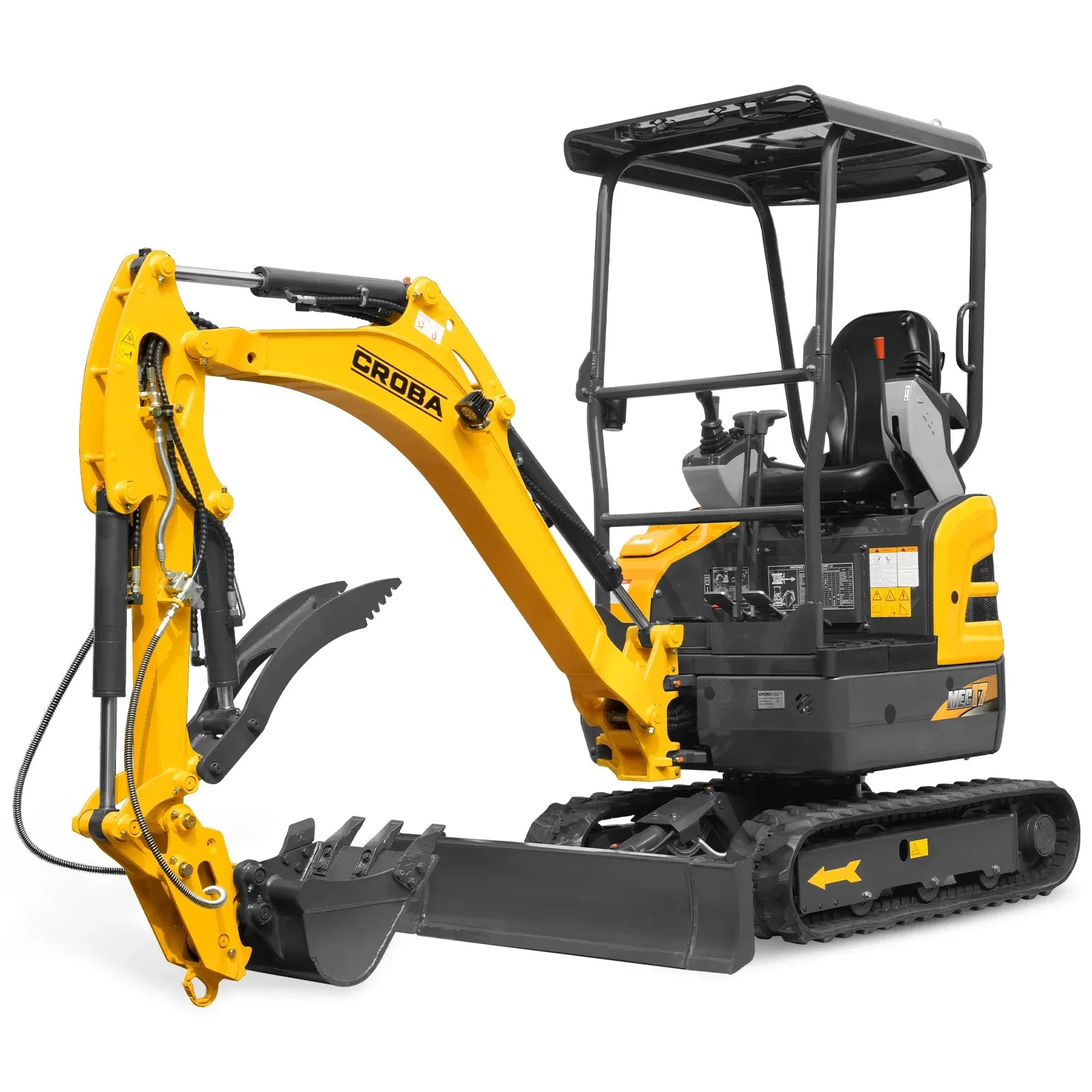

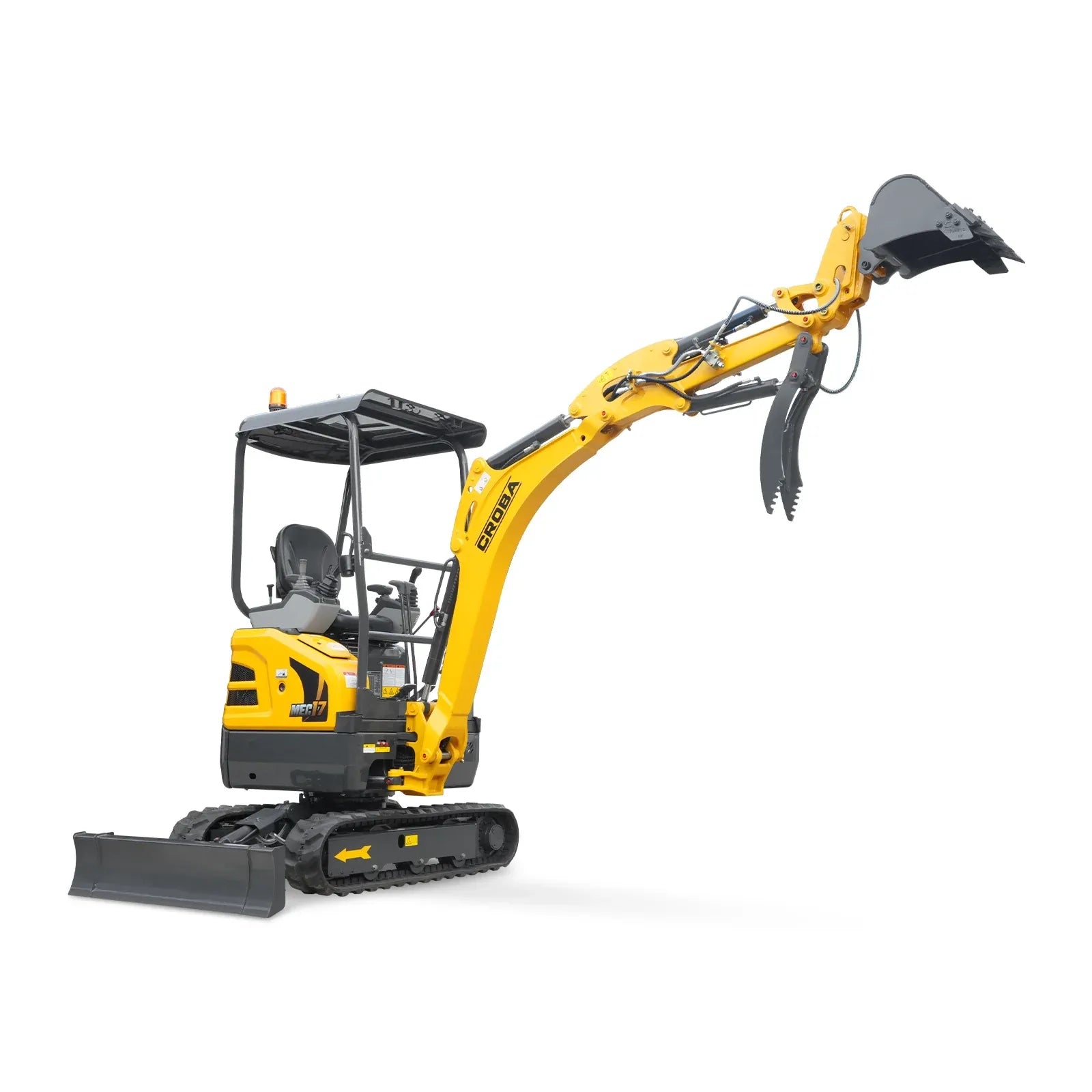

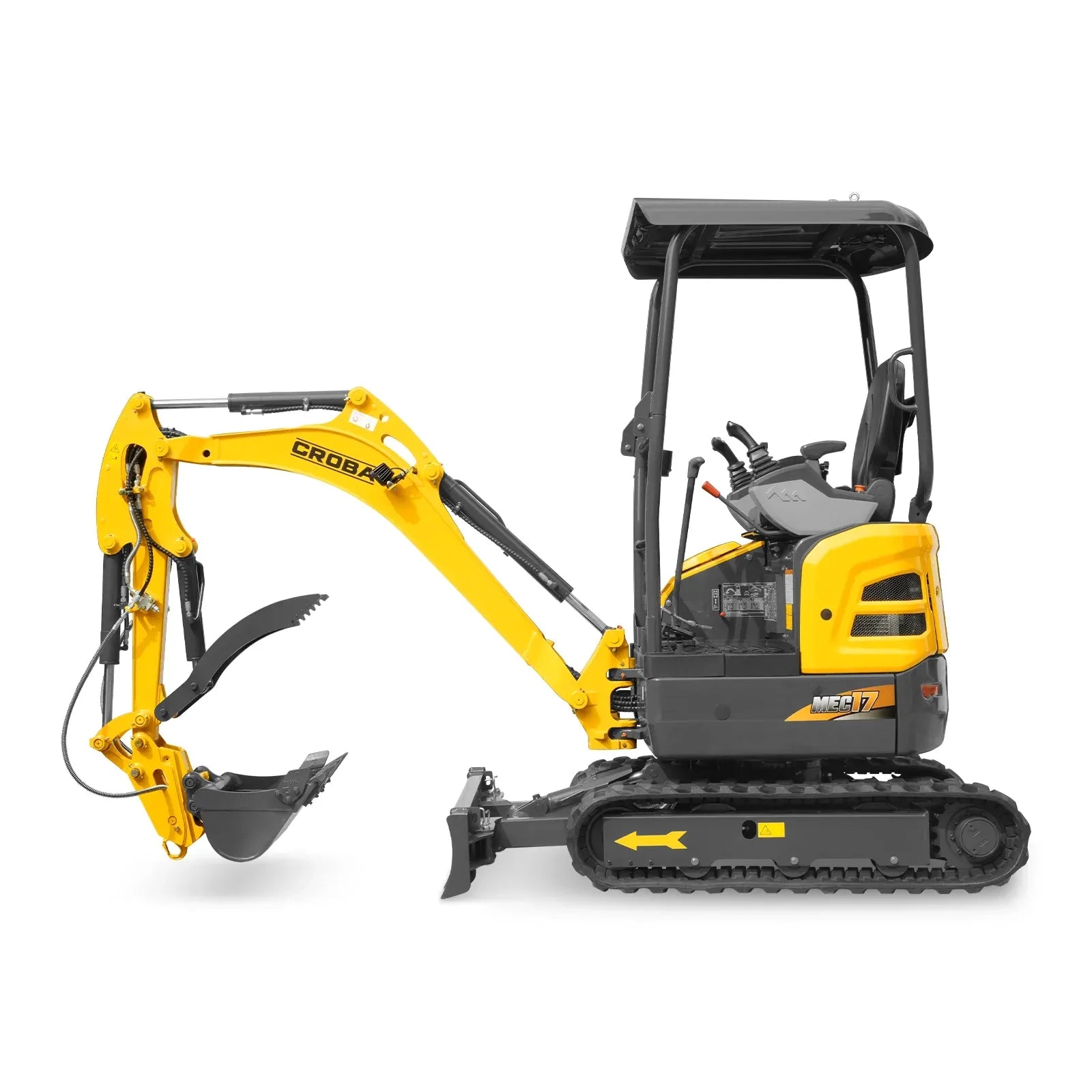

MechMaxx Mini Compact Excavator with Kubota D902 Engine, 95″ Max Digging Depth, 4190 lb Operating Weight, Model MEC17PRO
Original price was: $29,999.00.$18,898.99Current price is: $18,898.99.

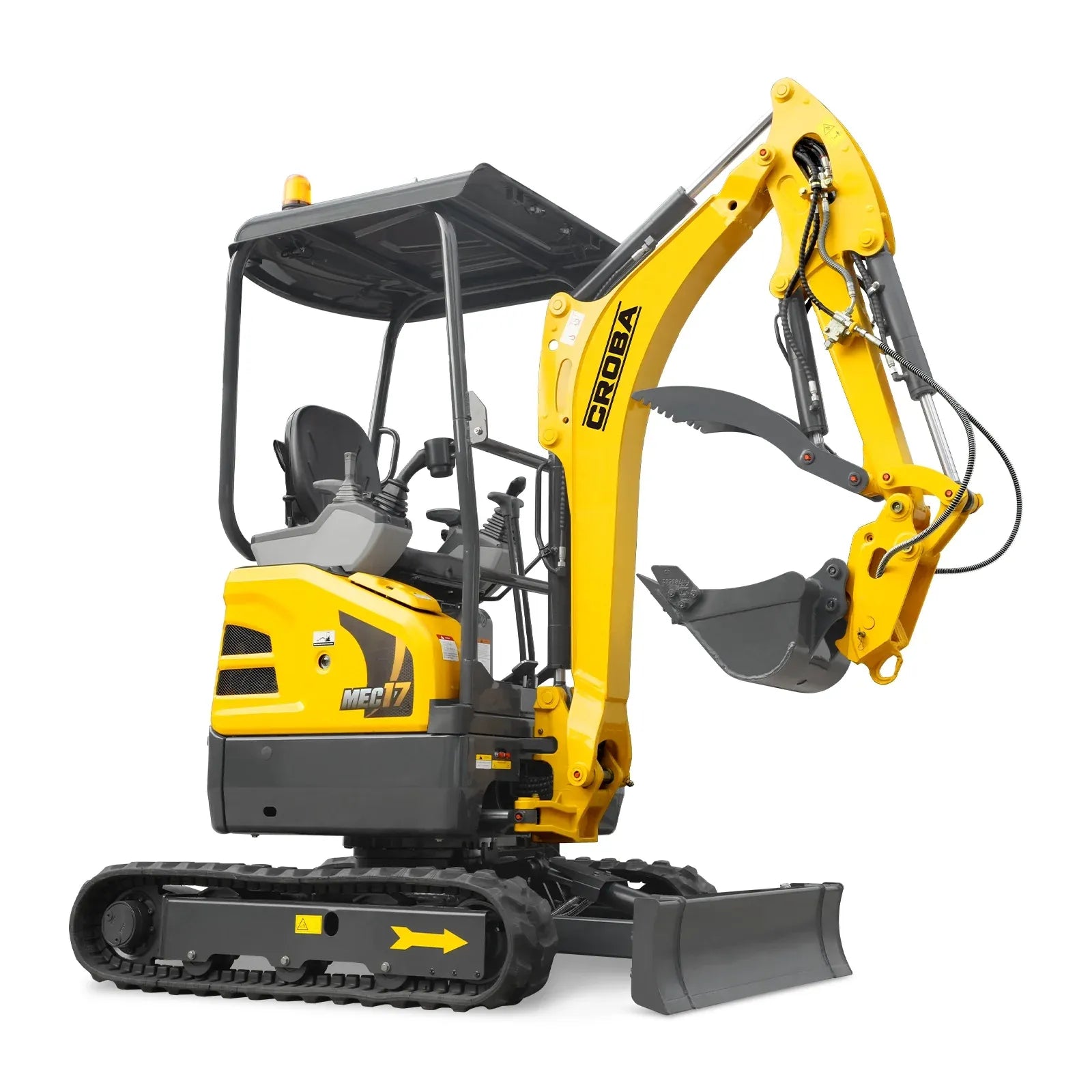

MechMaxx MEC17PRO Mini Compact Excavator
The MEC17PRO is the upgraded pro version of the MEC17 — featuring a longer boom and arm assembly for greater reach and digging depth, more digging force, a dual auxiliary circuit, and an upgraded hydraulic system rated at 17 GPM. Built for operators who need more from a compact machine without stepping up in size class.
| Engine Model | Kubota D902-NT-EF03 |
| Engine Output (Net) | 15.8 HP |
| Engine Output (Gross) | 18.5 HP |
| Rated Speed | 2,300 RPM (operating) / 3,600 RPM (max) |
| Displacement | 54.8 in³ |
| No. of Cylinders | 3 |
| Bore | 2.83 in |
| Stroke | 2.9 in |
| Engine Warranty | 2-Year or 2,000-Hour (whichever comes first) |
| Operating Weight | 4,190 lbs |

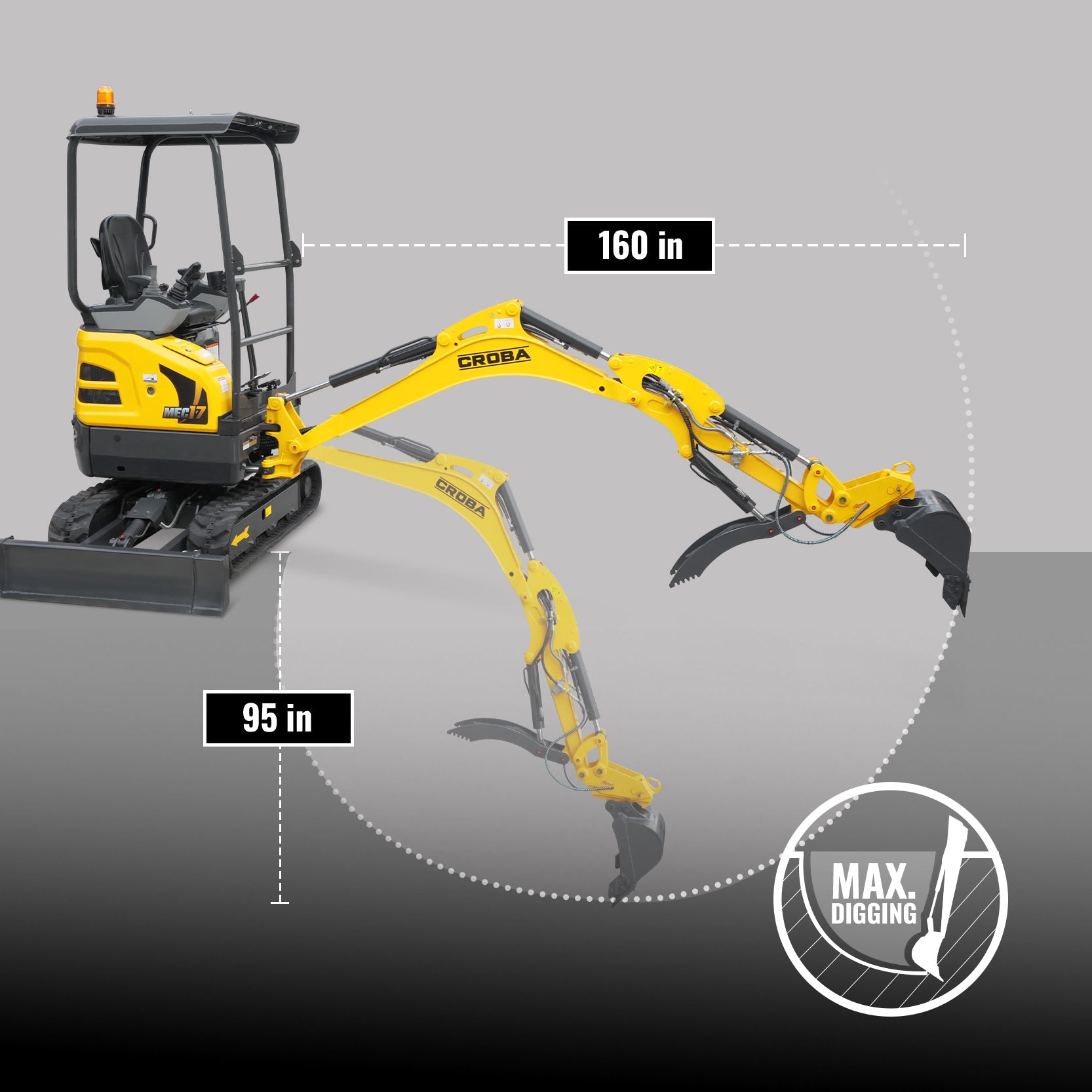

| Max Digging Depth | 95 in |
| Max Vertical Digging Depth | 81 in |
| Max Digging Height | 147 in |
| Max Dumping Height | 104 in |
| Max Digging Radius | 160 in |
| Max Digging Radius at Ground Level | 157 in |
| Cutting Depth Per Pass | 6 in |
| Max Lift Above Ground | 11 in |
| Max Drop Below Ground | 7.5 in |
| Min Turning Radius of Working Device | 57 in |
| Boom Swing — Left | 65° |
| Boom Swing — Right | 50° |
| Rotation | 360° |
| Tail Swing Radius | 25.6 in |
| Type of Tracks | Rubber |
| Track Roller Qty | 6 |
| Travel Speed — High | 2.67 mph |
| Travel Speed — Low | 1.37 mph |
| Max Traction Force — Low Speed | 4,047 lbf |
| Ground Clearance | 5.7 in |
| Ground Pressure | 4.2 psi |
| Gradeability — Maximum | 30° |
| Pump Flow at 2,300 RPM | 17 GPM |
| Auxiliary Circuit — Primary Flow | 9.1 GPM |
| Auxiliary Circuit — Secondary Flow | 2.6 GPM |
| Swing Motor | Danfoss SW2.5K |
| Swing Speed | 9.5 RPM |
| Hydraulic Hoses | Gates |
| Boom Length | 72 in |
| Arm Length | 43.3 in |
| Bucket Digging Force | 3,597 lbf |
| Arm Digging Force | 2,136 lbf |
| Bucket Capacity | 1.4 ft³ |
| Bucket Width | 17.7 in |
| Overall Length | 133 in |
| Ground Contact Length (Transportation) | 96 in |
| Overall Width (Retracted / Expanded) | 39 / 51 in |
| Track Width (Retracted / Expanded) | 39 / 51 in |
| Track Gauge (Retracted / Expanded) | 30 / 42 in |
| Blade Width (Retracted / Expanded) | 39 / 51 in |
| Blade Height | 11.8 in |
| Overall Height (to Top of Cab) | 94.7 in |
| Track Length | 62.7 in |
| Shoe Width | 9.1 in |
| Crawler Wheel Base | 48.4 in |
| Counterweight Ground Clearance | 18 in |
| Fuel Tank | 5 gal |
| Hydraulic Oil Tank | 3.6 gal |
| Engine Oil | 1 gal |
| System Capacity | 5.7 gal |
| Packing Size | 112.6 × 43.7 × 99.2 in |
| Net / Gross Weight | 4,012 / 4,580 lbs |
| Package Method | Wood Case |
| Machine Warranty | 1 Year |

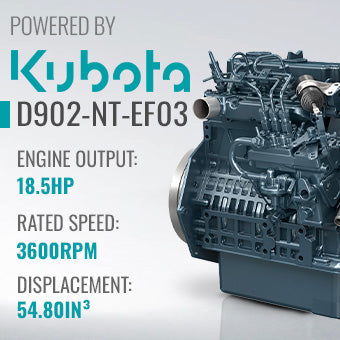

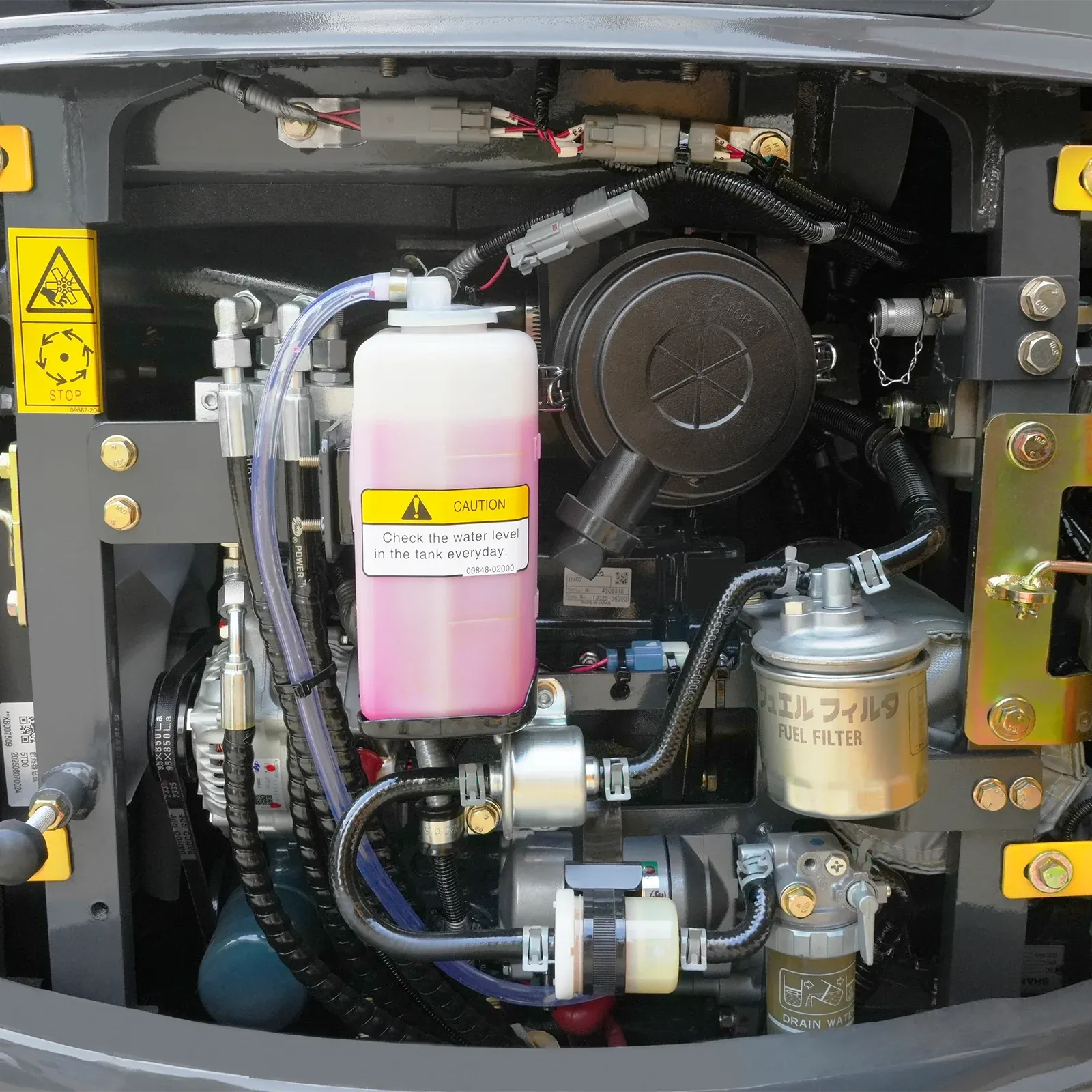

Kubota D902-NT-EF03 Engine
Upgraded Long Arm Assembly
17 GPM High-Flow Hydraulics
Dual Auxiliary Circuit (9.1 + 2.6 GPM)
Danfoss SW2.5K Swing Motor
Gates Hydraulic Hoses

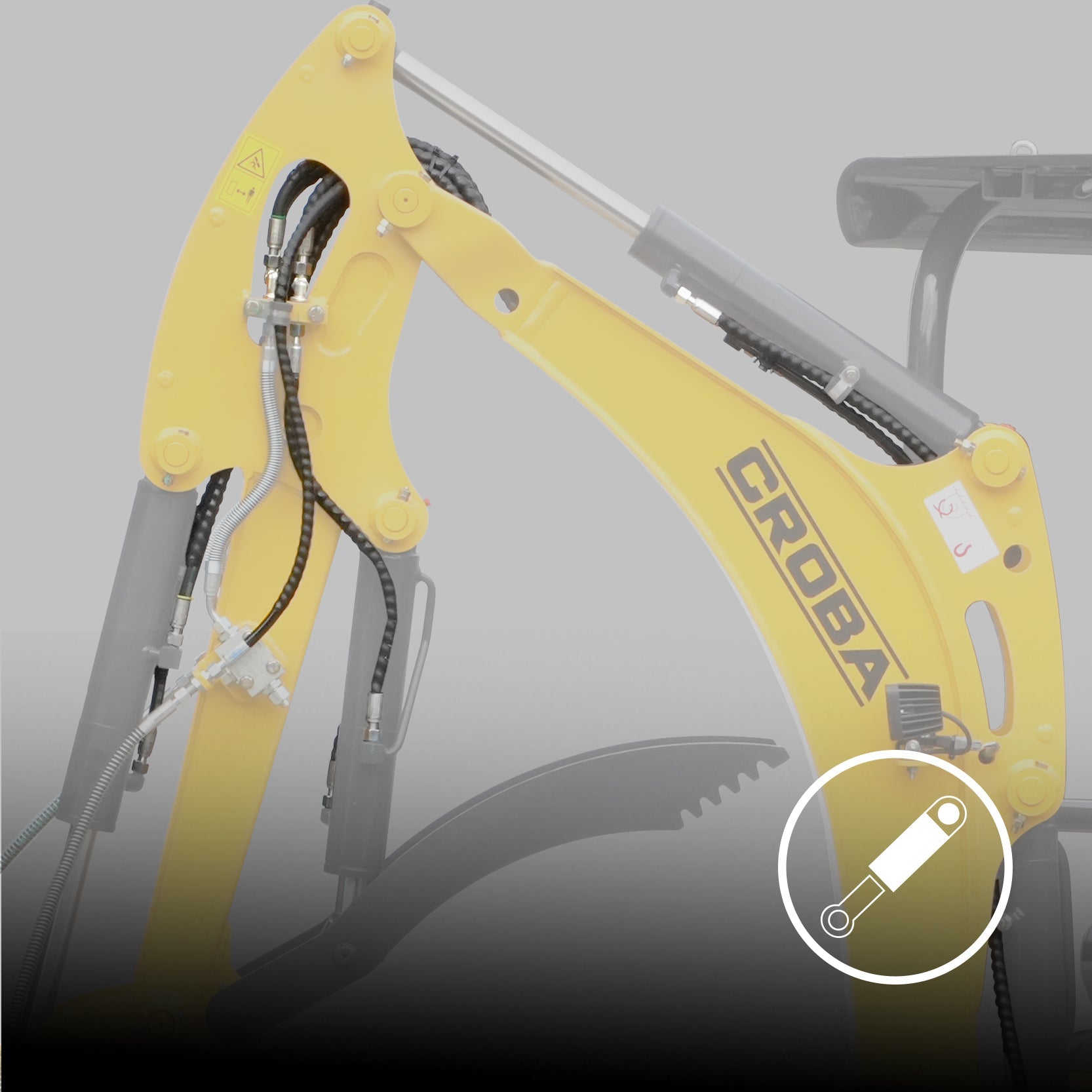

Protected Hydraulic Routing
Zero Tail Swing Design

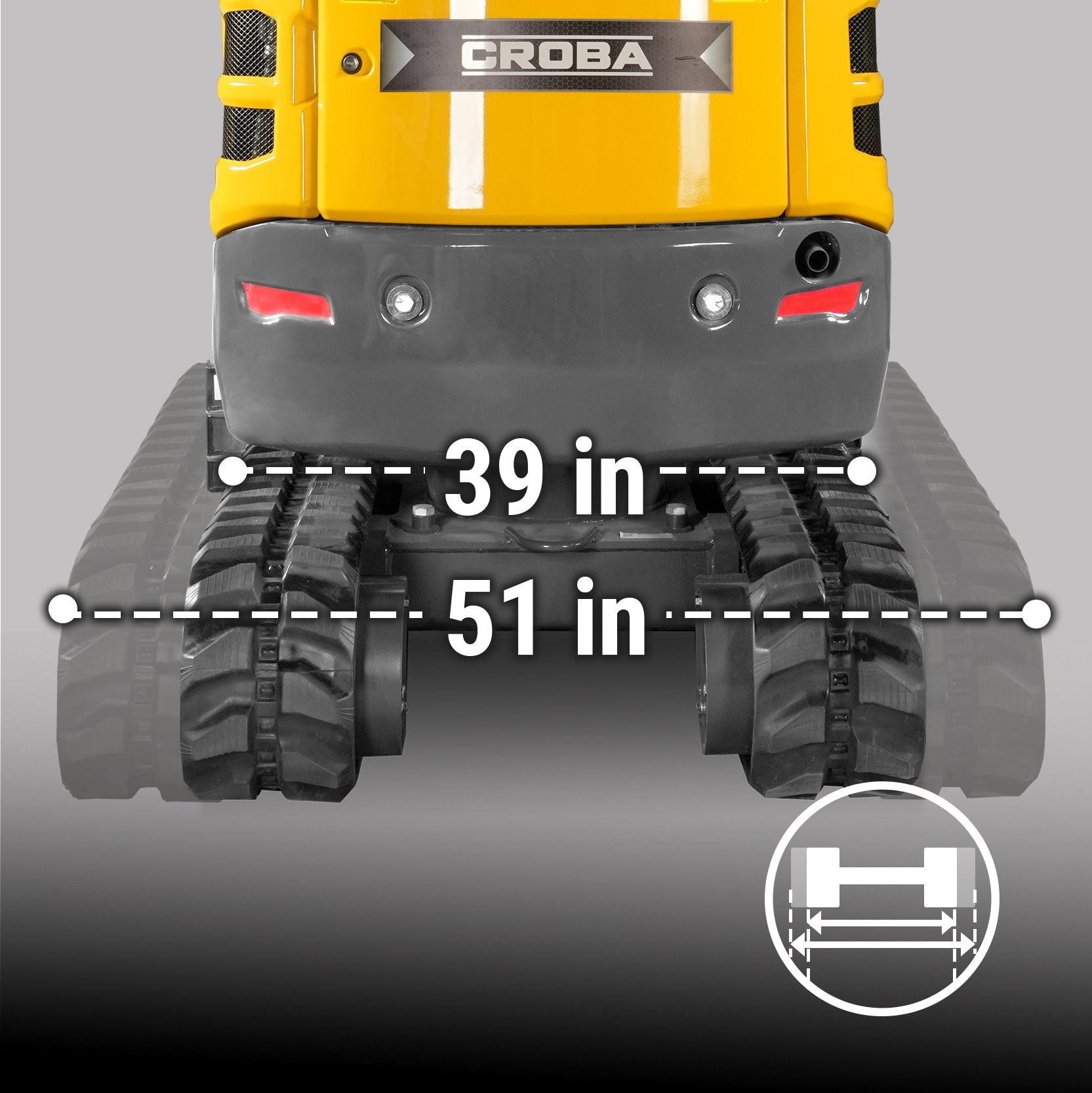

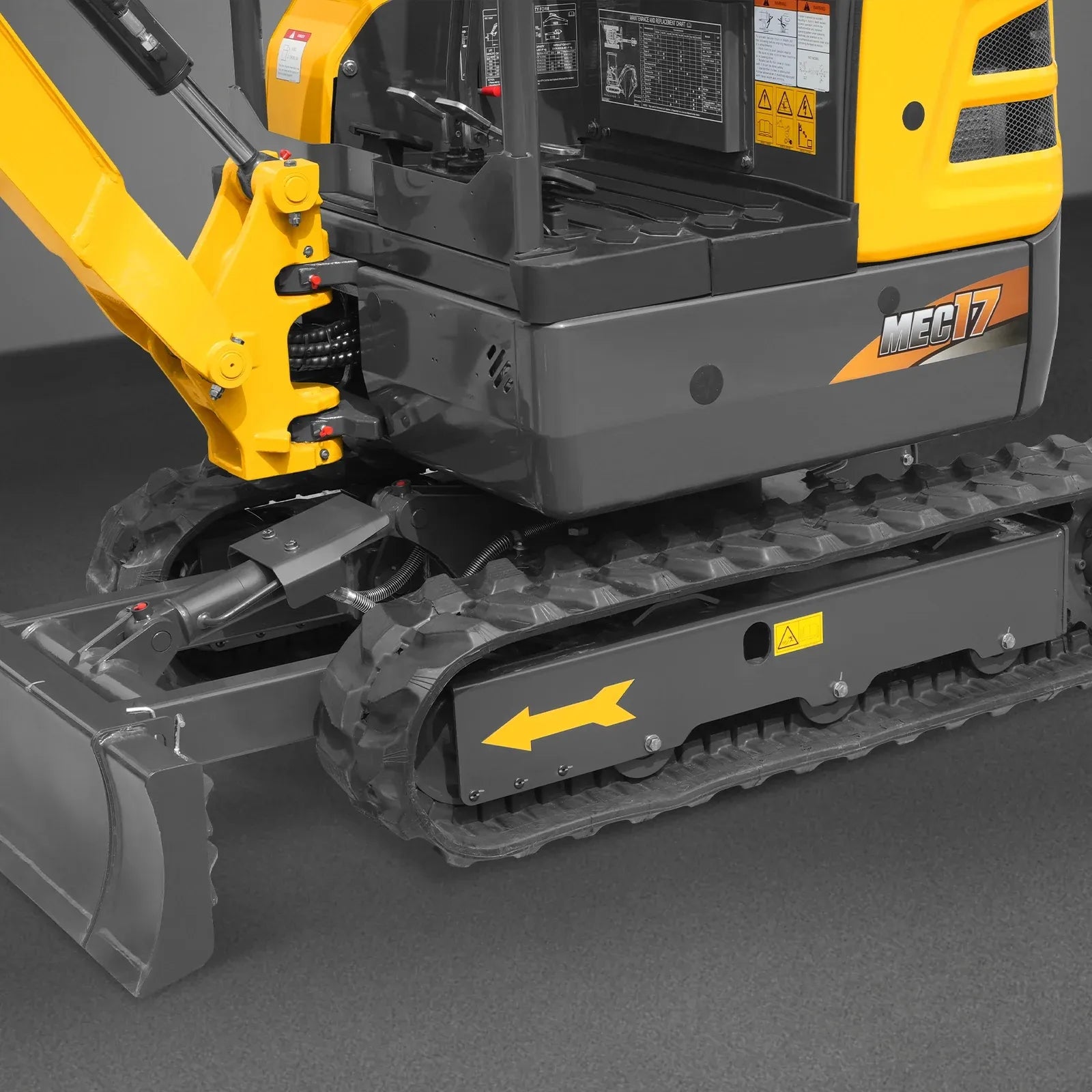

Retractable Undercarriage (39″–51″)

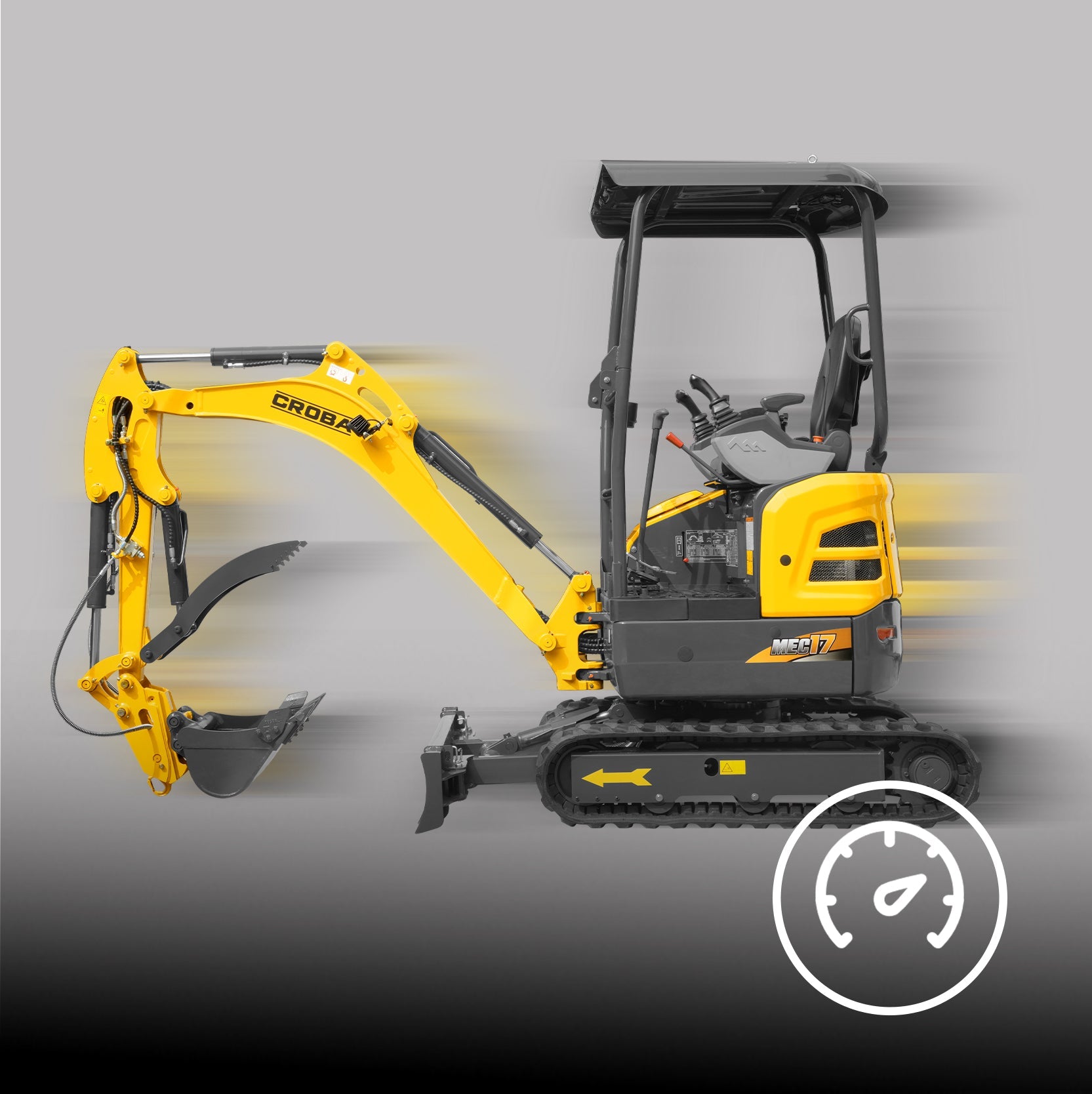

Two-Speed Travel (High / Low)

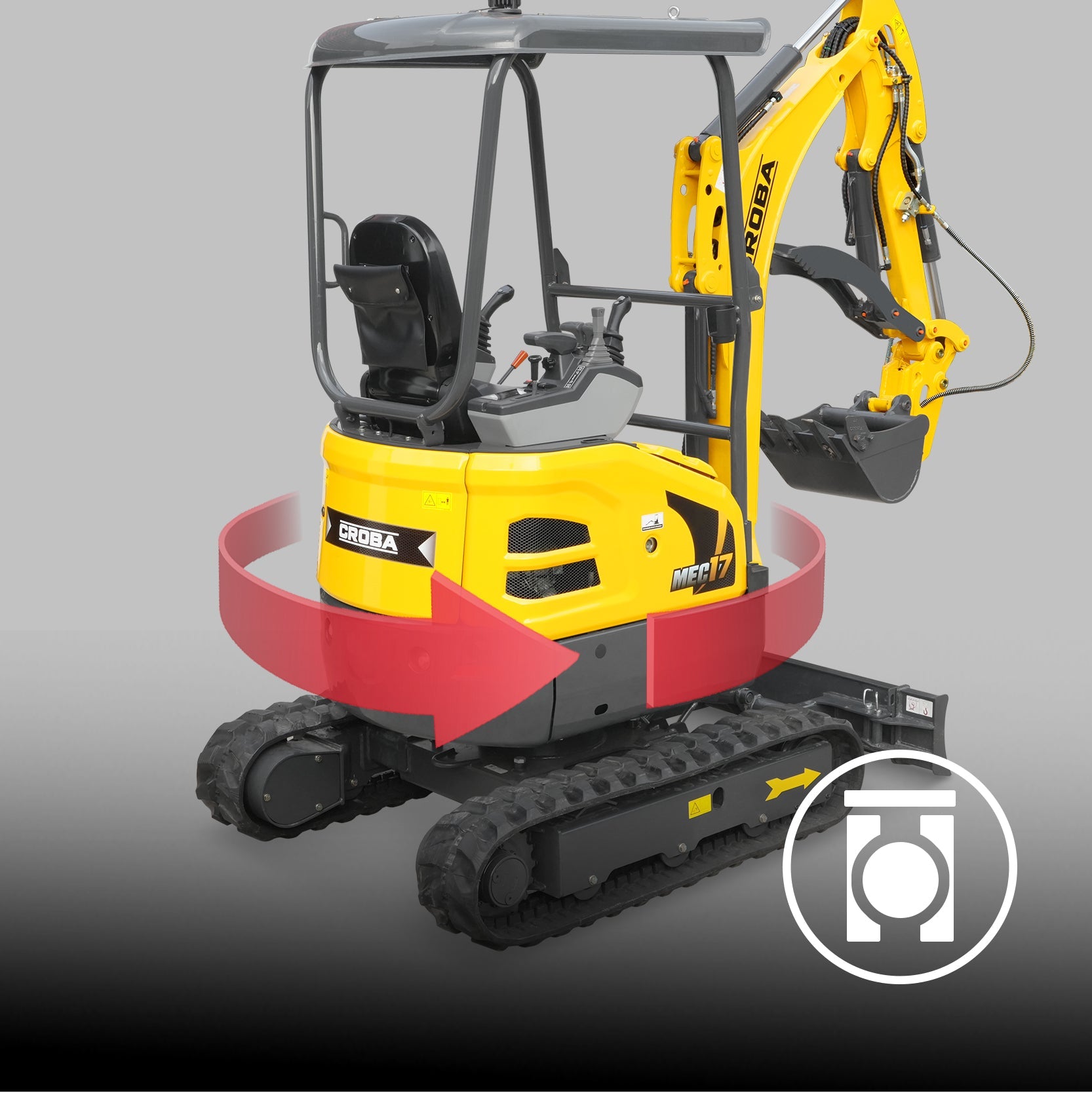

360° Rotation

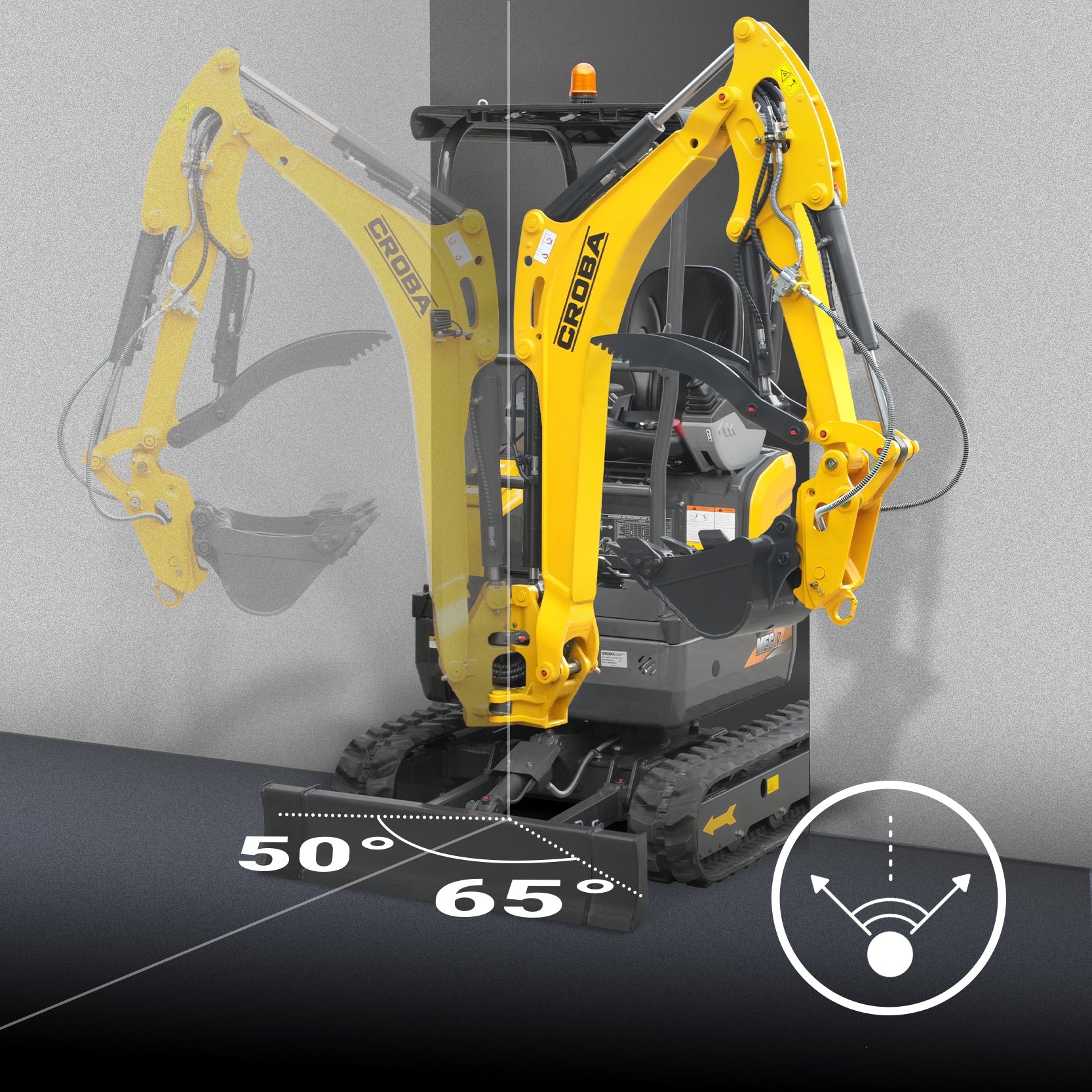

Boom Swing 65° Left / 50° Right

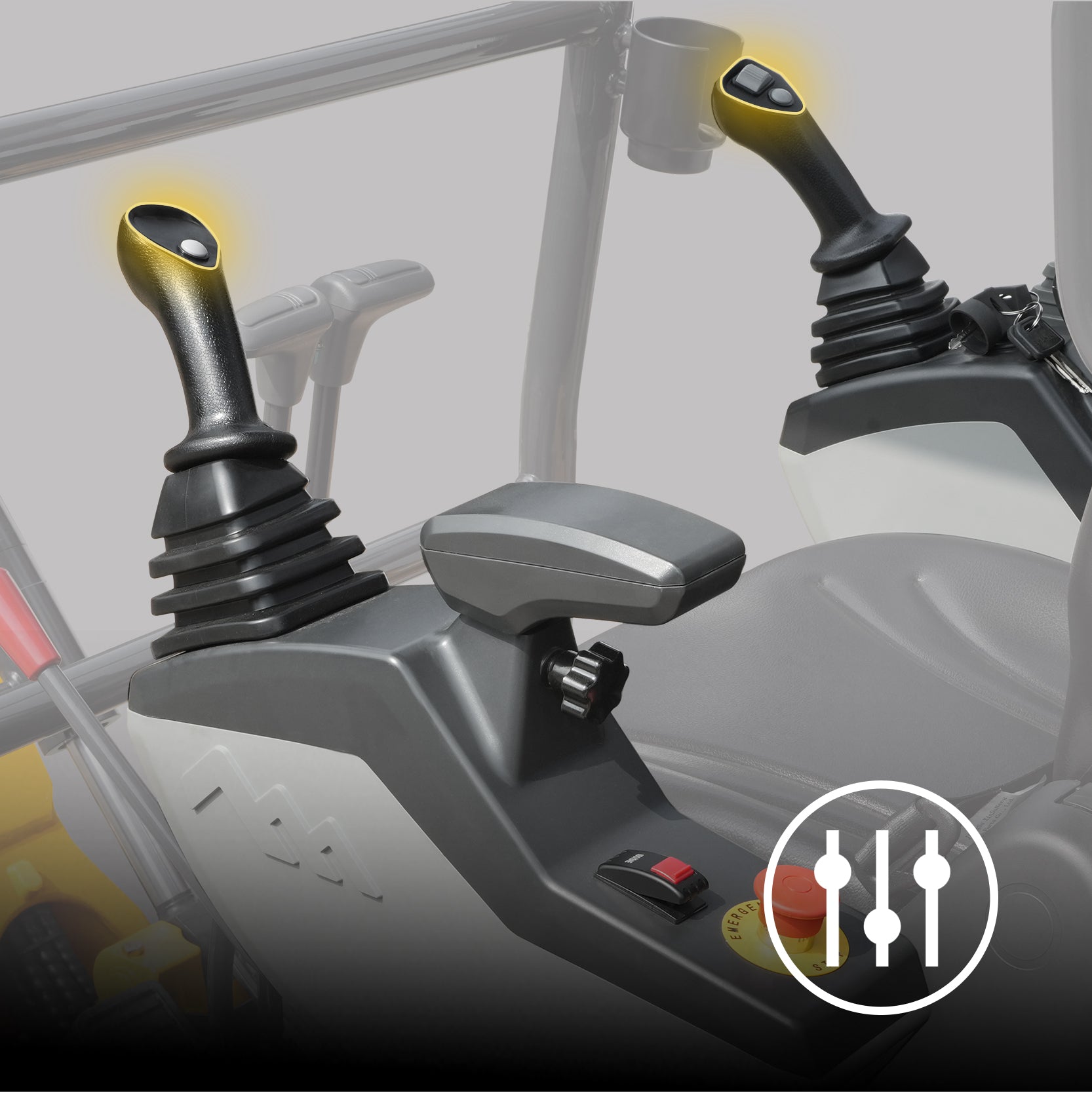

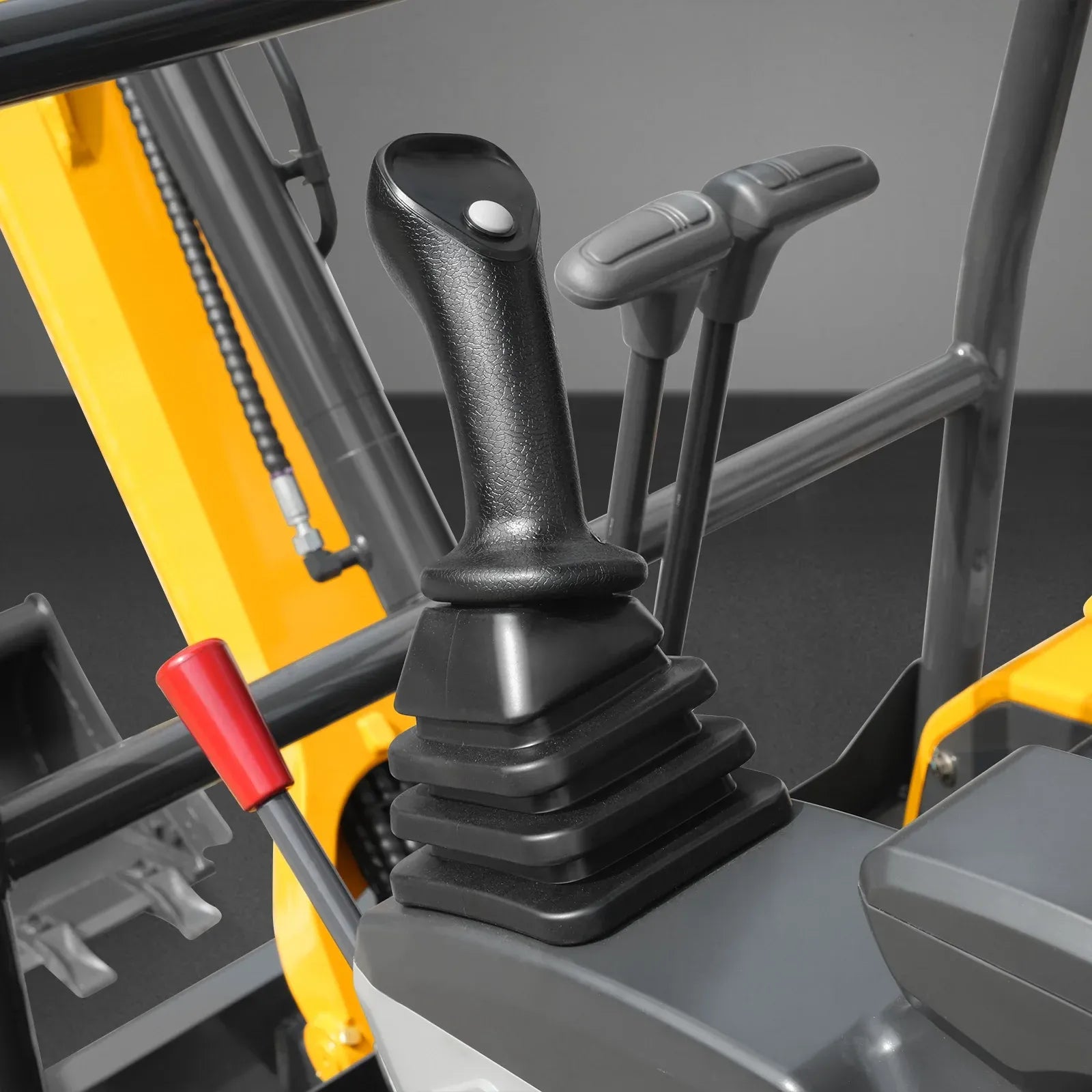

Pilot-Operated Controls

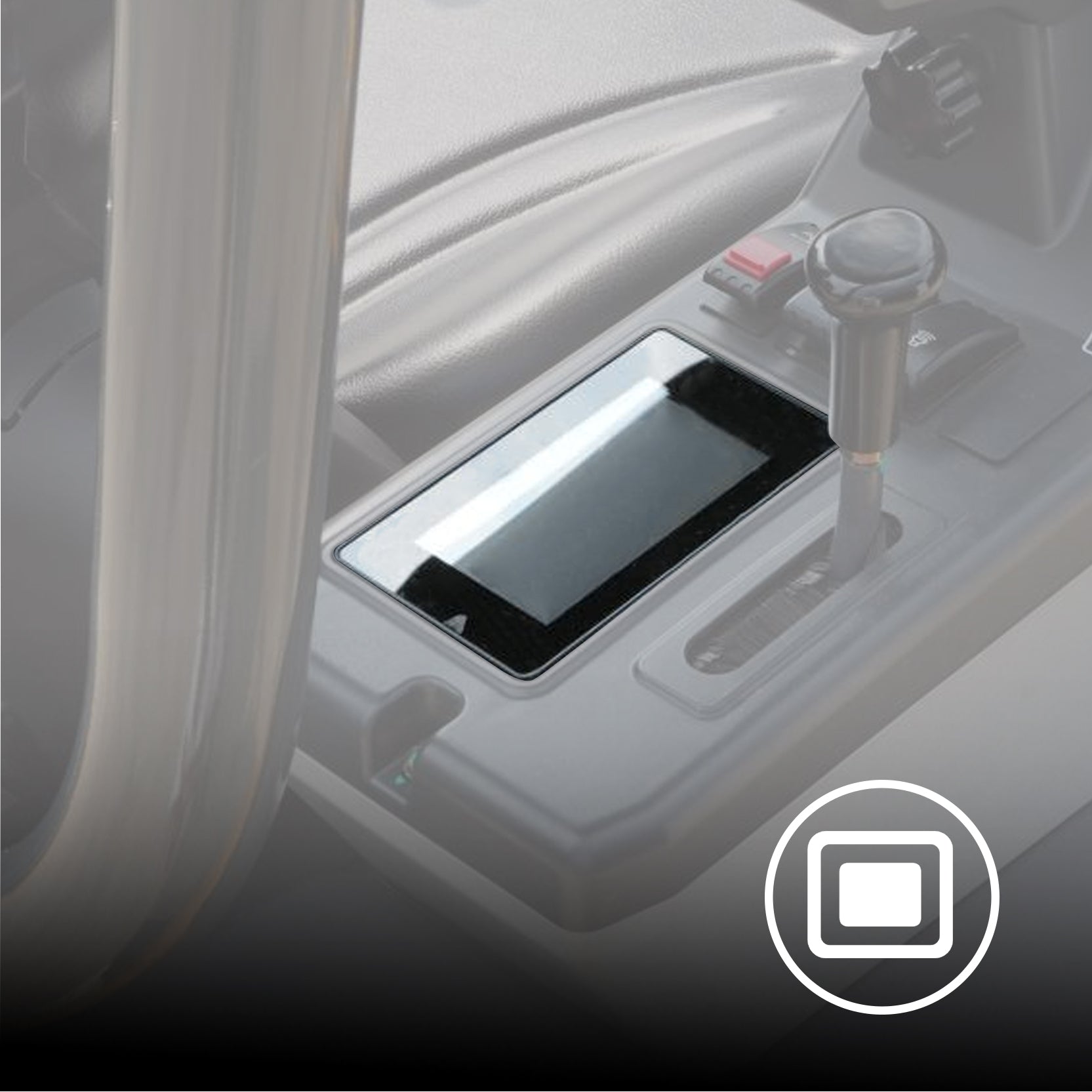

LCD Display

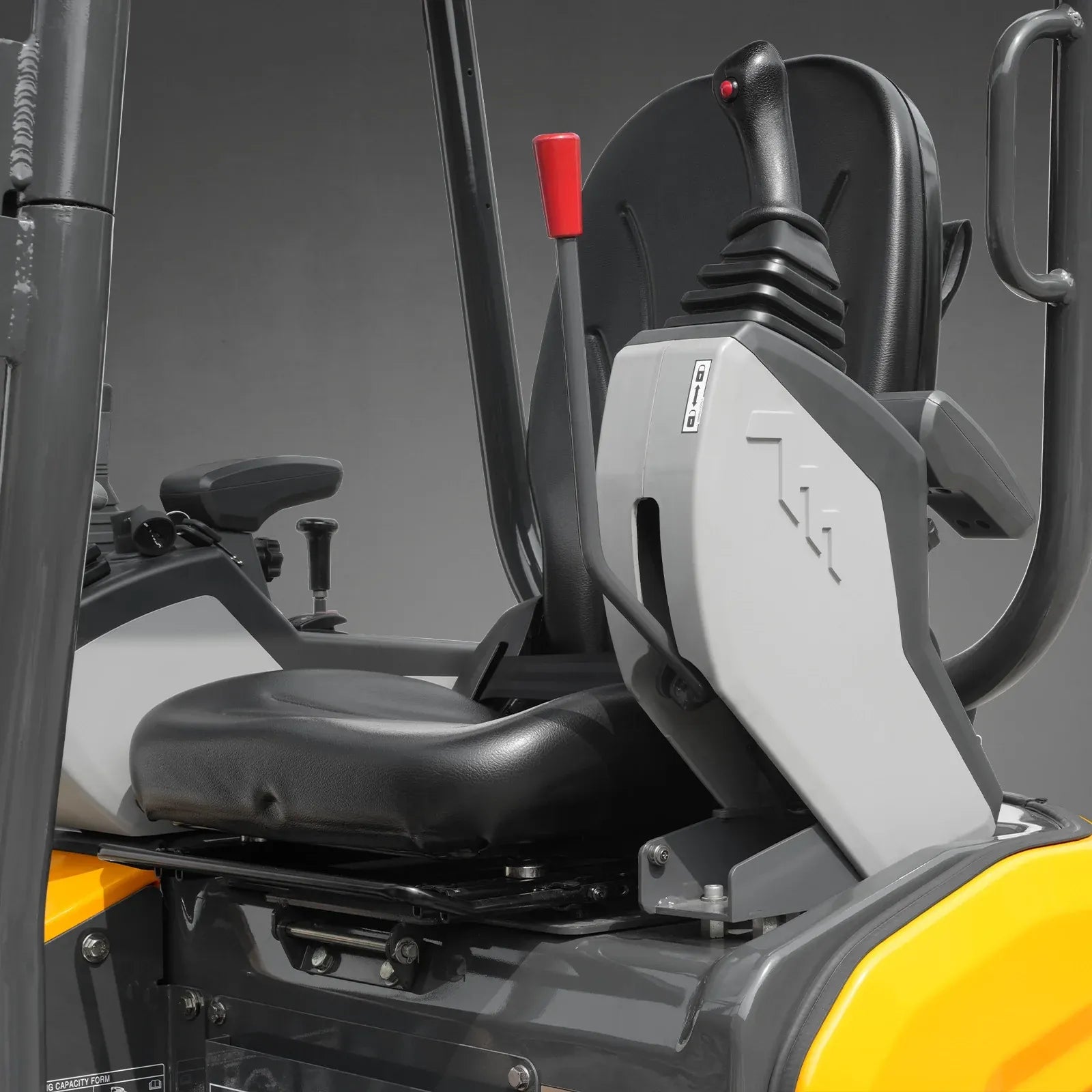

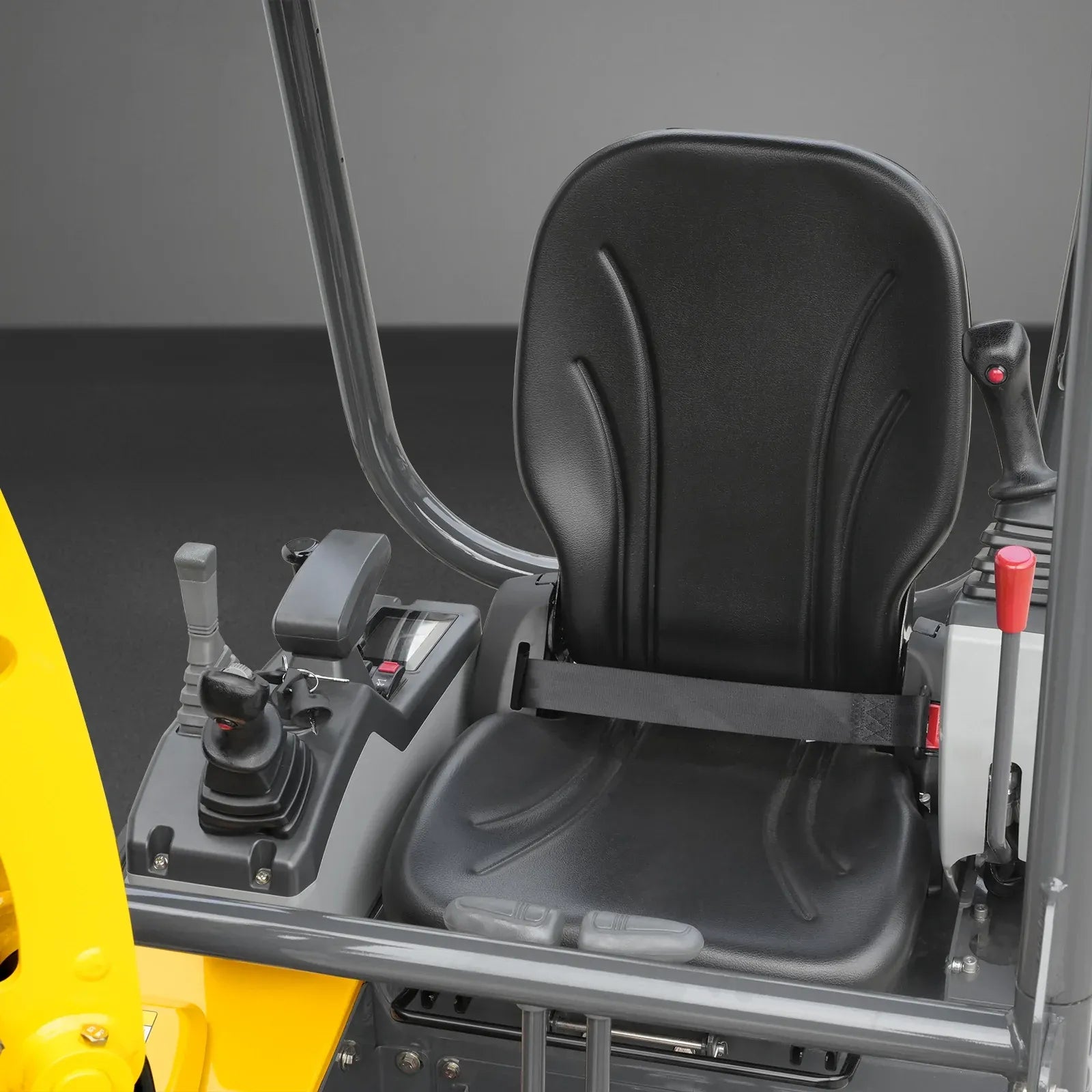

High-Back Seat

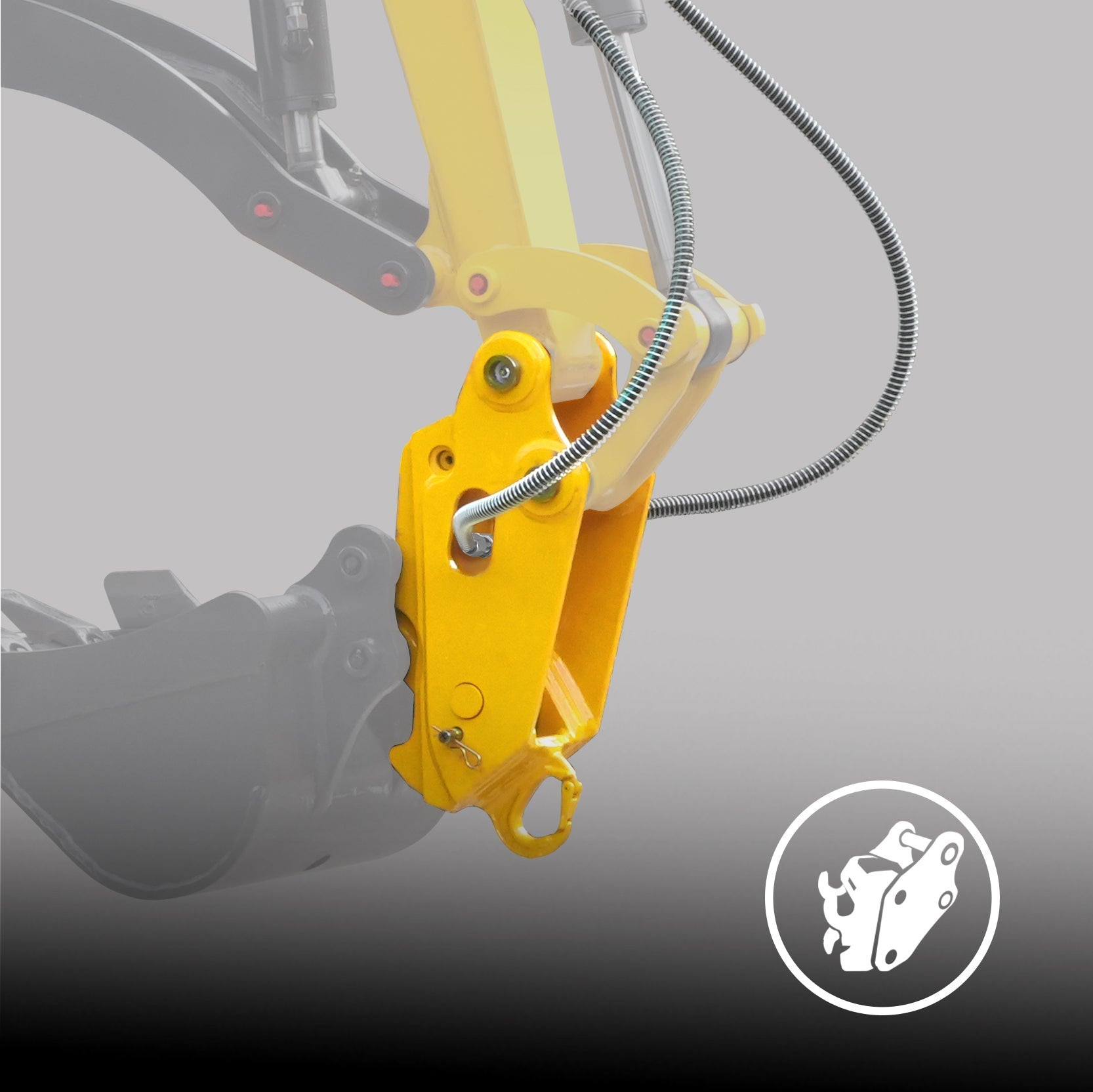

Semi-Automatic Quick Hitch

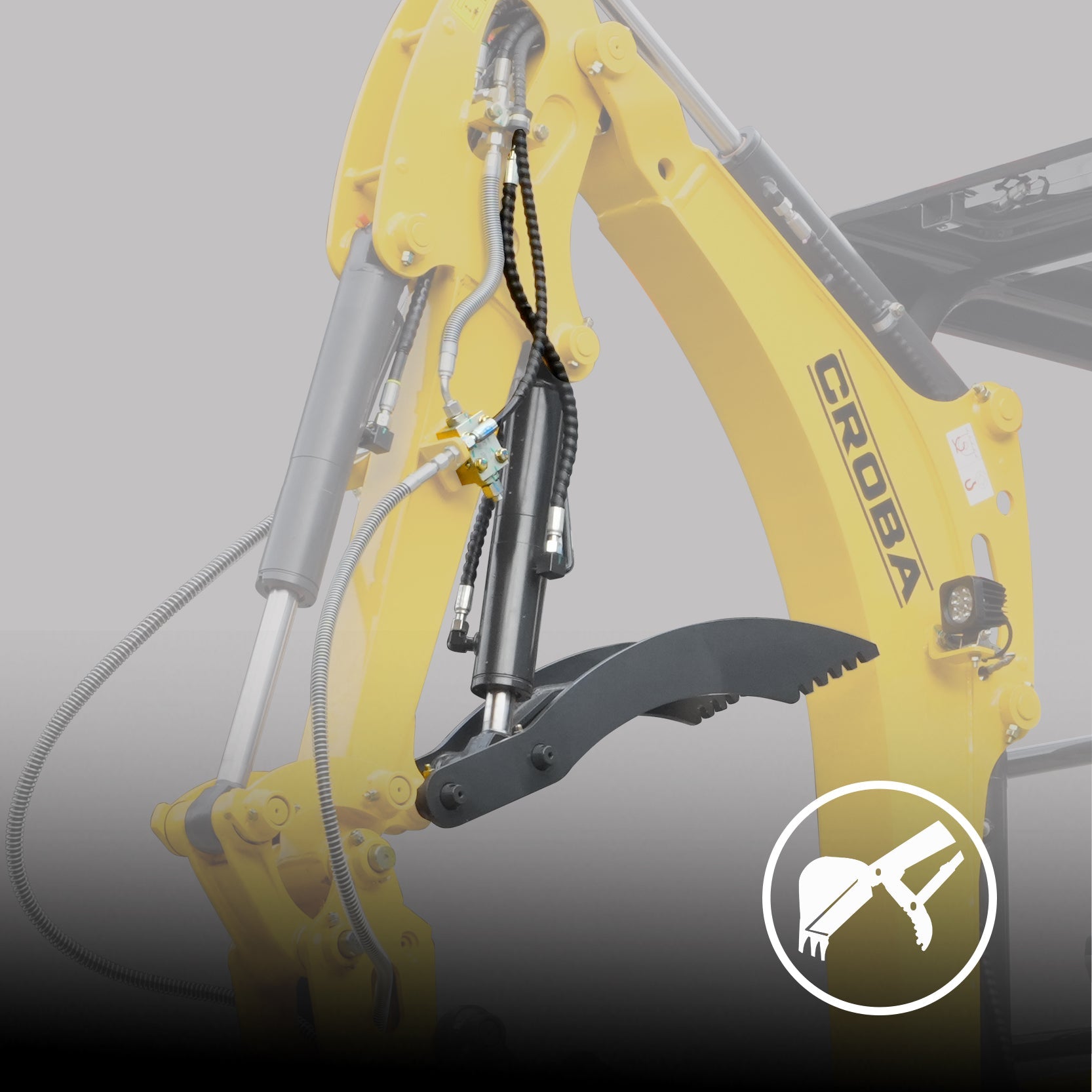

Hydraulic Thumb
Product Manual (PDF)
Demonstration Guide
Kubota D902-NT-EF03 Engine
17 GPM High-Flow Hydraulic System
Dual Auxiliary Circuit (9.1 + 2.6 GPM)
Danfoss SW2.5K Swing Motor
Gates Hydraulic Hoses
Protected Hydraulic Routing
Pilot-Operated Controls
High-Back Seat
LCD Display
Product Manual (PDF)
Demonstration Guide
Zero Tail Swing Design
Retractable Undercarriage (39″–51″)
Two-Speed Travel (High / Low)
360° Rotation
Upgraded Long Arm Assembly (72″ boom / 43.3″ arm)
Boom Swing 65° Left / 50° Right
Semi-Automatic Quick Hitch
Hydraulic Thumb
1-Year Machine Warranty
2-Year / 2,000-Hr Engine Warranty
