Description
MechMaxx · MEC10 · Mini Compact Excavator

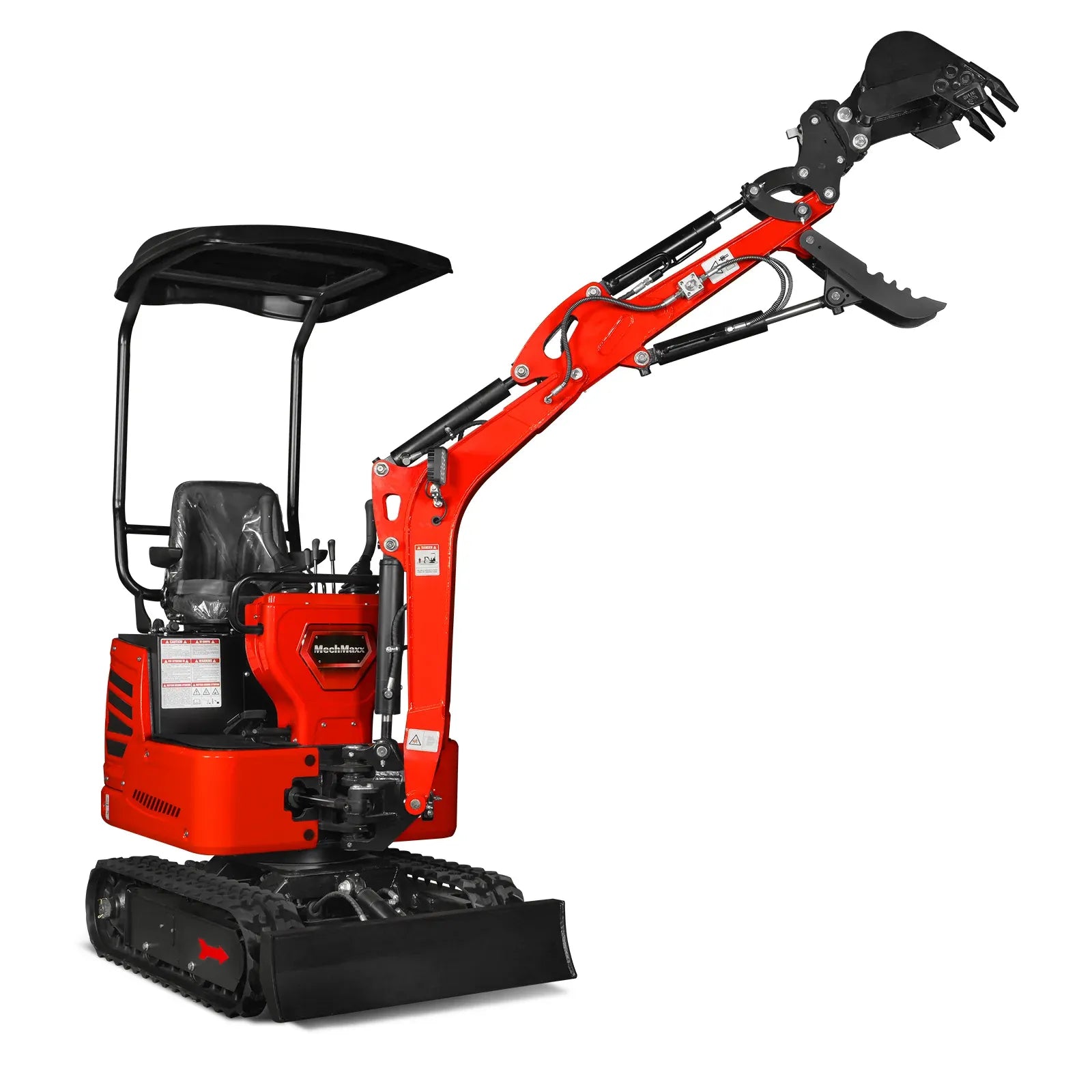

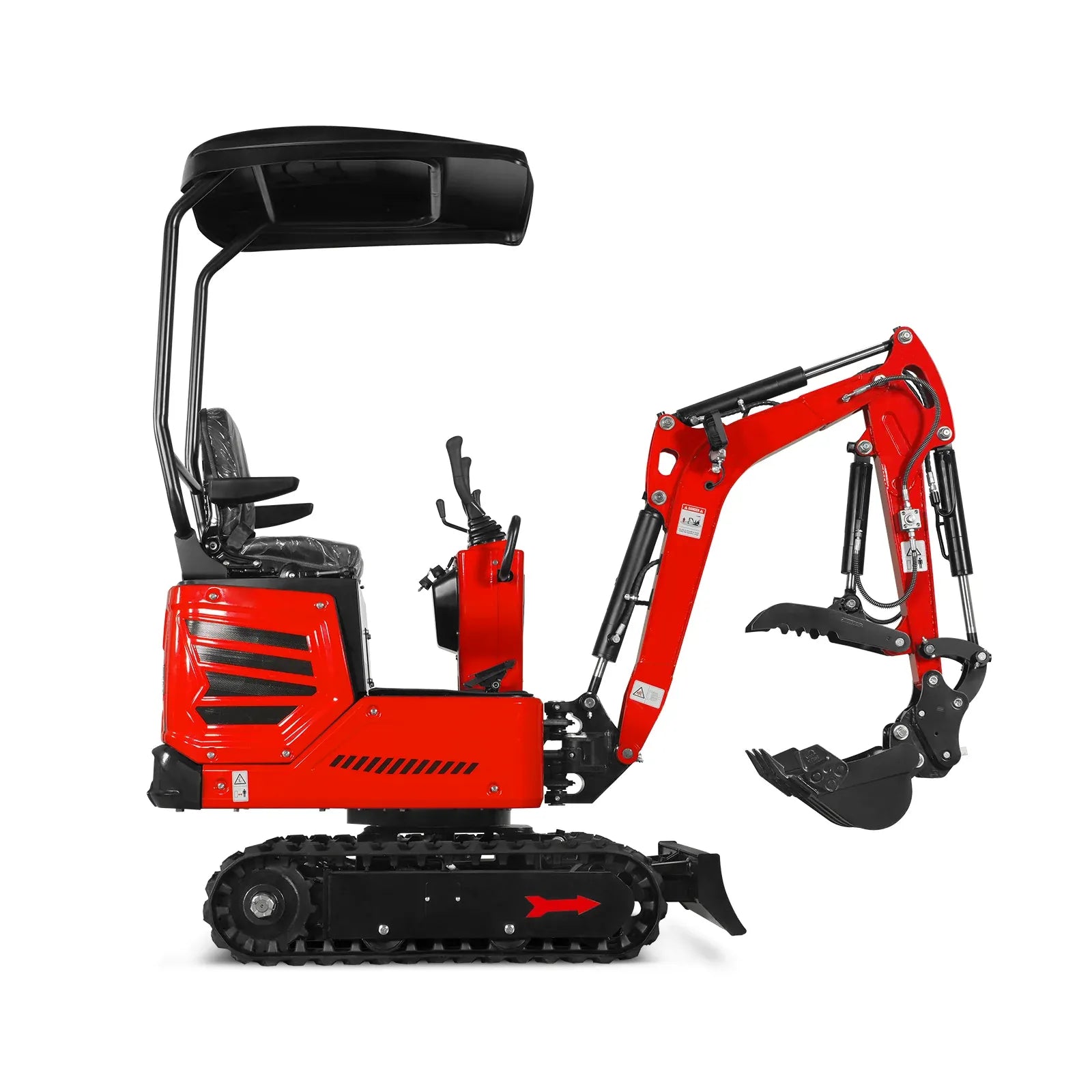

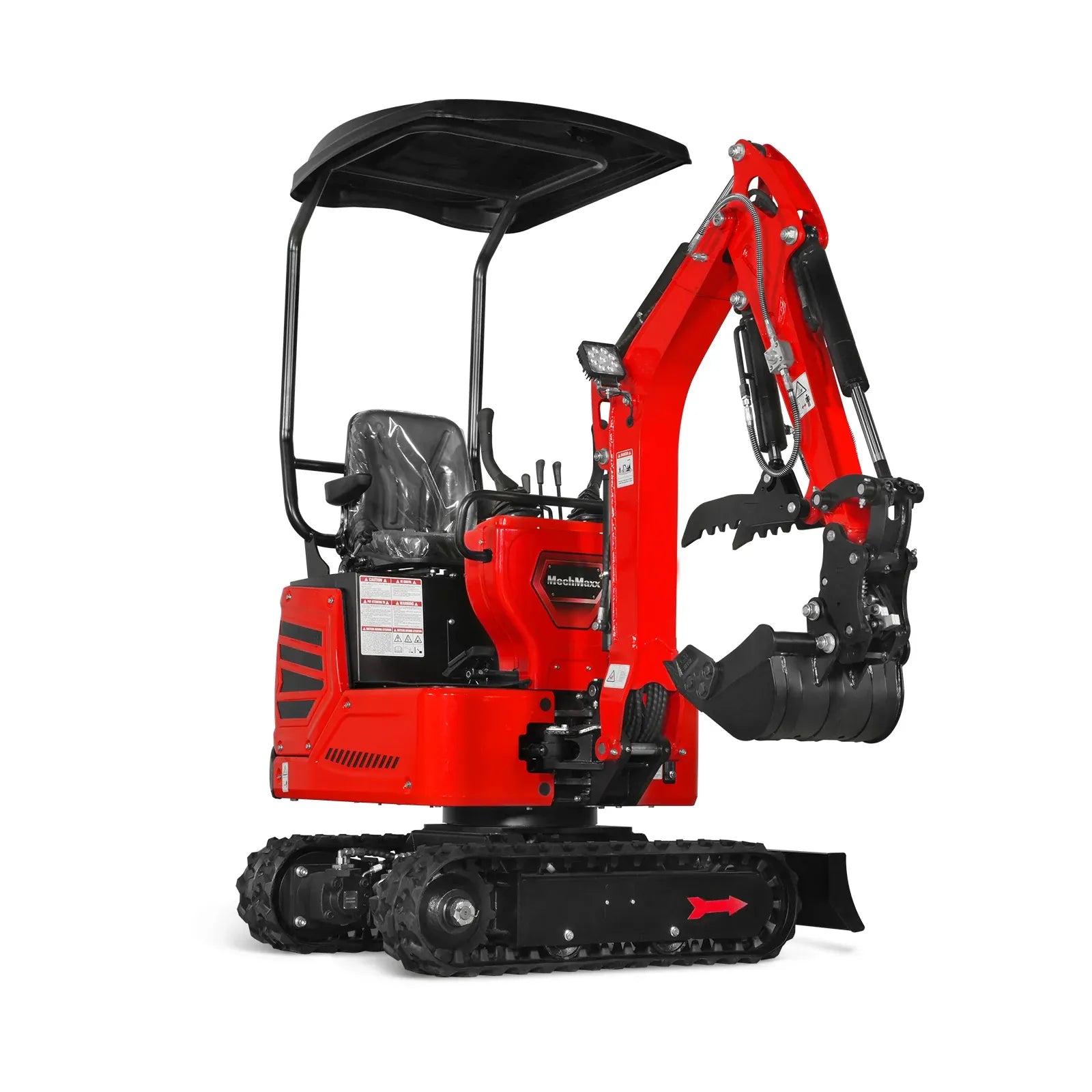

MechMaxx MEC10 Mini Compact Excavator
Honda GX390 Engine — 36″ Chassis — Hydraulic Oil Radiator
Built for tight access and reliable daily performance. The MEC10 Honda is powered by the legendary Honda GX390 — a 389cc OHV engine famous for low noise, low vibration, and low emissions without sacrificing power. At just 36″ chassis width, it fits where other machines can’t.

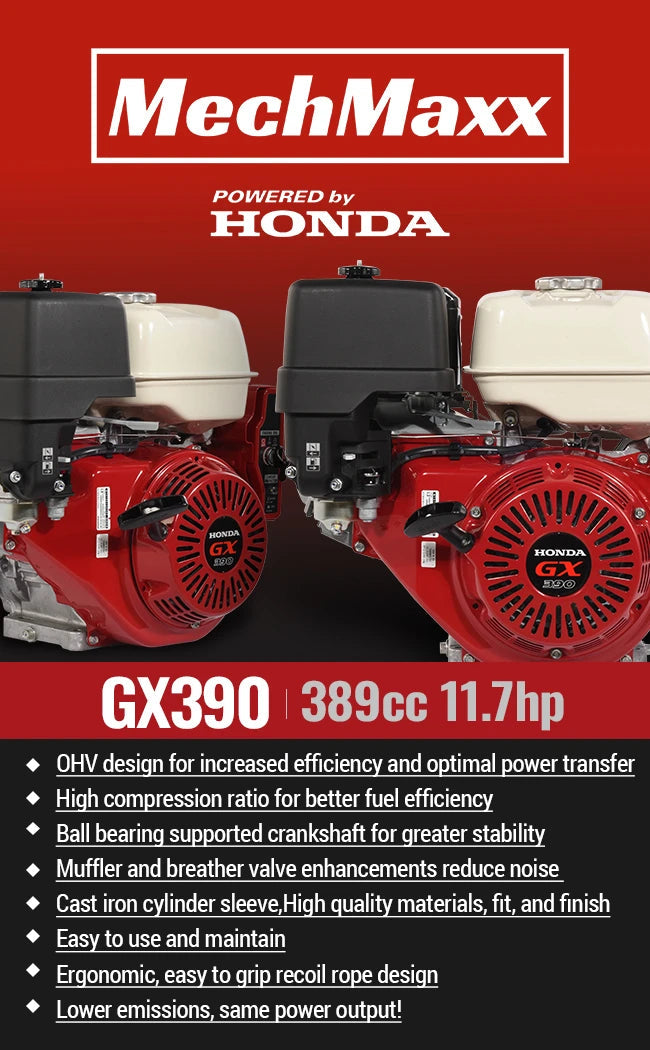

Powered by Honda
Honda GX390 — 389cc · 11.7 HP · 3,600 RPM · Electric Start
GX Series — Legendary reliability · Low noise · Low vibration · Low emissions · 1-Year Engine Warranty
OHV design — increased efficiency & optimal power transfer
High compression ratio for better fuel efficiency
Ball bearing supported crankshaft for greater stability
Cast iron cylinder sleeve — high quality materials
Muffler & breather valve enhancements reduce noise
Ergonomic easy-grip recoil rope design
Lower emissions — same power output
Electric start
11.7 HP
Honda GX390
2,280 lbs
Operating Weight
65.7″
Max Dig Depth
36″
Chassis Width
Key Features
Honda GX390 OHV Engine
389cc overhead valve single-cylinder engine with electric start. OHV design delivers increased efficiency and optimal power transfer. Ball bearing supported crankshaft, cast iron cylinder sleeve, and GX series legendary reliability — low noise, low vibration, and lower emissions without any sacrifice in power output.
36″ Compact Chassis Width
At 36″ wide, this is one of the narrowest chassis in its class — significantly smaller than a standard excavator. Fits through gates, narrow alleys, garden paths, and confined access points where larger machines are blocked.

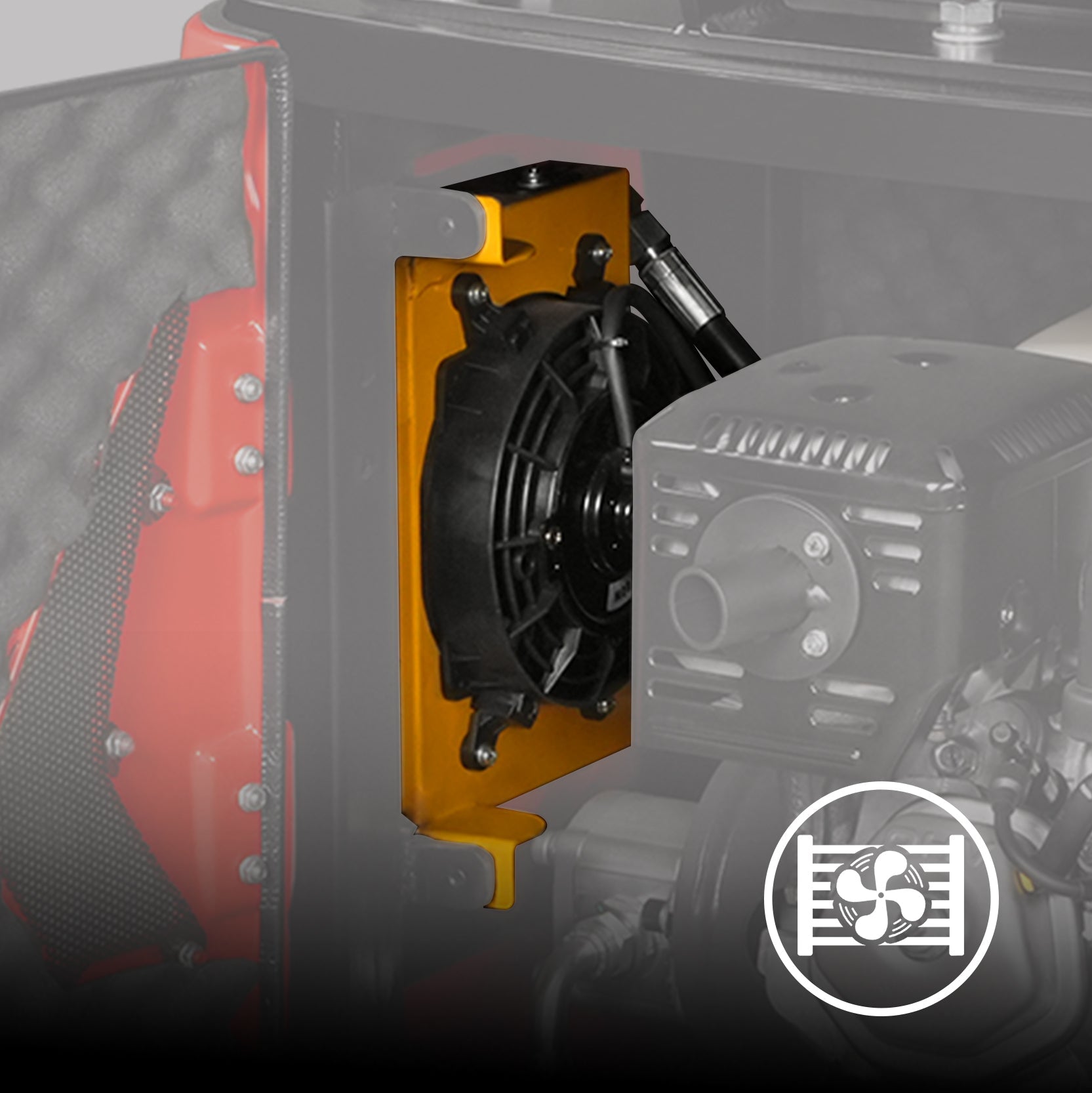

Hydraulic Oil Radiator
A dedicated hydraulic oil radiator cools the hydraulic fluid during intensive continuous operation — preventing overheating, protecting components, dissipating heat as oil circulates through the system, and maintaining consistent system efficiency and longevity.

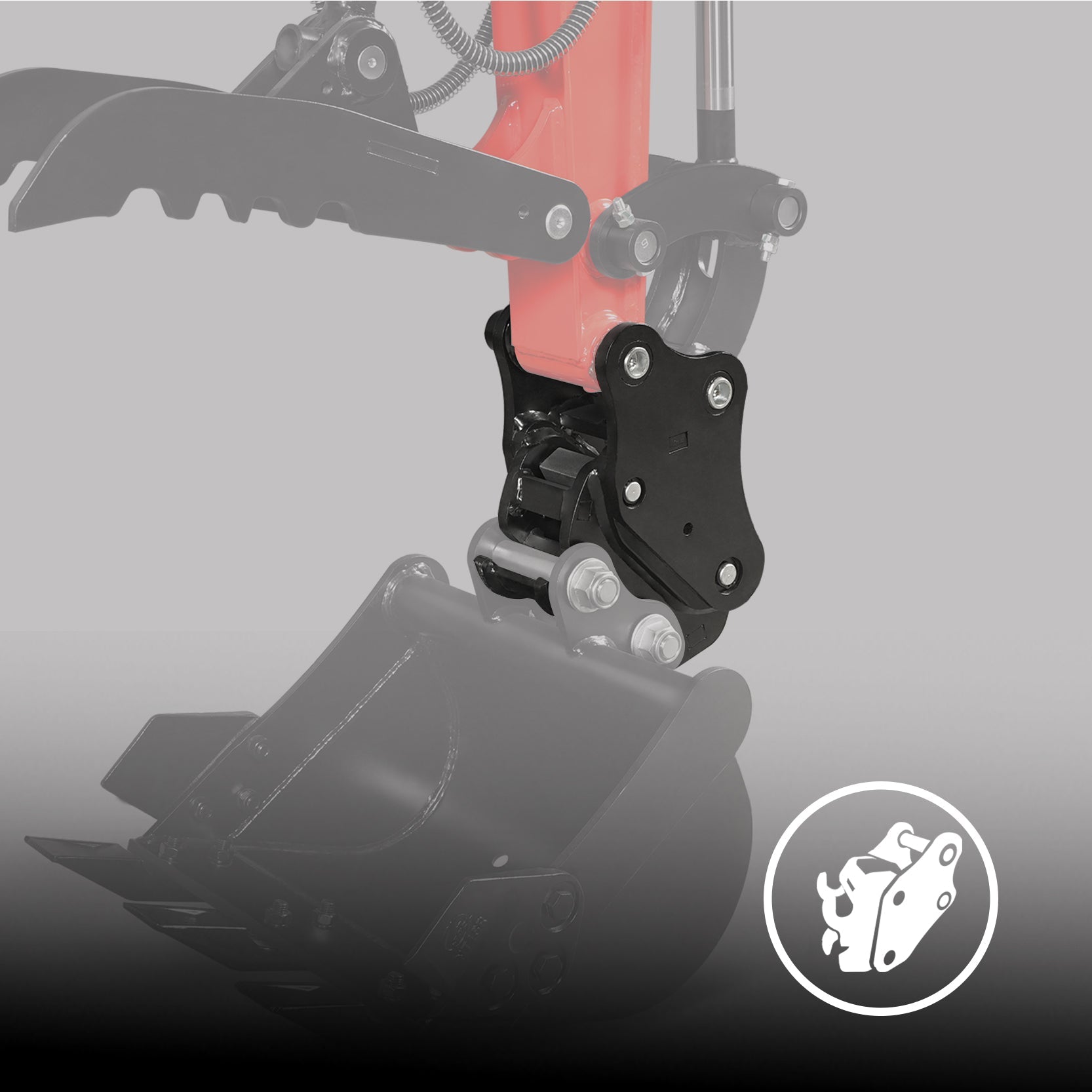

Semi-Automatic Quick Hitch
Heavy-duty steel quick hitch for fast, secure attachment changes on the job. Easily connect and detach attachments without tools — a must-have for multi-task jobsite operation.
High-Flow Hydraulic System
5.7 GPM auxiliary standard flow supports high-flow attachments including augers, rippers, and mulcher heads — handling concrete work and vegetation management alongside standard digging and trenching tasks.

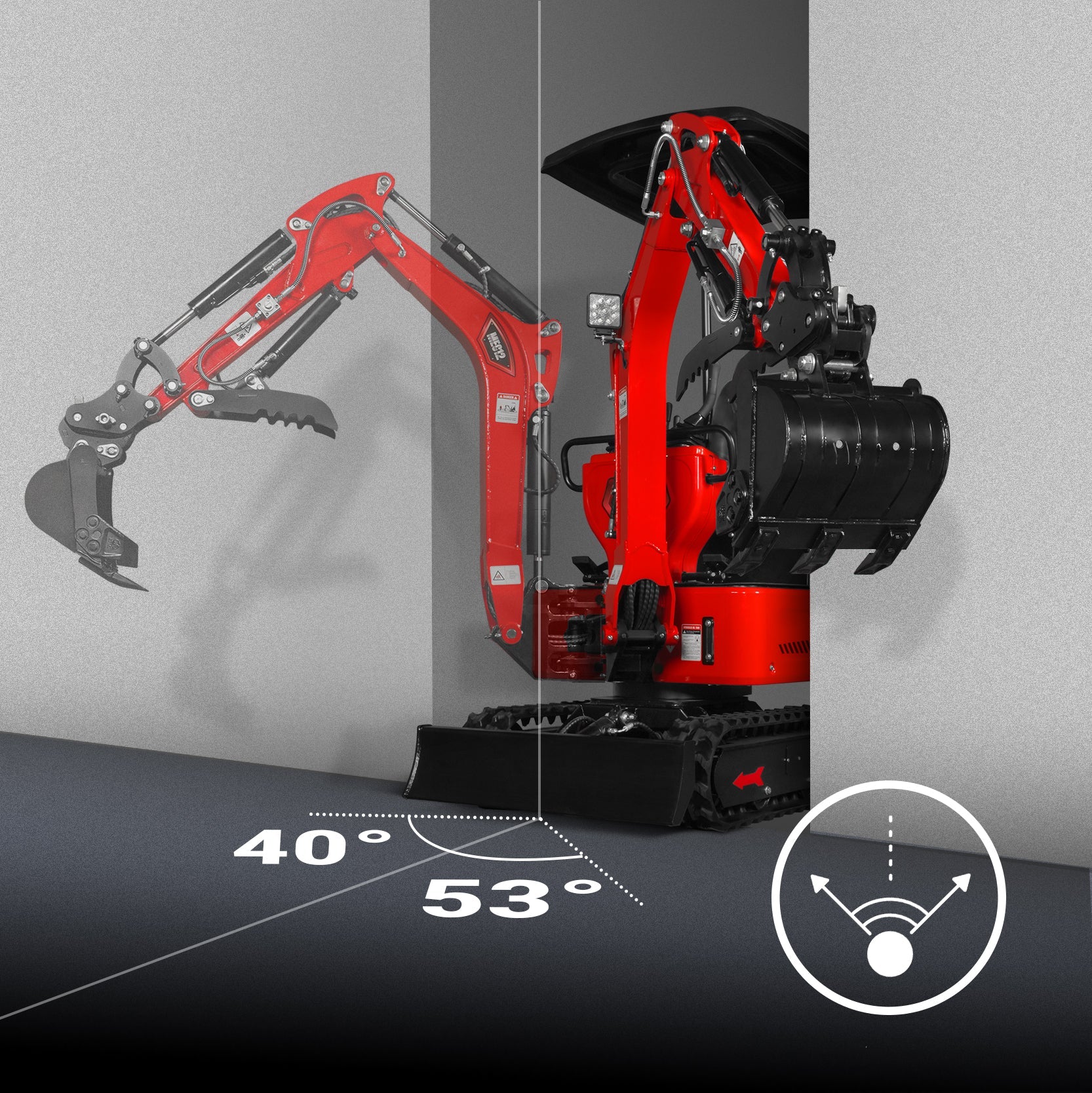

Boom Swing — 53° Left / 40° Right
The digging arm swings 53° left and 40° right — letting you access tight spots alongside walls, fences, and structures and dump soil exactly where you need it without repositioning the machine.

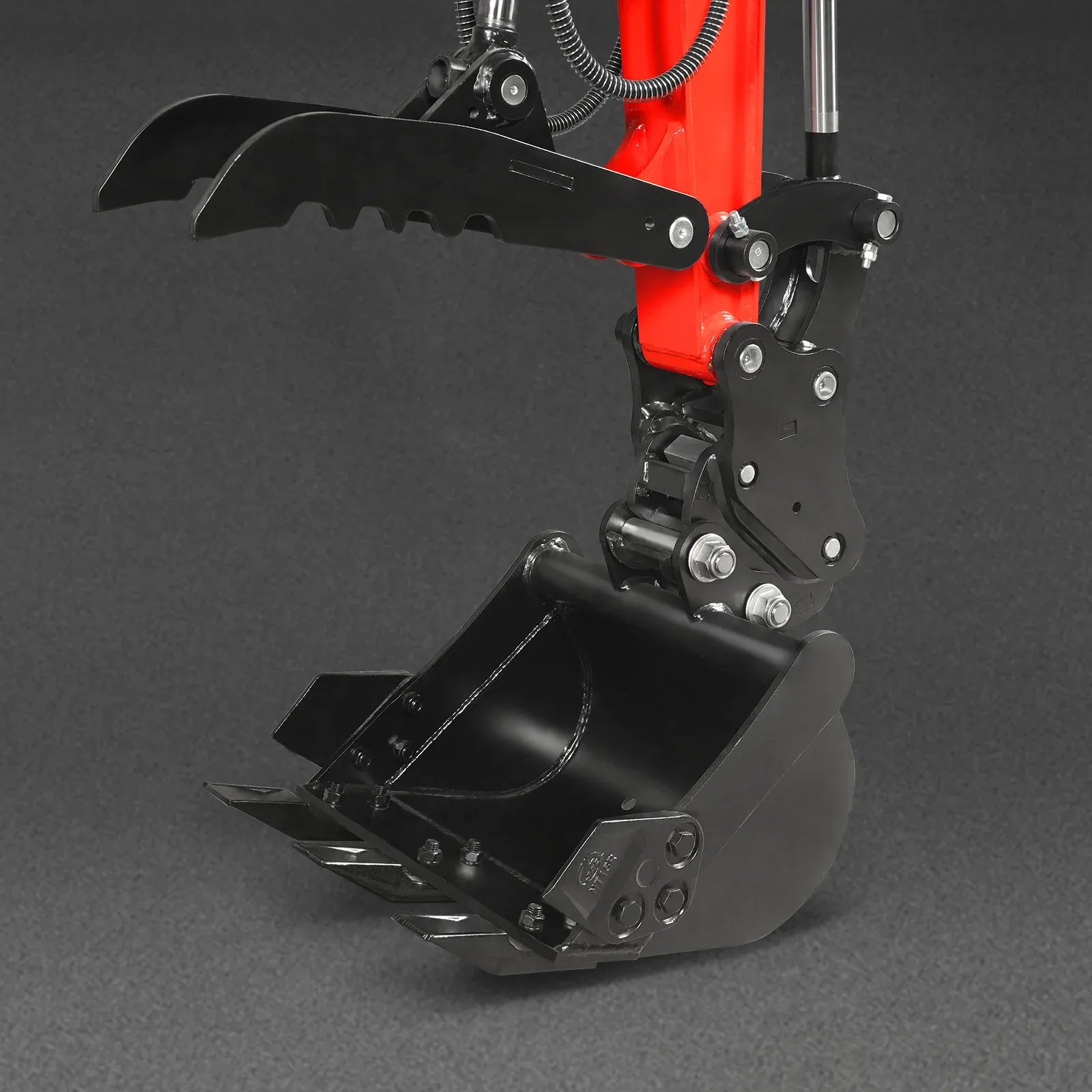

Hydraulic Thumb Included
Adjustable hydraulic thumb for handling rocks, branches, and debris directly from the operator’s seat — convenient positioning with no need to exit the cab between picks.
360° Rotation
Full 360° cab rotation at 11 RPM slewing speed for efficient digging, loading, and repositioning without moving the tracks — maximum operational flexibility on confined jobsites.
Full Specifications
Engine
| Engine Model | Honda GX390 |
| Engine Type | 4-Stroke, OHV, Single Cylinder, Air-Cooled |
| Displacement | 389 cc |
| Engine Output | 11.7 HP |
| Rated Power | 8.7 kW at 3,600 RPM |
| Max Net Torque | 26.5 N·m at 2,500 RPM |
| Start Type | Electric Start |
| Engine Oil Type | 10W-30 |
| Fuel Tank | 1.6 gal |
| Engine Oil Capacity | 0.3 gal |
| Engine Warranty | 1 Year |
Performance & Scope of Work
| Operating Weight | 2,280 lbs |
| Rated Lift Capacity | 728 lbs |
| Lift Radius | 80 in |

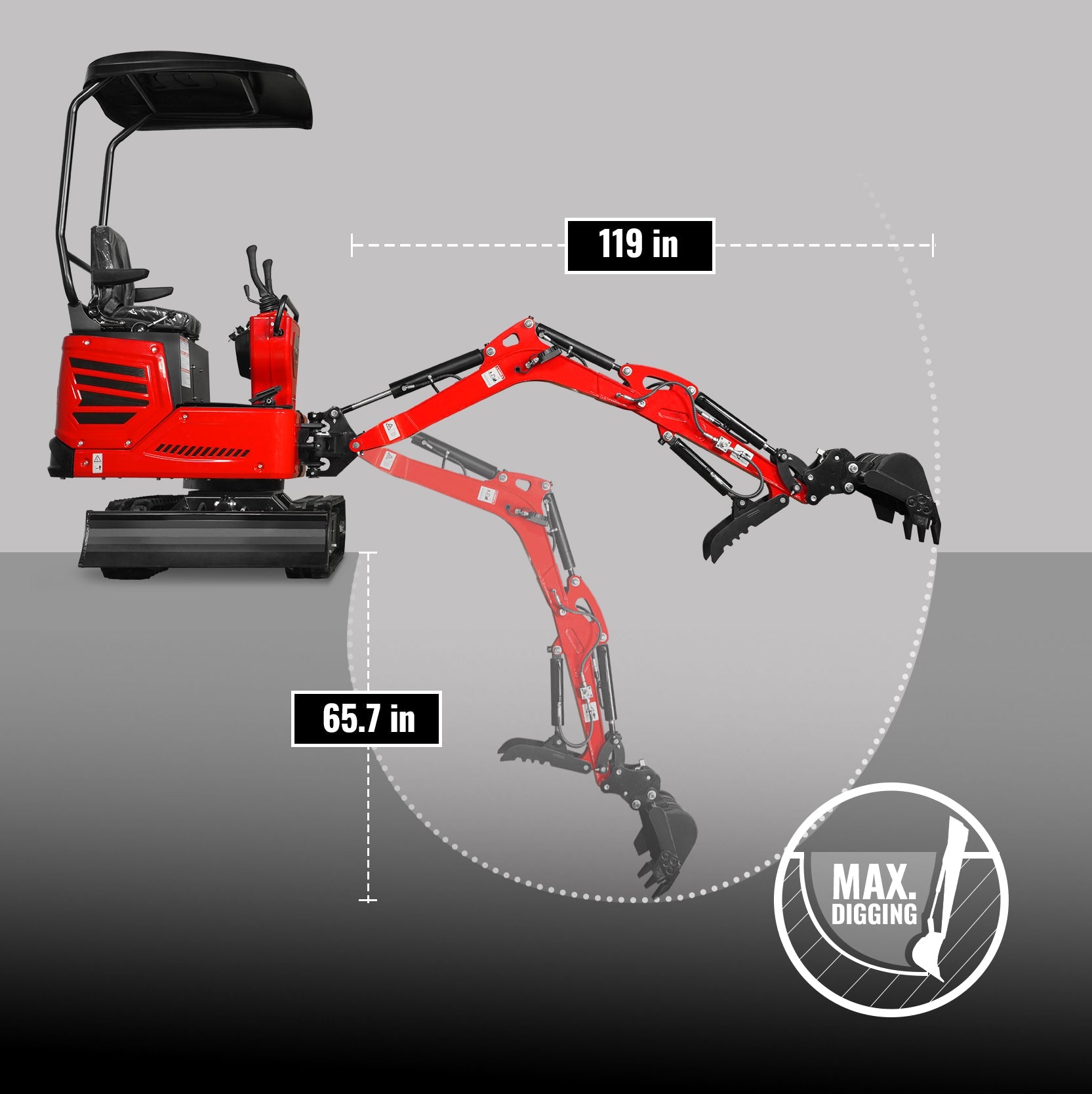

| Max Digging Depth | 65.7 in |
| Max Vertical Digging Depth | 63.3 in |
| Max Digging Height | 111.8 in |
| Max Unloading Height | 81.8 in |
| Max Digging Radius | 121 in |
| Max Digging Radius on Ground | 119 in |
| Min Turning Radius | 46.8 in |
| Max Lifting Height Dozer Blade | 5.9 in |
| Max Depth Dozer Blade | 7.4 in |
| Boom Swing — Left | 53° |
| Boom Swing — Right | 40° |
| Rotation | 360° |
| Counterweight Turning Radius | 32.6 in |
Travel System
| Max Travel Speed | 0.75 mph |
| Max Tractive Force | 3,035 lbf |
| Ground Clearance | 15.7 in |
| Ground Pressure | 5.1 psi |
| Max Gradeability | 30° |
Hydraulic System
| Auxiliary Standard Flow | 5.7 GPM |
| Slewing Speed | 11 RPM |
| Hydraulic Oil Tank | 3.96 gal |
Digging Forces & Bucket
| Bucket Digging Force | 1,619 lbf |
| Arm Digging Force | 1,191 lbf |
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
Dimensions
| Transportation Length | 92.5 / 113 in |
| Chassis Width | 36 in |
| Wheel Track | 35.8 in |
| Track Width | 7 in |
| Track Length | 48.6 in |
| Track Height | 12.6 in |
| Overall Height | 89.3 in |
| Overall Operating Height (Fully Raised) | 111.8 in |
| Height of Seat to Ground | 61.4 in |
| Counterweight Ground Clearance | 16 in |
Shipping
| Packing Size | 91 × 40 × 98 in |
| Net / Gross Weight | 2,100 / 2,376 lbs |
| Package Method | Plywood Case |
| Machine Warranty | 1 Year |
Everything Included
✓
Honda GX390 389cc Engine (Electric Start)
✓
Hydraulic Oil Radiator
✓
High-Flow Hydraulic System (5.7 GPM)
✓
Pilot-Operated Controls
✓
Semi-Automatic Quick Hitch
✓
360° Rotation
✓
Boom Swing 53° Left / 40° Right
✓
Hydraulic Thumb
✓
Dozer Blade
✓
Product Manual (PDF)
✓
Engine Manual (PDF)
✓
Demonstration Guide
Included — By Category
Engine & Hydraulics
Honda GX390 — 389cc 11.7 HP, Electric Start
Hydraulic Oil Radiator
High-Flow Hydraulic System (5.7 GPM)
Pilot-Operated Controls
Travel & Structure
360° Rotation
Dozer Blade
36″ Compact Chassis
Boom & Attachments
Boom Swing 53° Left / 40° Right
Semi-Automatic Quick Hitch
Hydraulic Thumb
Documents & Warranty
Product Manual (PDF)
Engine Manual (PDF)
Demonstration Guide
1-Year Machine Warranty
1-Year Engine Warranty
Built For
Tight Access Sites
Backyards & Gardens
Narrow Lanes & Alleys
Trenching
Landscaping
Light Demolition
Utility Installation
Residential Construction
Property Maintenance
