MechMaxx · MEC12 · Mini Compact Excavator

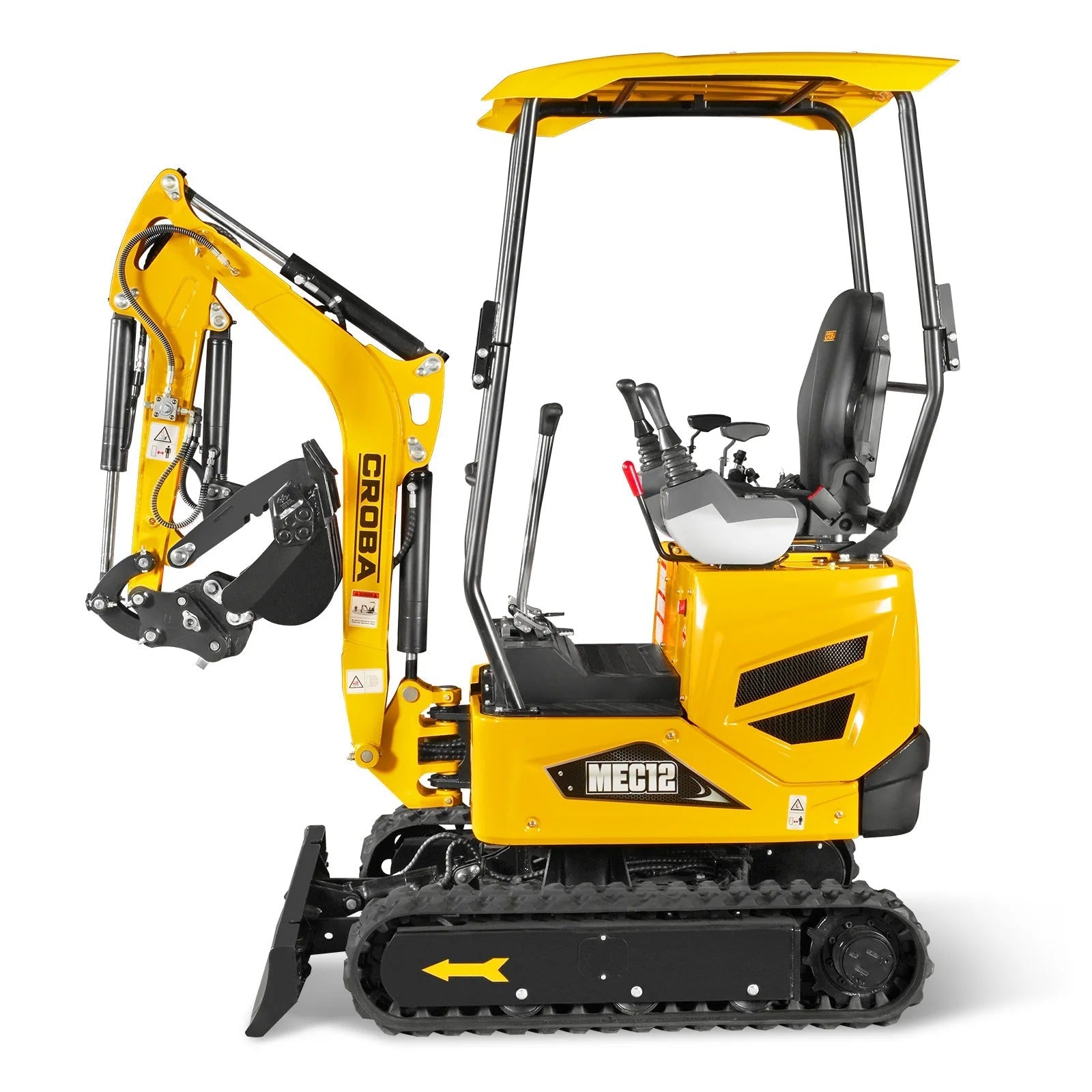

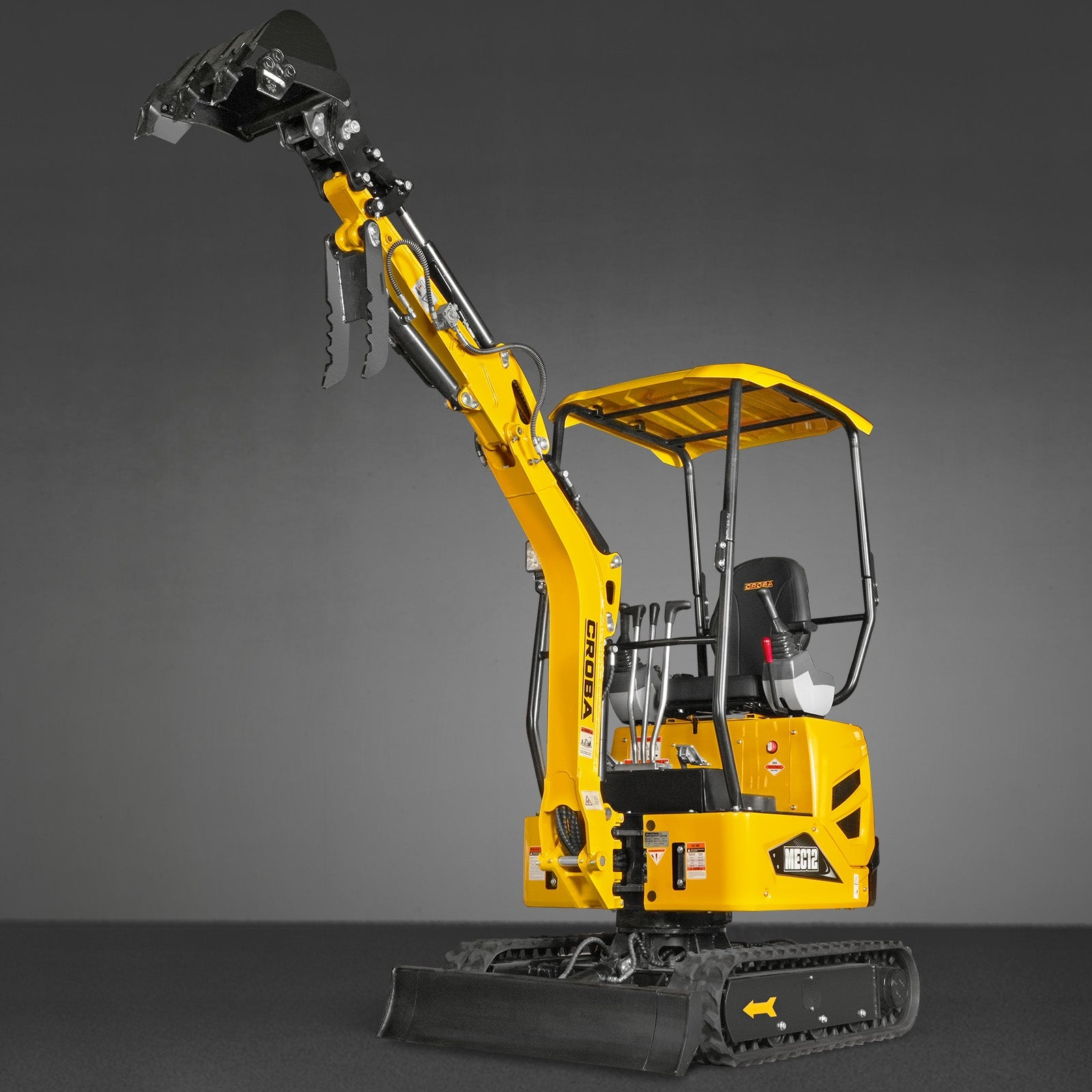

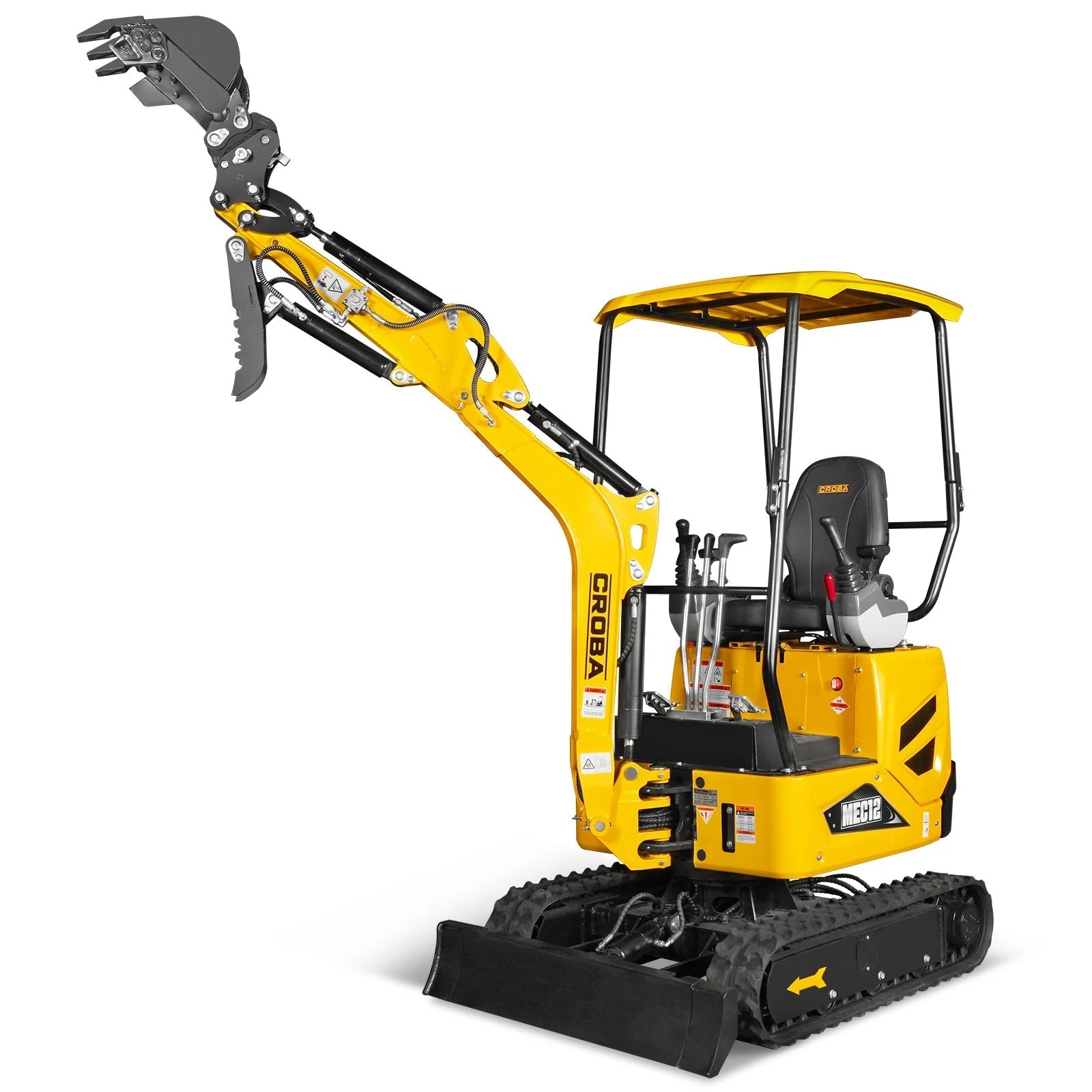

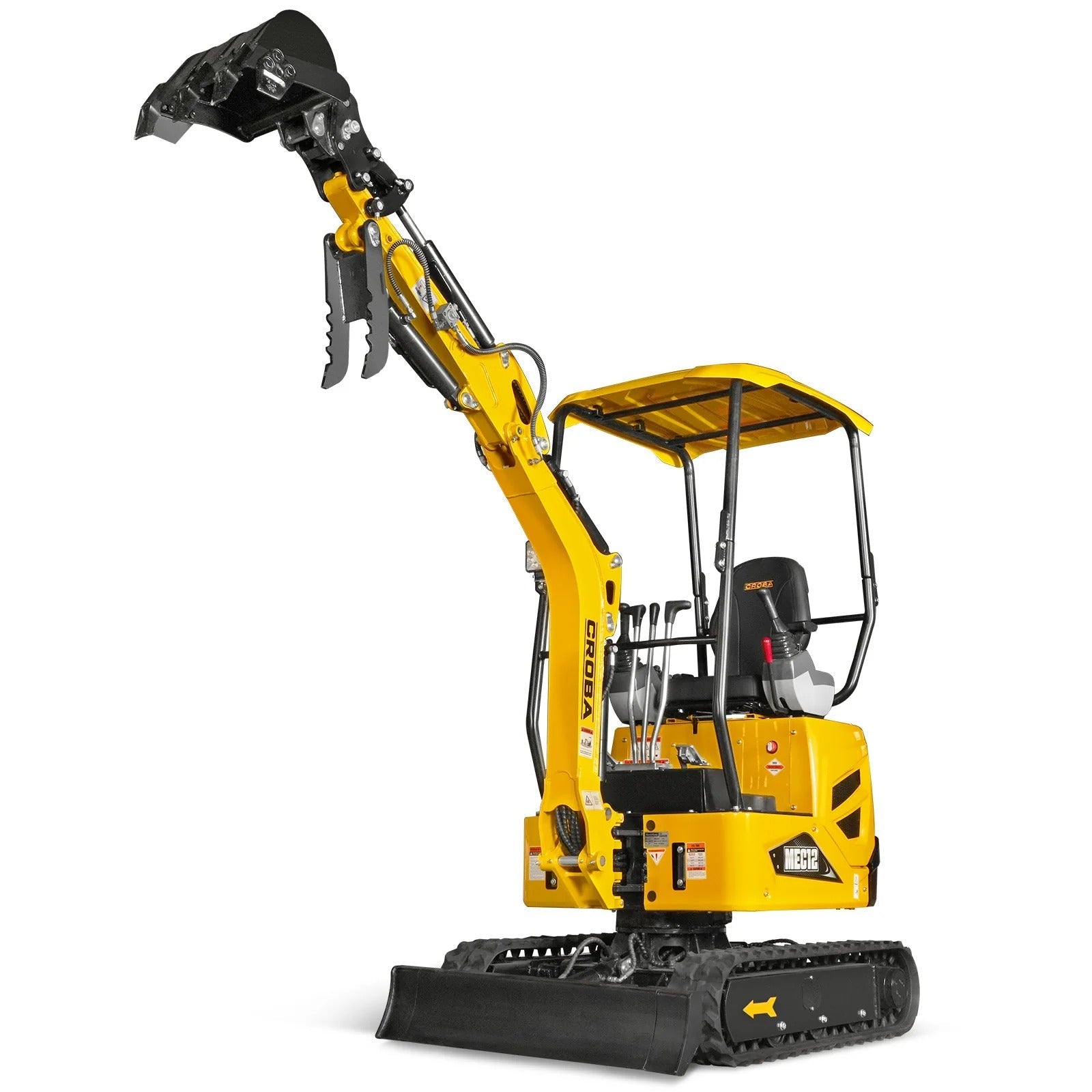

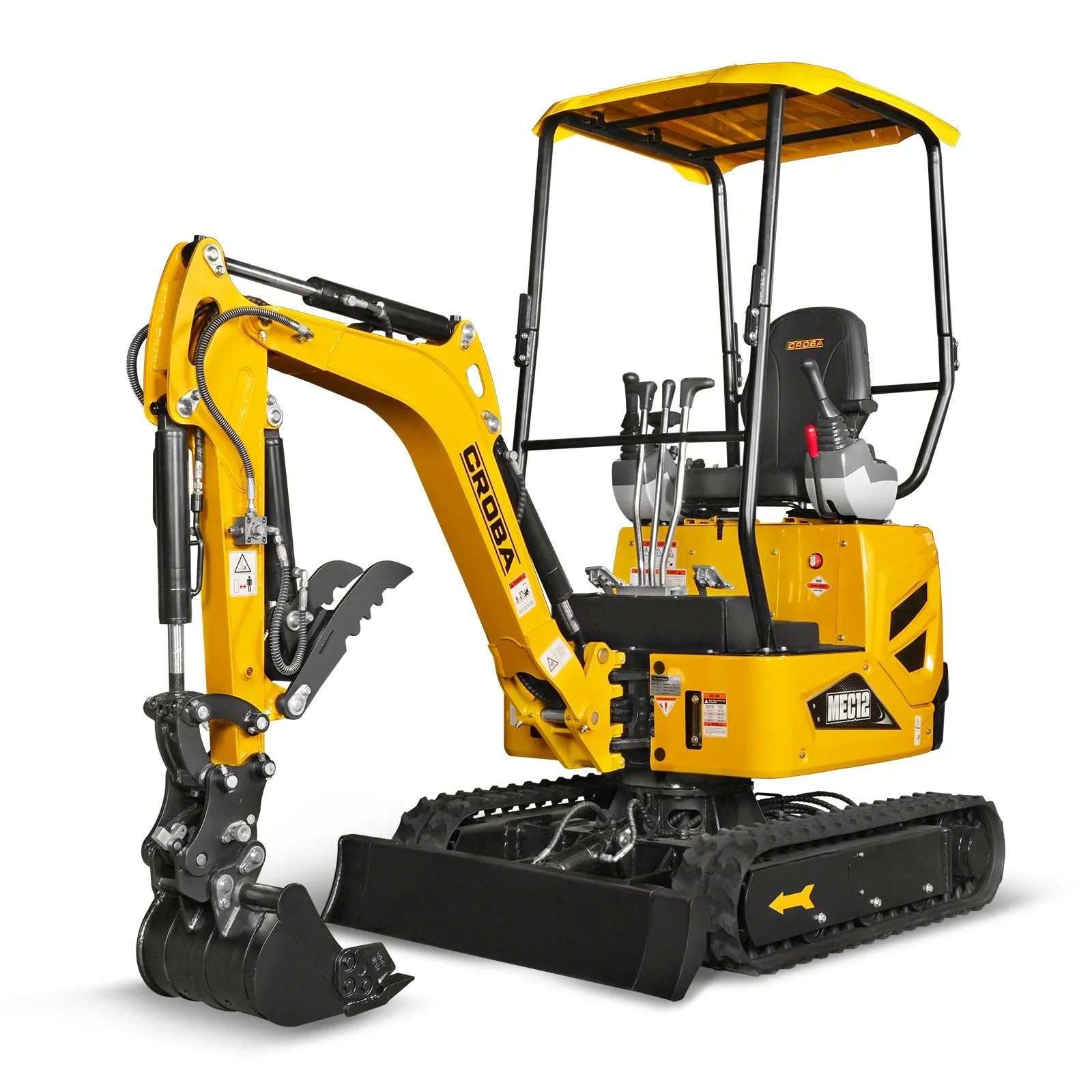

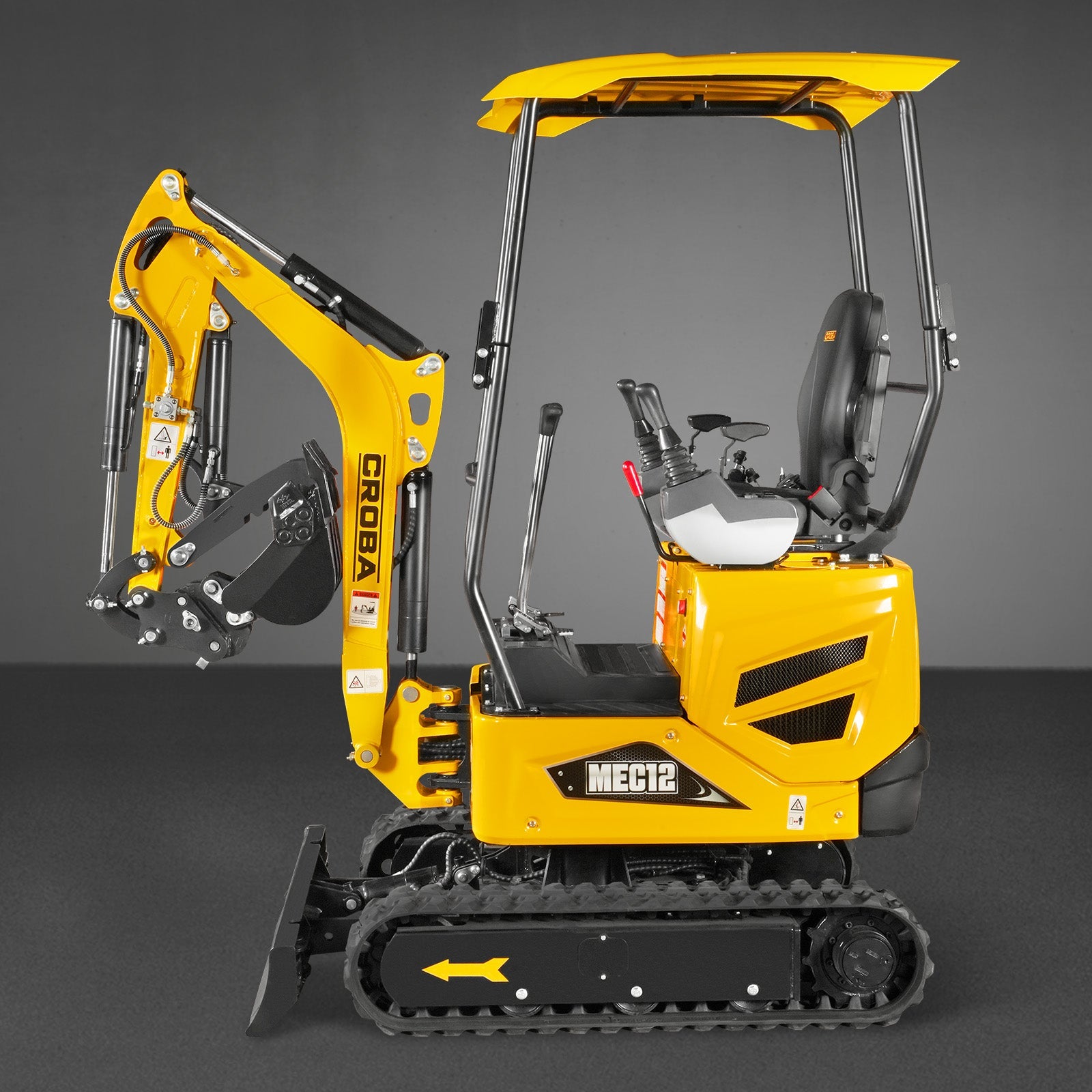

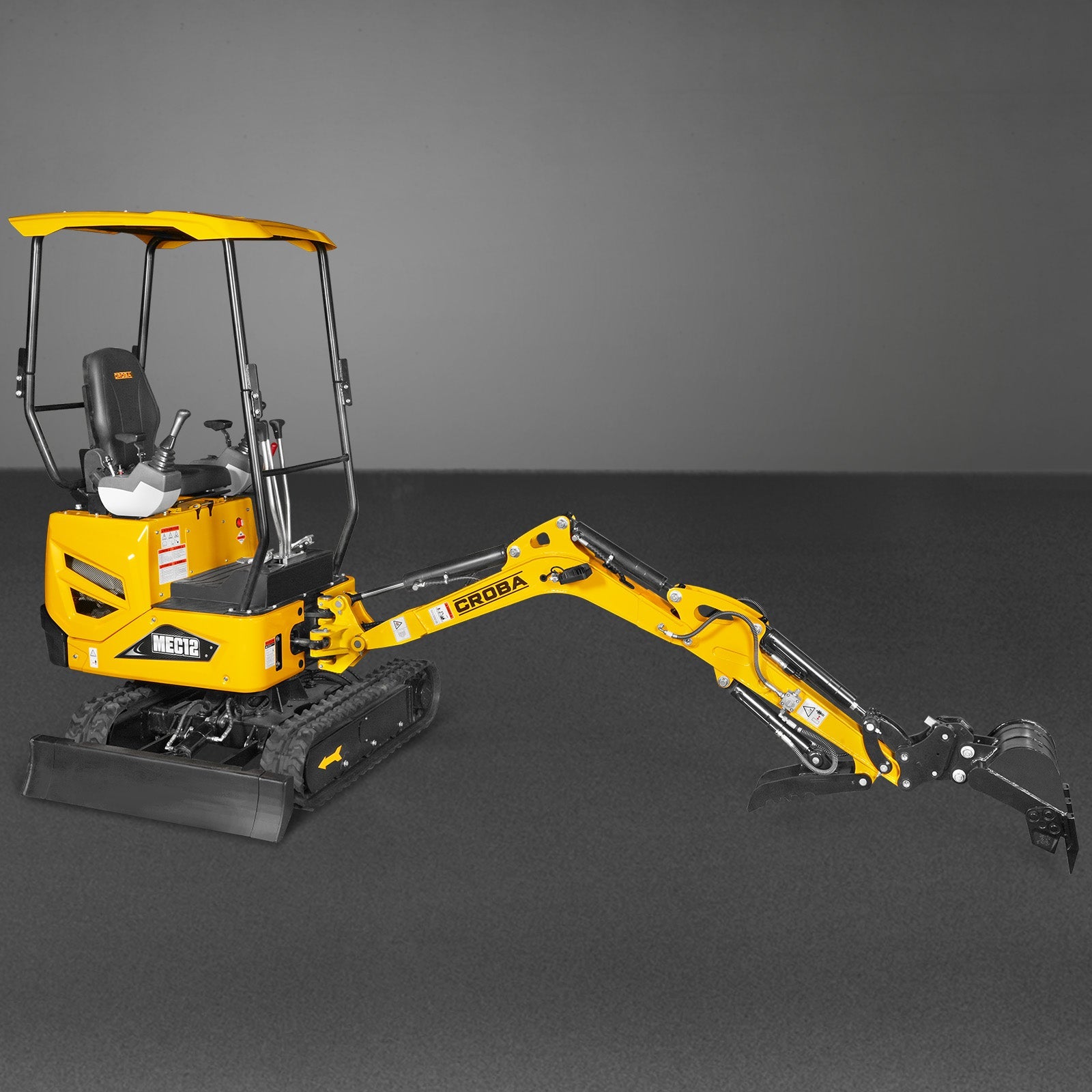

MechMaxx MEC12 Mini Compact Excavator
Kubota D722 Engine — Load-Sensing Hydraulics — Retractable Tracks
Designed for efficient operation in narrow lanes, alleys, backyards, gardens, and other confined spaces. The MEC12 pairs a Kubota D722 air-cooled diesel engine with a load-sensing hydraulic system, retractable tracks, and pilot-operated controls — delivering reliable performance where larger machines simply can’t fit.

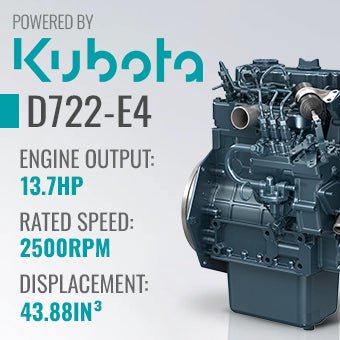

Powered by Kubota
Kubota D722-E4 — 13.7 HP · 2,500 RPM · 43.88 in³ displacement. Air-cooled, reliable, fuel-efficient, low noise, low vibration. 2-year engine warranty included.
13.7 HP
Kubota D722
2,700 lbs
Operating Weight

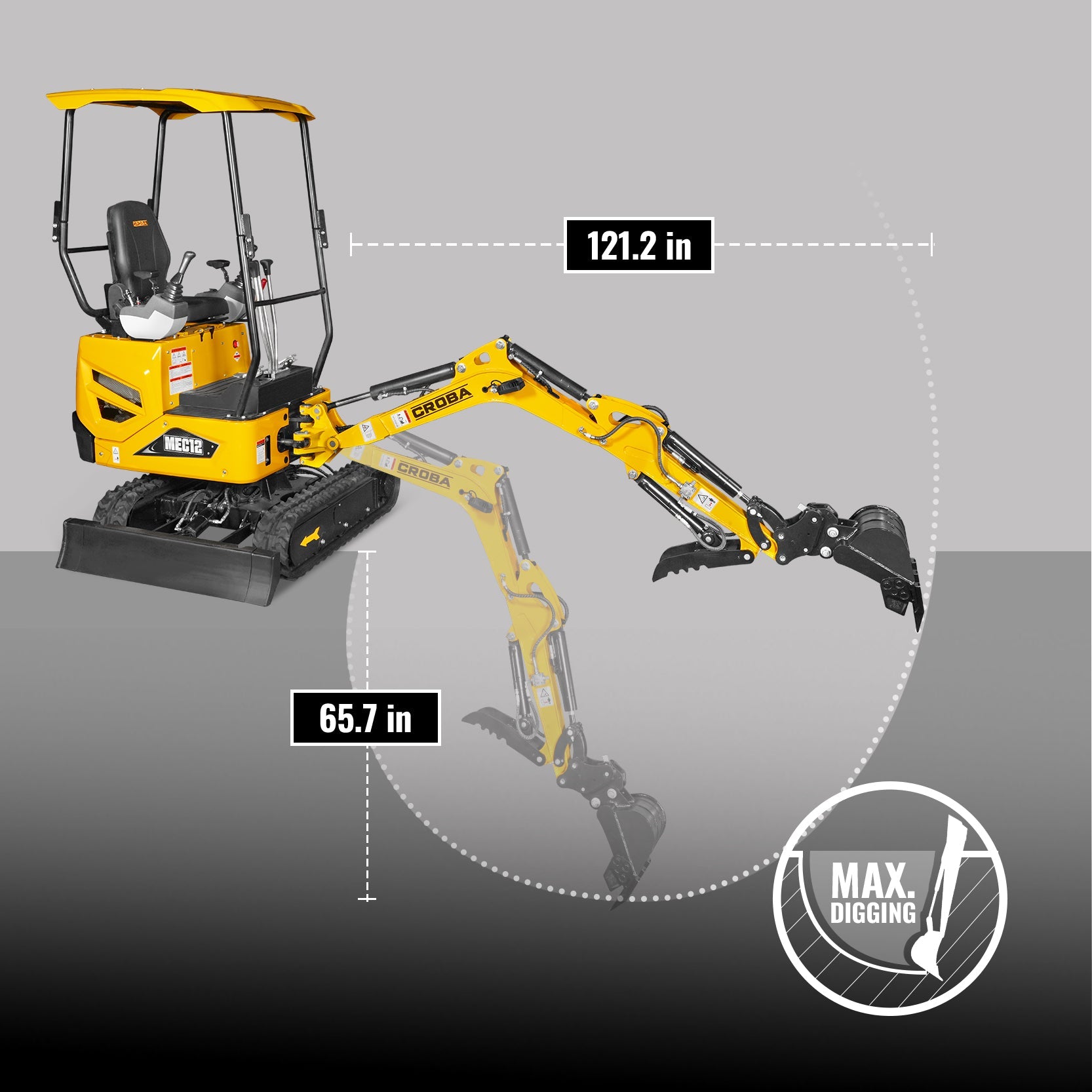

65.7″
Max Dig Depth
118.7″
Max Ground Reach
Key Features

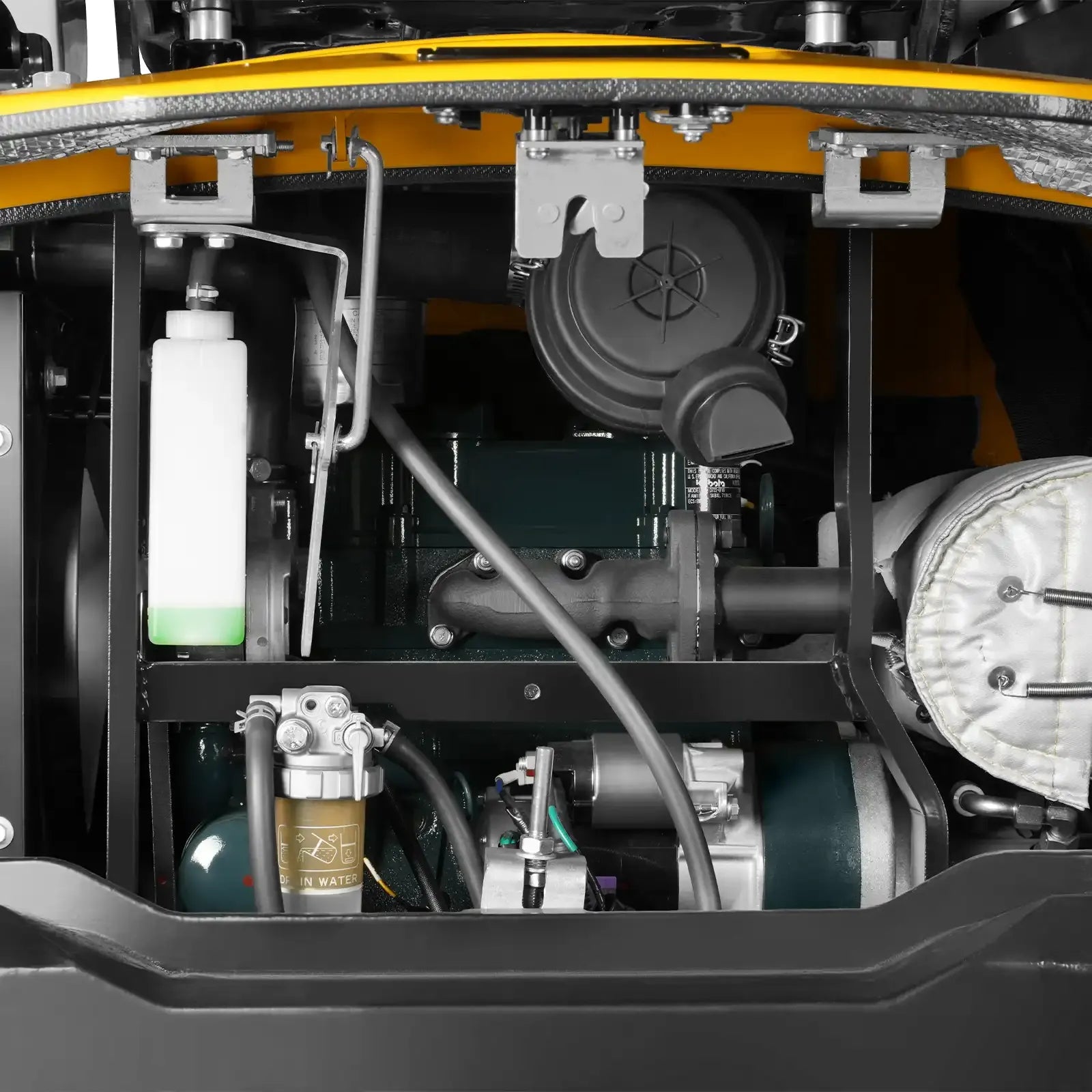

Kubota D722-E4 Air-Cooled Diesel
13.7 HP at 2,500 RPM, 43.88 in³ displacement. High compression ratio for better fuel efficiency, low noise, and low vibration. Reliable Kubota performance backed by a 2-year engine warranty.
Load-Sensing Hydraulics with Variable Displacement Piston Pump
Premium load-sensing hydraulic system with a variable displacement piston pump — delivers power precisely matched to demand at 4.65 GPM max discharge flow. Supports high-flow attachments including augers, rippers, and mulcher heads.

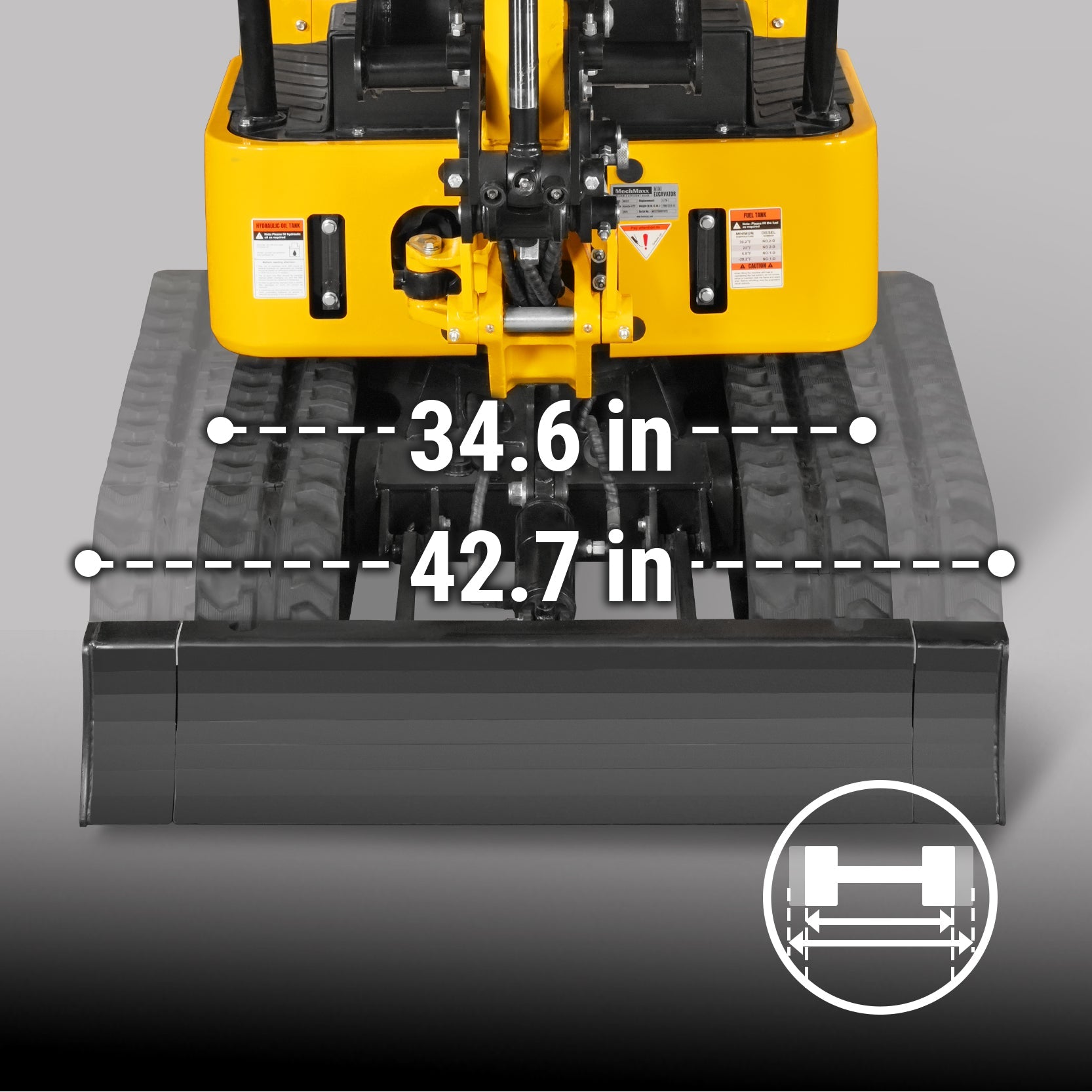

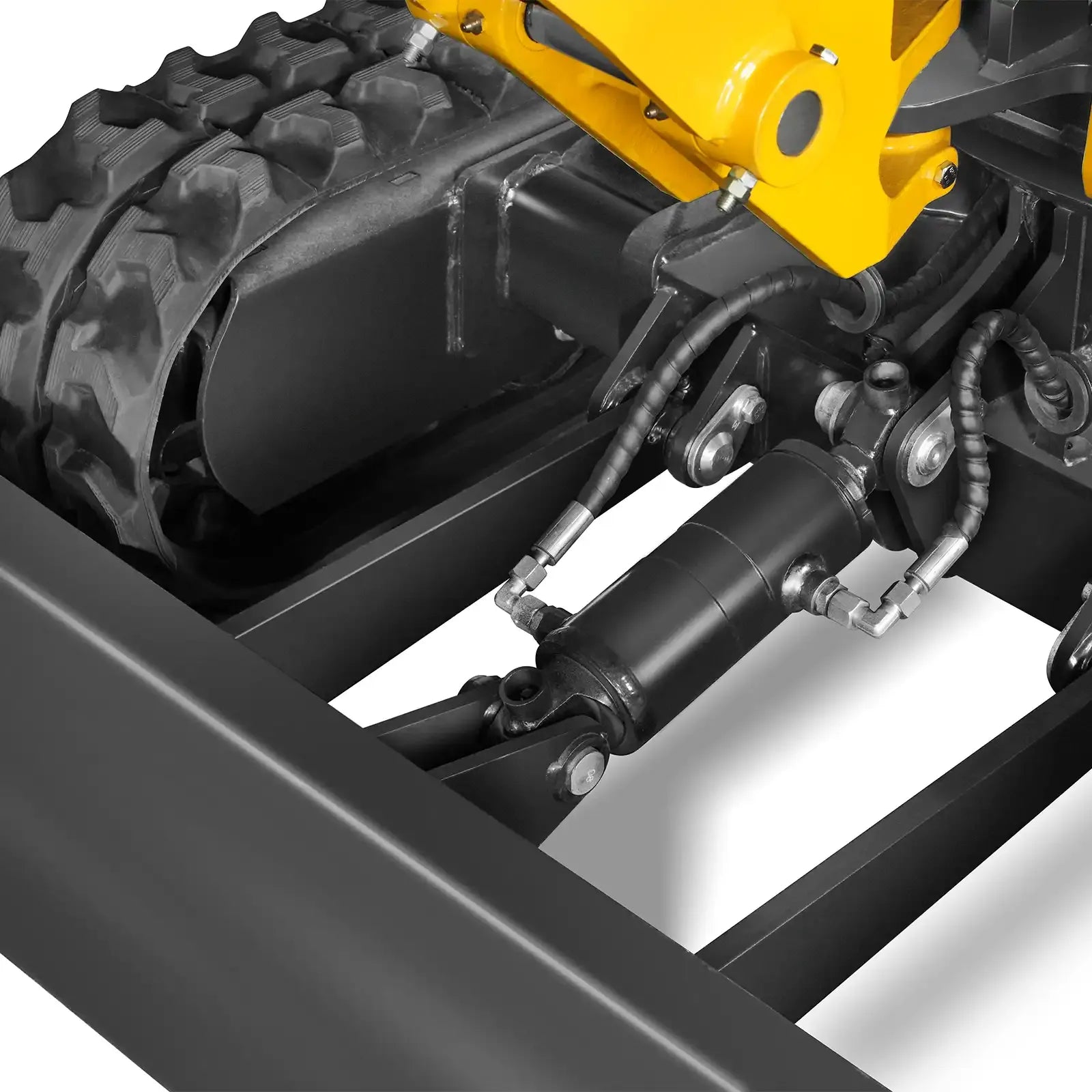

Retractable Undercarriage — 34.6″ to 42.7″
Retract tracks to 34.6″ for passing through tight access points and narrow passages. Extend to 42.7″ for greater stability on uneven terrain. Quick and simple adjustment for any jobsite condition.

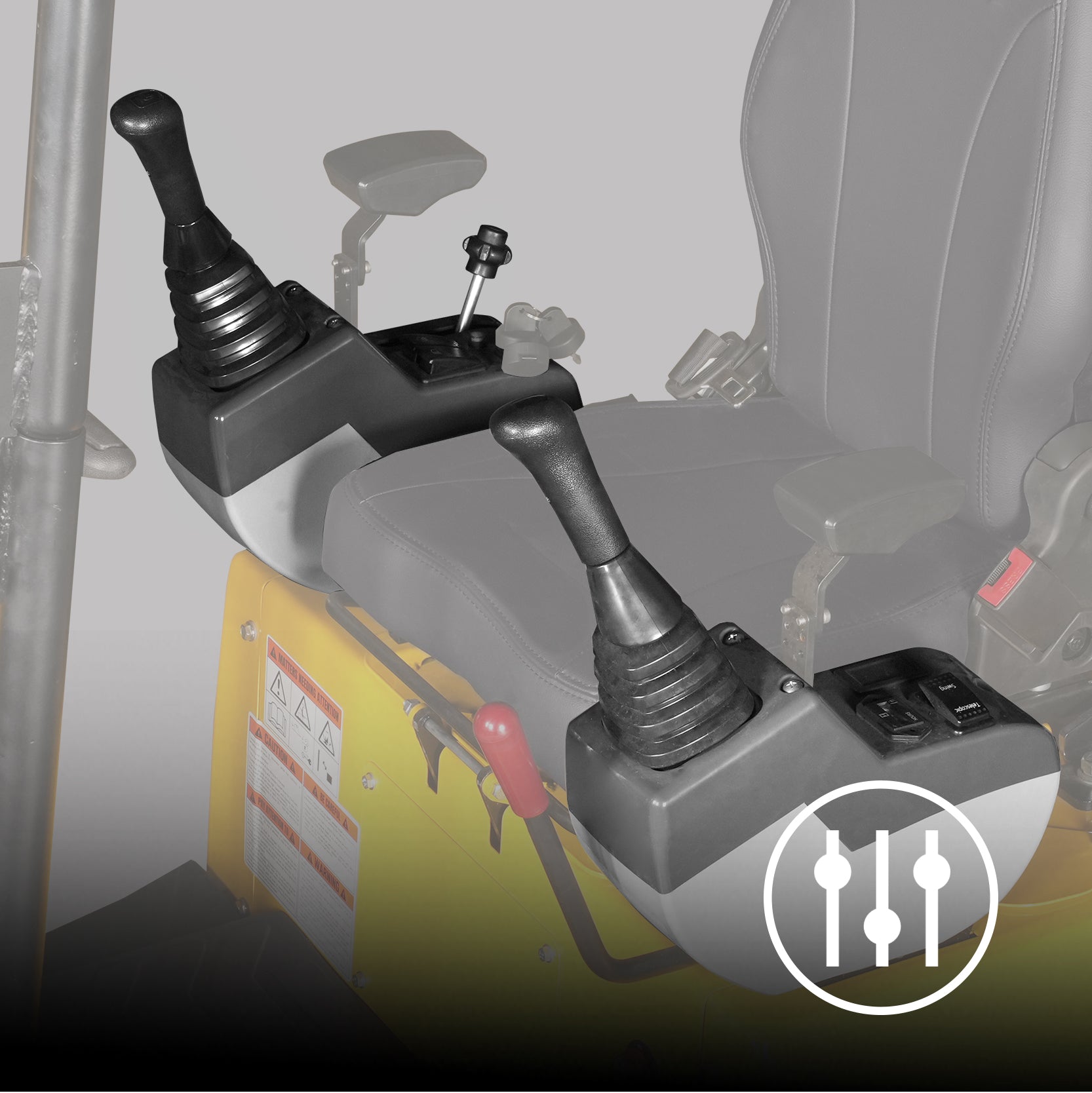

Pilot-Operated Controls
Smooth, responsive pilot-operated control levers provide precise machine handling and reduce operator fatigue during extended operating periods. Easy and accurate for operators of all experience levels.

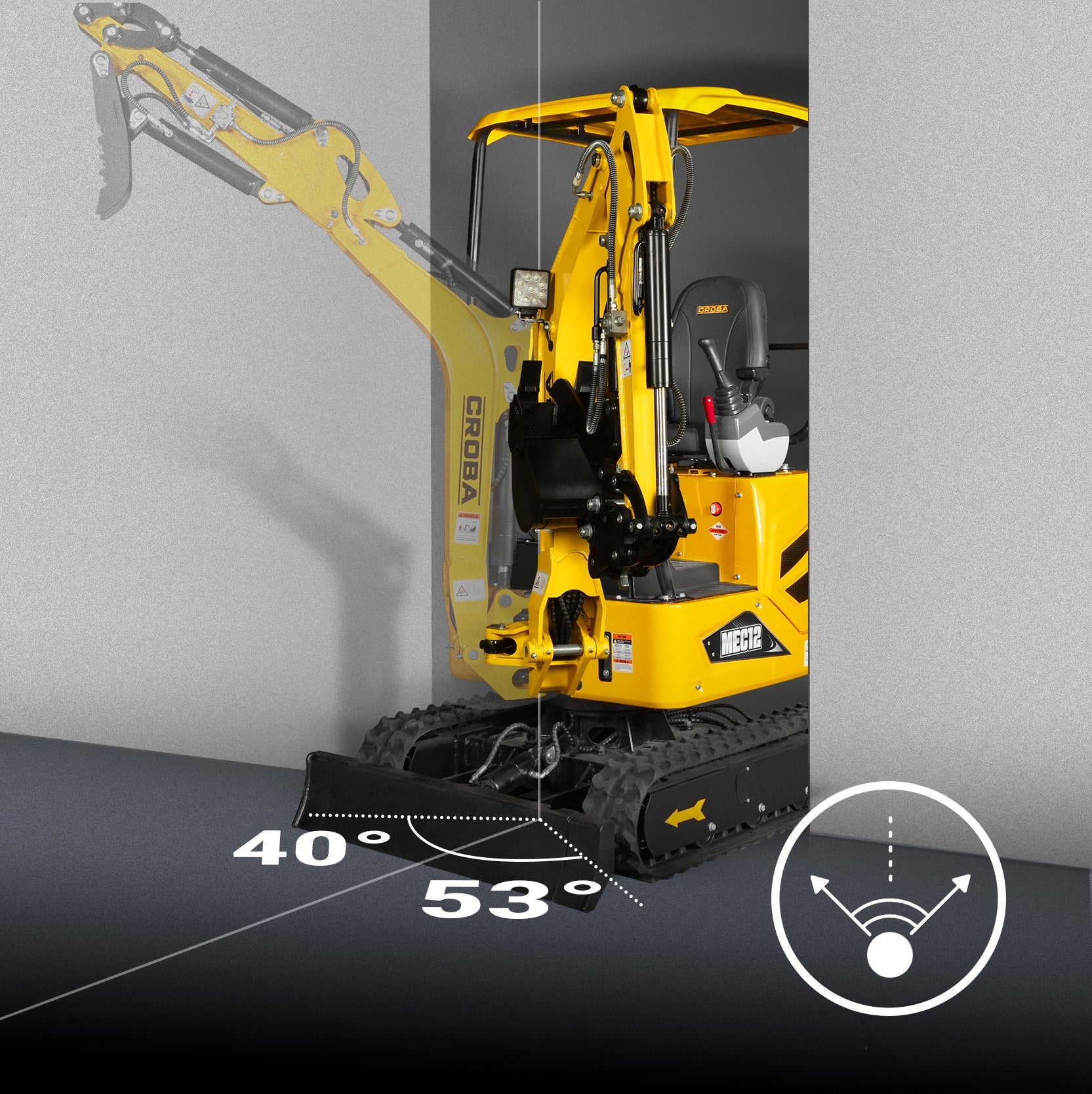

Boom Swing — 53° Left / 40° Right
Wide boom swing range lets the digging arm swing left or right to access tight spaces alongside walls, fences, and jobsite edges — dump soil exactly where you need it without repositioning.

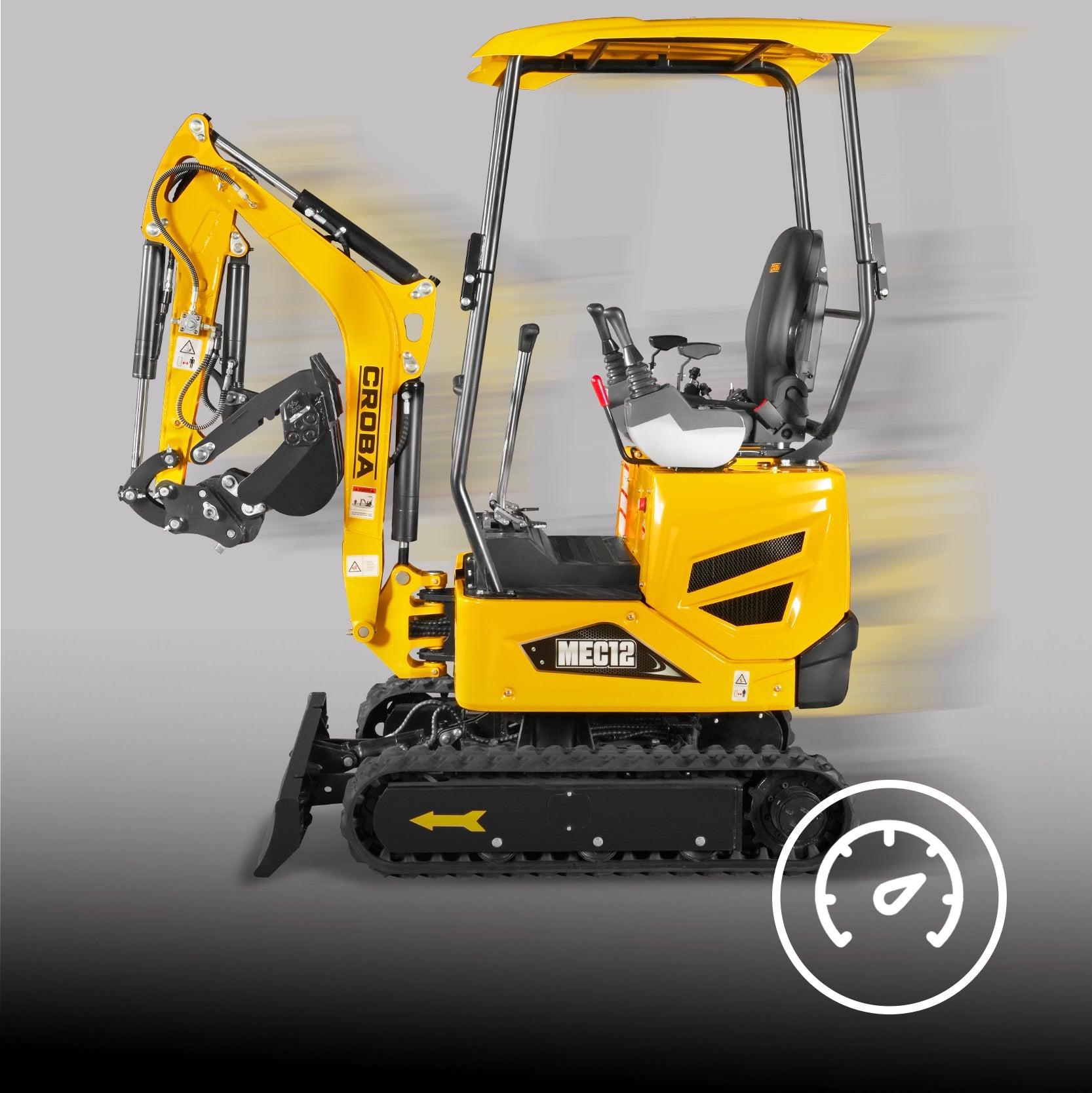

Two-Speed Travel
High speed: 2.24 mph for efficient site travel. Low speed: 1.12 mph for precision control on tight grades and confined areas. Maximum traction force of 2,923 lbf in low speed.
360° Rotation
Full 360° cab rotation allows efficient digging, loading, and repositioning without moving the machine — maximising productivity in confined jobsite conditions.

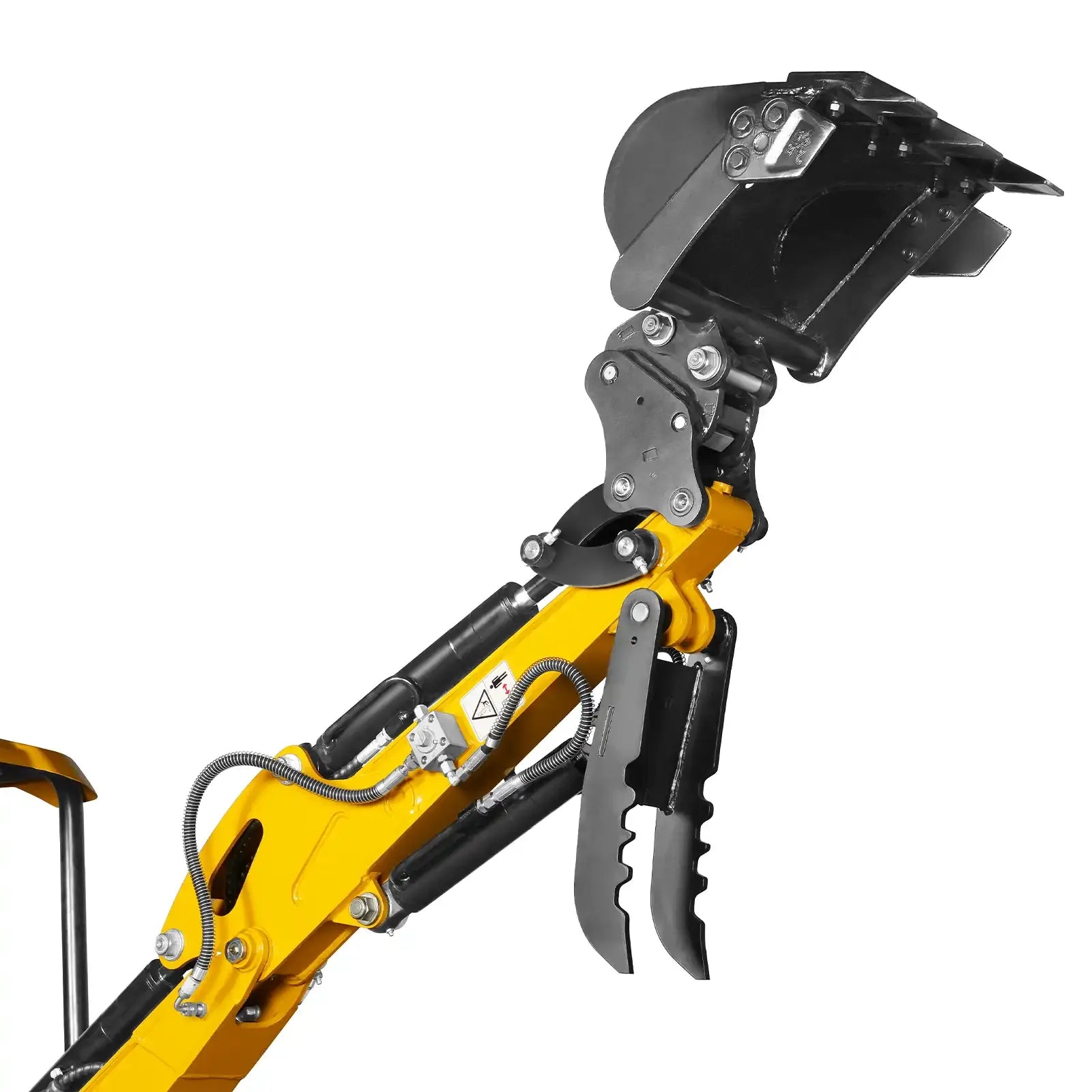

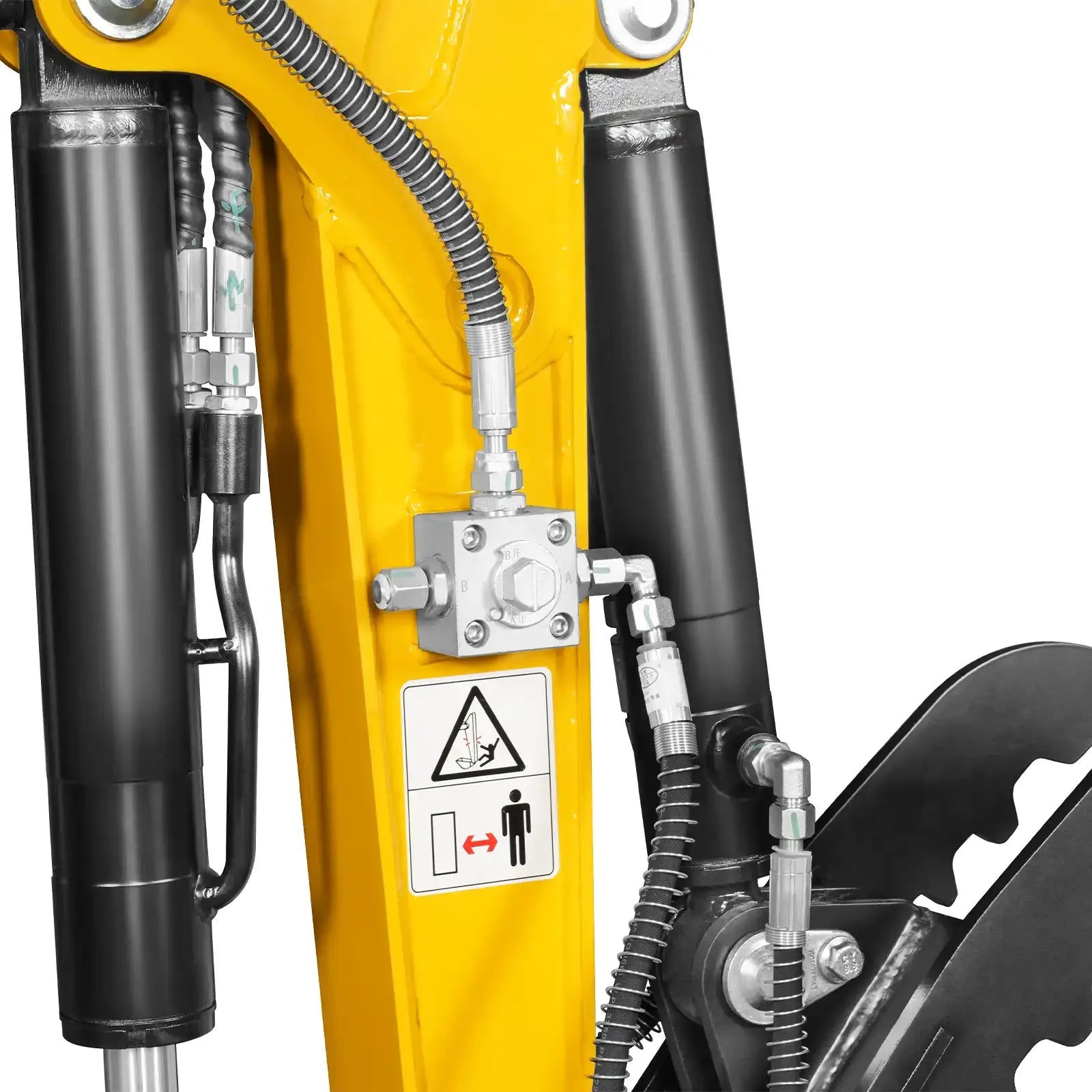

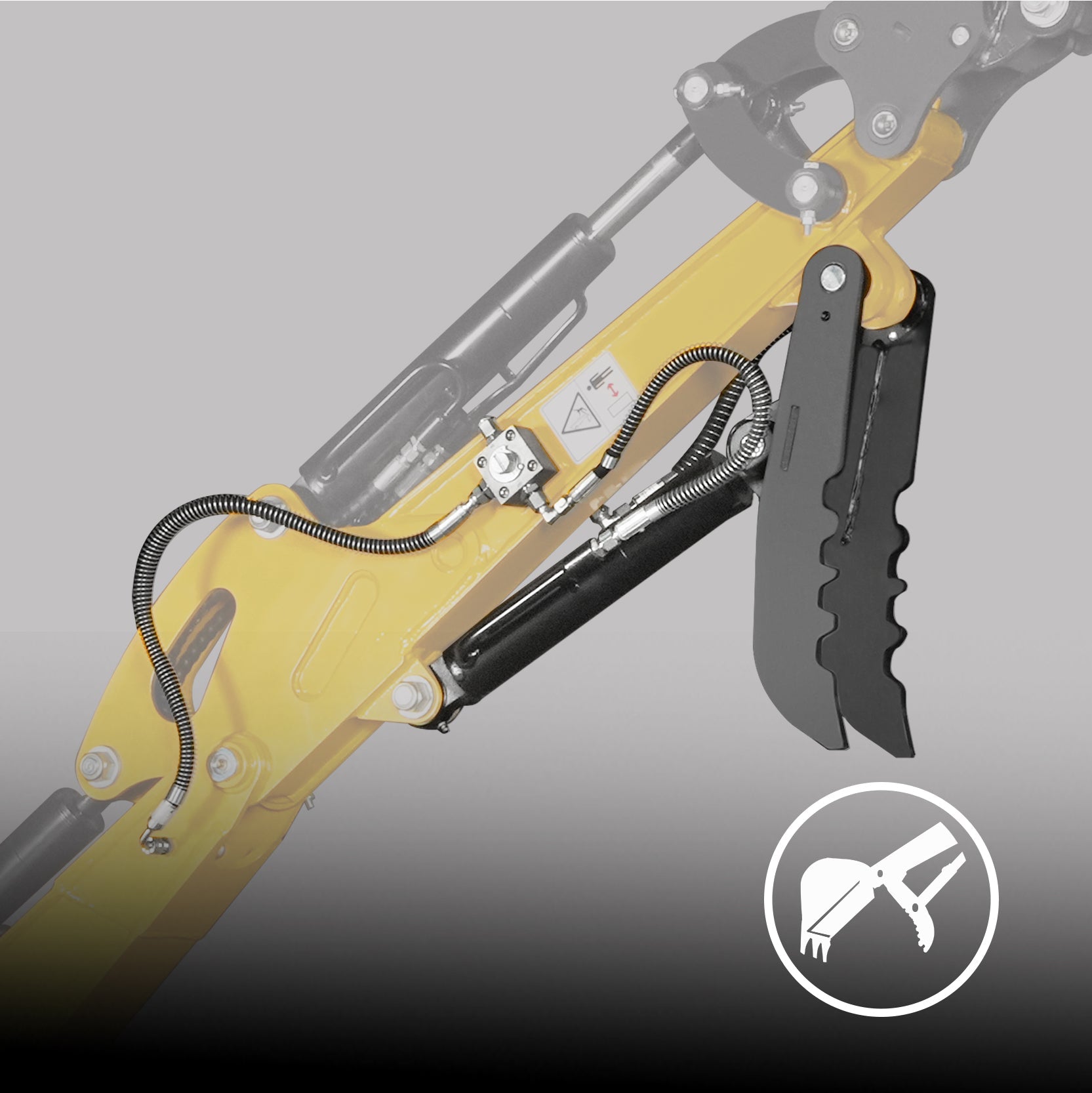

Hydraulic Thumb Included
Adjustable hydraulic thumb for picking up rocks, branches, and debris — position controlled directly from the operator’s seat. Included as standard on every MEC12.

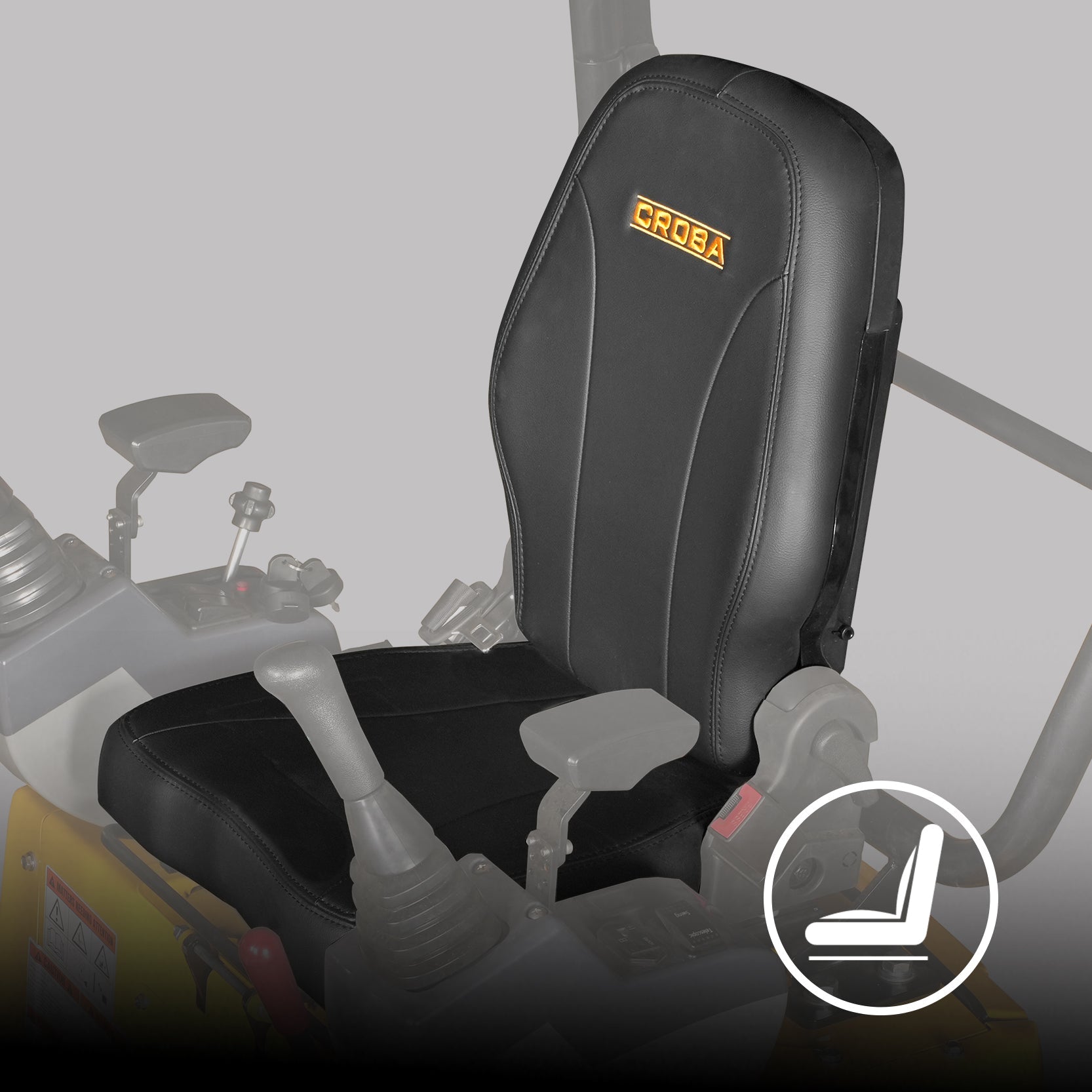

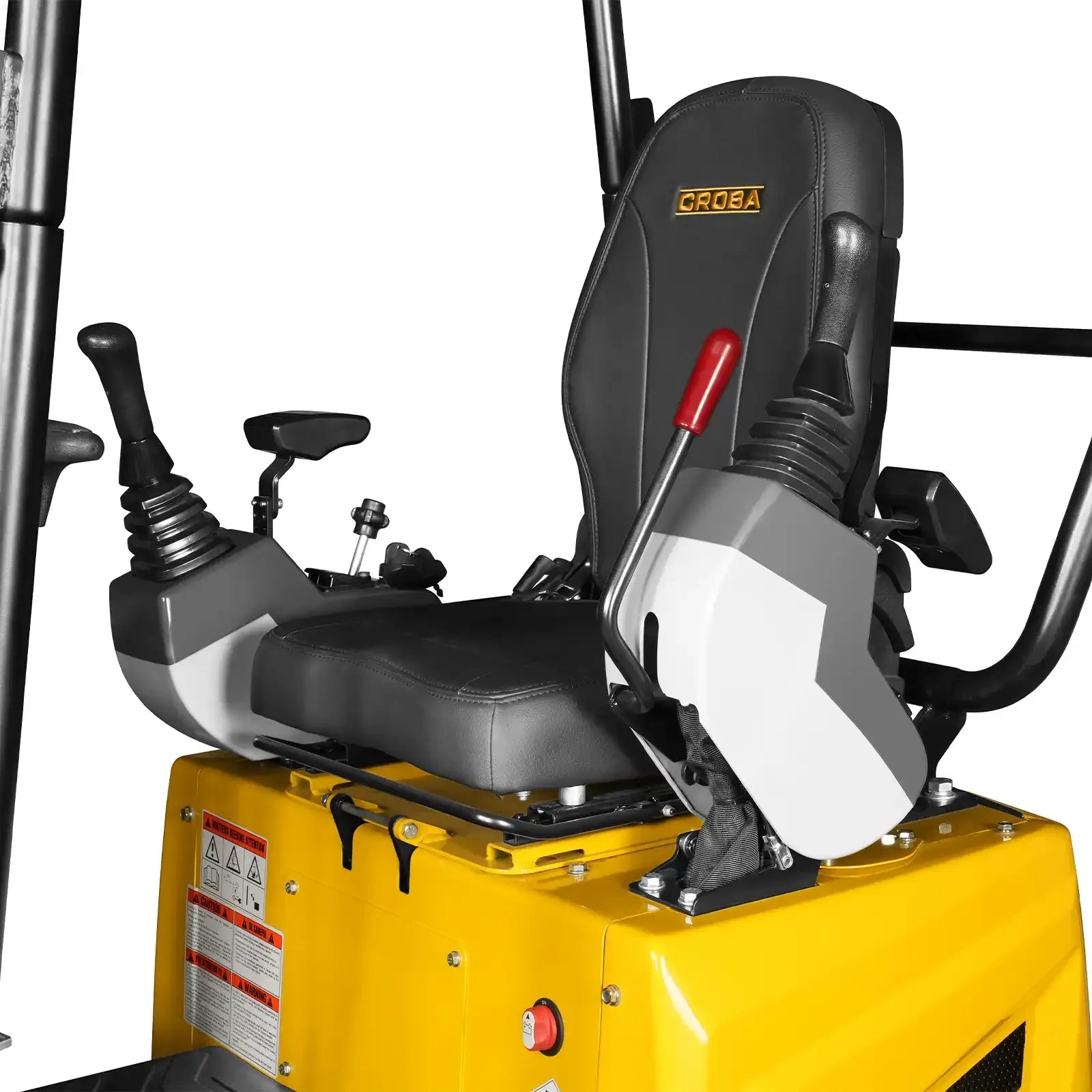

High-Back Seat
High-back seat provides excellent support during long operating hours, reducing fatigue and improving overall efficiency across full-day operating sessions.
High-Flow Attachment Ready
The enhanced hydraulic system supports high-flow attachments such as augers, rippers, and mulcher heads — expanding the machine’s capability well beyond basic digging and trenching tasks.
Full Specifications
Engine
| Engine Model | Kubota D722-E4 |
| Engine Output | 13.7 HP |
| Rated Speed | 2,500 RPM |
| Displacement | 43.88 in³ |
| No. of Cylinders | 3 |
| Bore | 2.64 in |
| Stroke | 2.68 in |
| Engine Warranty | 2 Years |
Performance & Scope of Work
| Operating Weight | 2,700 lbs |
| Max Digging Depth | 65.7 in |
| Max Vertical Digging Depth | 62.6 in |
| Max Digging Height | 111.2 in |
| Max Dumping Height | 81.1 in |
| Max Digging Radius | 119 in |
| Max Digging Radius at Ground Level | 118.7 in |
| Max Lift Above Ground | 5.5 in |
| Max Drop Below Ground | 8.9 in |
| Min Turning Radius of Working Device | 48.1 in |
| Boom Swing — Left | 53° |
| Boom Swing — Right | 40° |
| Rotation | 360° |
| Tail Swing Radius | 48.1 in |
Travel System
| Travel Speed — High | 2.24 mph |
| Travel Speed — Low | 1.12 mph |
| Max Traction Force — Low Speed | 2,923 lbf |
| Ground Clearance | 15.9 in |
| Ground Pressure | 5.1 psi |
| Gradeability — Maximum | 30° |
Hydraulic System
| Hydraulic System Type | Load-Sensing — Variable Displacement Piston Pump |
| Max Discharge Flow | 4.65 GPM |
| Swing Speed | 8 RPM |
Digging Forces & Arm
| Boom Length | 52 in |
| Arm Length | 35 in |
| Bucket Digging Force | 1,960 lbf |
| Arm Digging Force | 875 lbf |
Bucket
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
Dimensions
| Transportation Length | 92.4 / 114.8 in |
| Overall Width (Retracted / Expanded) | 42.7 in |
| Track Width (Retracted / Expanded) | 34.6 / 42.7 in |
| Overall Height (to Top of Cab) | 89.5 in |
| Track Length | 55.5 in |
| Track Belt / Shoe Width | 7 in |
| Crawler Wheel Base | 42.5 in |
| Counterweight Ground Clearance | 16.7 in |
Capacities

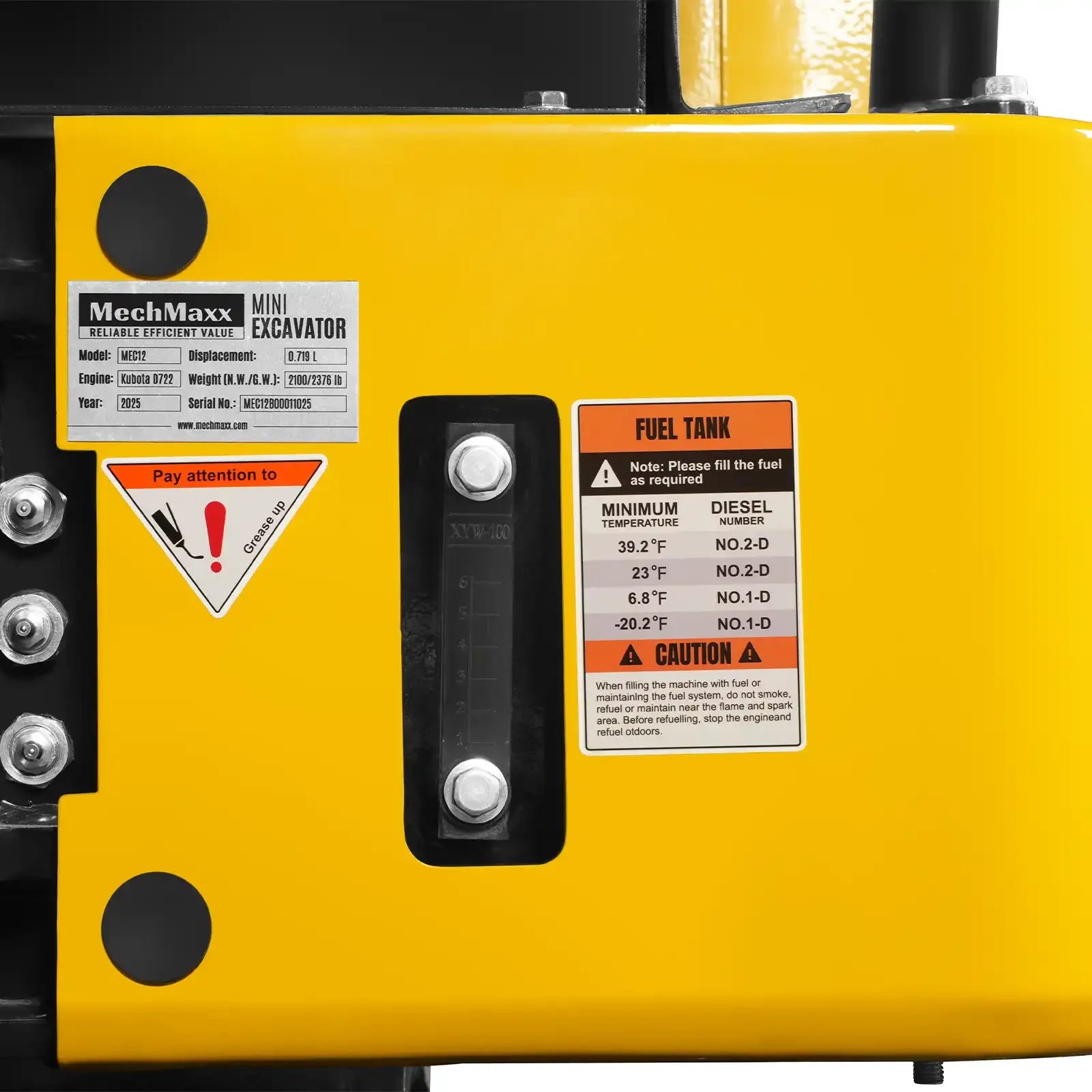

| Fuel Tank | 2.4 gal |
| Hydraulic Oil Tank | 3.2 gal |
| Cooling System | 1.1 gal |
| Engine Oil | 0.7 gal |
| System Capacity | 4.8 gal |
Shipping
| Packing Size | 91 × 40 × 98 in |
| Net / Gross Weight | 2,700 / 2,978 lbs |
| Package Method | Wood Case |
| Machine Warranty | 1 Year |
Everything Included
✓
Kubota D722-E4 Diesel Engine
✓
Load-Sensing Variable Displacement Piston Pump
✓
Retractable Undercarriage (34.6″–42.7″)
✓
Pilot-Operated Controls
✓
Two-Speed Travel (High / Low)
✓
360° Rotation
✓
Boom Swing 53° Left / 40° Right
✓
High-Flow Attachment Ready Hydraulics
✓
Hydraulic Thumb
✓
High-Back Seat
✓
Product Manual (PDF)
✓
Engine Manual (PDF)
Included — By Category
Engine & Hydraulics
Kubota D722-E4 Diesel Engine
Load-Sensing Variable Displacement Piston Pump
High-Flow Attachment Ready Hydraulics
Pilot-Operated Controls
Cab & Operator
High-Back Seat
Product Manual (PDF)
Engine Manual (PDF)
Undercarriage & Travel
Retractable Undercarriage (34.6″–42.7″)
Two-Speed Travel (High / Low)
360° Rotation
Boom, Attachments & Warranty
Boom Swing 53° Left / 40° Right
Hydraulic Thumb
1-Year Machine Warranty
2-Year Engine Warranty
Built For
Tight Access Sites
Backyards & Gardens
Narrow Lanes & Alleys
Trenching
Landscaping
Light Demolition
Utility Installation
Residential Construction
Property Maintenance
