MechMaxx Mini Compact Excavator with Kubota D902 Engine, 89″ Max Digging Depth, 4145 lb Operating Weight, Model MEC17
Original price was: $22,999.00.$14,488.99Current price is: $14,488.99.

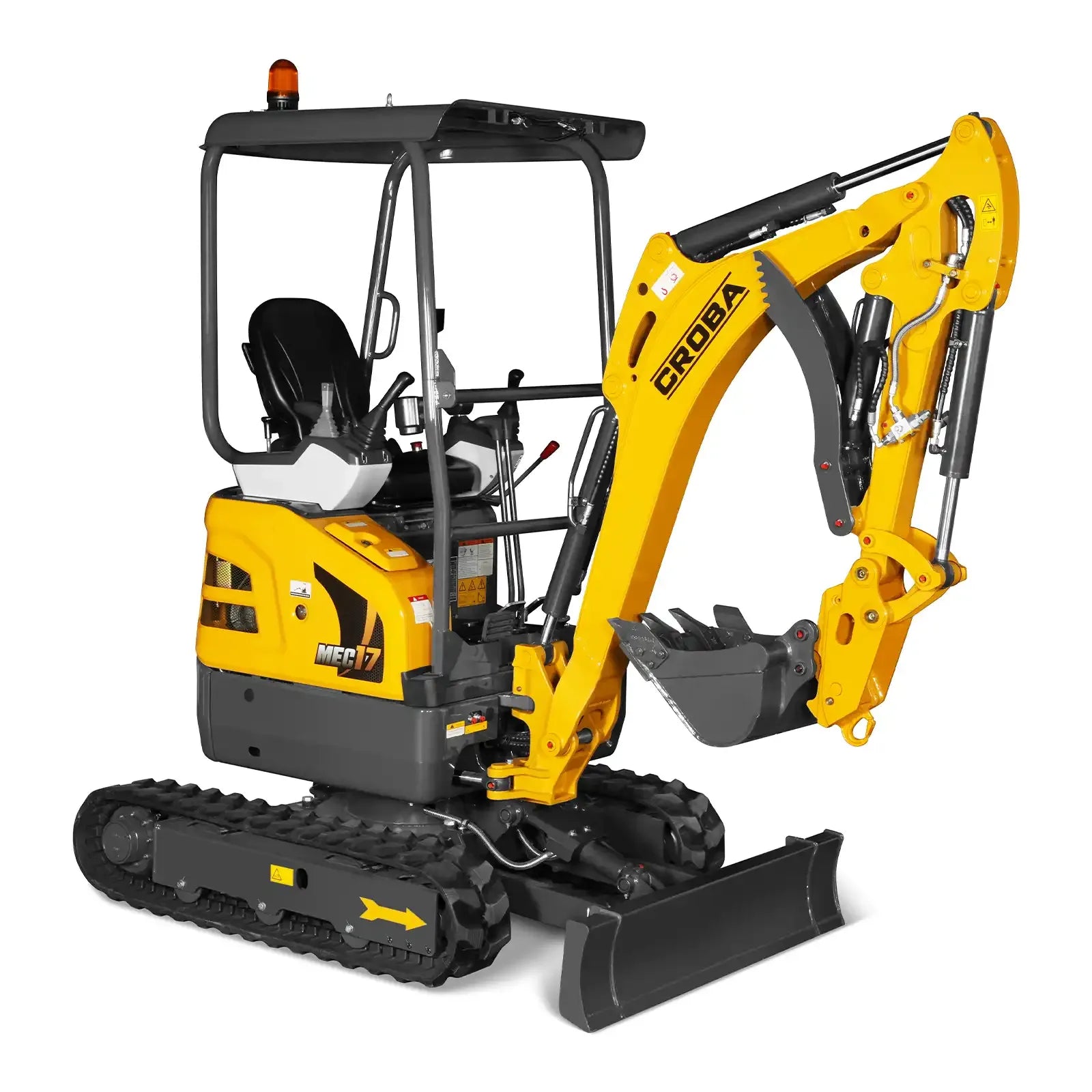

MechMaxx MEC17 Mini Compact Excavator
Built for jobs where space is tight but performance still matters. The MEC17 is powered by a dependable Kubota D902 diesel engine and designed for narrow access areas — backyards, alleys, gardens, and confined construction sites where larger machines can’t operate efficiently.
| Engine Model | Kubota D902-NT-EF03 |
| Engine Output (Net) | 15.8 HP |
| Engine Output (Gross) | 18.5 HP |
| Rated Speed | 3,600 RPM |
| Displacement | 54.8 in³ |
| No. of Cylinders | 3 |
| Bore | 2.83 in |
| Stroke | 2.9 in |
| Engine Warranty | 2-Year or 2,000-Hour |
| Operating Weight | 4,145 lbs |

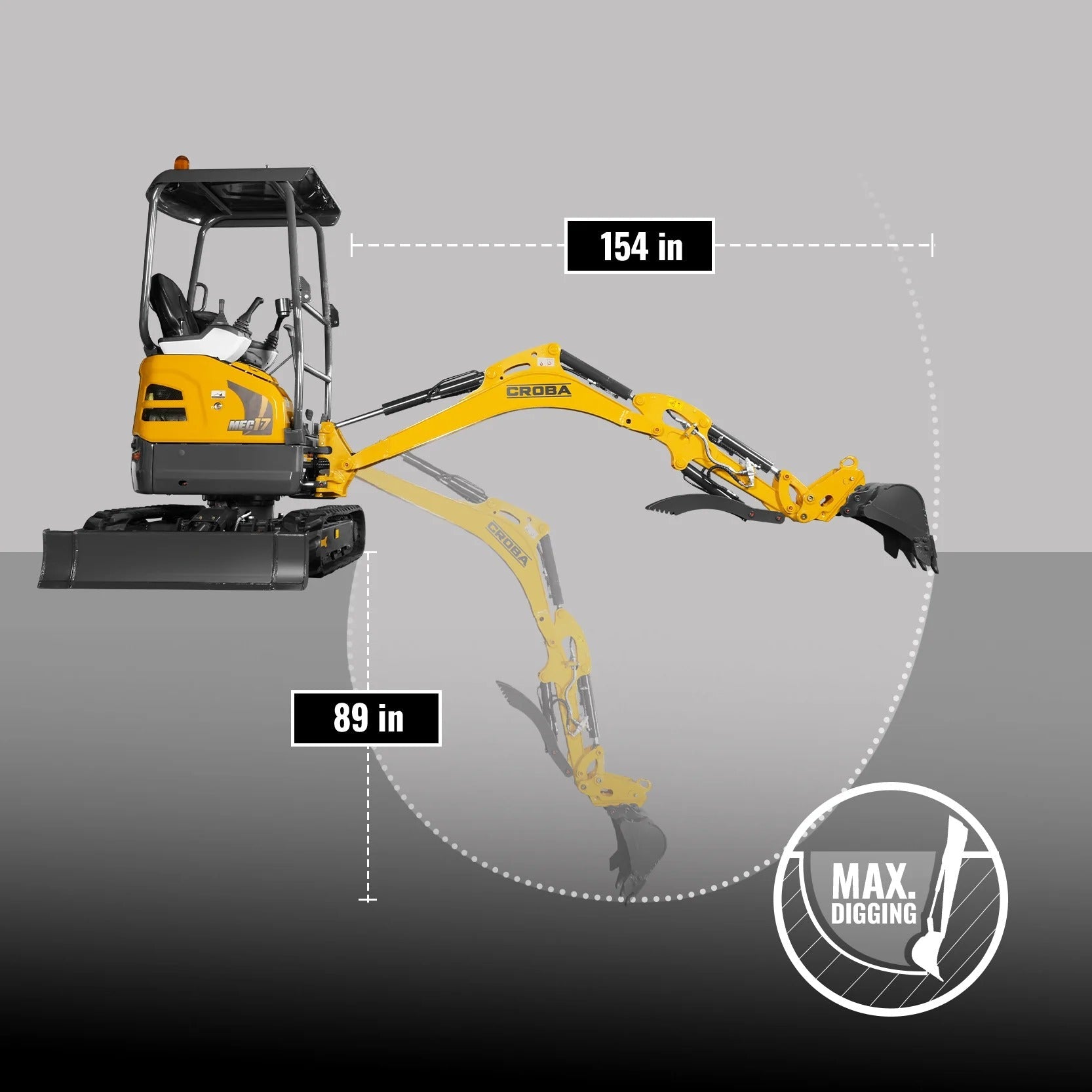

| Max Digging Depth | 89 in |
| Max Vertical Digging Depth | 75 in |
| Max Digging Height | 141 in |
| Max Dumping Height | 98 in |
| Max Digging Radius | 154 in |
| Max Digging Radius at Ground Level | 151 in |
| Max Lift Above Ground | 11 in |
| Max Drop Below Ground | 7.5 in |
| Min Turning Radius of Working Device | 57 in |
| Boom Swing — Left | 65° |
| Boom Swing — Right | 50° |
| Rotation | 360° |
| Tail Swing Radius | 25.6 in |
| Type of Tracks | Rubber |
| Track Roller Qty | 6 |
| Travel Speed — High | 2.67 mph |
| Travel Speed — Low | 1.37 mph |
| Max Traction Force — Low Speed | 4,047 lbf |
| Ground Clearance | 5.7 in |
| Ground Pressure | 4.2 psi |
| Gradeability — Maximum | 30° |
| Pump Flow at 2,300 RPM | 17 GPM |
| Auxiliary Circuit — Primary Flow | 9.1 GPM |
| Swing Motor | Danfoss SW2.5K |
| Swing Speed | 9.5 RPM |
| Hydraulic Hoses | Gates |
| Arm Length | 37.4 in |
| Arm Digging Force | 2,136 lbf |
| Bucket Capacity | 1.4 ft³ |
| Bucket Width | 17.7 in |
| Overall Width (Retracted / Expanded) | 39 / 51 in |
| Track Width (Retracted / Expanded) | 39 / 51 in |
| Track Gauge (Retracted / Expanded) | 30 / 42 in |
| Overall Height (to Top of Cab) | 94.7 in |
| Track Length | 62.7 in |
| Shoe Width | 9.1 in |
| Blade Width (Retracted / Expanded) | 39 / 51 in |
| Counterweight Ground Clearance | 18 in |
| Ground Clearance | 5.7 in |
| Fuel Tank | 5 gal |
| Hydraulic Oil Tank | 3.6 gal |
| Engine Oil | 1 gal |
| System Capacity | 5.7 gal |
| Packing Size | 112.6 × 43.7 × 99.2 in |
| Net / Gross Weight | 3,968 / 4,508 lbs |
| Package Method | Wood Case |
| Warranty — Machine | 1 Year |
Kubota D902-NT-EF03 Diesel Engine
Zero Tail Swing Design
Retractable Undercarriage (39″–51″)
Danfoss SW2.5K Swing Motor
High-Flow Hydraulic System
Gates Hydraulic Hoses
Protected Hydraulic Routing
Pilot-Operated Controls

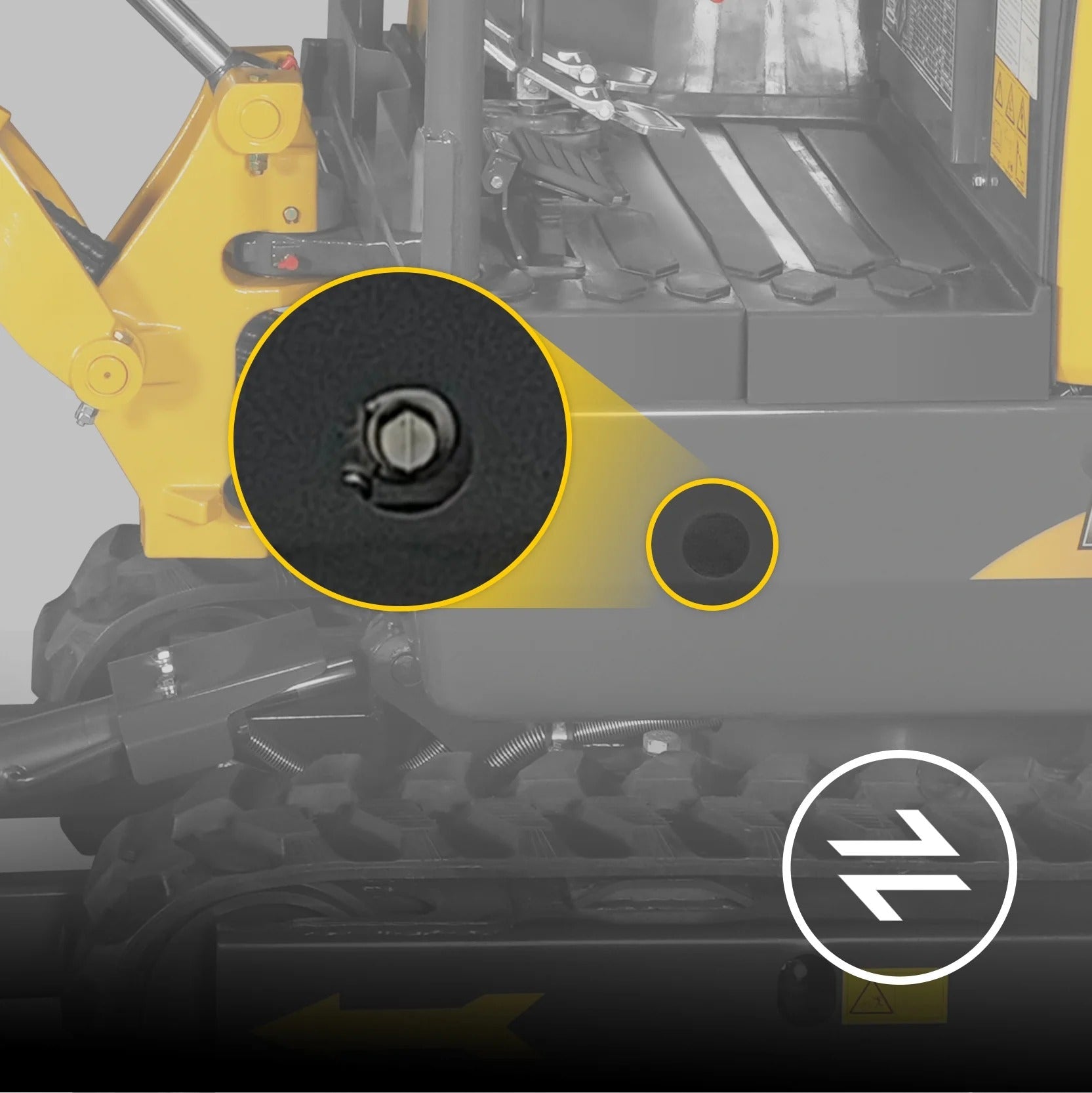

Reversible Control Pattern
Two-Speed Travel (High / Low)
360° Rotation
Boom Swing 65° Left / 50° Right

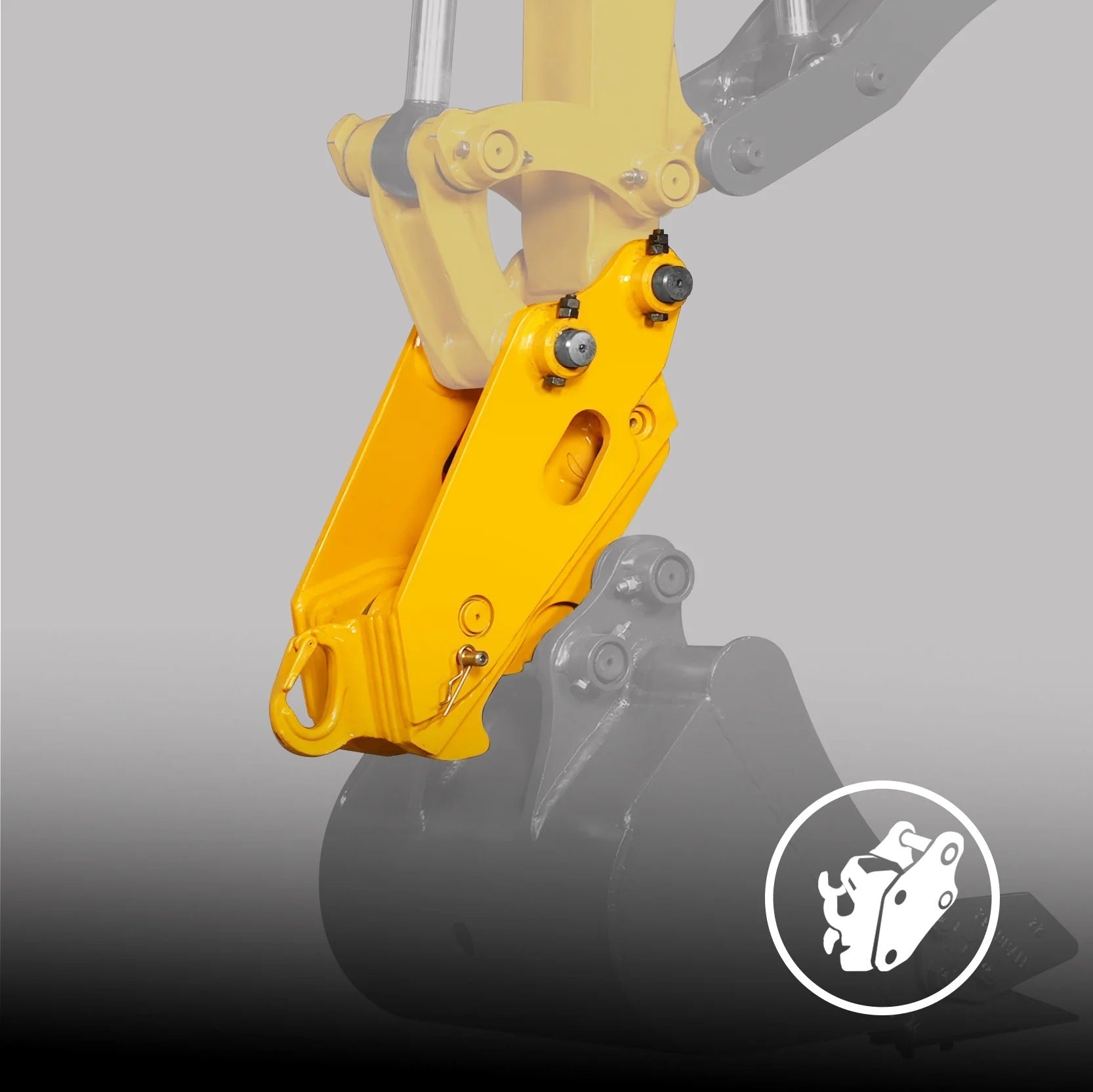

Semi-Automatic Quick Hitch
Hydraulic Thumb
High-Back Seat

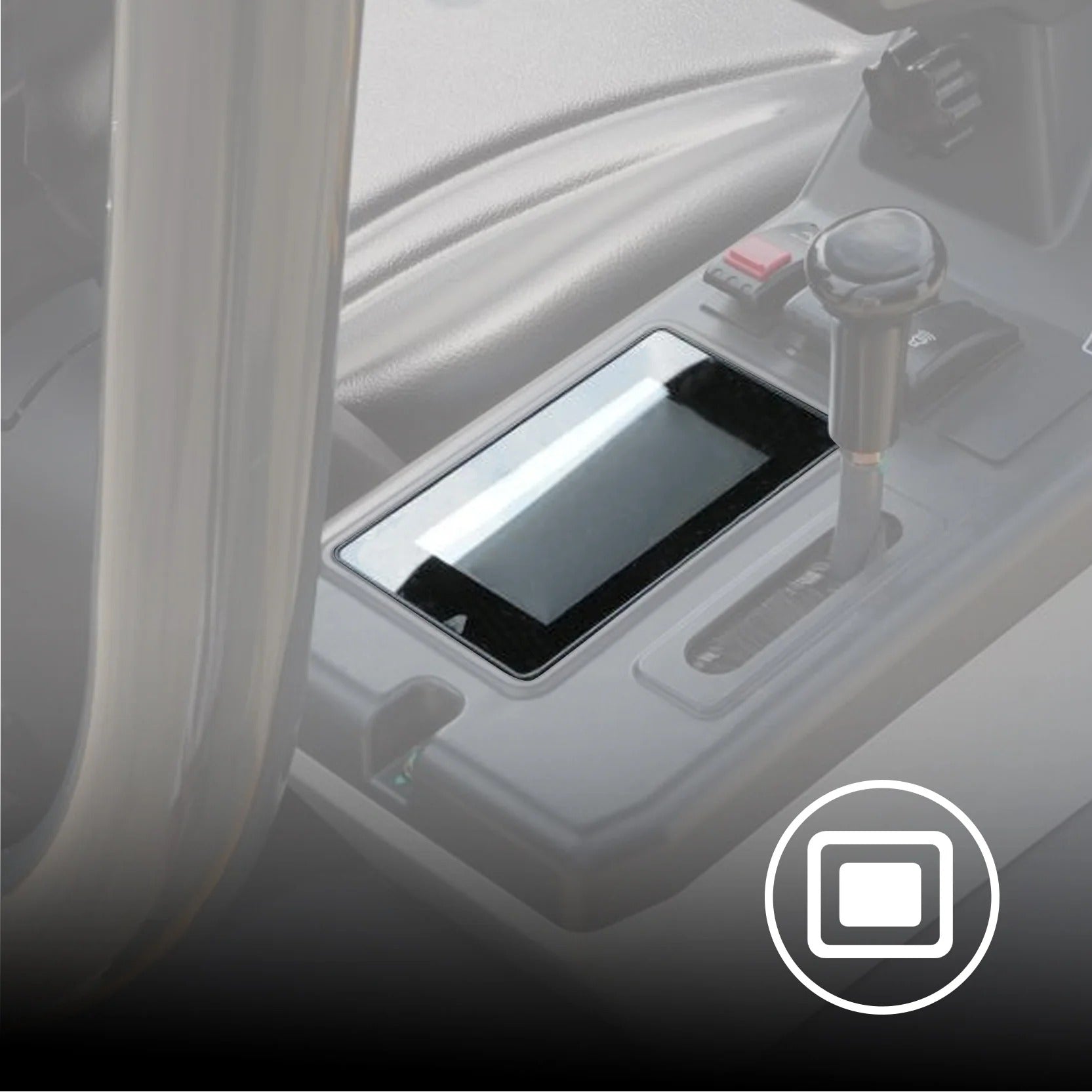

Smart LCD Display
Product Manual (PDF)
Engine Manual (PDF)
Operation Guide (PDF)
Kubota D902-NT-EF03 Diesel Engine
High-Flow Hydraulic System (17 GPM)
Danfoss SW2.5K Swing Motor
Gates Hydraulic Hoses
Protected Hydraulic Routing
Pilot-Operated Controls
Reversible Control Pattern
High-Back Seat
Smart LCD Display
Product Manual (PDF)
Engine Manual (PDF)
Operation Guide (PDF)
Zero Tail Swing Design
Retractable Undercarriage (39″–51″)
Rubber Tracks
Two-Speed Travel
360° Rotation
Boom Swing 65° Left / 50° Right
Semi-Automatic Quick Hitch
Hydraulic Thumb
1-Year Machine Warranty
2-Year / 2,000-Hr Engine Warranty
