Description
MechMaxx · MEC10 · Mini Compact Excavator

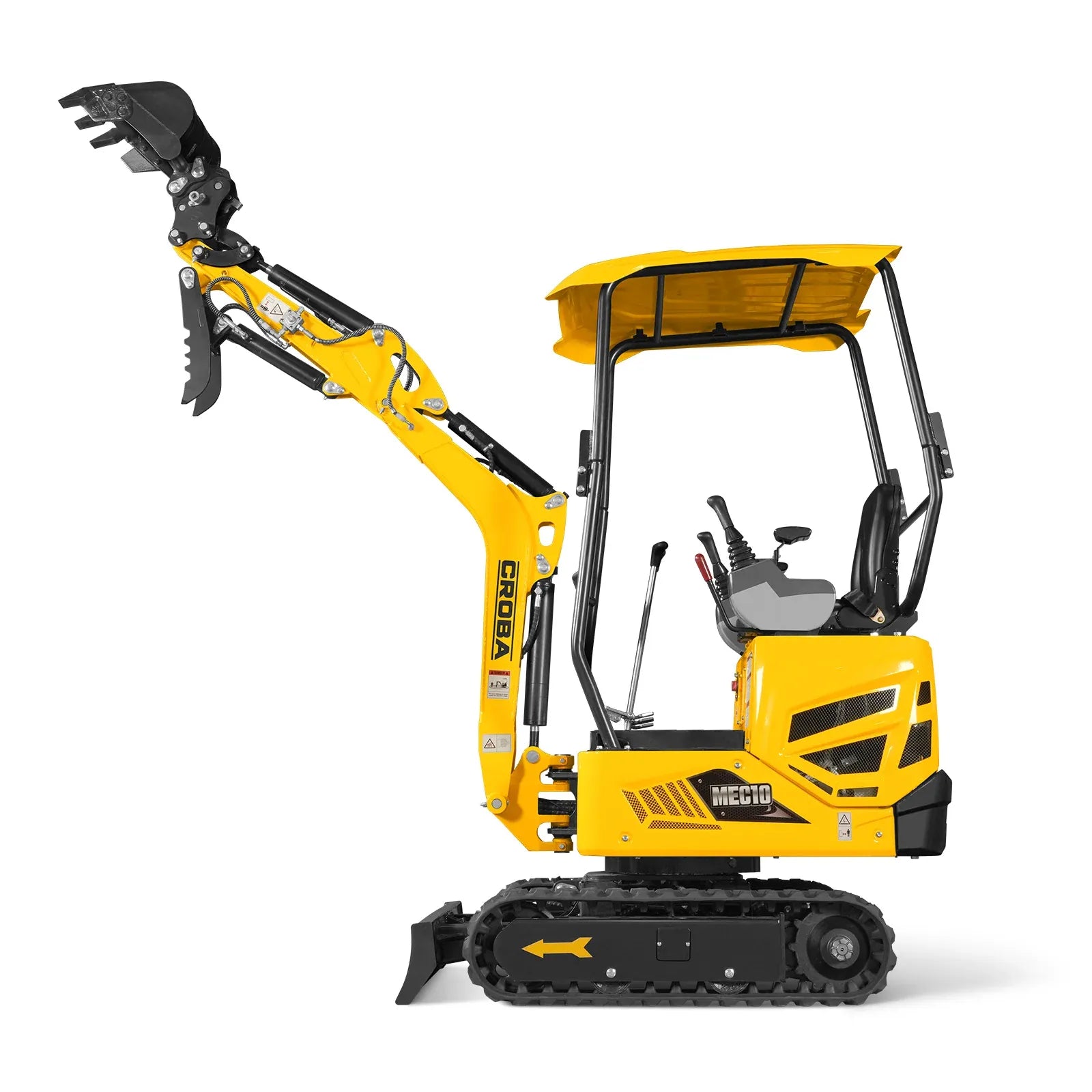

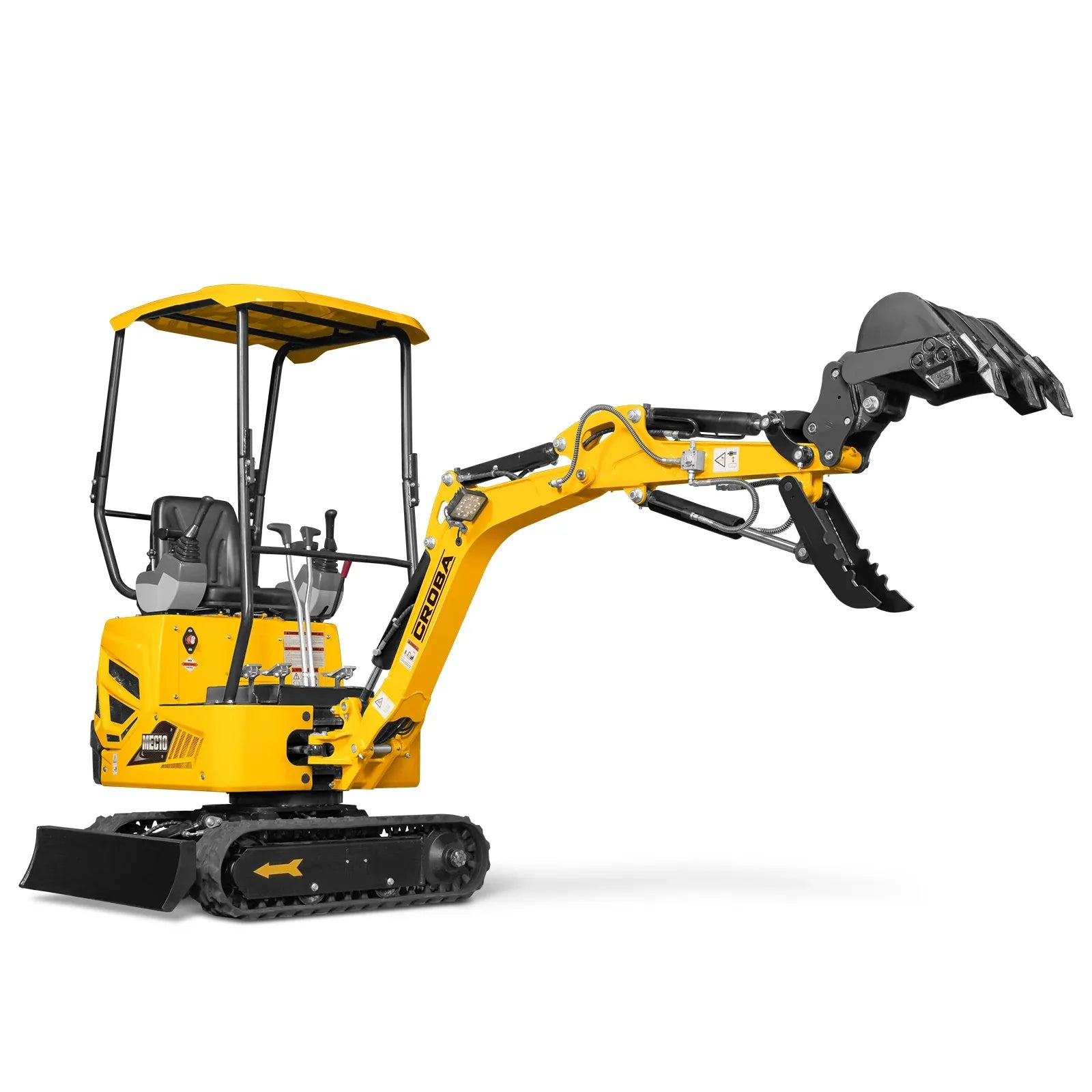

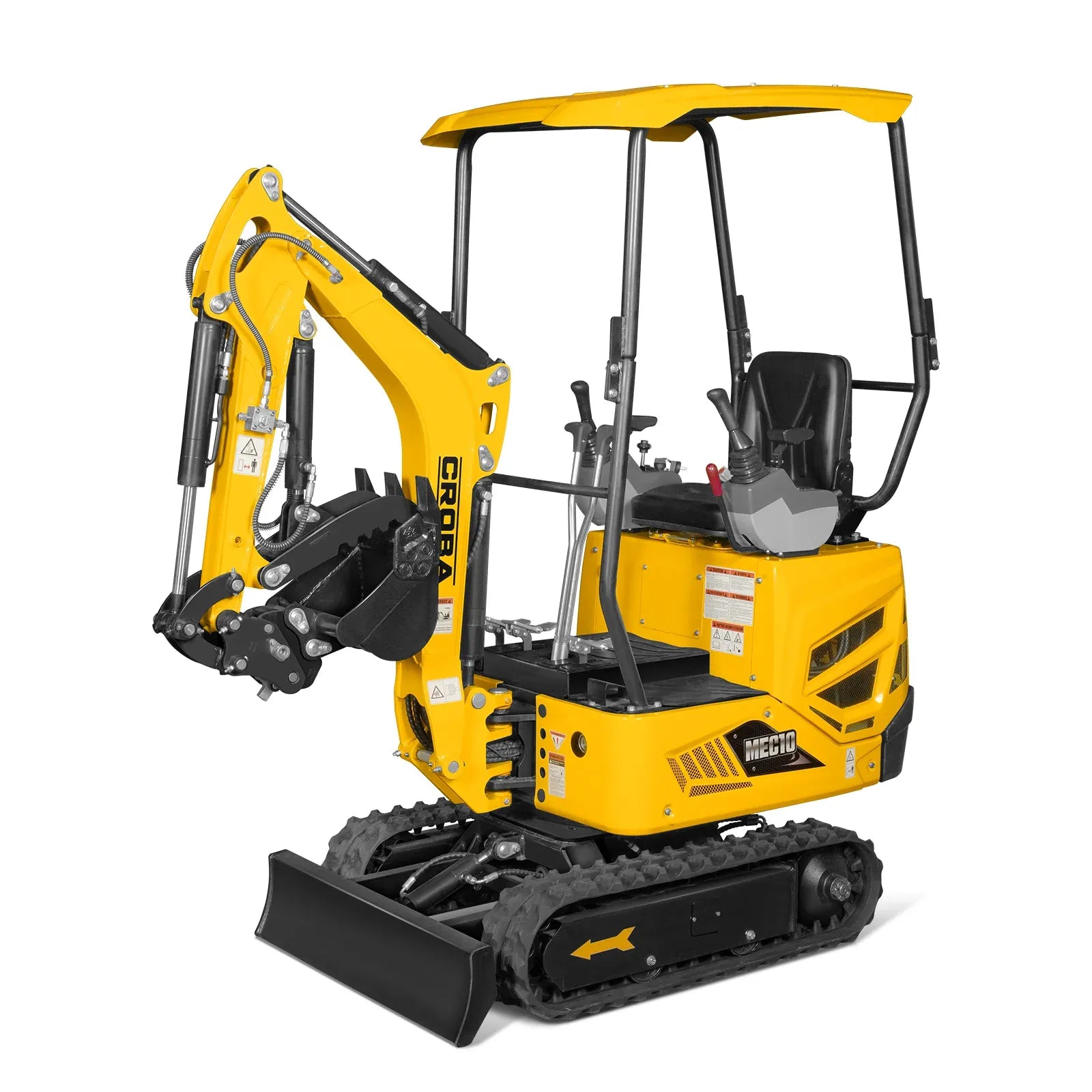

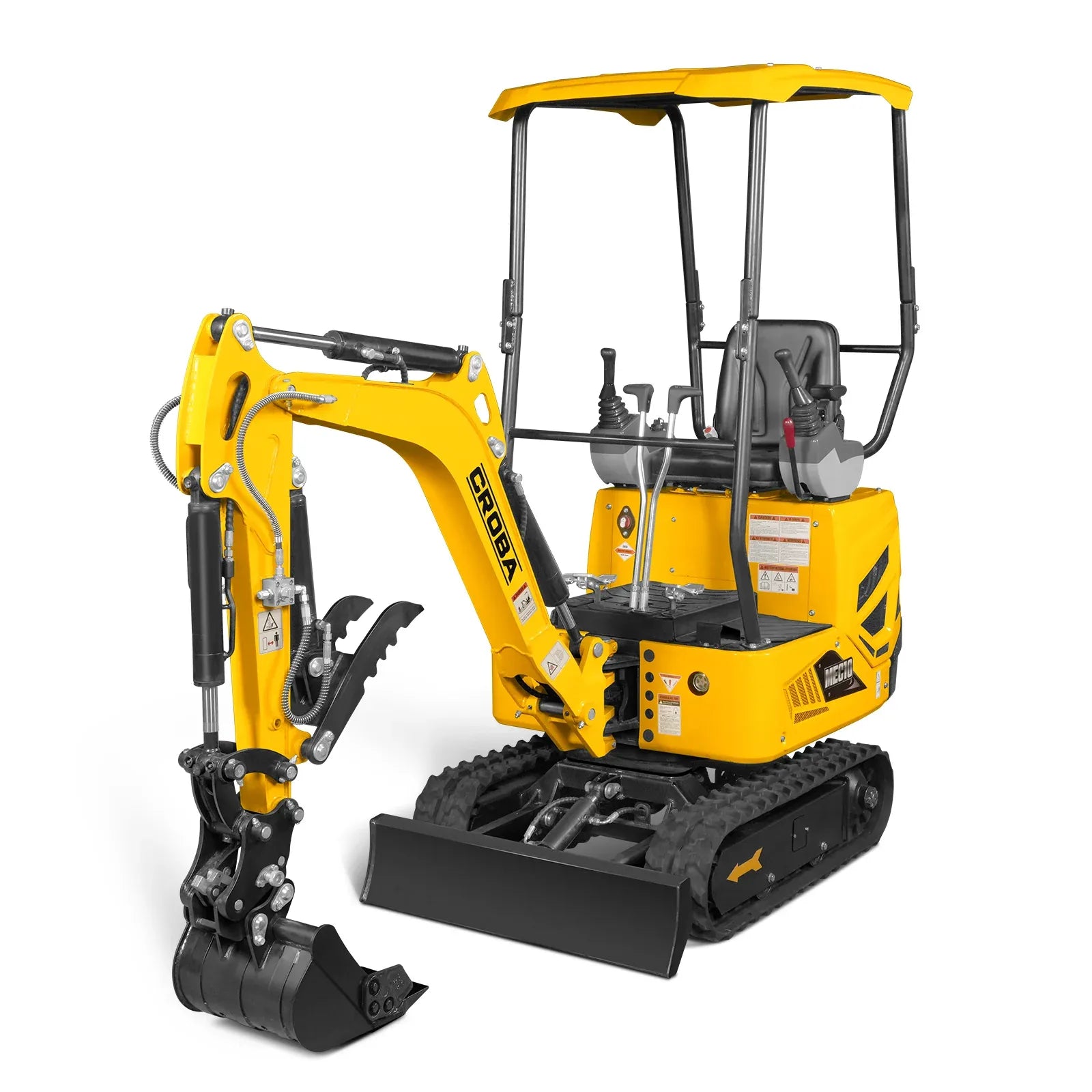

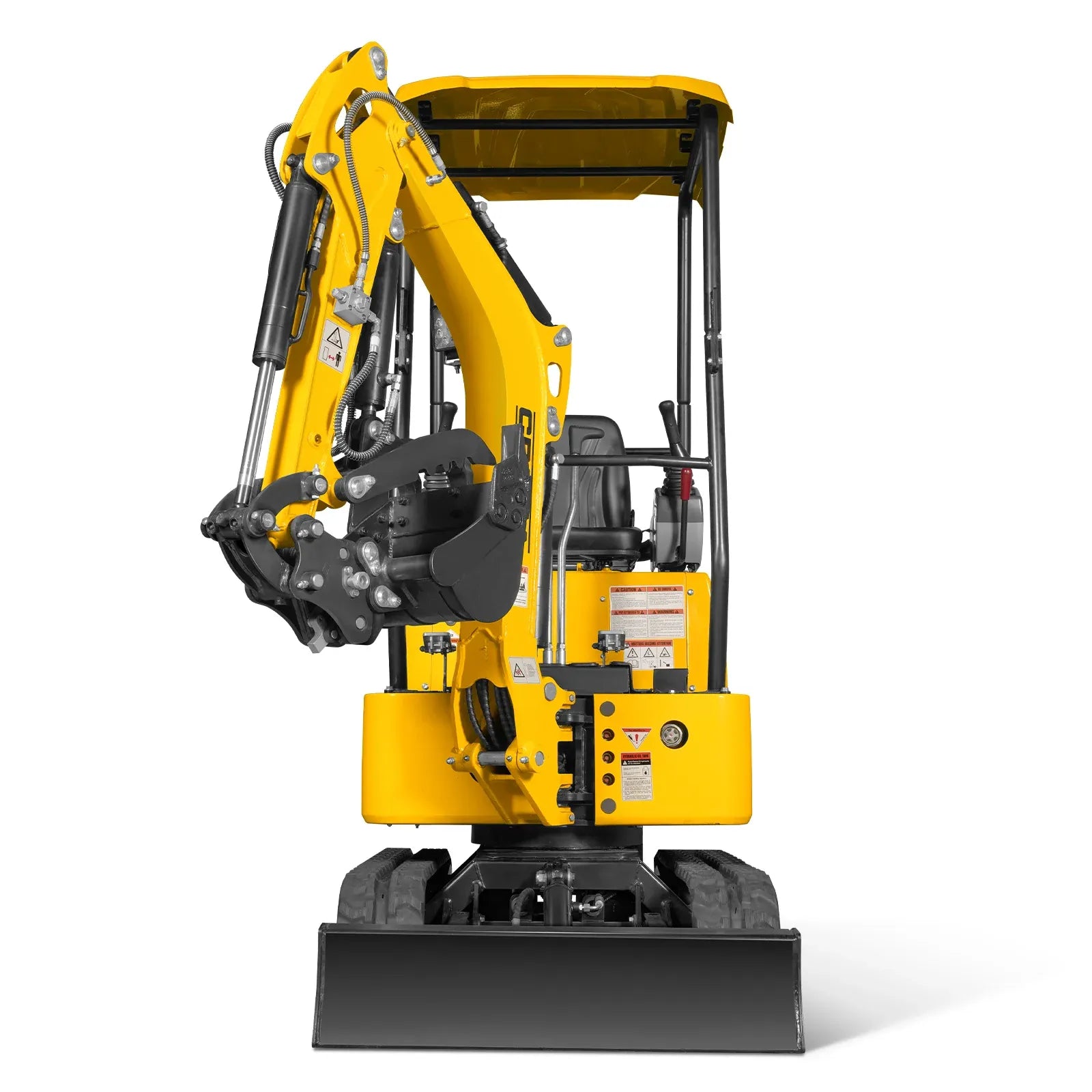

MechMaxx MEC10 Mini Compact Excavator
B&S Vanguard 408cc 14 HP — Pilot Controls — Hydraulic Thumb
Compact, capable, and engineered for tight access. The MEC10 is powered by a Briggs & Stratton Vanguard 408cc engine — a professional-grade single-cylinder powerplant with a 3-year warranty — and delivers 65.7″ of digging depth and 118.7″ of ground reach in a 2,370 lb footprint.
Powered by Vanguard
Briggs & Stratton Vanguard 25V000 — 408cc · 14 HP · 3,600 RPM
3-Year Warranty + 1 Bonus Year · Professional-Grade Single Cylinder
200-hr oil change intervals — 2× industry standard
600-hr air cleaner life — 2× industry standard
50% less oil waste
45° high inclination operation
Optimised sound & low vibration
Reduced environmental impact
14 HP
Vanguard 408cc
2,370 lbs
Operating Weight
65.7″
Max Dig Depth
118.7″
Max Ground Reach
Key Features

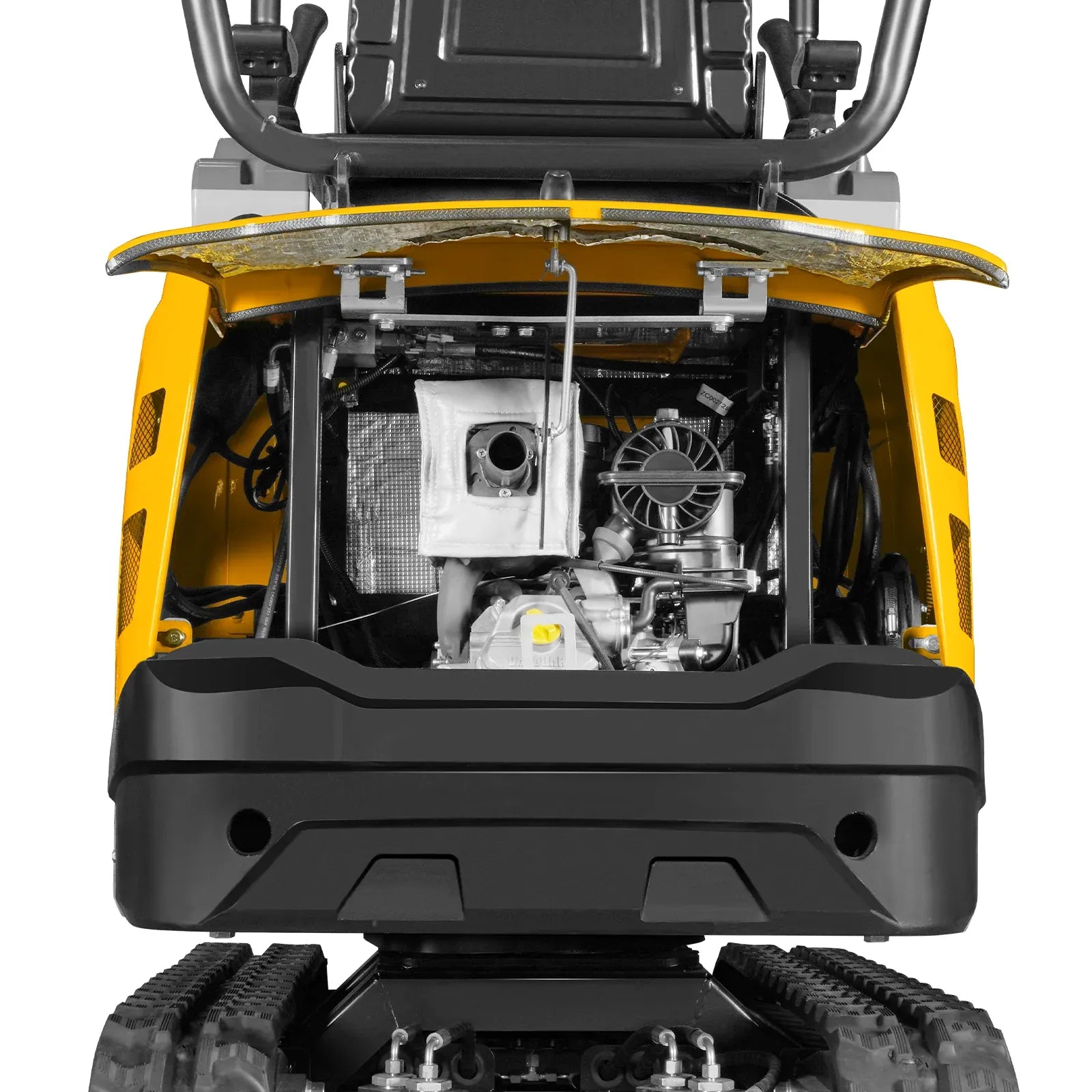

B&S Vanguard 408cc 14 HP Engine
Professional-grade Briggs & Stratton Vanguard single-cylinder air-cooled engine. 200-hour oil change intervals and 600-hour air cleaner life — both double the industry standard. Built for demanding, continuous professional operation with 50% less oil waste than comparable engines.
3-Year + 1 Bonus Year Engine Warranty
The Vanguard engine comes with a 3-year standard warranty plus 1 additional bonus year — a total of 4 years of engine protection. Significantly more coverage than standard mini excavator engines at this size class.

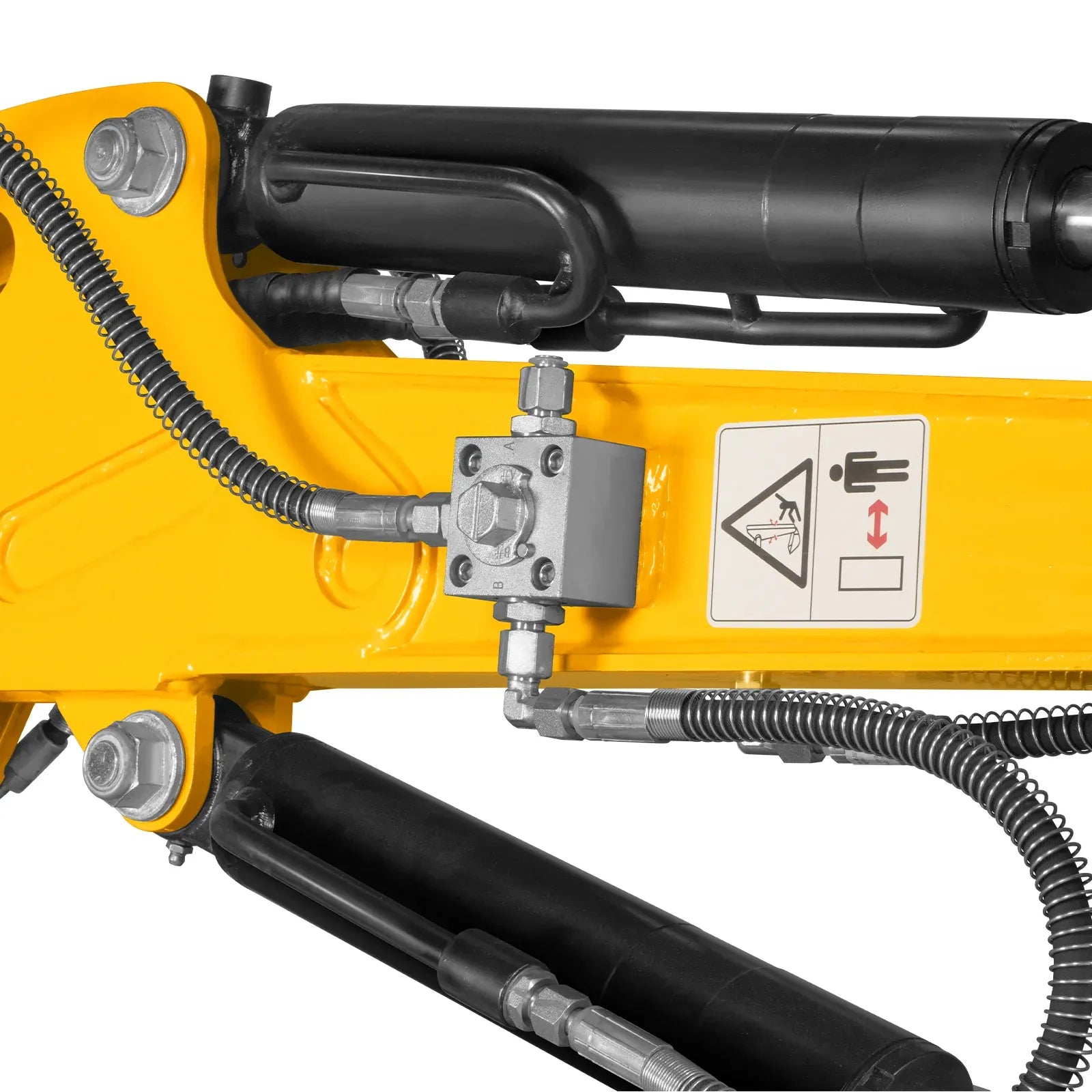

High-Flow Hydraulic System

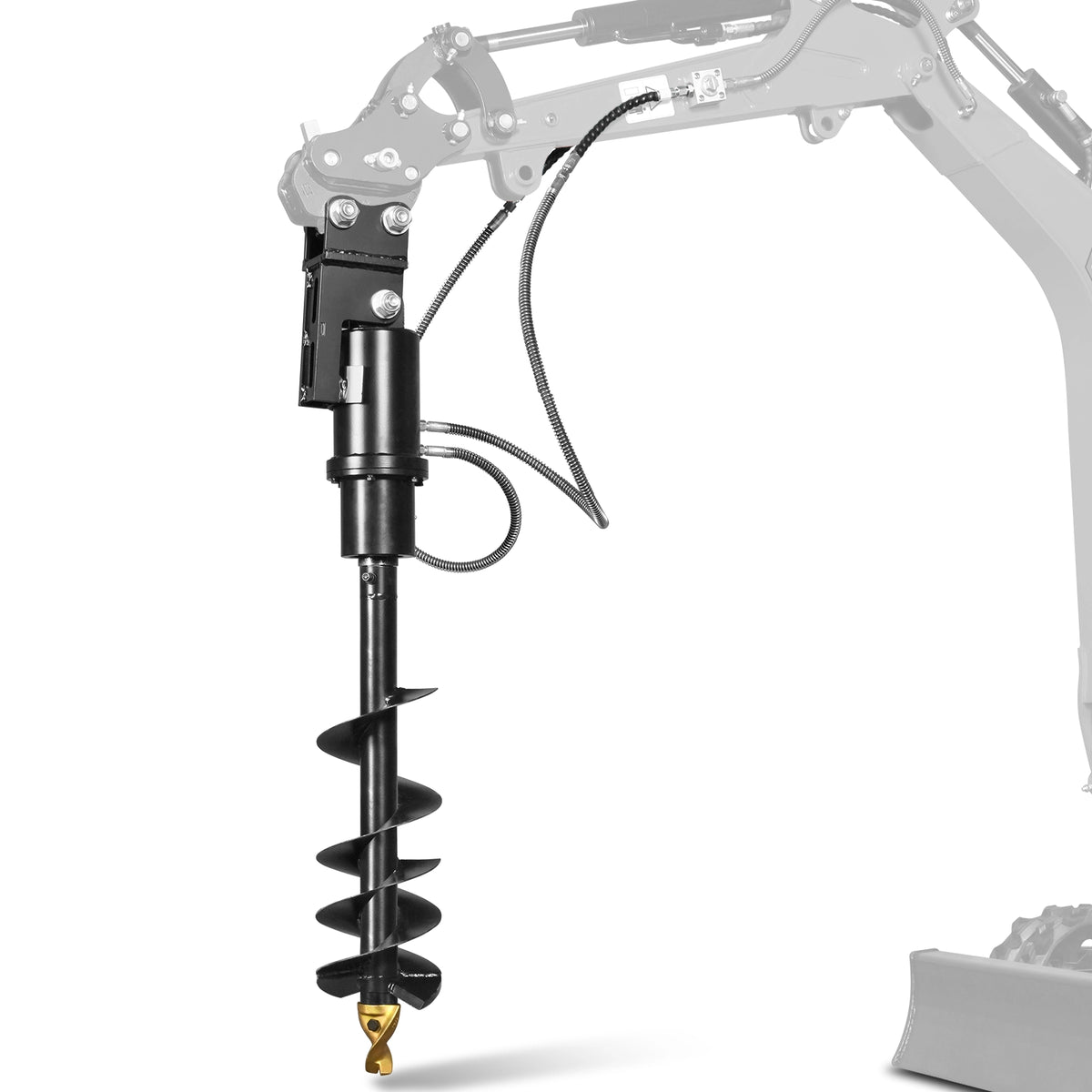

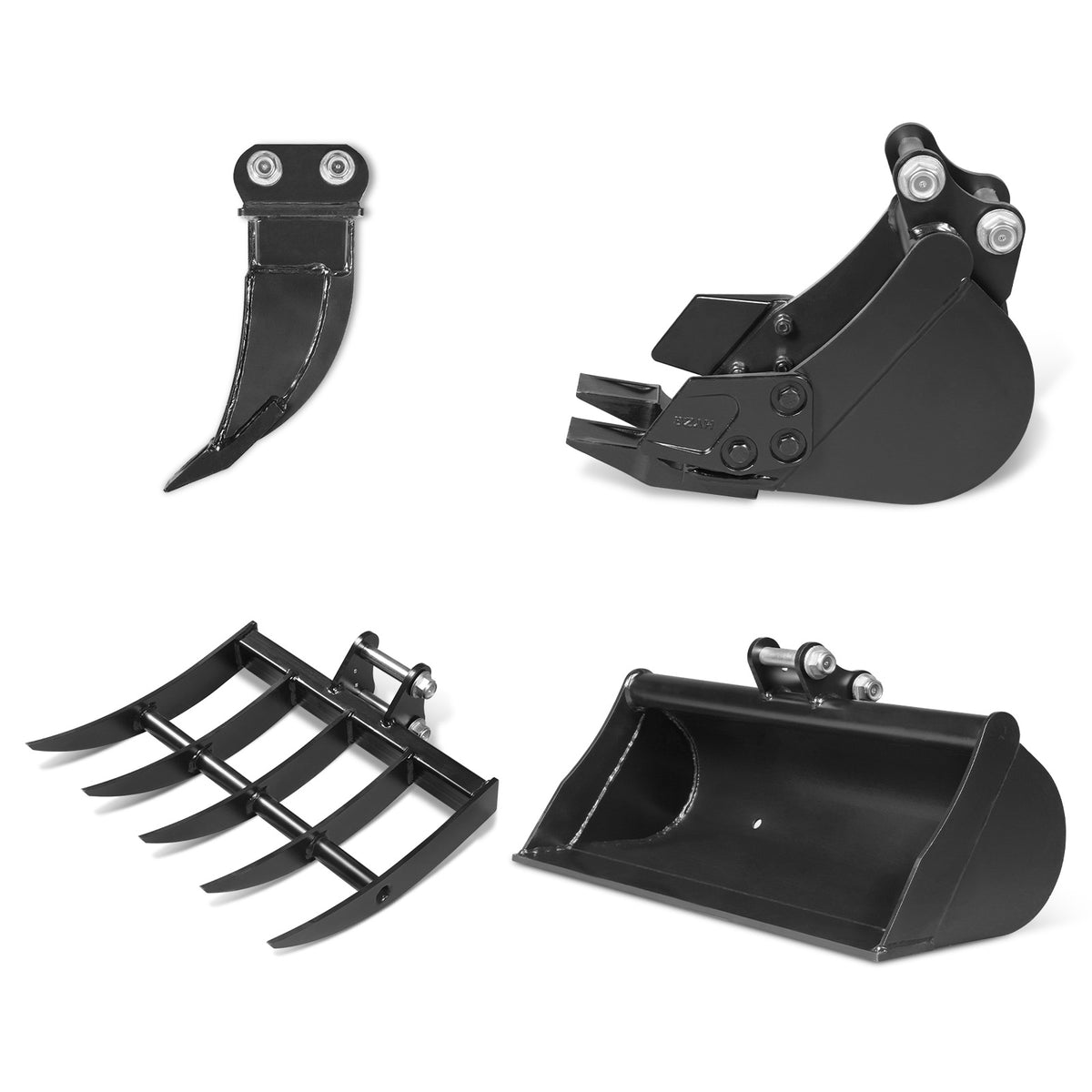

4.65 GPM max discharge flow with an enhanced hydraulic system supporting high-flow attachments including augers, rippers, and mulcher heads — expanding capability well beyond basic digging for concrete work and vegetation management.

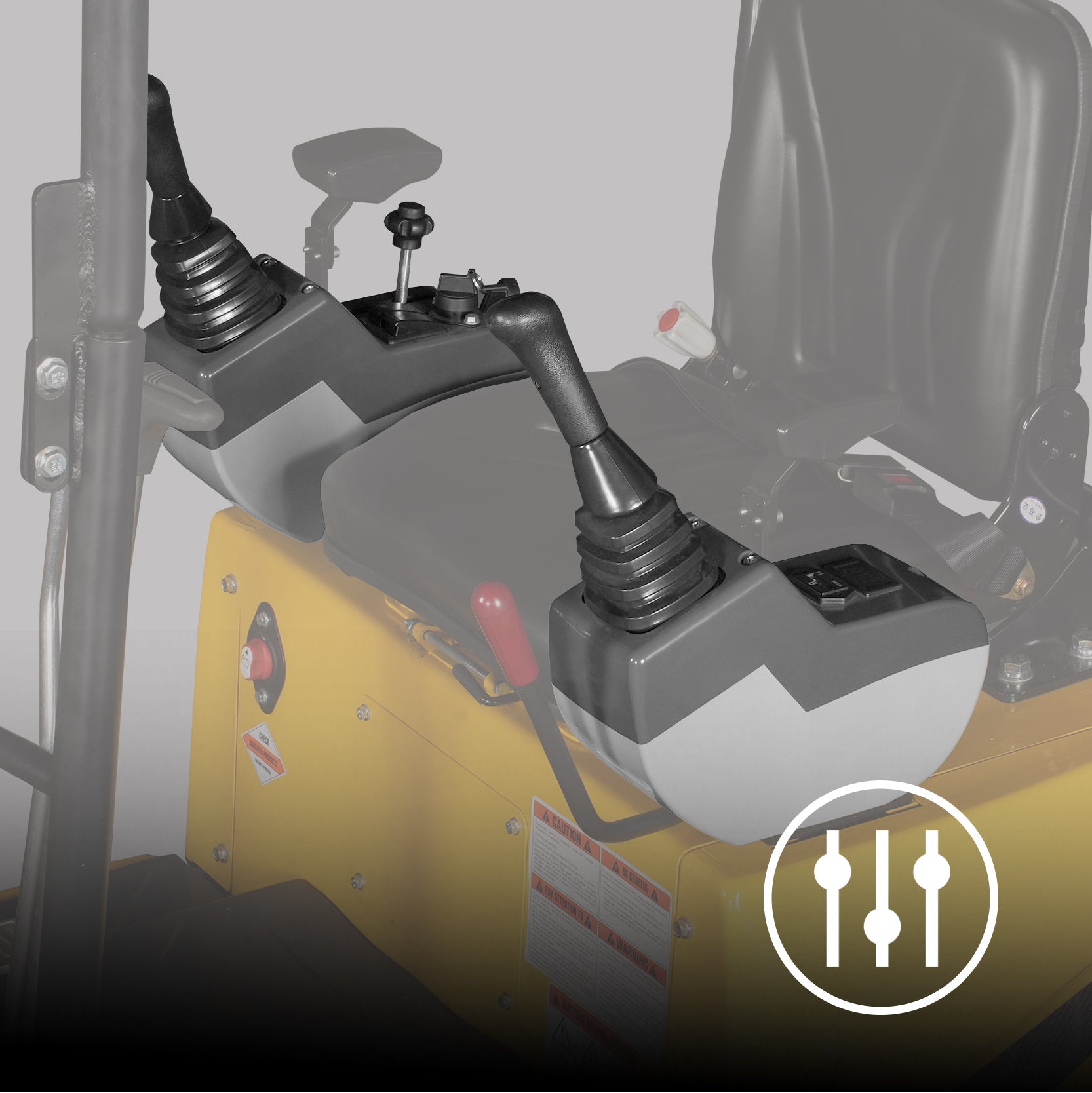

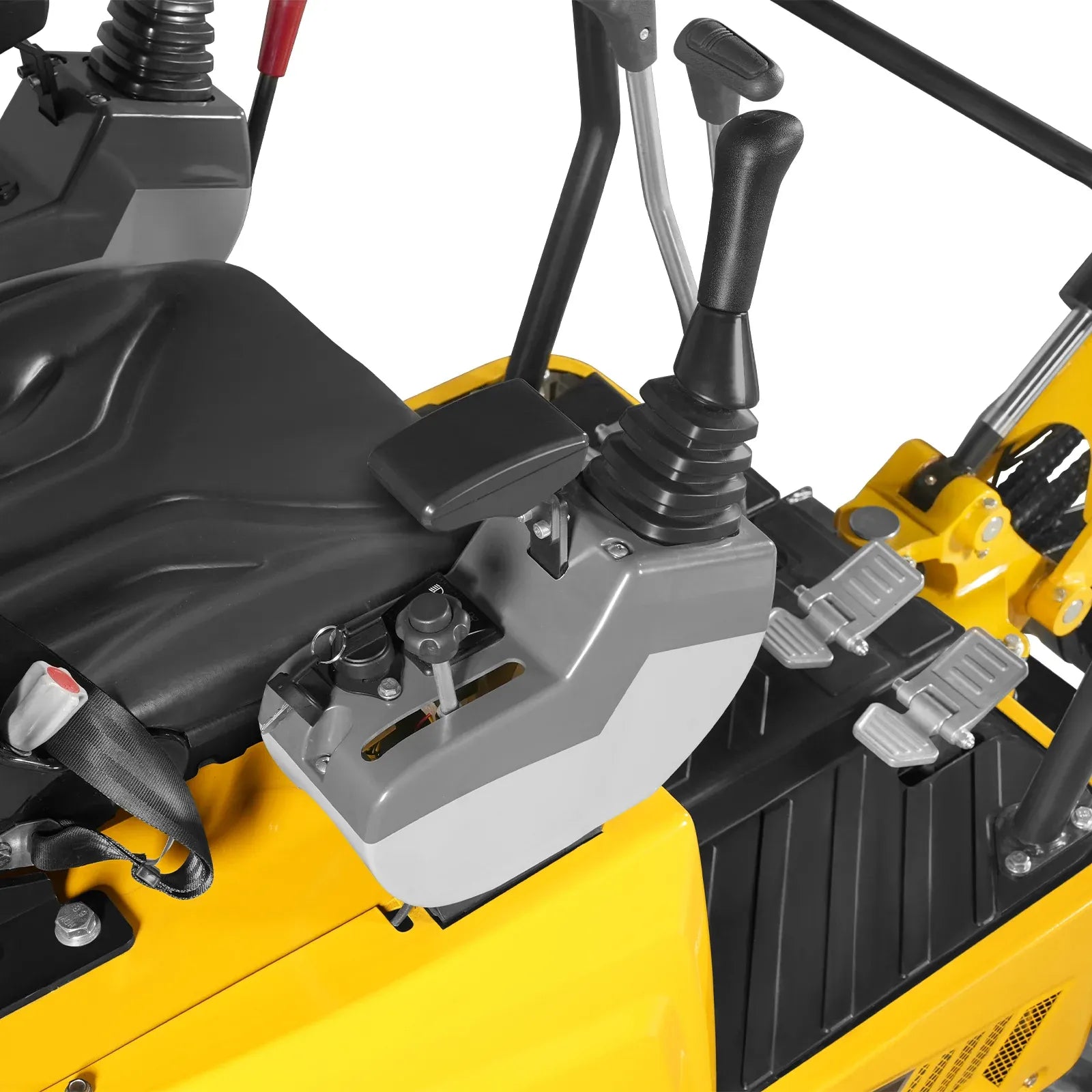

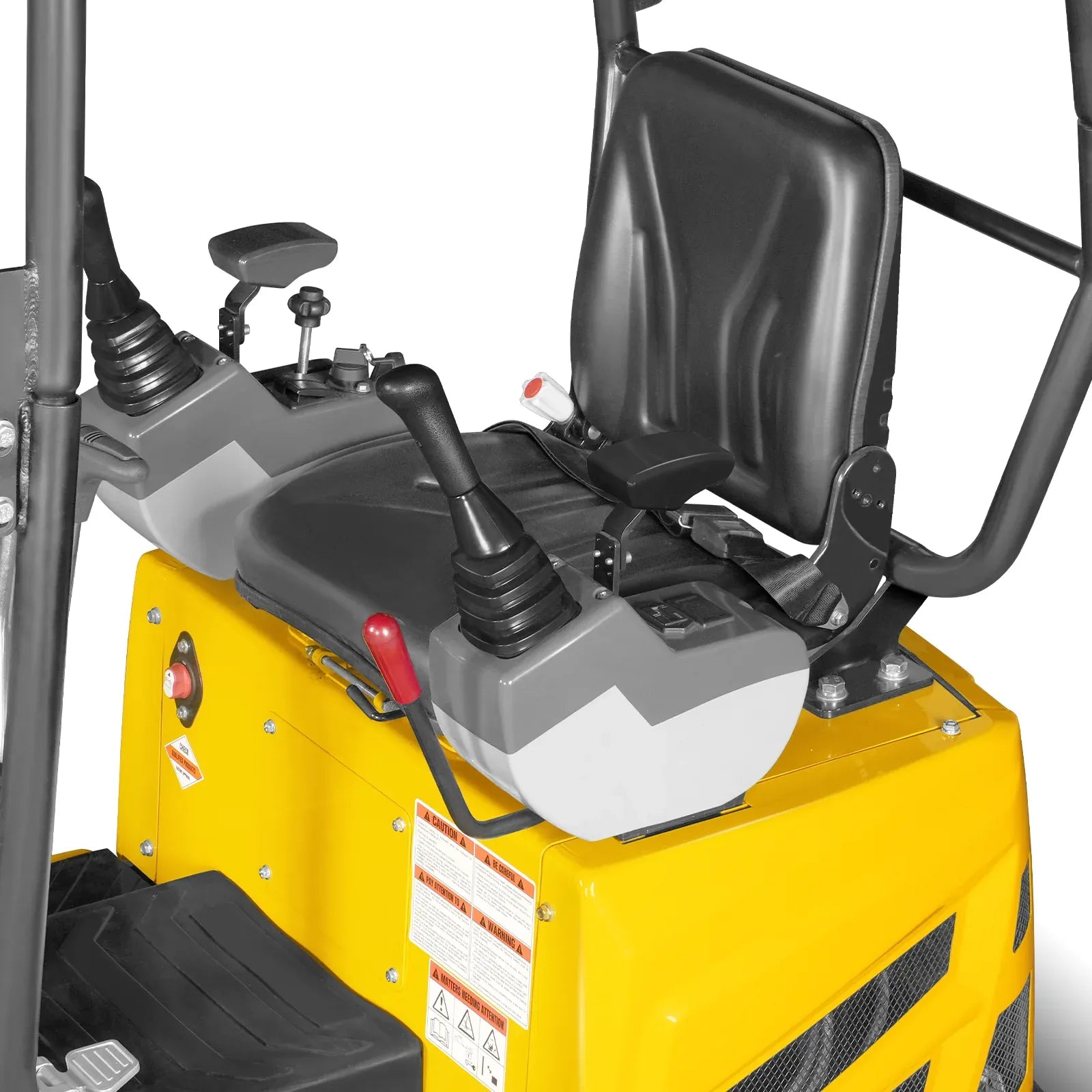

Pilot-Operated Controls
Smooth, responsive pilot-operated control levers for precise machine handling. Reduces operator fatigue during extended operating periods and improves accuracy on detailed digging and grading work.

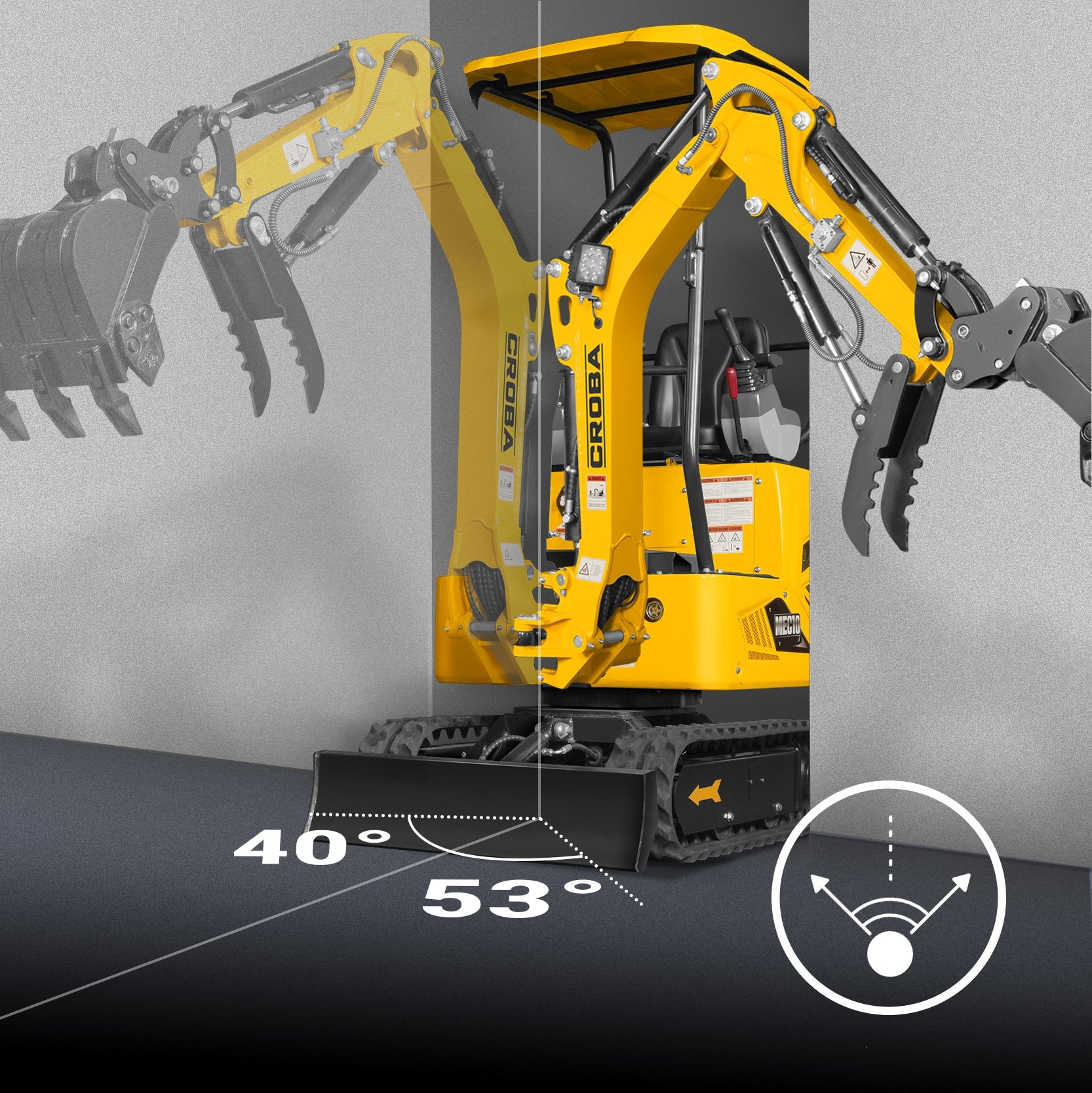

Boom Swing — 53° Left / 40° Right
Swing the digging arm left or right to access tight spaces alongside walls and fences without repositioning the machine — dump soil exactly where you need it.
360° Rotation
Full 360° cab rotation allows efficient digging, loading, and repositioning without moving the machine — maximising productivity in the tightest jobsite conditions.

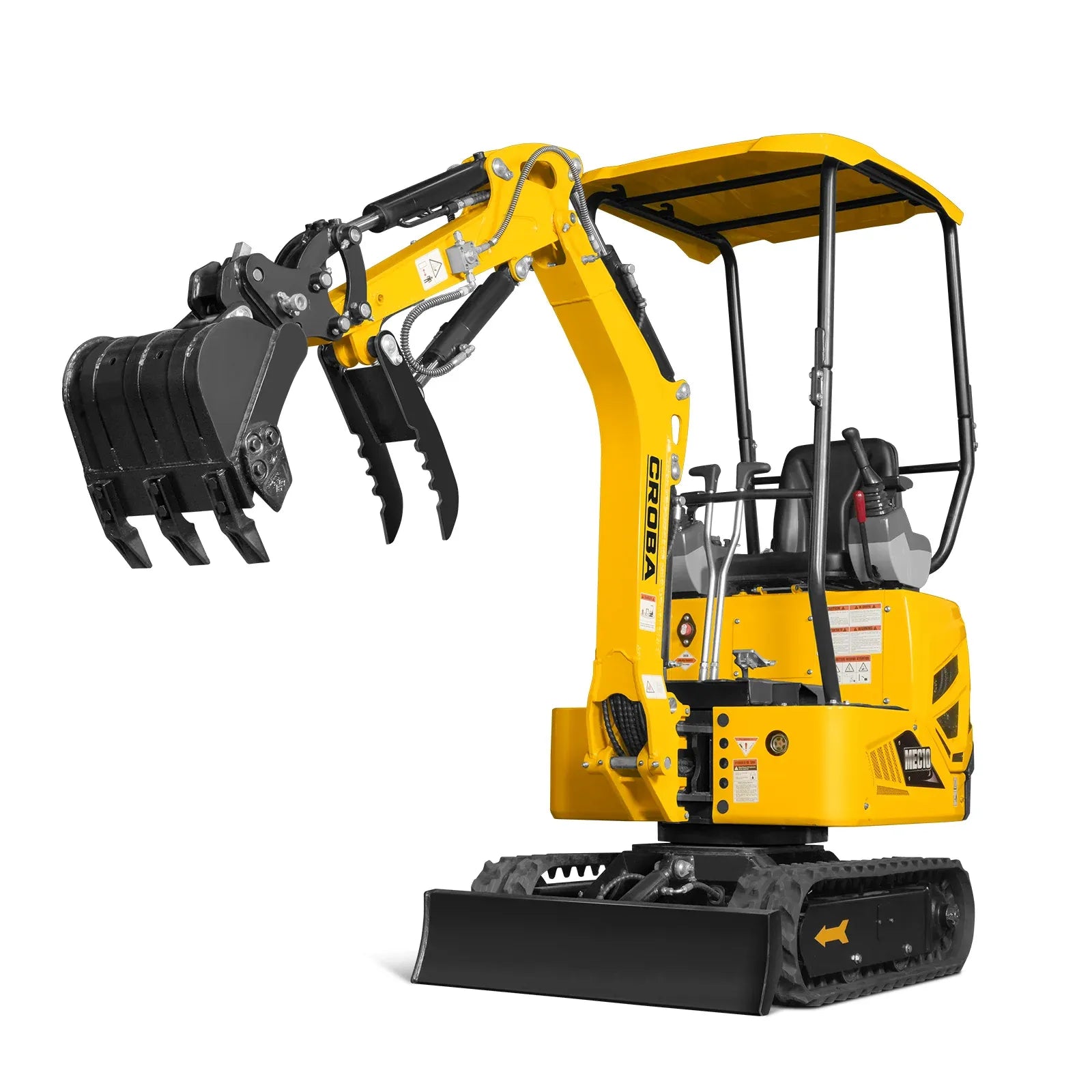

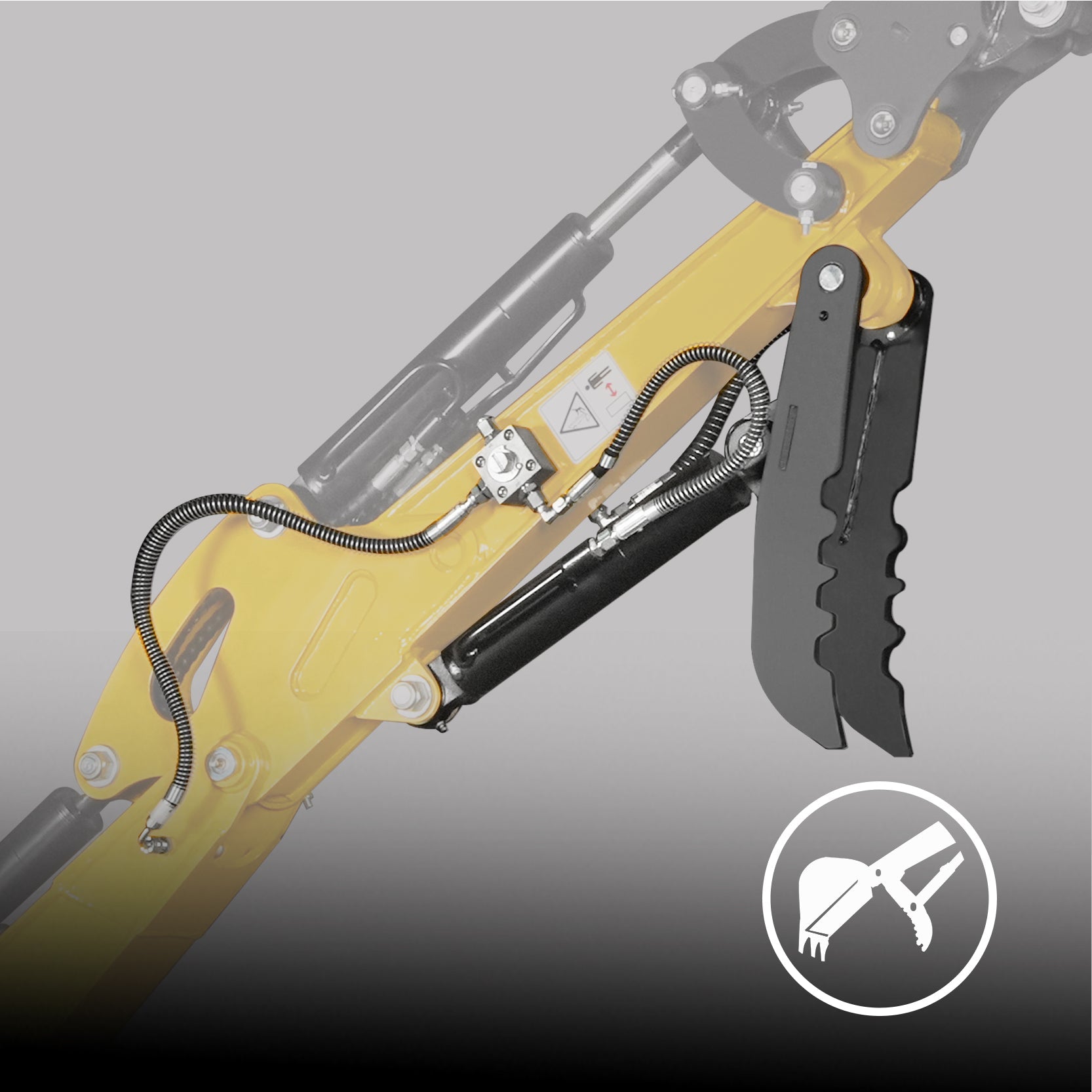

Hydraulic Thumb Included
Adjustable hydraulic thumb for convenient handling of rocks, branches, and debris — position controlled directly from the operator’s seat. Included as standard on every MEC10.
45° High Inclination Capability
The Vanguard engine is engineered to operate at up to a 45° angle of inclination — far beyond standard mini excavator engines. Work confidently on steep slopes, embankments, and uneven terrain.
Full Specifications
Engine
| Engine Model | Briggs & Stratton Vanguard 25V000 |
| Engine Output | 14 HP |
| Rated Speed | 3,600 RPM |
| Displacement | 408 cc |
| No. of Cylinders | 1 |
| Bore | 3.465 in |
| Stroke | 2.638 in |
| Engine Warranty | 3 Years + 1 Bonus Year |
| Oil Change Interval | 200 hrs (2× industry standard) |
| Air Cleaner Life | 600 hrs (2× industry standard) |
| Max Inclination | 45° |
Performance & Scope of Work
| Operating Weight | 2,370 lbs |
| Max Digging Depth | 65.7 in |
| Max Vertical Digging Depth | 62.6 in |
| Max Digging Height | 109 in |
| Max Dumping Height | 80 in |
| Max Digging Radius | 119 in |
| Max Digging Radius at Ground Level | 118.7 in |
| Max Lift Above Ground | 5.9 in |
| Max Depth Dozer Blade | 7.4 in |
| Max Lifting Height Dozer Blade | 5.9 in |
| Min Turning Radius of Working Device | 48.1 in |
| Boom Swing — Left | 53° |
| Boom Swing — Right | 40° |
| Rotation | 360° |
| Tail Swing Radius | 32.6 in |
Travel System
| Max Travel Speed | 0.75 mph |
| Maximum Traction Force | 3,035 lbf |
| Ground Clearance | 15.9 in |
| Ground Pressure | 5.1 psi |
| Gradeability — Maximum | 30° |
Hydraulic System
| Max Discharge Flow | 4.65 GPM |
| Swing Speed | 8 RPM |
Digging Forces & Bucket
| Bucket Digging Force | 1,619 lbf |
| Arm Digging Force | 1,191 lbf |
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
Dimensions
| Transportation Length | 82 / 115 in |
| Overall Width | 37 in |
| Track Width | 37 in |
| Overall Height (to Top of Cab) | 88.5 in |
| Track Length | 48.5 in |
| Track Belt / Shoe Width | 7 in |
| Crawler Wheel Base | 36 in |
| Counterweight Ground Clearance | 16 in |
Capacities
| Fuel Tank | 1.52 gal |
| Hydraulic Oil Tank | 3.96 gal |
| Engine Oil | 0.7 gal |
Shipping
| Packing Size | 91 × 40 × 98 in |
| Net / Gross Weight | 2,180 / 2,440 lbs |
| Package Method | Wood Case |
| Machine Warranty | 1 Year |
Everything Included
✓
B&S Vanguard 408cc 14 HP Engine
✓
3-Year + 1 Bonus Year Engine Warranty
✓
High-Flow Hydraulic System
✓
Pilot-Operated Controls
✓
Boom Swing 53° Left / 40° Right
✓
360° Rotation
✓
Hydraulic Thumb
✓

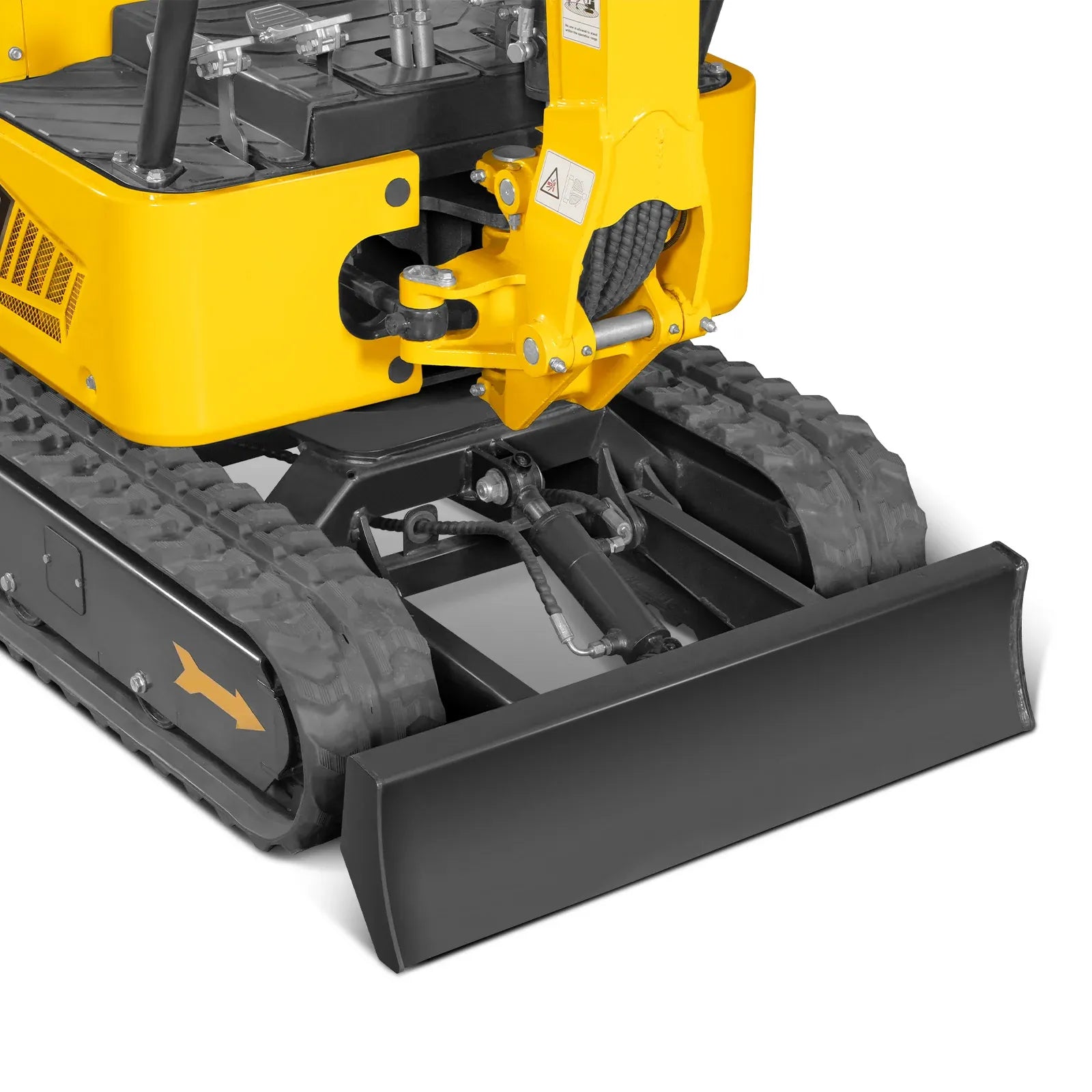

Dozer Blade
✓
Product Manual (PDF)
✓
Demonstration Guide
✓
Maintenance Guide
Included — By Category
Engine & Hydraulics
B&S Vanguard 25V000 — 408cc 14 HP
High-Flow Hydraulic System (4.65 GPM)
Pilot-Operated Controls
Documents & Warranty
Product Manual (PDF)
Demonstration Guide
Maintenance Guide
1-Year Machine Warranty
3-Year + 1 Bonus Year Engine Warranty
Travel & Structure
360° Rotation
Dozer Blade
Boom & Attachments
Boom Swing 53° Left / 40° Right
Hydraulic Thumb
Built For
Tight Access Sites
Backyards & Gardens
Narrow Lanes & Alleys
Trenching
Landscaping
Light Demolition
Steep Slope Work
Utility Installation
Property Maintenance
