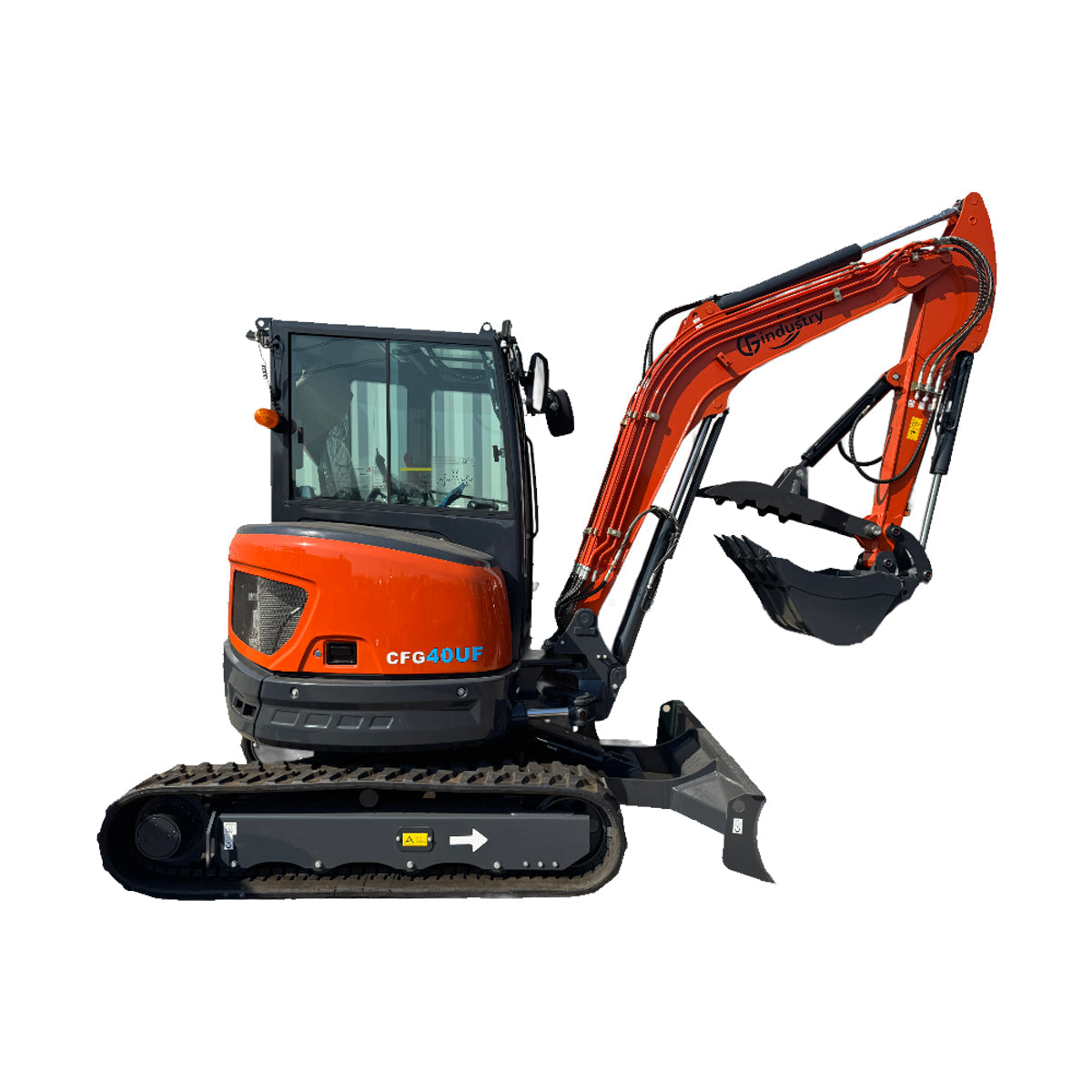

4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF
Original price was: $31,733.27.$19,991.99Current price is: $19,991.99.

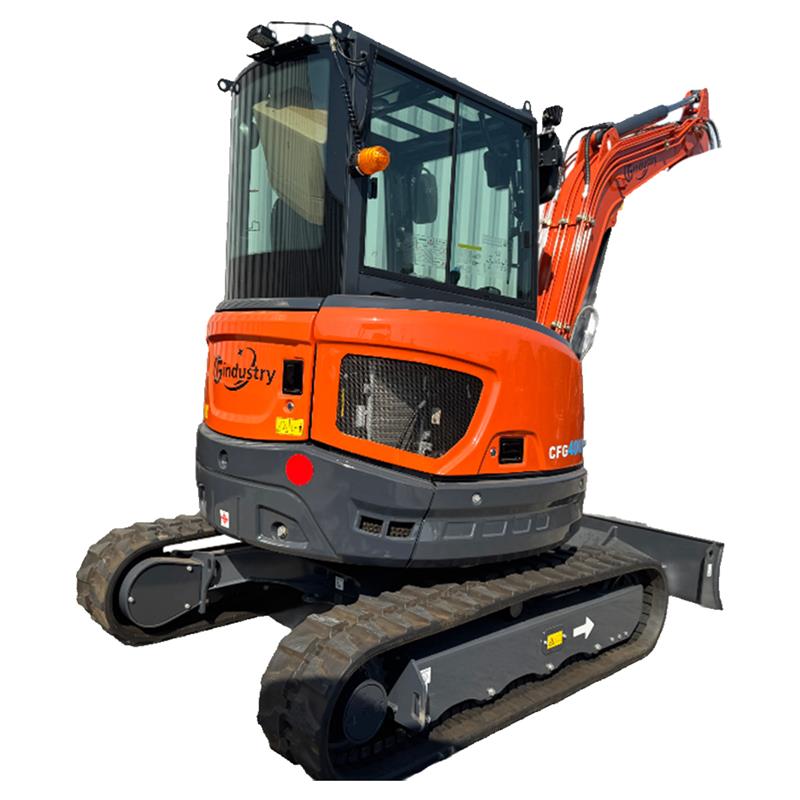

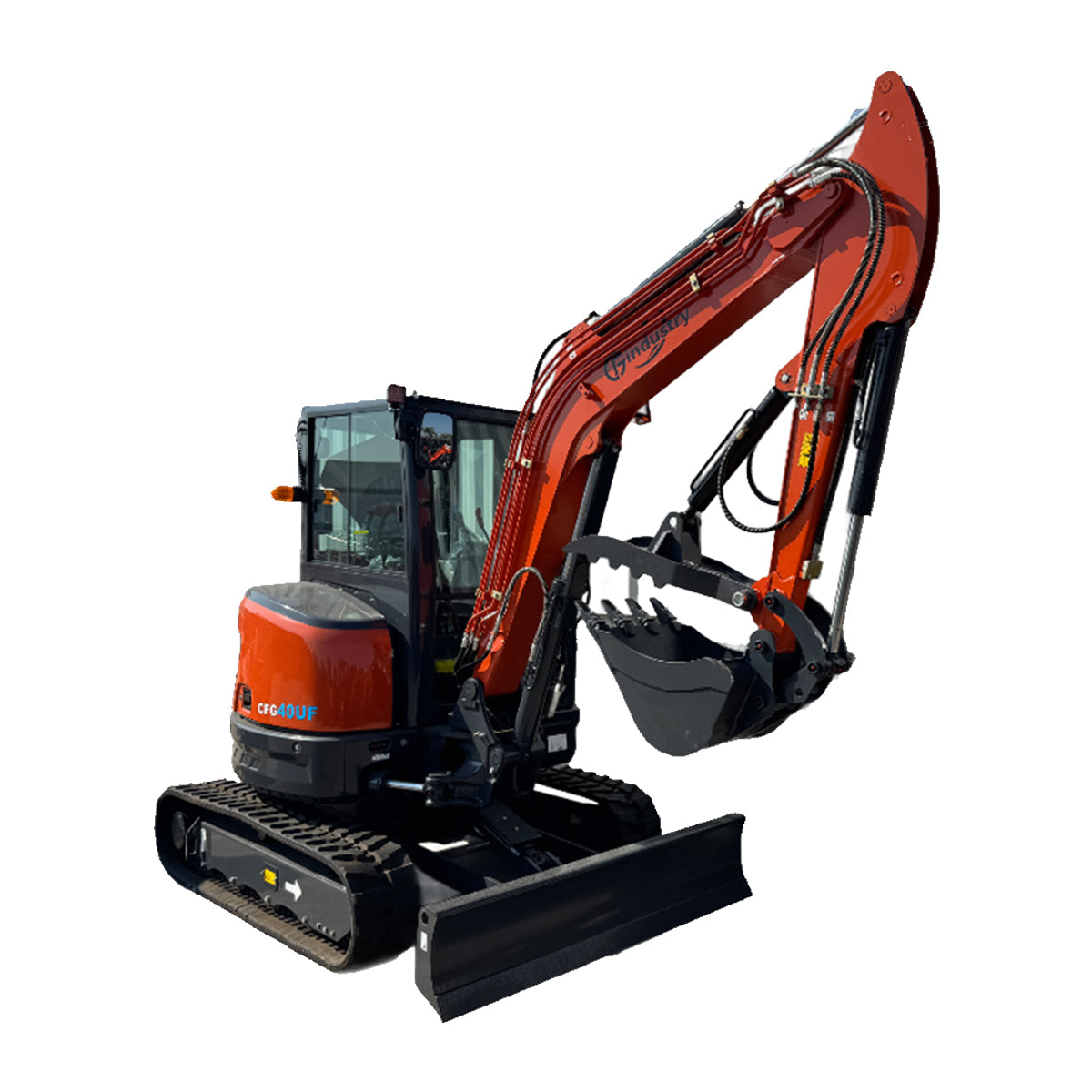

AGT CFG-40UF 3.8-Ton Kubota Mini Excavator
The most fully equipped cab in the AGT range. The CFG-40UF combines a Kubota D1703-E4B diesel engine with an air-conditioned enclosed cabin featuring AM/FM radio and rearview mirror — alongside side swing boom, hydraulic thumb, pilot controls, LED lights, and the same 67.2 L/min / 24.5 MPa hydraulic system as the CFG35UF. Uses industry-standard 35mm pin attachments. Hydraulic thumb included in place of radio option.
Fully enclosed cabin with air conditioning, AM/FM radio, rearview mirror, pilot controls, and LED lights — the most complete operator environment in the AGT range.
1,647cc Kubota 3-cylinder diesel at 24.4 HP. 40 L fuel tank for extended daily operation. Proven D-series reliability with global parts availability.
67.2 L/min (17.75 GPM) at 24.5 MPa — the same high-flow system as the CFG35UF. Fast, powerful attachment performance throughout the working day.
5,575mm (219 in / 18’3″) of maximum reach at ground level. 131″ maximum digging depth — full professional excavation range for commercial and infrastructure work.
| Engine Brand & Model | Kubota D1703-E4B |
| Engine Type | 3-Cylinder Diesel |
| Rated Power | 24.4 HP (18.2 kW) |
| Displacement | 1,647 cc |
| Fuel Tank | 40 L / 10.6 gal |
| Battery | 12V |
| Hydraulic Flow Rate | 67.2 L/min / 17.75 GPM |
| Hydraulic Pressure | 24.5 MPa / 3,553 PSI |
| Hydraulic Tank | 41 L / 10.8 gal |
| Attachment Pin | 35 mm |
| Operating Weight | 3.8 Ton / 8,377 lbs |
| Max Digging Depth | 3,320 mm / 131 in / 10’11” |
| Max Digging Height | 5,045 mm / 198 in / 16’6″ |
| Max Dumping Height | 3,520 mm / 138 in / 11’6″ |
| Max Reach at Ground | 5,575 mm / 219 in / 18’3″ |
| Overall Length | 4,890 mm / 192.5 in |
| Overall Width | 1,700 mm / 67 in |
| Overall Height | 2,555 mm / 100.5 in |
| Track Size (W × Pitch × Links) | 300 × 55 × 84 |
| Blade Width | 1,700 mm / 67 in |
| Blade Height | 366 mm / 14 in |
| Max Lifting Height | 336 mm / 13 in |
| Max Drop Depth | 336 mm / 13 in |

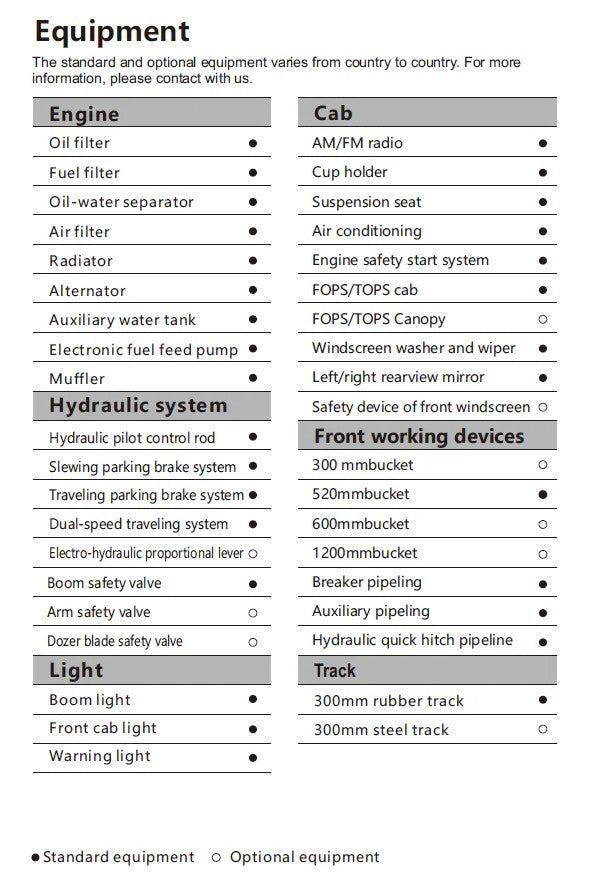

Kubota D1703-E4B Diesel Engine
Enclosed Cab with Air Conditioning
AM/FM Radio
Rearview Mirror

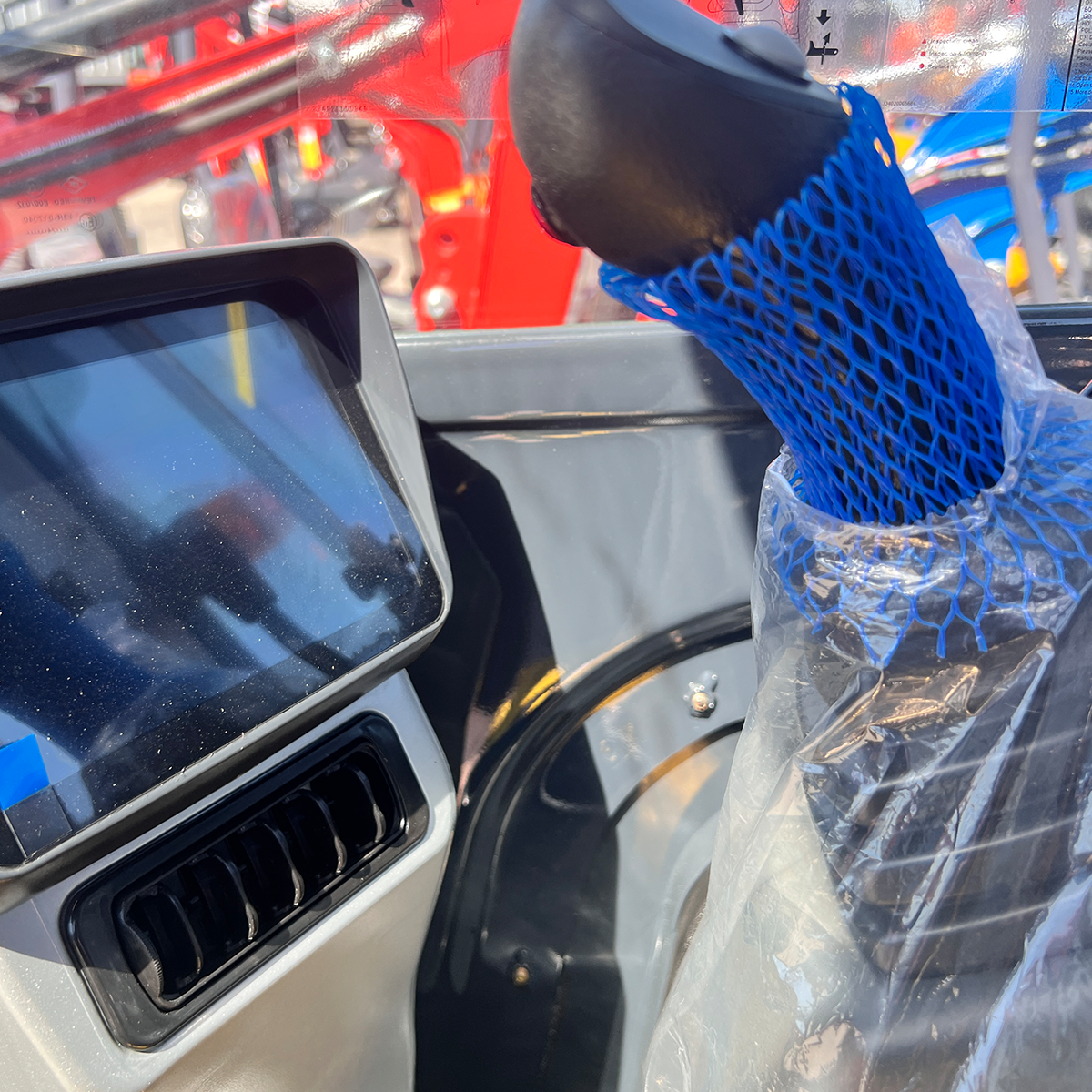

Pilot Controls
LED Lights

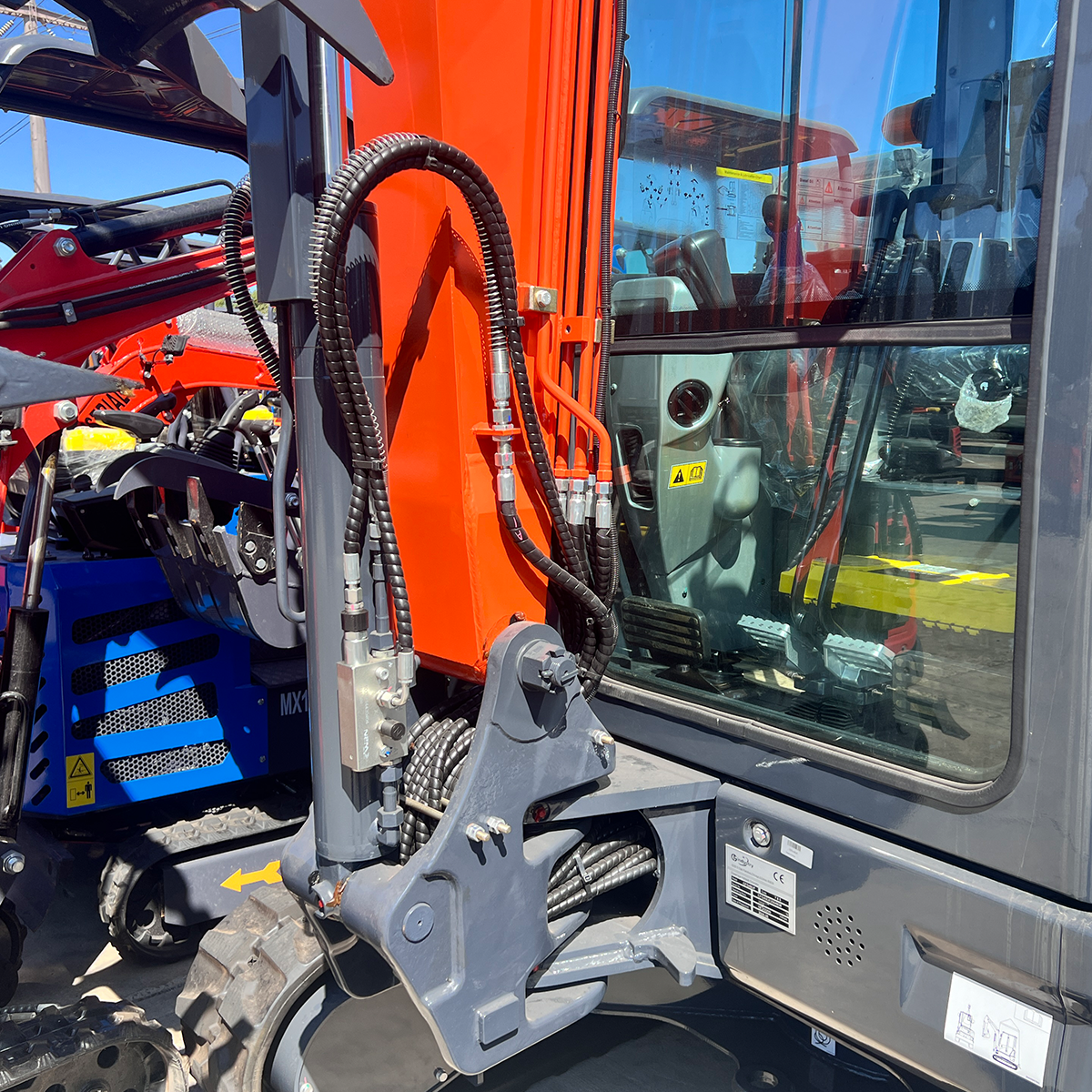

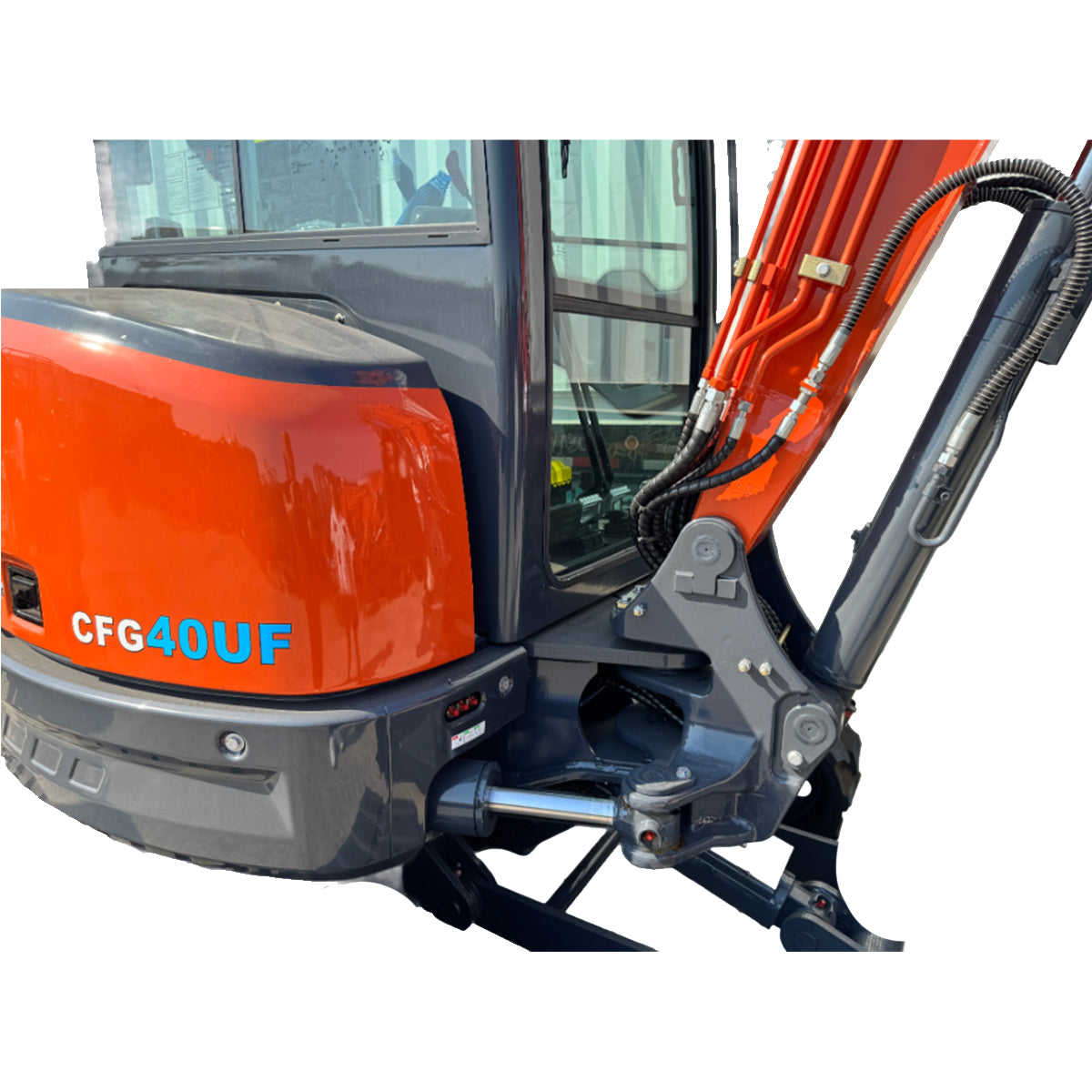

Side Swing Boom

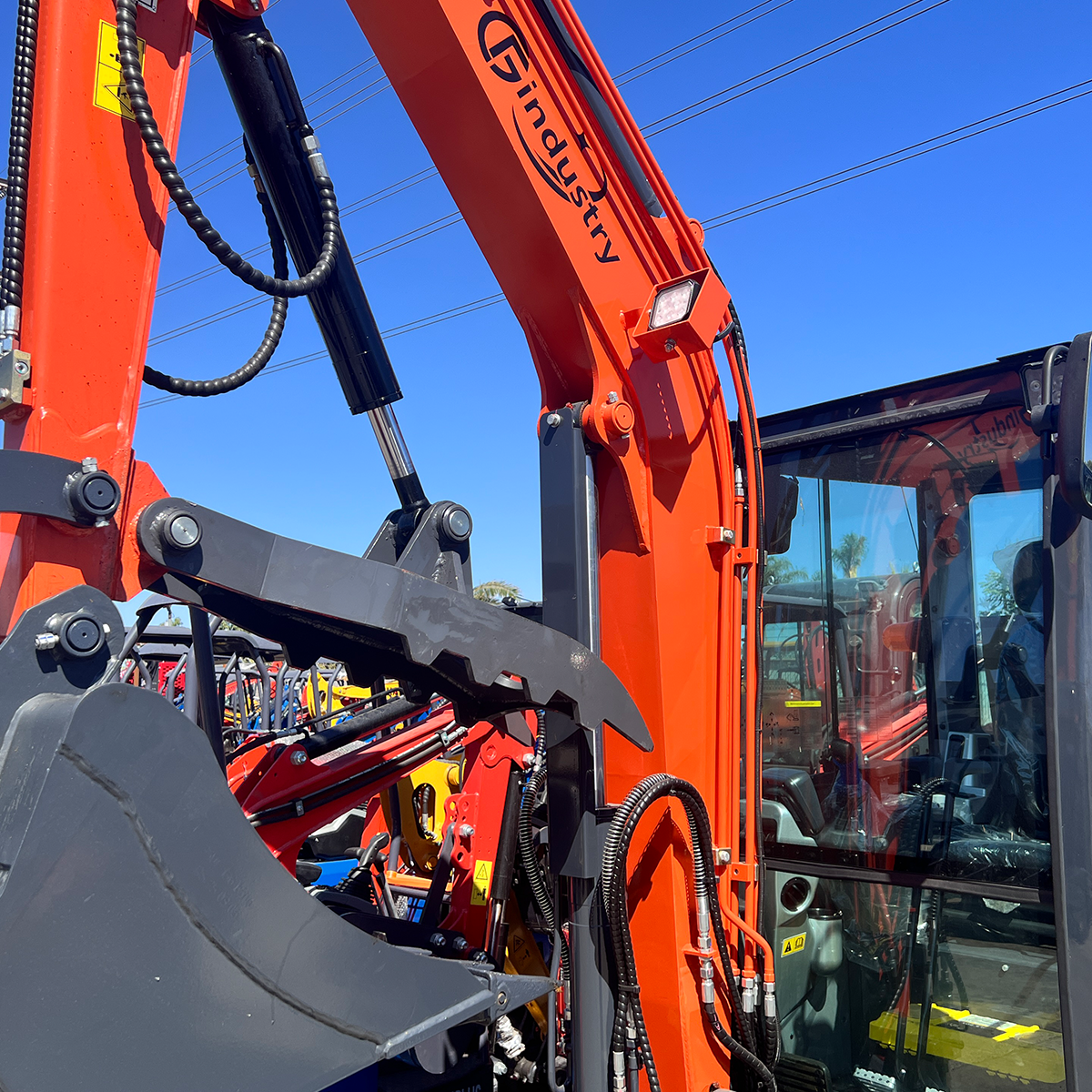

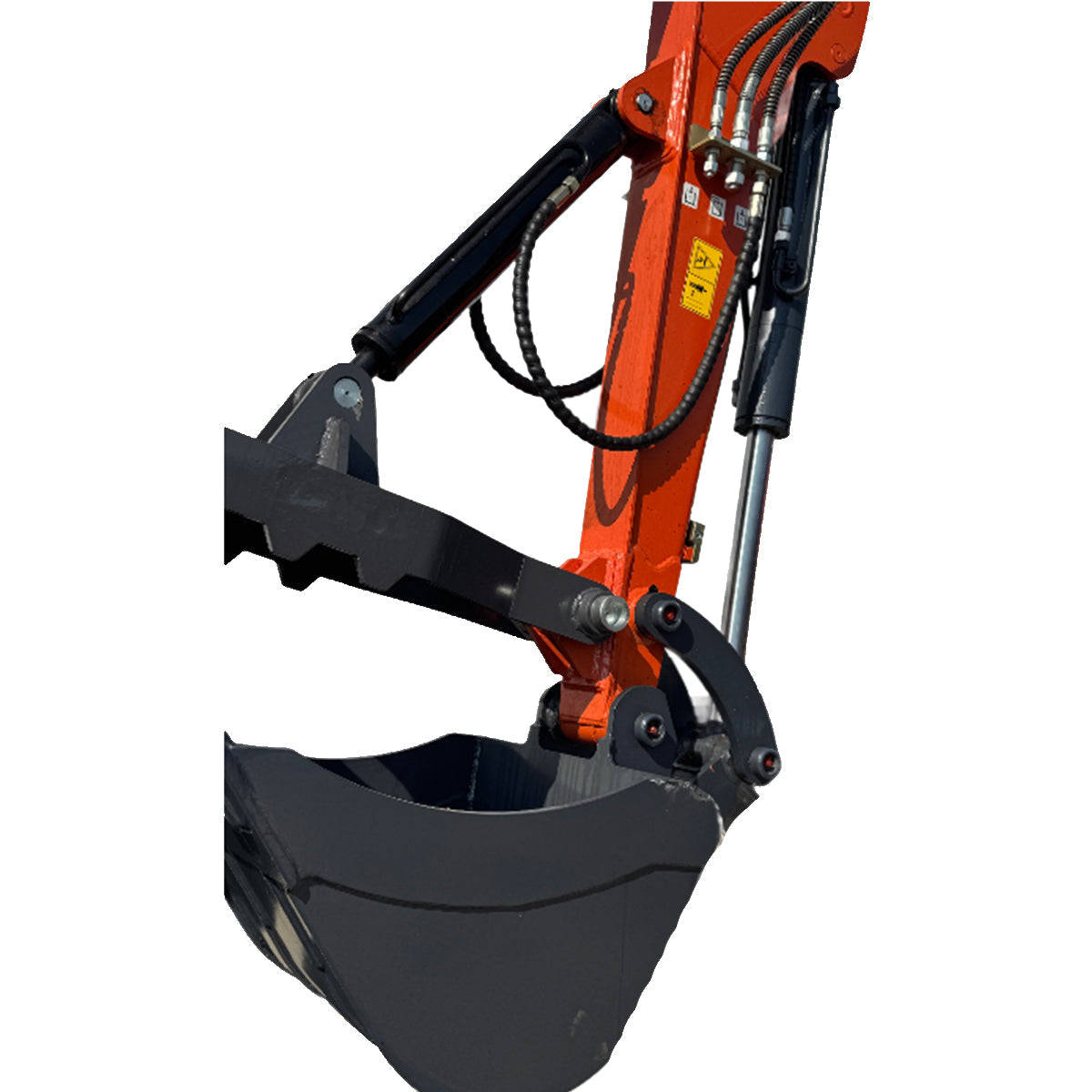

Hydraulic Thumb
35mm Pin Attachment System
Dozer Blade (67″ wide)

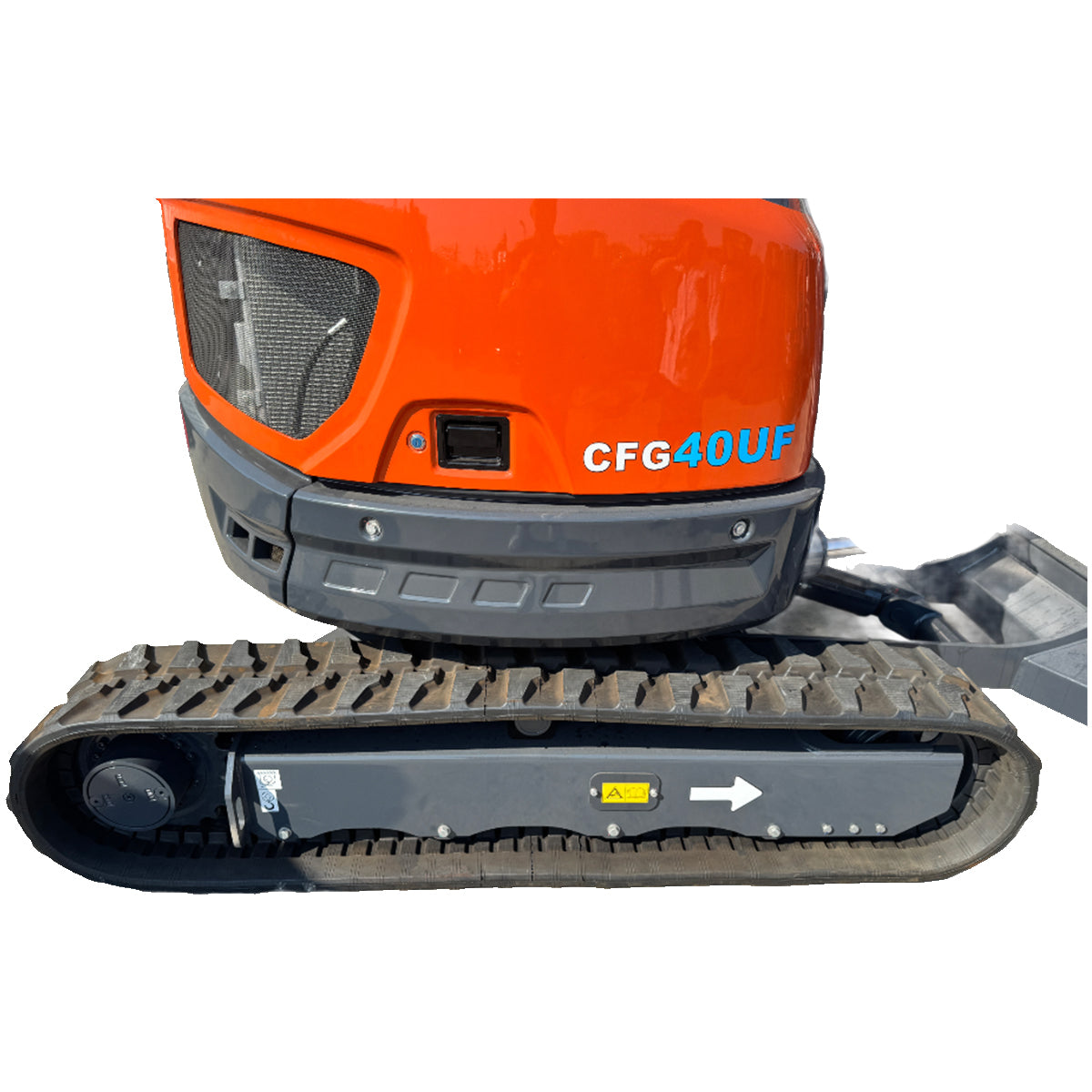

Rubber Tracks (300mm)
Bucket
1-Year Warranty on Parts
Kubota D1703-E4B Diesel
67.2 L/min Hydraulic System (24.5 MPa)
Pilot Controls
Enclosed Cab
Air Conditioning
AM/FM Radio
Rearview Mirror
LED Lights
Rubber Tracks (300mm)
Dozer Blade (1,700mm / 67″)
Side Swing Boom
Hydraulic Thumb
Bucket (35mm pin)
1-Year Warranty on Parts
