AGT Equipment · MH12RX · 0.8-Ton Rato Mini Excavator

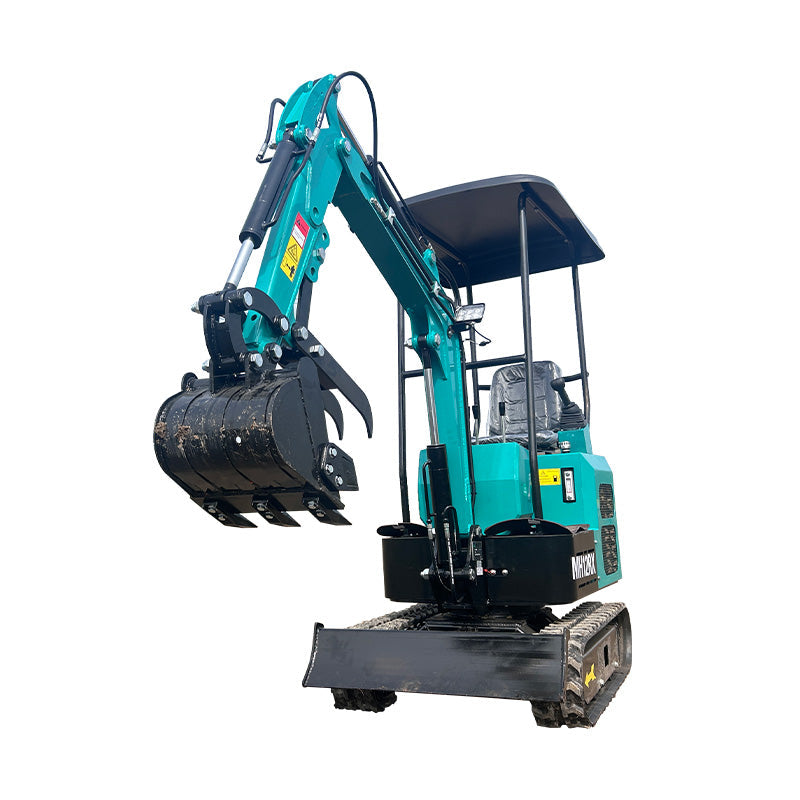

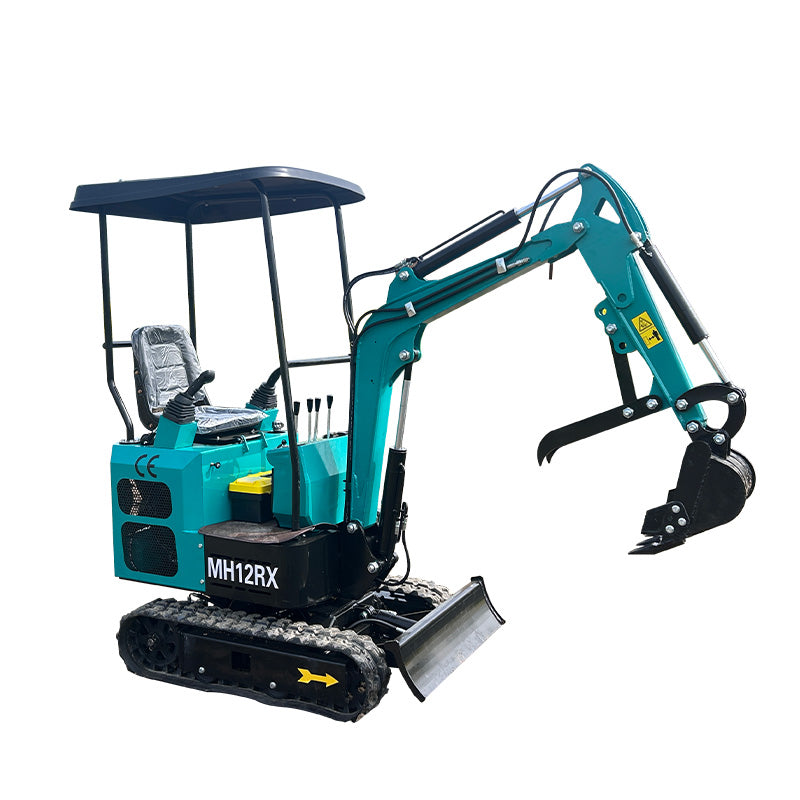

AGT MH12RX Mini Excavator

Name: 1 Ton, RATO Engine Mini Excavator | MH12RX
SKU: MH12RX
Availability: InStock

Rato R420D — 13.5 HP — Pilot Control — 71″ Max Dig Depth

A lightweight and nimble 0.8-ton mini excavator built for the tightest access situations. At just 1,600 lbs and 43″ wide, the MH12RX moves through narrow gates, gardens, and residential spaces with ease — while still delivering 71″ of digging depth and 116.5″ of ground reach. Powered by a Rato R420D with pilot controls as standard.

Rato R420D

Rato R420D — 420cc · 13.5 HP (10.5 kW) · Gasoline · 16 MPa hydraulic system · 21.6 L/min (5.7 GPM) flow · 18 L hydraulic tank · 6.6 L fuel tank · 0.5–1.2 L/hr fuel consumption

13.5 HP

Rato R420D

0.8 Ton

Operating Weight

71″

Max Dig Depth

43″

Overall Width

Key Features

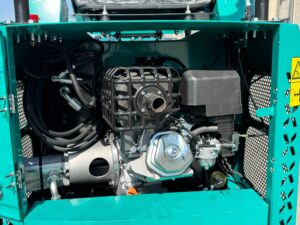

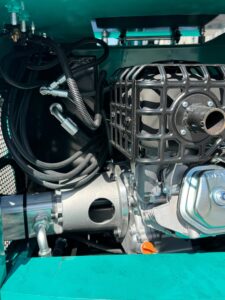

Rato R420D 13.5 HP Gasoline

420cc Rato R420D air-cooled gasoline engine delivering 13.5 HP (10.5 kW). Fuel consumption of 0.5–1.2 L/hr with a 6.6 L tank for extended run time. Easy gasoline fueling for residential and rural job sites.

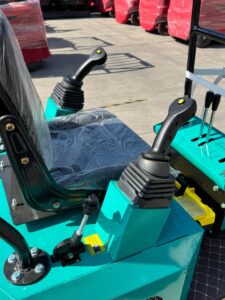

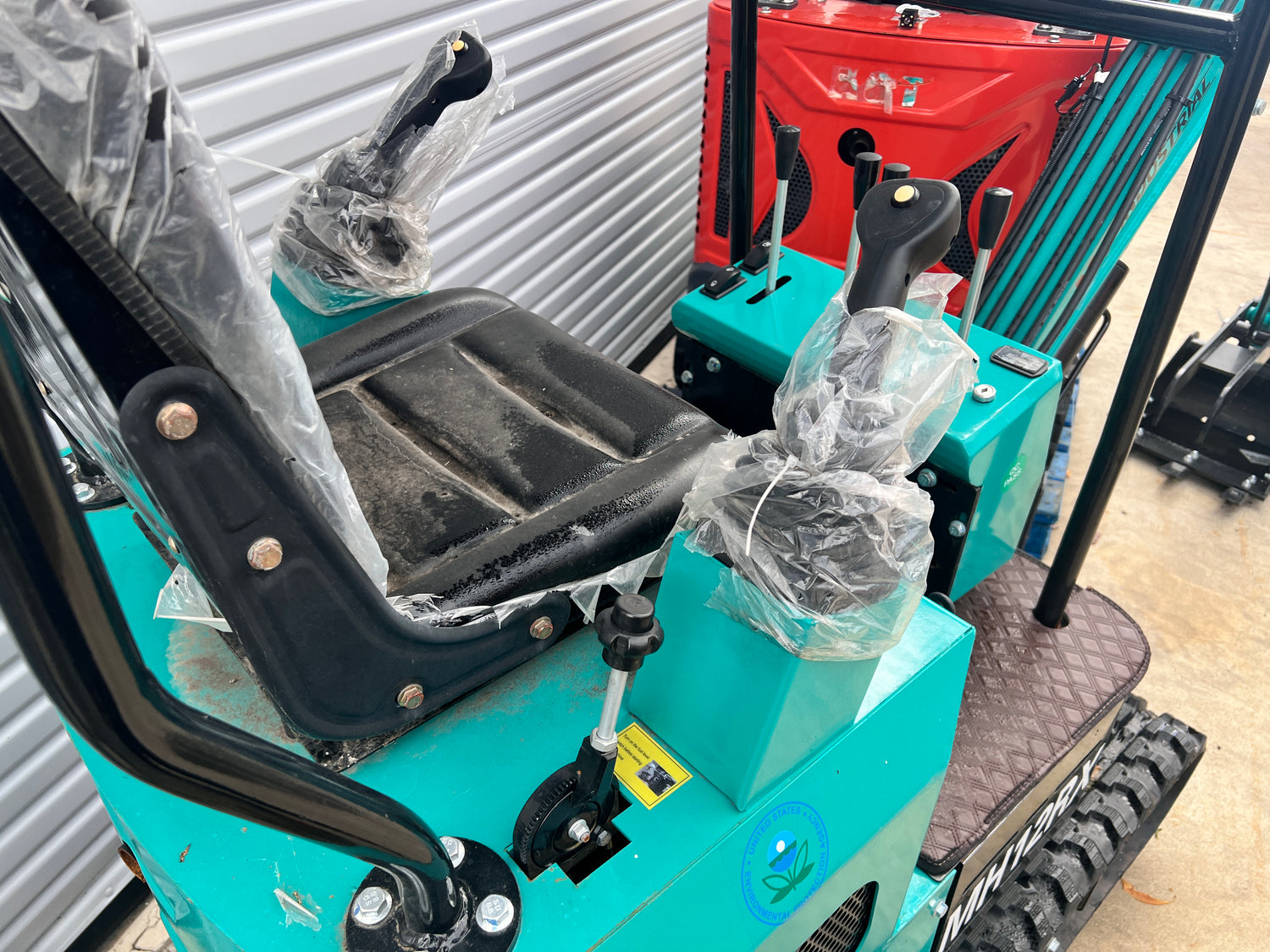

Pilot Controls

Smooth, responsive pilot-operated joystick controls for precise, low-effort machine handling. Reduces operator fatigue during extended use — significantly more comfortable than direct-control alternatives.

0.8-Ton Lightweight Footprint

At just 0.8 tons (1,600 lbs), the MH12RX is one of the lightest machines in the AGT range. Minimal ground disturbance on lawns, soft terrain, and surface-sensitive residential sites — and easy to transport and position.

71″ Max Digging Depth

1,800mm (71″) of maximum digging depth — more reach than most machines in this weight class. Handles drainage trenches, utility installation, small foundations, and garden earthwork well beyond surface-level tasks.

43″ Wide — Tight Access Ready

1,100mm (43″) overall width — passes through standard residential gates and narrow garden access points. Combined with its 0.8-ton weight, the MH12RX accesses spaces that no heavier machine in the range can reach.

16 MPa Hydraulic System

16 MPa (2,320 PSI) hydraulic system with 21.6 L/min (5.7 GPM) flow rate and 18 L hydraulic tank. Consistent pressure for reliable attachment performance and responsive digging throughout the working day.

Full Specifications

Engine

Engine Brand & Model	Rato R420D
Fuel Type	Gasoline
Rated Power	13.5 HP (10.5 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.2 L/hr

Hydraulic System

Hydraulic Flow Rate	21.6 L/min / 5.7 GPM
Hydraulic Pressure	16 MPa / 2,320 PSI
Hydraulic Tank	18 L / 3.7 gal

Performance

Operating Weight	0.8 Ton / 1,600 lbs
Max Digging Depth	1,800 mm / 71 in
Max Digging Height	3,000 mm / 118 in
Max Dumping Height	2,100 mm / 82.5 in
Max Reach at Ground	2,960 mm / 116.5 in
