AGT Equipment · QK20R · 1-Ton Rato Mini Excavator

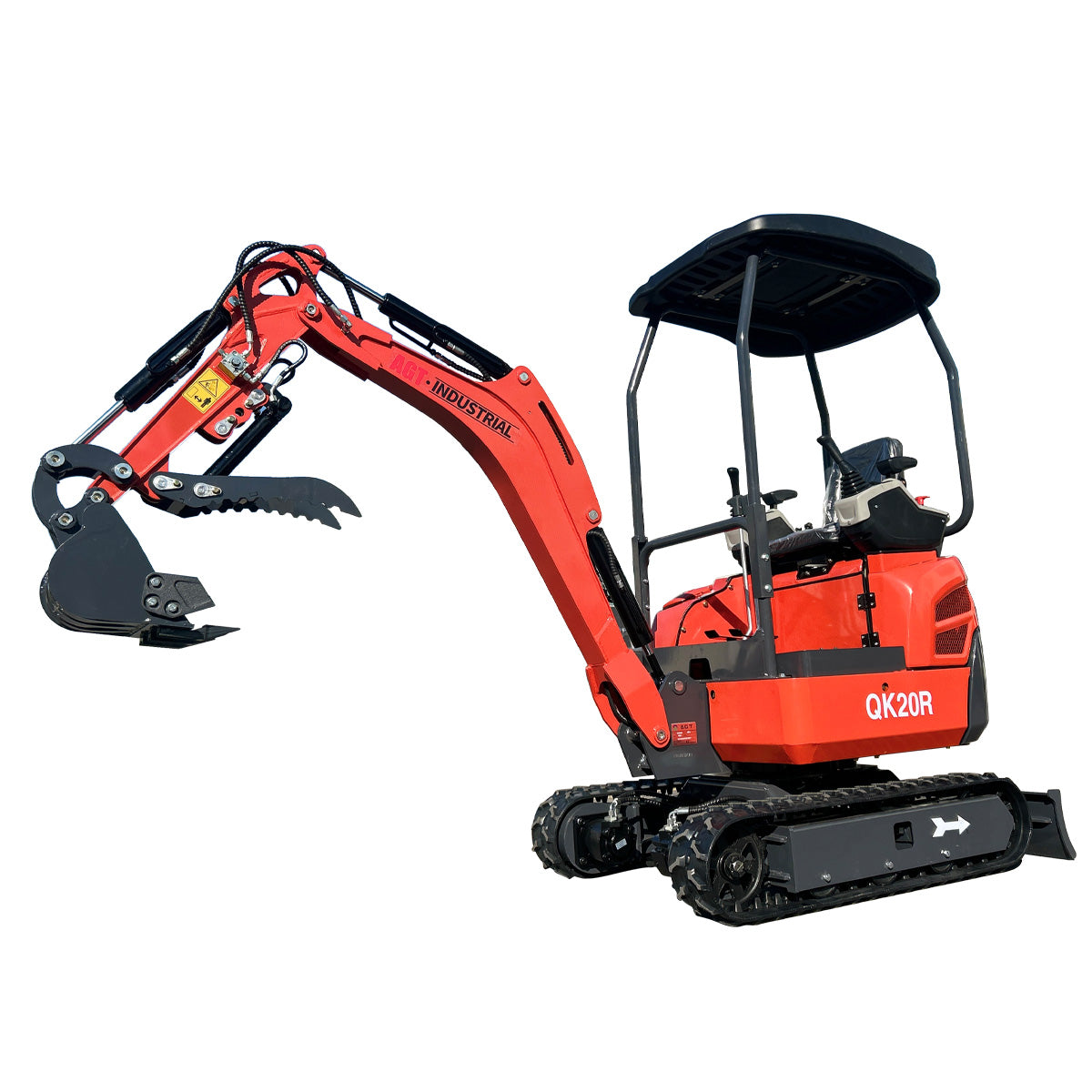

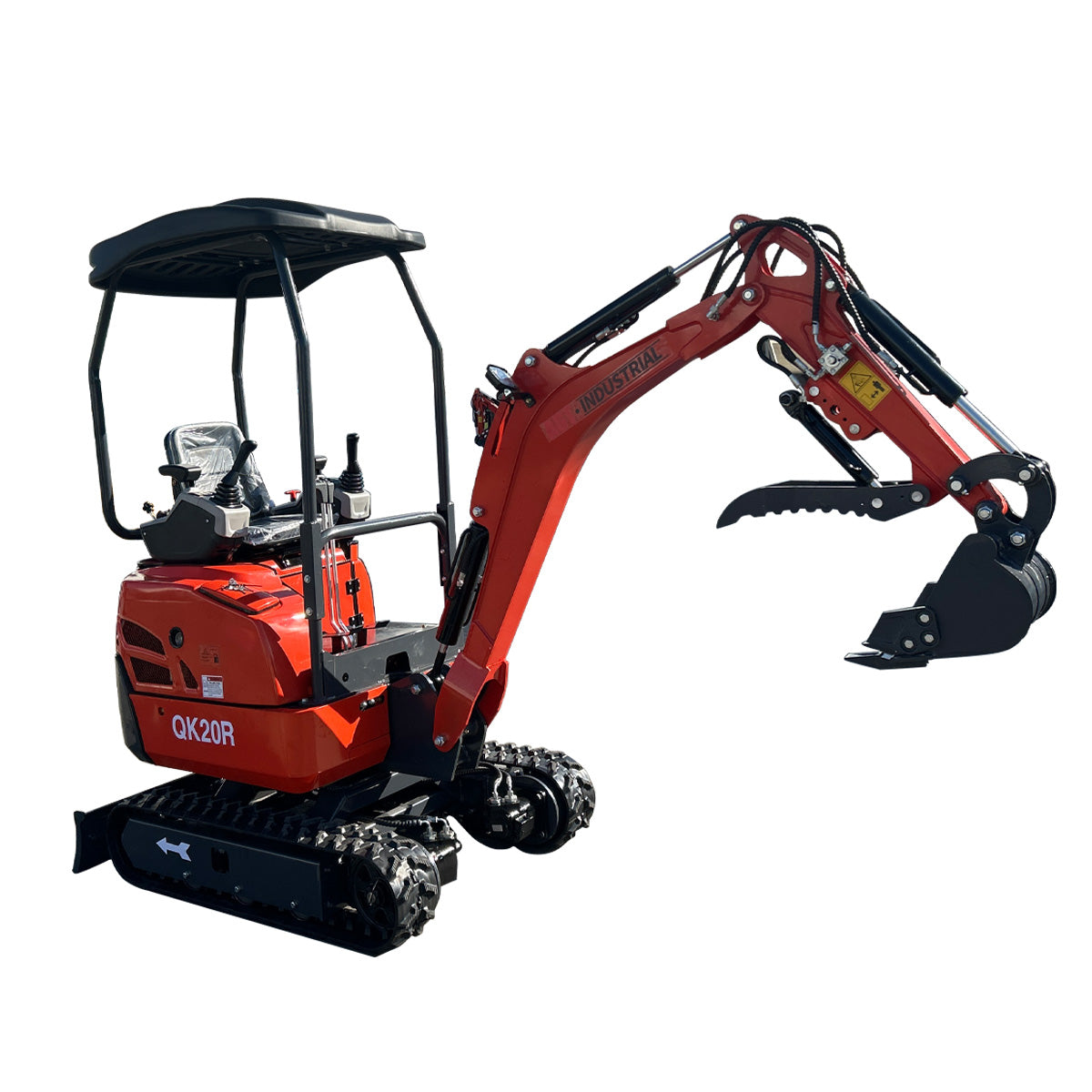

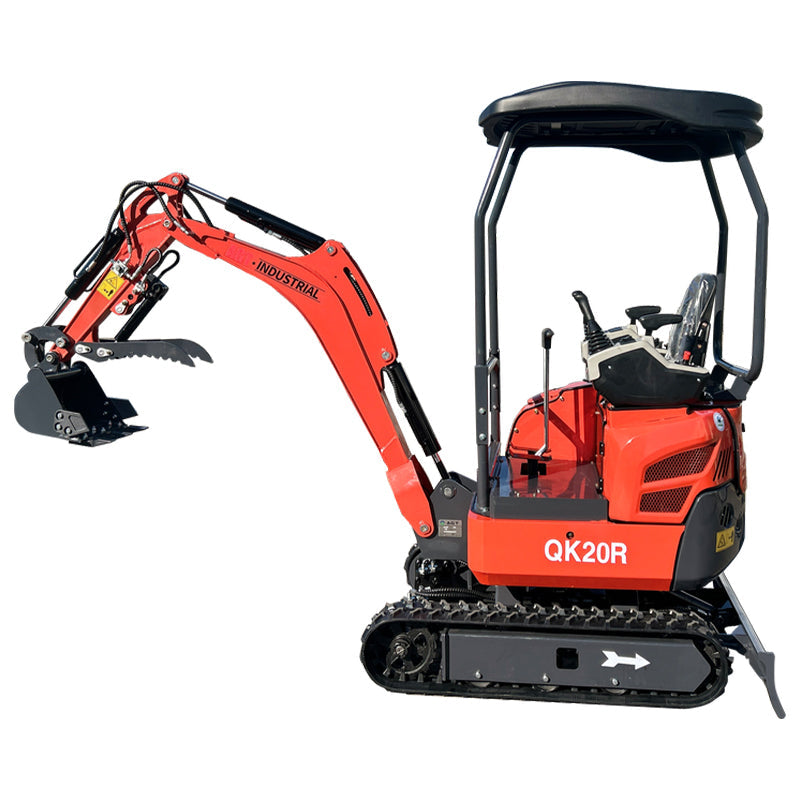

AGT QK20R 1-Ton Mini Excavator

Name: 1 Ton, RATO Engine Mini Excavator | QK20R
SKU: QK20R
Availability: InStock

Rato R740D — 23 HP — 25 MPa Hydraulics — Pilot Control — Hydraulic Thumb

A well-specified 1-ton mini excavator powered by a Rato R740D 740cc gasoline engine delivering 23 HP — notably more power than the 13.5 HP engines common in this weight class. The QK20R runs the same proven GP510803 hydraulic system at 25 MPa with named BM2-315 and BM6-315 motors, pilot controls, hydraulic thumb, and LED work light as standard.

Rato R740D

Rato R740D — 740cc · 23 HP (16.8 kW) · Gasoline #92 · GP510803 pump · 25 MPa (3,600 PSI) · 21.6 L/min (5.7 GPM) · 4 mechanical + 4 hydraulic circuits · BM2-315 rotary motor · BM6-315 travel motor · 6.6 L fuel tank

23 HP

Rato R740D

980 kg

Operating Weight

66.5″

Max Dig Depth

25 MPa

Hydraulic Pressure

Key Features

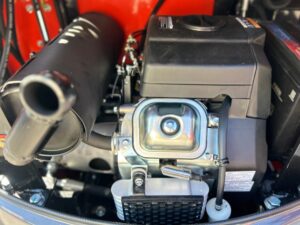

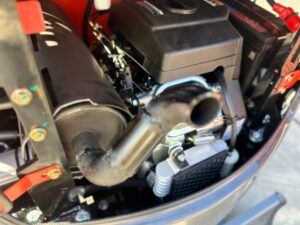

Rato R740D — 23 HP

740cc Rato R740D gasoline engine delivering 23 HP (16.8 kW) — significantly more power than the standard 13.5 HP engines found in most 1-ton class machines. More output means faster cycle times, better digging force, and more responsive performance on harder ground conditions.

25 MPa Hydraulic System

GP510803 pump rated at 25 MPa (3,600 PSI) with 21.6 L/min flow. 8-circuit valve (4 mechanical + 4 hydraulic) with named BM2-315 rotary and BM6-315 travel motors — the same industrial-grade hydraulic components as other premium AGT machines in the range.

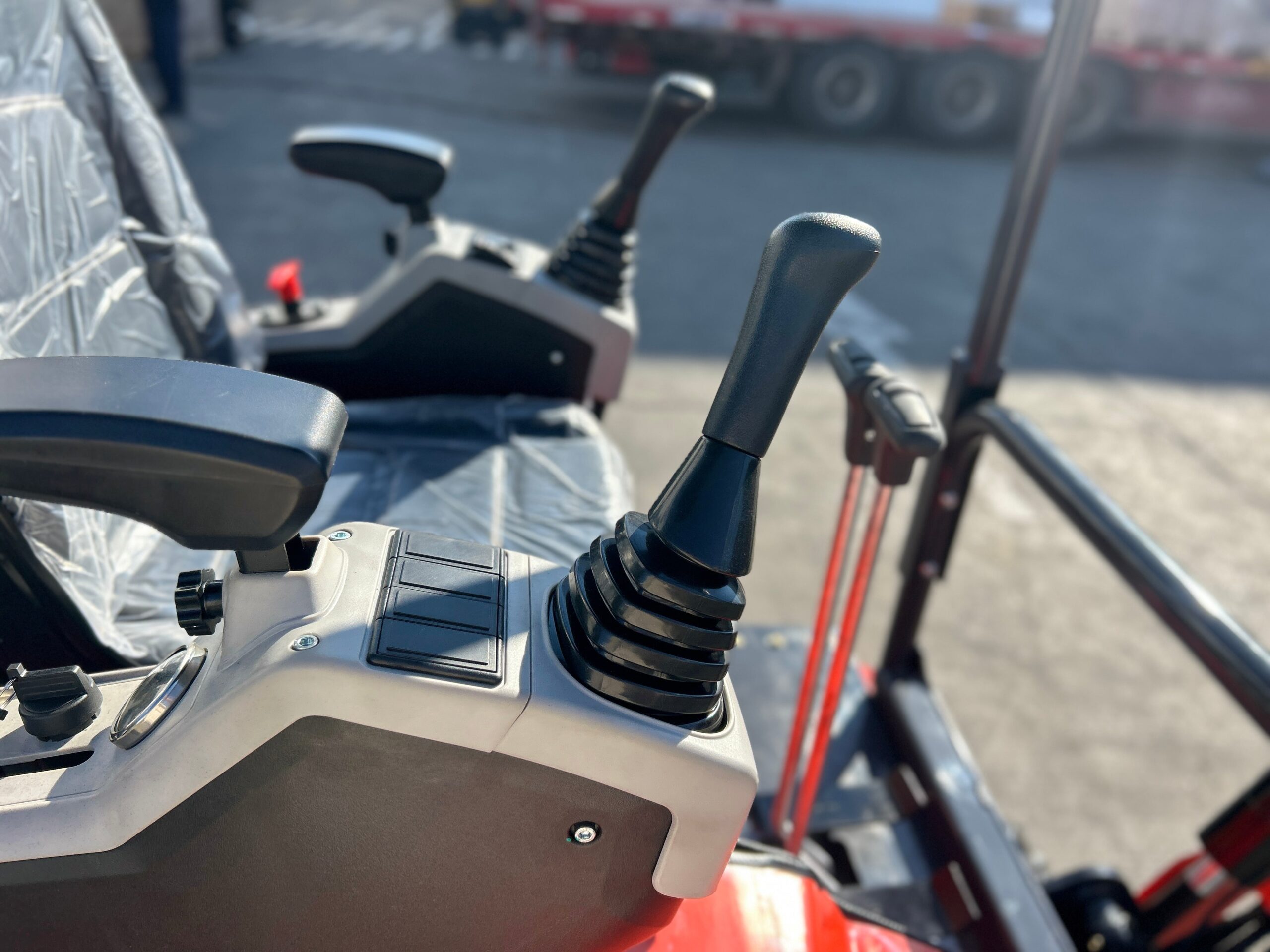

Pilot Controls

Smooth, responsive pilot-operated joystick controls for precise machine handling. Reduces operator fatigue during extended use and improves accuracy on detailed digging, grading, and placement tasks.

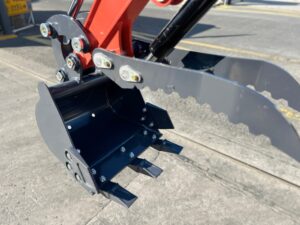

Hydraulic Thumb

Included hydraulic thumb for gripping and moving rocks, branches, roots, and debris — controlled from the operator seat. Expands material handling capability without additional purchases.

Named Hydraulic Motors

BM2-315 rotary hydraulic motor and BM6-315 traveling hydraulic motor — industrial-grade named components with defined specifications. Consistent, reliable performance under load with long service life.

LED Work Light

LED work light for early morning and late evening operation — reliable illumination of the dig area in low-light conditions. Included as standard on every machine.

Full Specifications

Engine

Engine Brand & Model	Rato R740D
Fuel Type	Gasoline #92
Rated Power	23 HP (16.8 kW)
Displacement	740 cc
Fuel Tank	6.6 L / 1.7 gal

Hydraulic System

Main Pump Type	GP510803
System Pressure	25 MPa / 3,600 PSI
Hydraulic Flow	21.6 L/min / 5.7 GPM
Multi-Circuit Valve	4 Mechanical + 4 Hydraulic
Rotary Hydraulic Motor	BM2-315
Traveling Hydraulic Motor	BM6-315
Hydraulic Thumb	Standard / Included

Performance

Operating Weight	980 kg (~2,160 lbs)
Bucket Capacity	0.03 m³
Max Digging Depth	1,693 mm / 66.5 in
Max Digging Height	2,560 mm / 100 in
Max Dumping Height	1,800 mm / 71 in
Min Swing Radius	3,060 mm / 120.5 in
Max Climbing Angle	15°
Travel Speed	0 – 1.8 km/h
