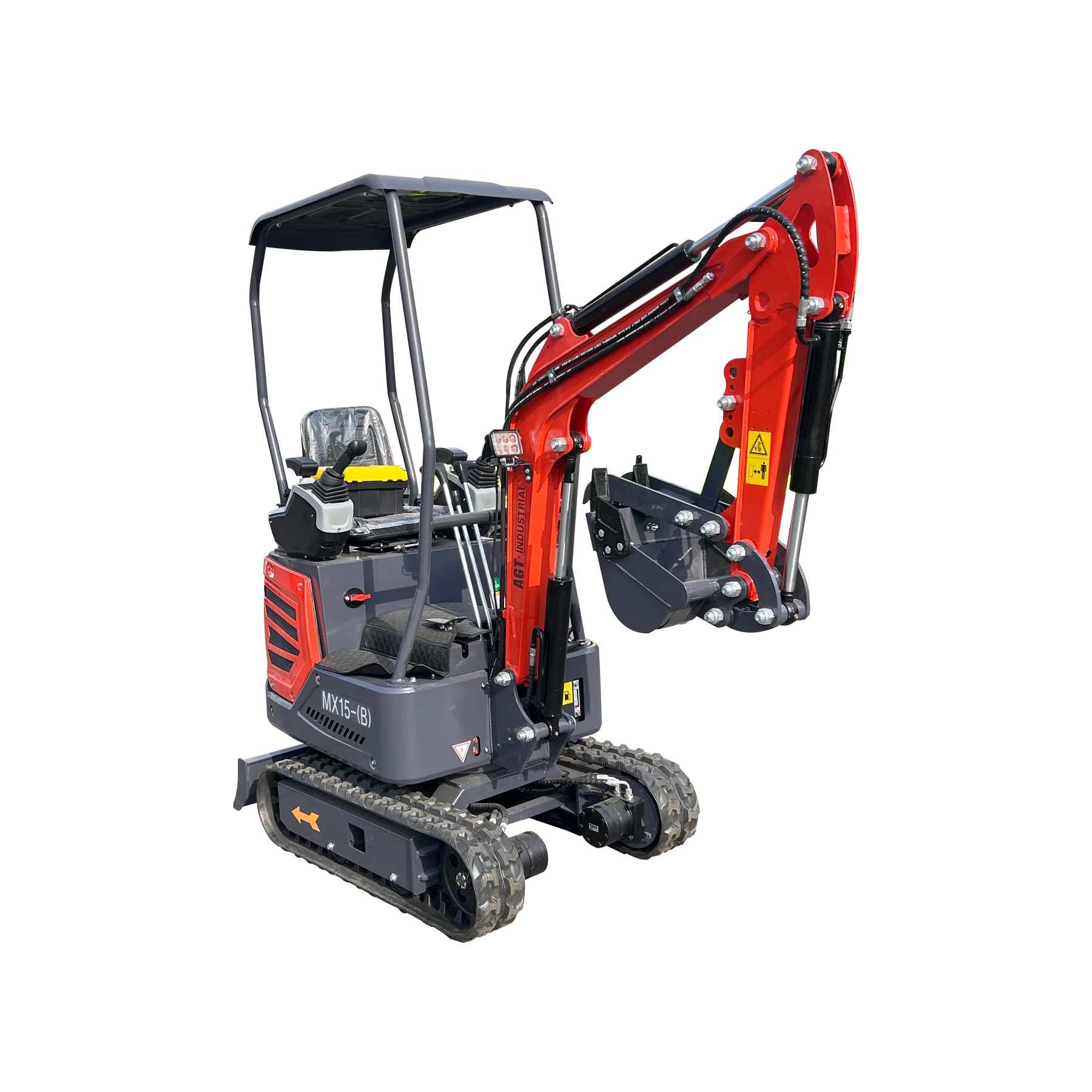

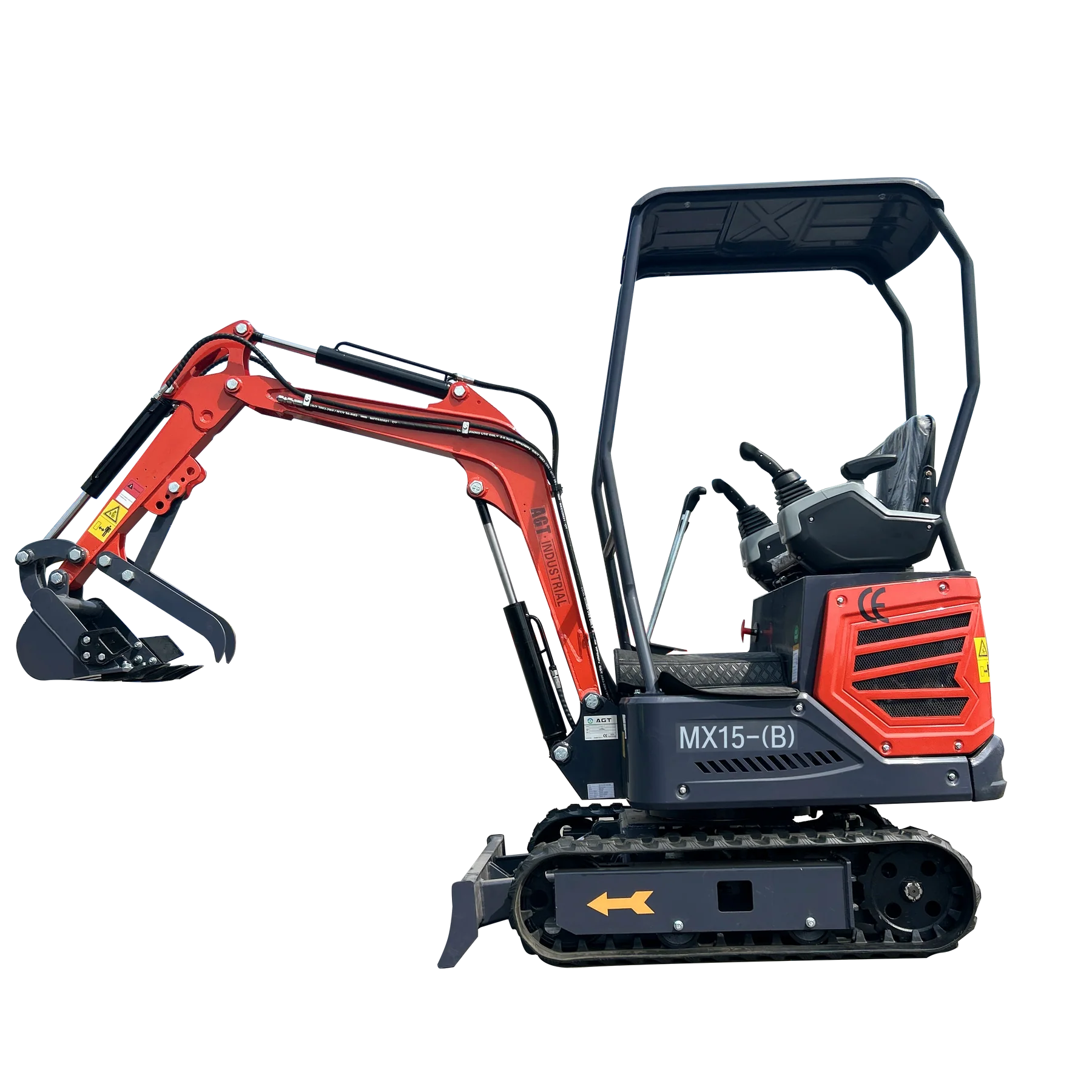

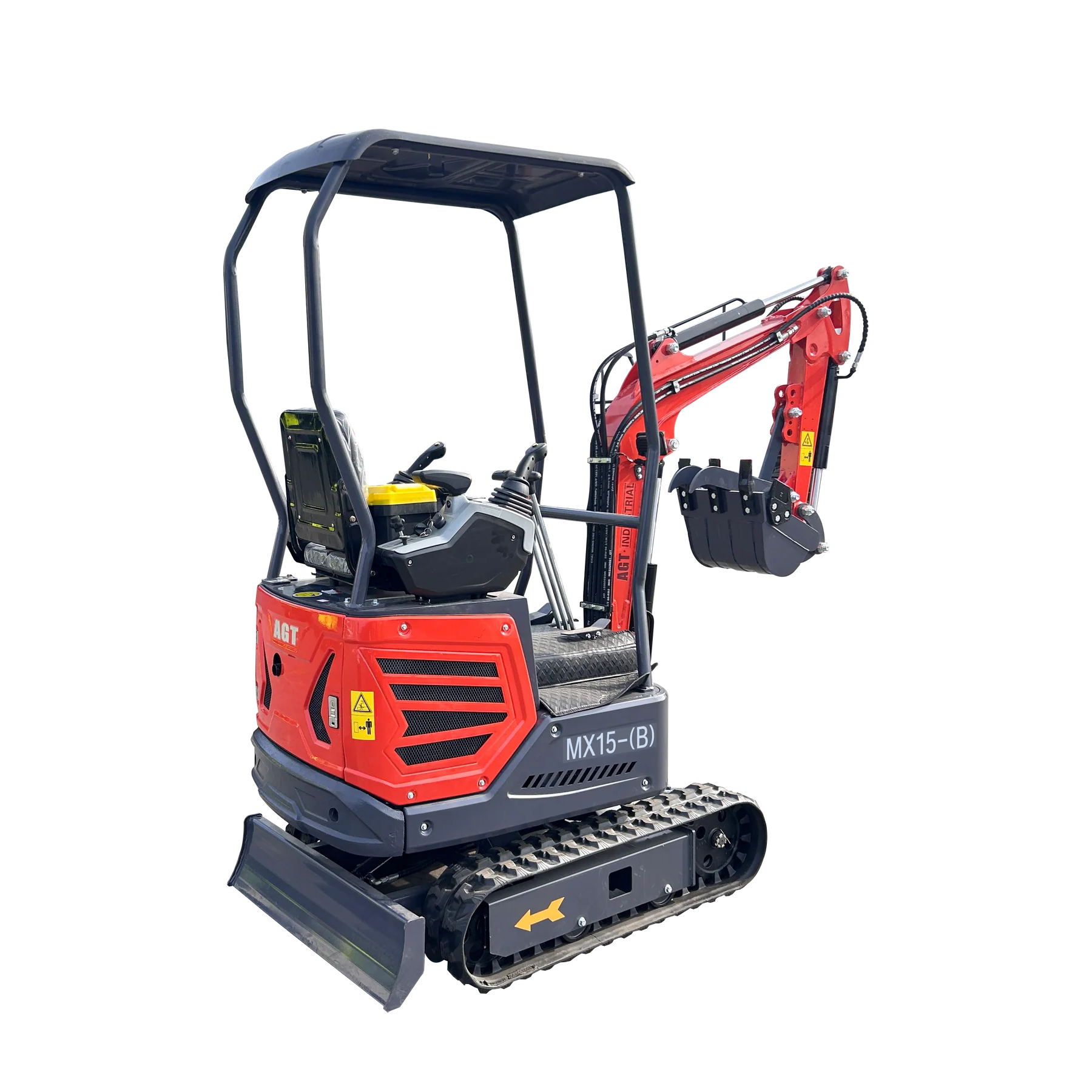

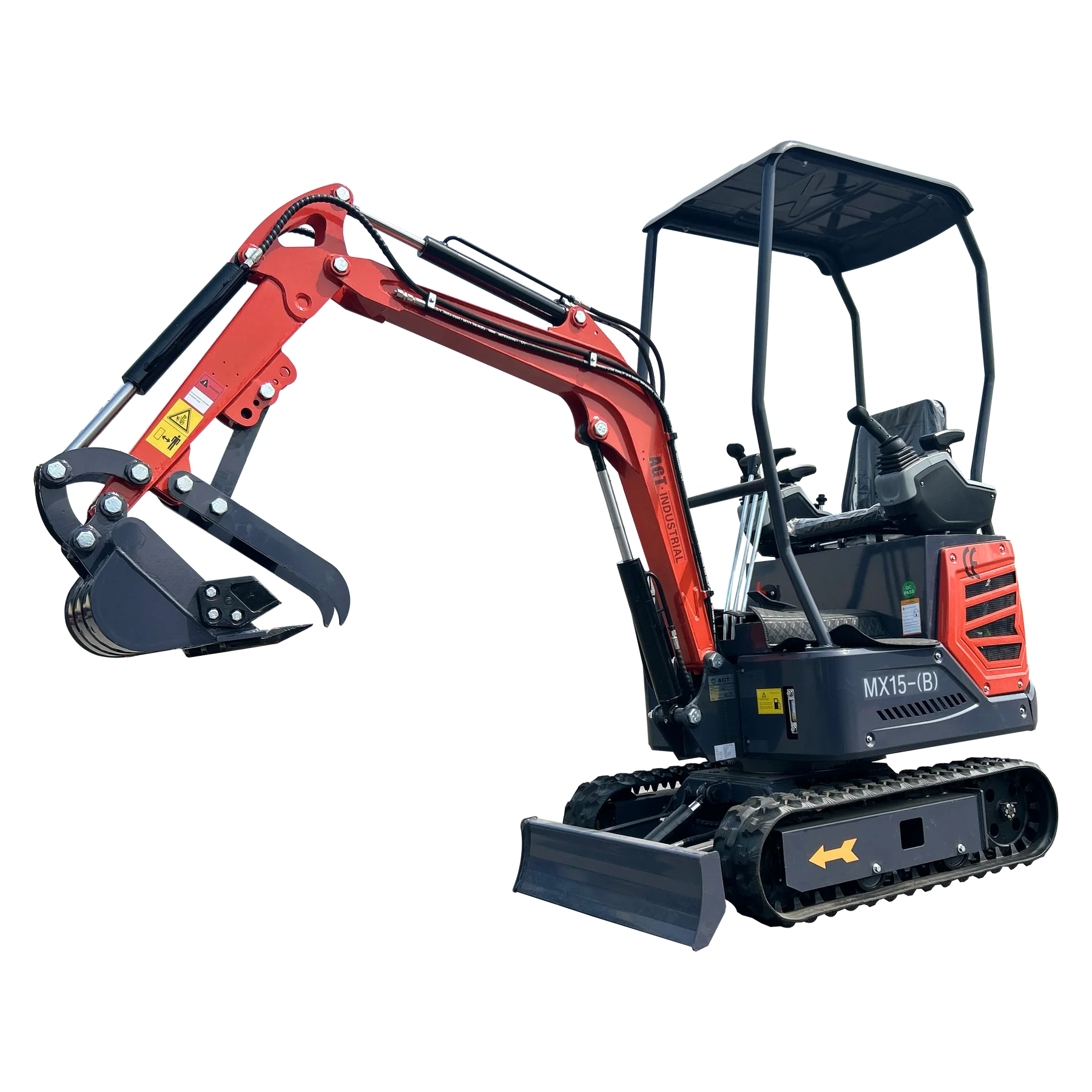

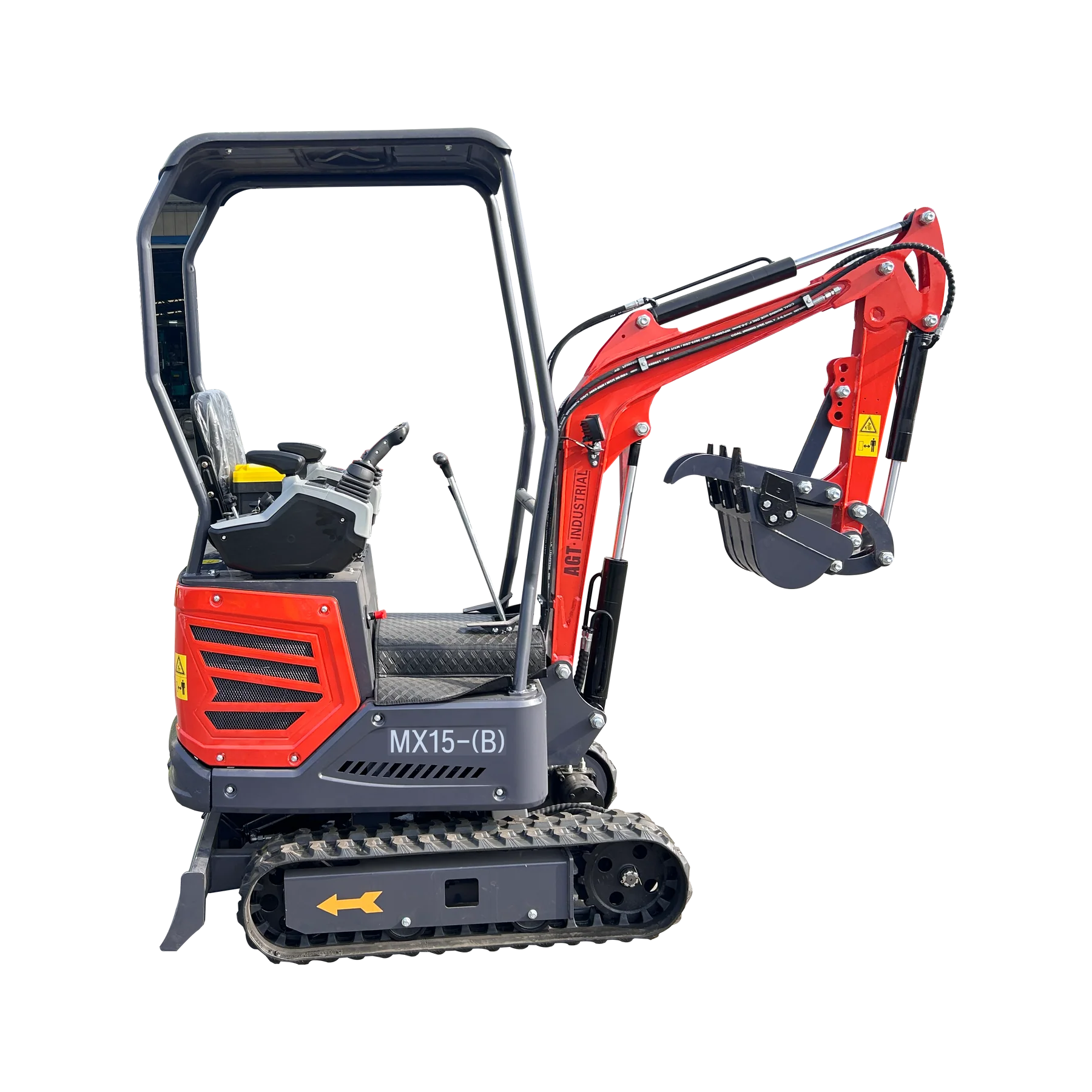

AGT MX15-B Mini Excavator

Name: 1 Ton, B&amp;S Engine Mini Excavator w/ Pilot Control | MX15-B
SKU: MX15-B
Availability: InStock

B&S XR 420cc — 13.5 HP — Pilot Control — LED Light — 70″ Dig Depth

A practical 0.9-ton mini excavator built for reliable daily use on tight-access jobs. The MX15-B runs a Briggs & Stratton XR 420cc gasoline engine at 13.5 HP — with pilot controls, LED work light, a 70″ maximum digging depth, and a large 23 L hydraulic tank. Compact enough for residential access, capable enough for professional work.

B&S XR Engine

Briggs & Stratton XR — 420cc · 13.5 HP (10 kW) · Gasoline · 16 MPa hydraulic system · 21.6 L/min (5.7 GPM) flow · 23 L hydraulic tank · 6.6 L fuel tank · 0.5–1.2 L/hr fuel consumption

13.5 HP

B&S XR 420cc

0.9 Ton

Operating Weight

70″

Max Dig Depth

23 L

Hydraulic Tank

Key Features

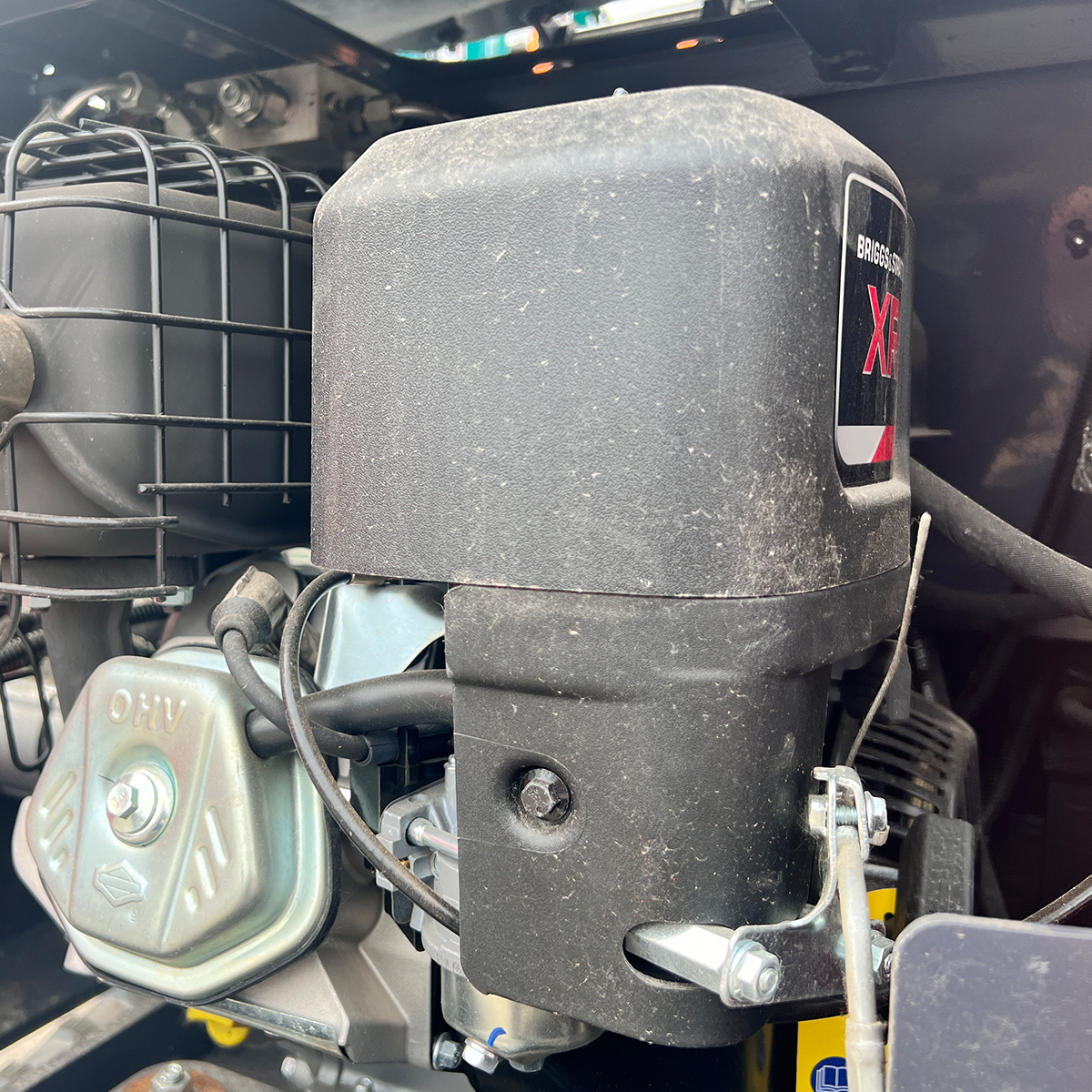

B&S XR 420cc Gasoline Engine

Briggs & Stratton XR series 420cc engine at 13.5 HP (10 kW). The XR is the professional-tier B&S line — built for higher-output commercial equipment use with improved cooling and durability over standard consumer engines. Fuel consumption of 0.5–1.2 L/hr with a 6.6 L tank.

Pilot Controls

Smooth, responsive pilot-operated joystick controls for precise, low-effort machine handling. Significantly reduces operator fatigue during extended operating periods compared to direct-control alternatives.

Large 23 L Hydraulic Tank

23 L hydraulic oil tank — notably larger than the 16–18 L tanks common in this weight class. More hydraulic fluid means better heat dissipation during continuous operation, more stable performance, and less risk of overheating on long working days.

LED Work Light

LED work light for early morning and late evening operation — long-life, low-power illumination of the dig area. Included as standard on every machine.

70″ Max Digging Depth

1,769mm (70″) of maximum digging depth — solid reach for drainage, utilities, small foundations, and garden earthwork in a machine light enough to access restricted residential sites without heavy logistics.

0.9-Ton Compact Footprint

At 0.9 tons (1,800 lbs) and 936mm (36.8″) wide, the MX15-B passes through standard residential gates and tight access points with minimal ground disturbance — ideal for landscaping, residential construction, and garden work.

Full Specifications

Engine

Engine Brand & Model	Briggs & Stratton XR
Fuel Type	Gasoline
Rated Power	13.5 HP (10 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.2 L/hr

Hydraulic System

Hydraulic Flow Rate	21.6 L/min / 5.7 GPM
Hydraulic Pressure	16 MPa / 2,320 PSI
Hydraulic Tank	23 L / 6 gal

Performance

Operating Weight	0.9 Ton / 1,800 lbs
Max Digging Depth	1,769 mm / 70 in
Max Digging Height	2,583 mm / 102 in
Max Dumping Height	1,850 mm / 73 in
Max Reach at Ground	3,040 mm / 120 in
