AGT Equipment · MX12-B · 0.8-Ton B&S Mini Excavator

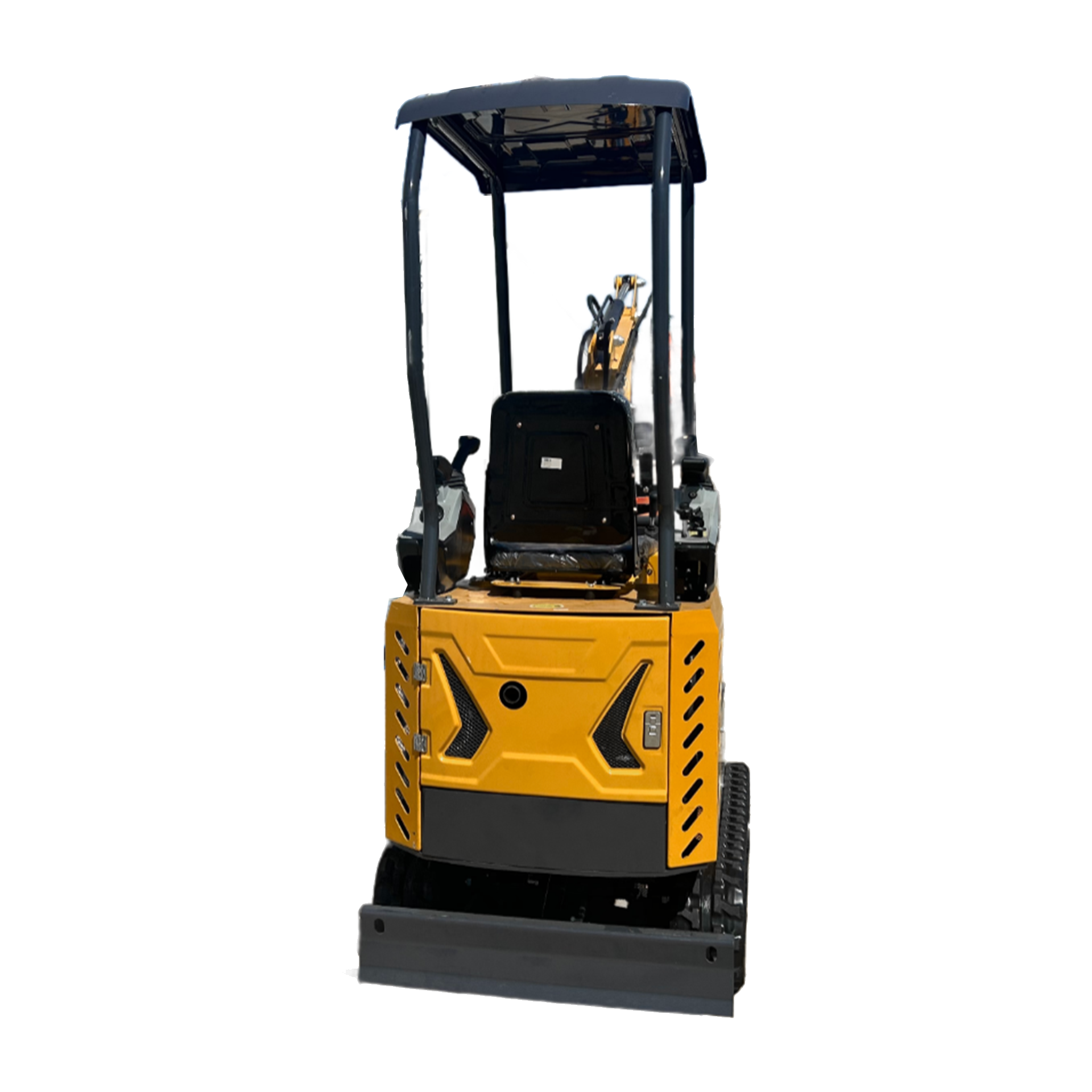

AGT MX12-B Mini Excavator

Name: 1 Ton, B&amp;S Engine Mini Excavator w/ Pilot Control &amp; LED Light | MX12-B
SKU: MX12-B
Availability: InStock

B&S XR 420cc — 13.3 HP — Pilot Control — LED Work Light — 69.5″ Dig Depth

A lightweight, easy-to-manoeuvre 0.8-ton mini excavator for tight residential and garden access. The MX12-B runs a Briggs & Stratton XR 420cc gasoline engine with pilot controls and LED work light as standard — delivering 69.5″ of digging depth and 102.5″ of ground reach in one of the shortest overall lengths in the AGT range at just 110″ long.

B&S XR Engine

Briggs & Stratton XR — 420cc · 13.3 HP (10.5 kW) · Gasoline · 16 MPa hydraulic system · 21.6 L/min (5.7 GPM) flow · 6.6 L fuel tank · 0.5–1.2 L/hr fuel consumption

13.3 HP

B&S XR 420cc

0.8 Ton

Operating Weight

69.5″

Max Dig Depth

110″

Overall Length

Key Features

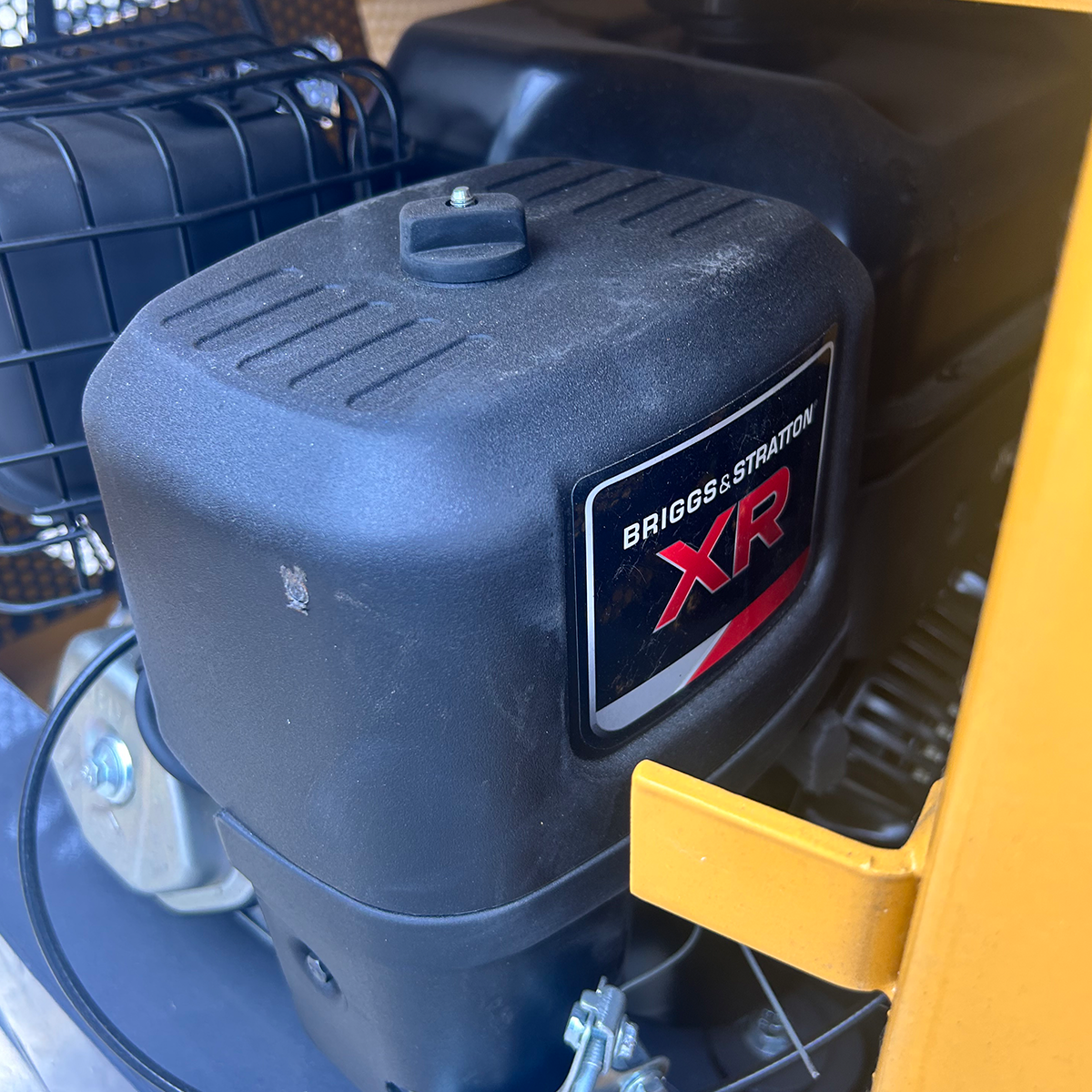

B&S XR 420cc Gasoline Engine

Briggs & Stratton XR series 420cc engine at 13.3 HP (10.5 kW) — the professional-tier B&S line designed for commercial equipment with improved cooling and durability. Fuel consumption of 0.5–1.2 L/hr for economical daily operation.

Pilot Controls

Smooth, responsive pilot-operated joystick controls for precise, low-effort machine handling. Reduces operator fatigue during extended use — standard on every MX12-B.

LED Work Light

LED work light for early morning and late evening operation. Low-power, long-life illumination of the dig area — included as standard on every machine.

Exceptional Blade Lift — 15″

383mm (15″) maximum blade lifting height — notably higher than the 7–11″ blade lift on comparable machines. Provides significantly more grading height for mounding, levelling raised ground, and working on sloped terrain.

Compact 110″ Overall Length

At just 2,802mm (110″) overall length, the MX12-B is one of the shortest machines in the AGT range — easier to transport, manoeuvre on site, and position in tight working areas than longer machines at the same weight class.

0.8-Ton Lightweight — 1,600 lbs

At just 1,600 lbs, the MX12-B is one of the lightest machines in this project — minimising ground disturbance on lawns, garden beds, and soft terrain while remaining fully capable for daily professional use.

Full Specifications

Engine

Engine Brand & Model	Briggs & Stratton XR
Fuel Type	Gasoline
Rated Power	13.3 HP (10.5 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.2 L/hr

Hydraulic System

Hydraulic Flow Rate	21.6 L/min / 5.7 GPM
Hydraulic Pressure	16 MPa / 2,320 PSI

Performance

Operating Weight	0.8 Ton / 1,600 lbs
Max Digging Depth	1,764 mm / 69.5 in
Max Digging Height	2,589 mm / 102 in
Max Dumping Height	1,789 mm / 70.5 in
Max Reach at Ground	2,605 mm / 102.5 in
