1 Ton, RATO Engine Mini Excavator | AGT-MX15R
Original price was: $7,000.00.$4,409.99Current price is: $4,409.99.

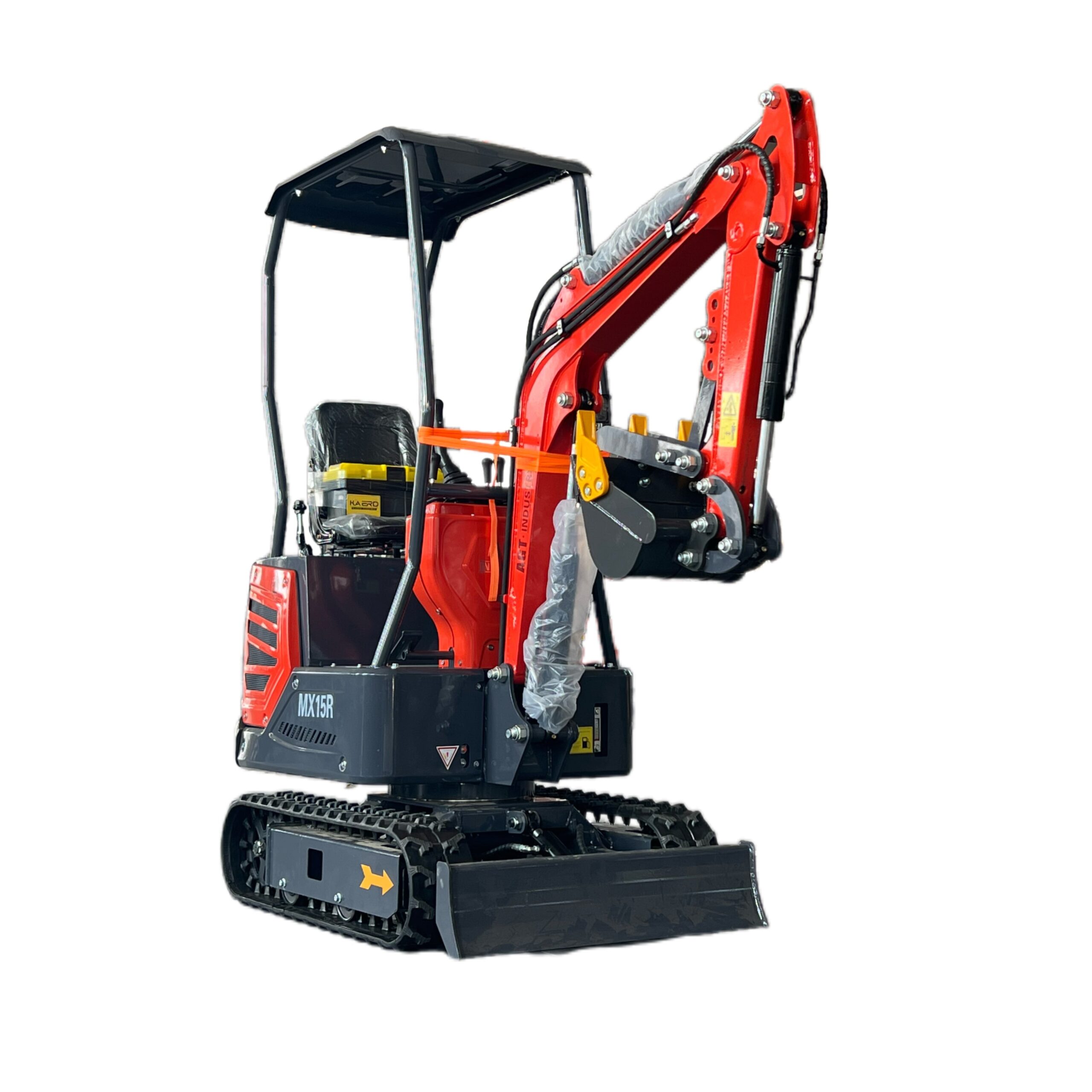

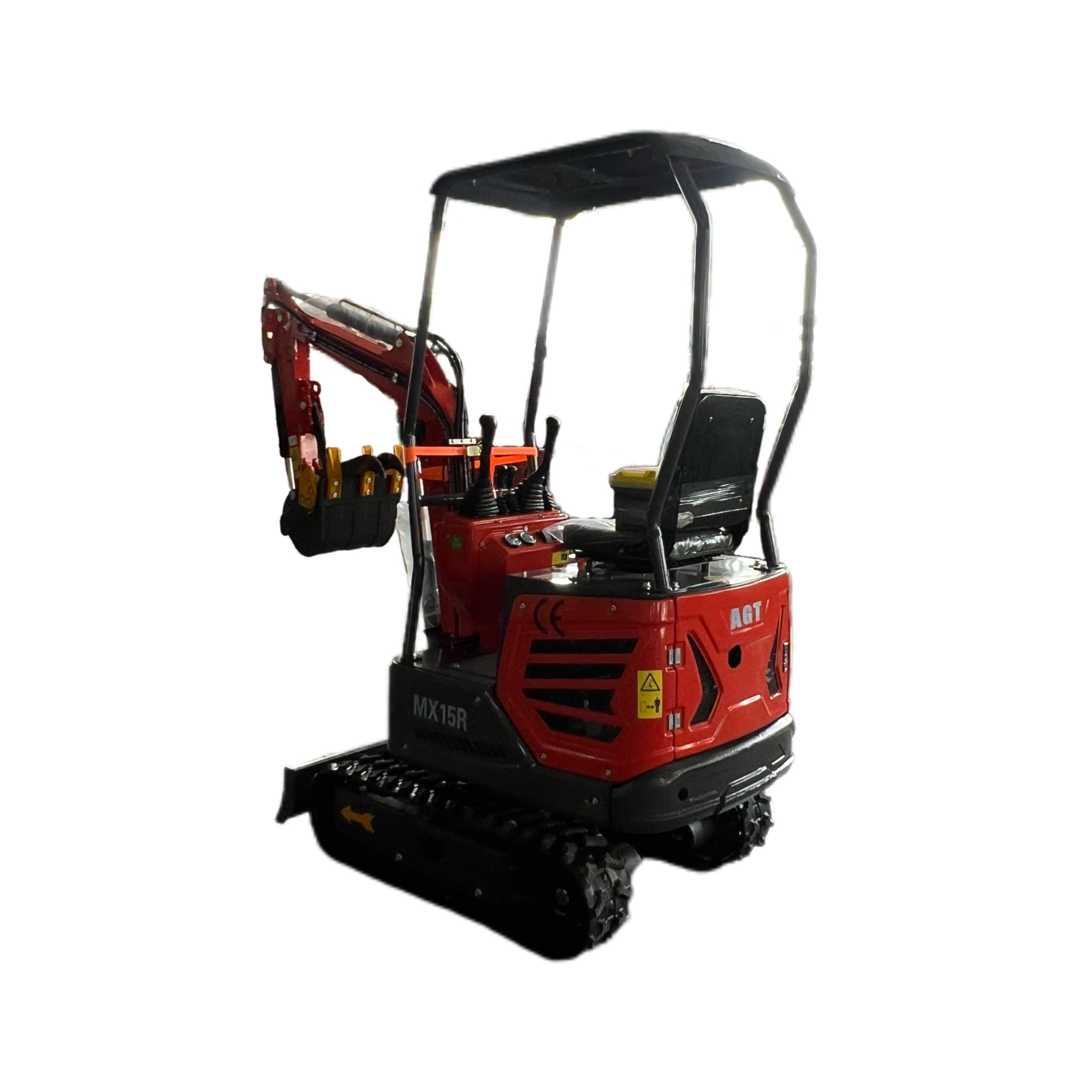

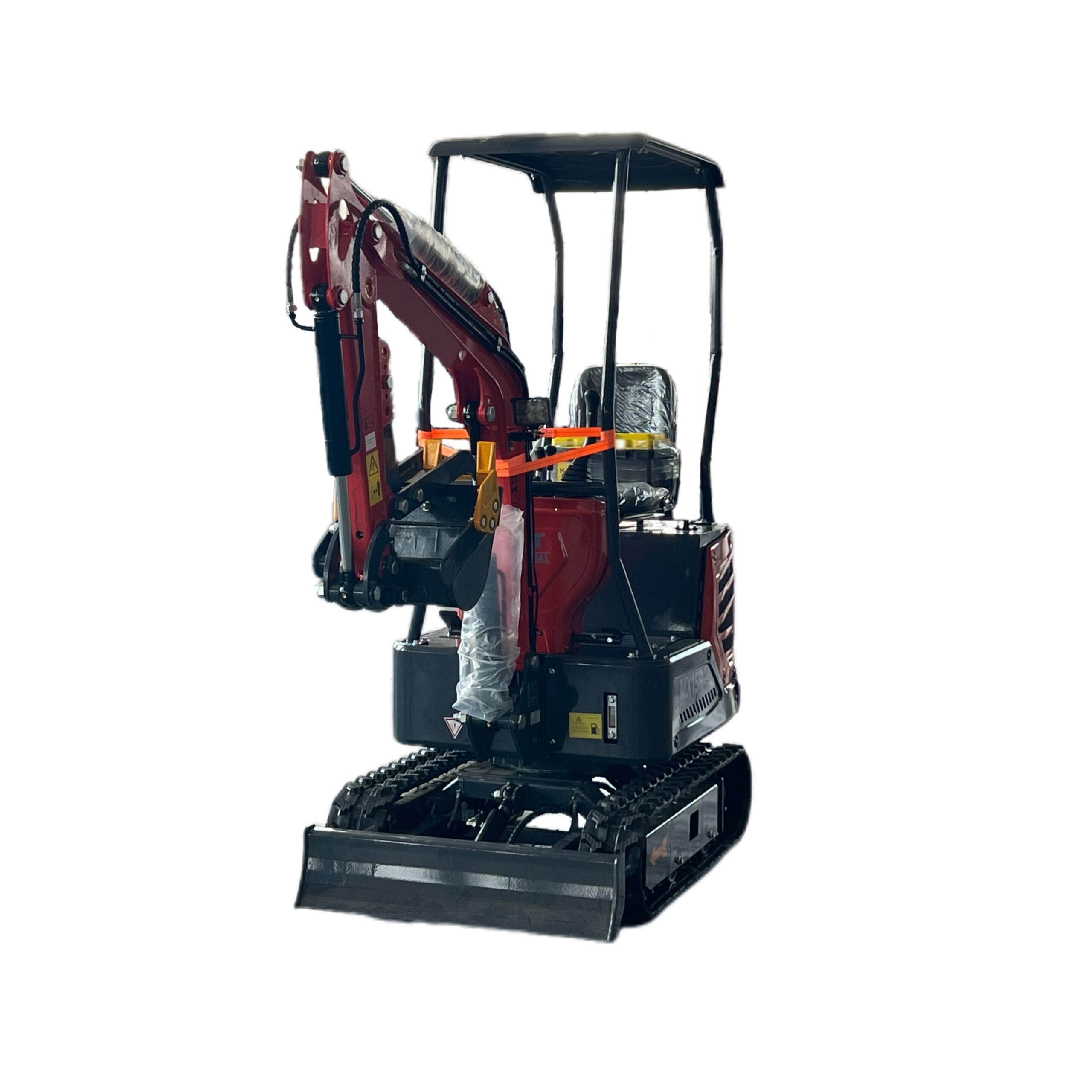

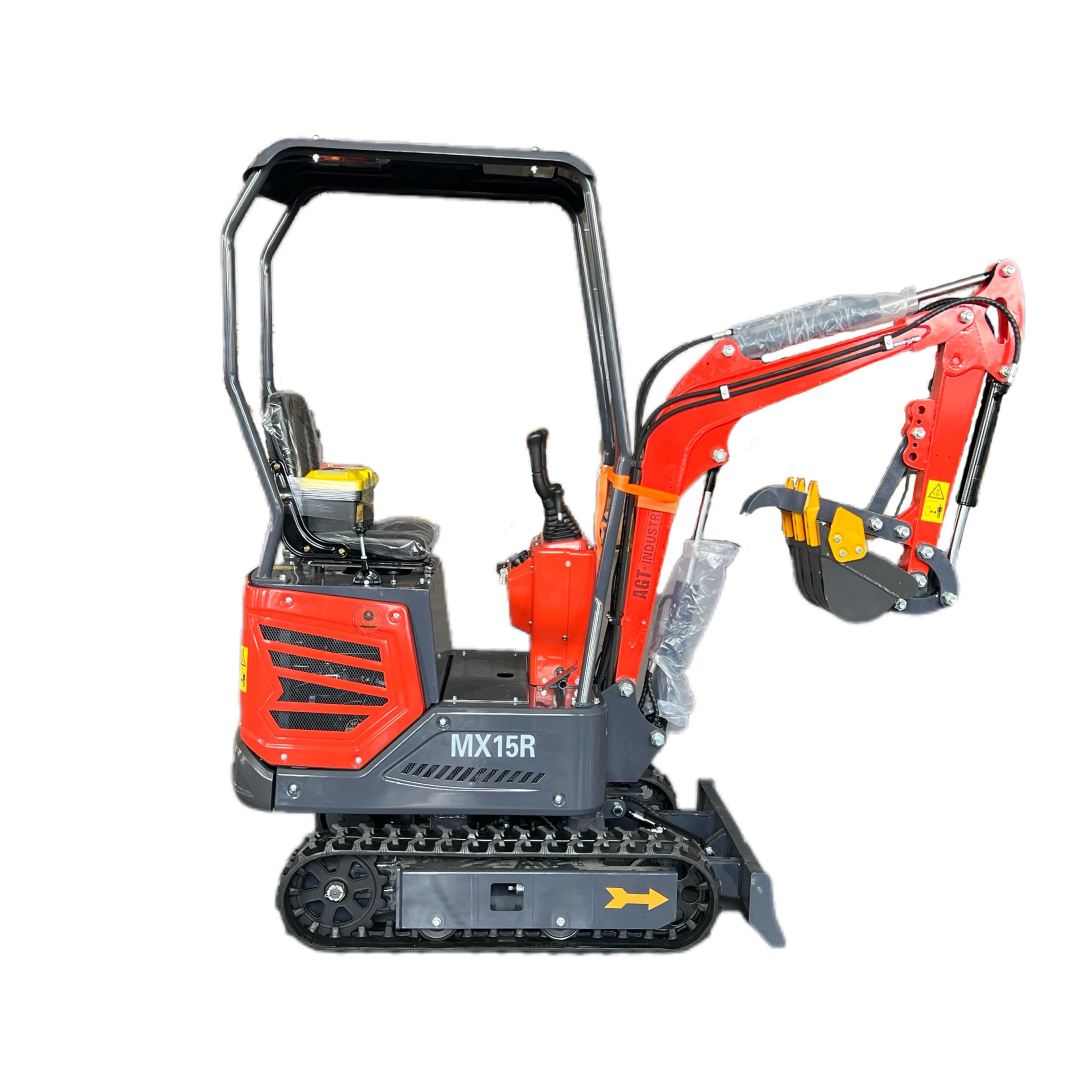

AGT MX15R Mini Excavator
A compact and reliable 0.9-ton mini excavator for tight-access excavation and landscaping work. The AGT-MX15R runs a Rato R420D 420cc gasoline engine with a generous 23 L hydraulic tank and a 39″ wide dozer blade — providing stable performance throughout the working day and more grading coverage than most machines in this weight class.
| Engine Brand & Model | Rato R420D |
| Fuel Type | Gasoline |
| Rated Power | 13.5 HP (10 kW) |
| Displacement | 420 cc |
| Fuel Tank | 6.6 L / 1.7 gal |
| Hydraulic Flow Rate | 21.6 L/min / 5.7 GPM |
| Hydraulic Pressure | 16 MPa / 2,320 PSI |
| Hydraulic Tank | 23 L / 6 gal |
| Operating Weight | 0.9 Ton / 1,980 lbs |
| Max Digging Depth | 1,769 mm / 69.5 in |
| Max Digging Height | 2,583 mm / 101.5 in |
| Max Dumping Height | 1,850 mm / 73 in |
| Max Reach at Ground | 3,040 mm / 120 in |
| Overall Length | 3,200 mm / 126 in |
| Overall Width | 936 mm / 37 in |
| Overall Height | 2,210 mm / 87 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 37 |
| Blade Width | 1,000 mm / 39 in |
| Blade Height | 180 mm / 7 in |
| Max Lifting Height | 288 mm / 11 in |
| Max Drop Depth | 146 mm / 5.5 in |
Rato R420D 420cc 13.5 HP Engine
16 MPa Hydraulic System
Dozer Blade (39″ wide)

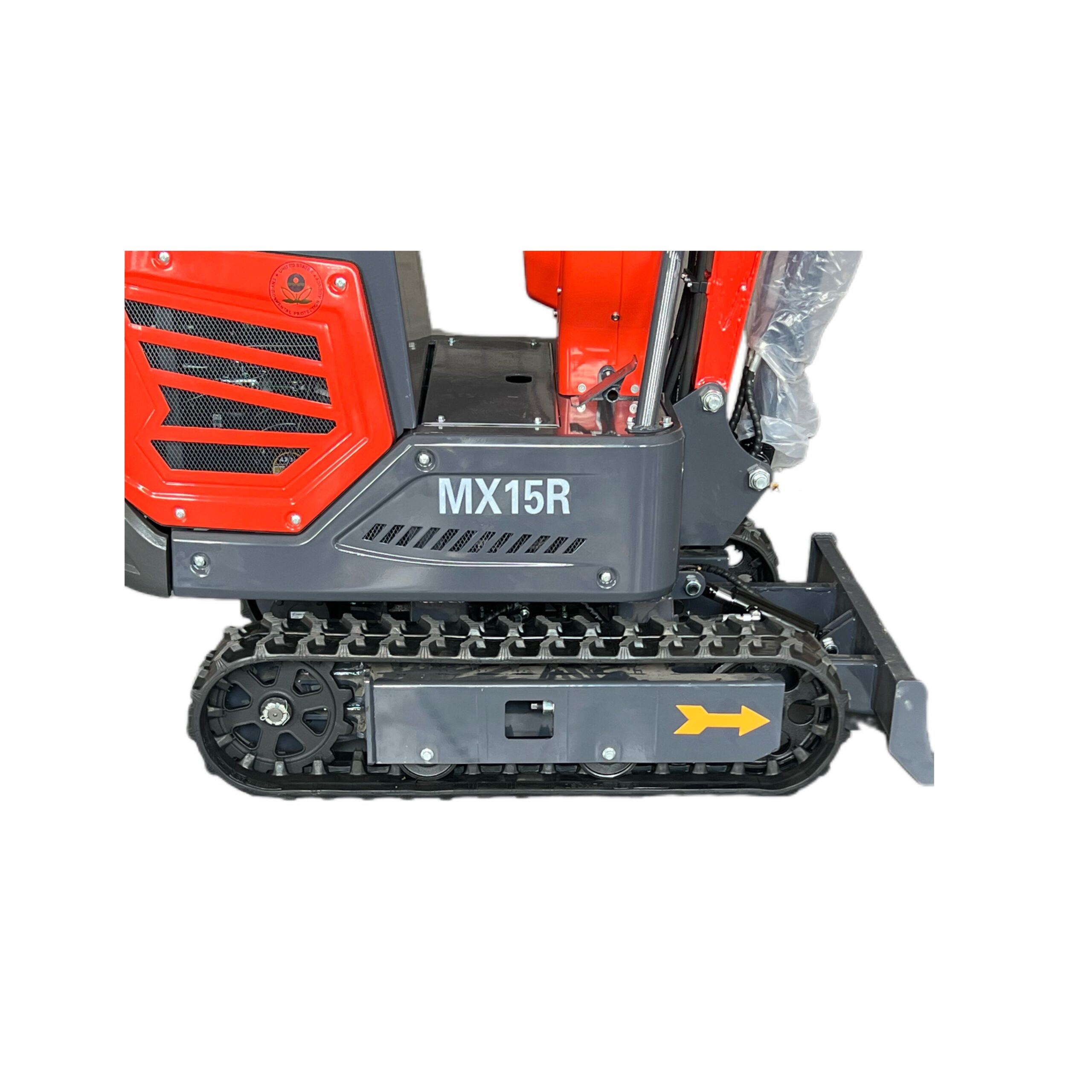

Rubber Tracks (180×72×37)

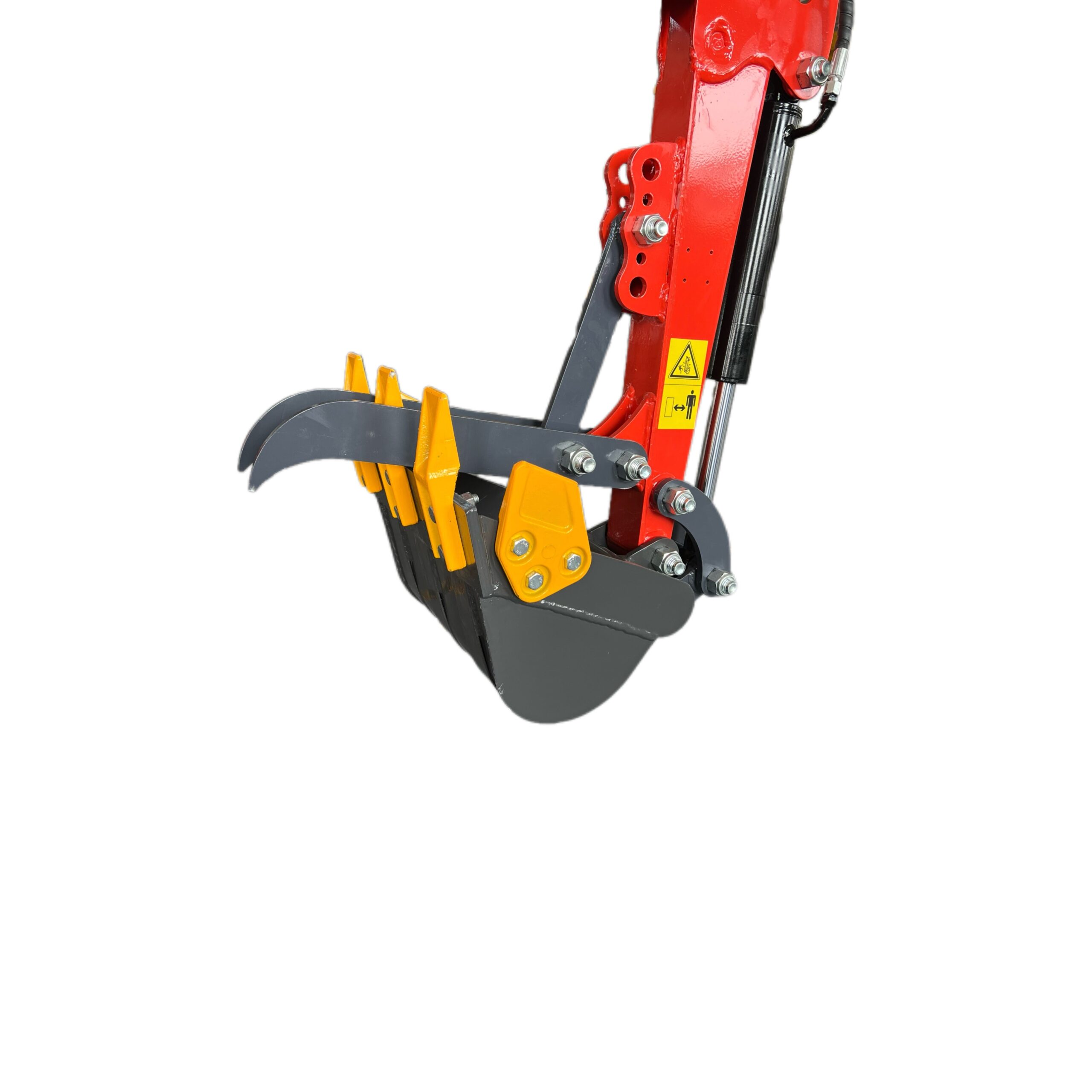

Bucket
ROPS Canopy
1-Year Warranty on Parts
Rato R420D 420cc 13.5 HP Gasoline
16 MPa Hydraulic System (5.7 GPM)
ROPS Canopy
Rubber Tracks (180×72×37)
Dozer Blade (1,000mm / 39″)
Bucket
1-Year Warranty on Parts
