1 Ton, R420D Gasoline Mini Excavator w/ Enclosed Cab | QH13R
Original price was: $7,699.00.$4,849.99Current price is: $4,849.99.

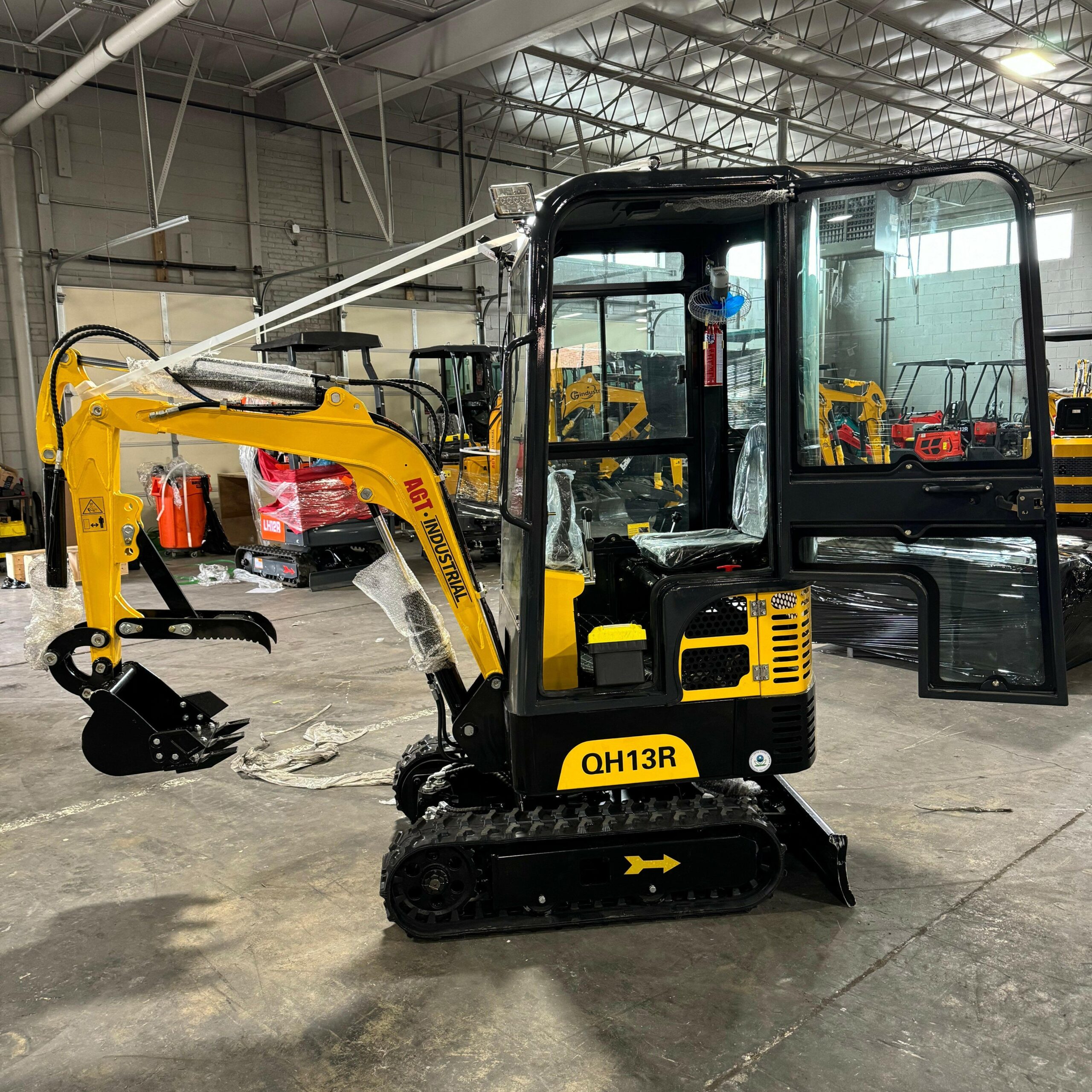

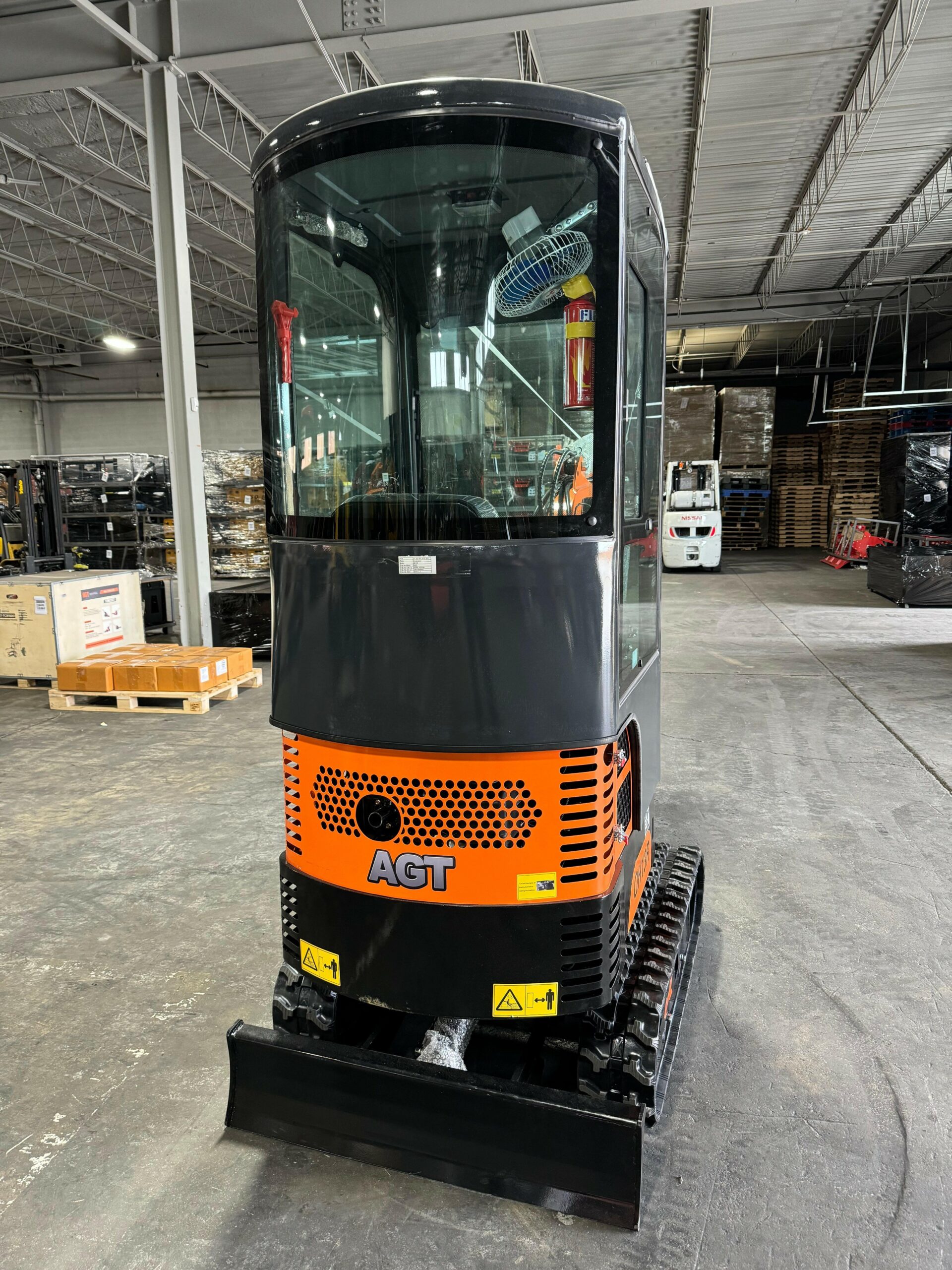

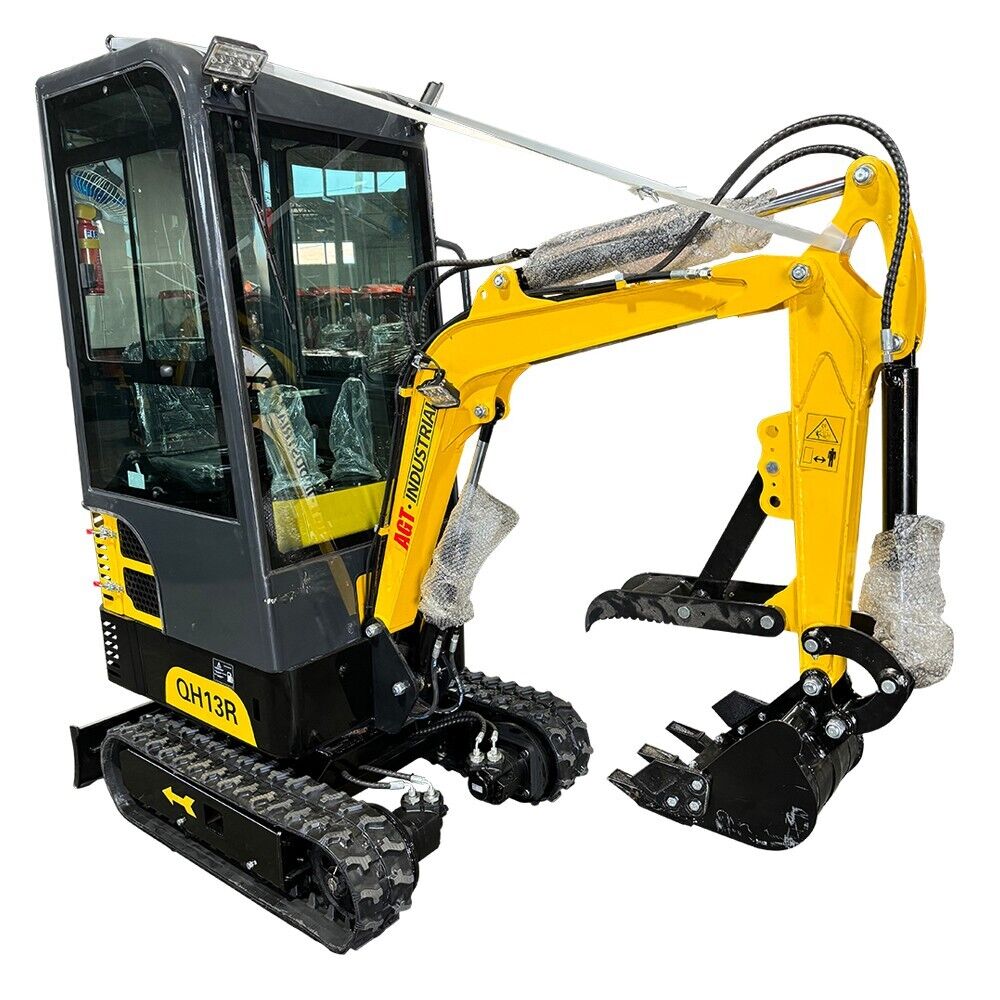

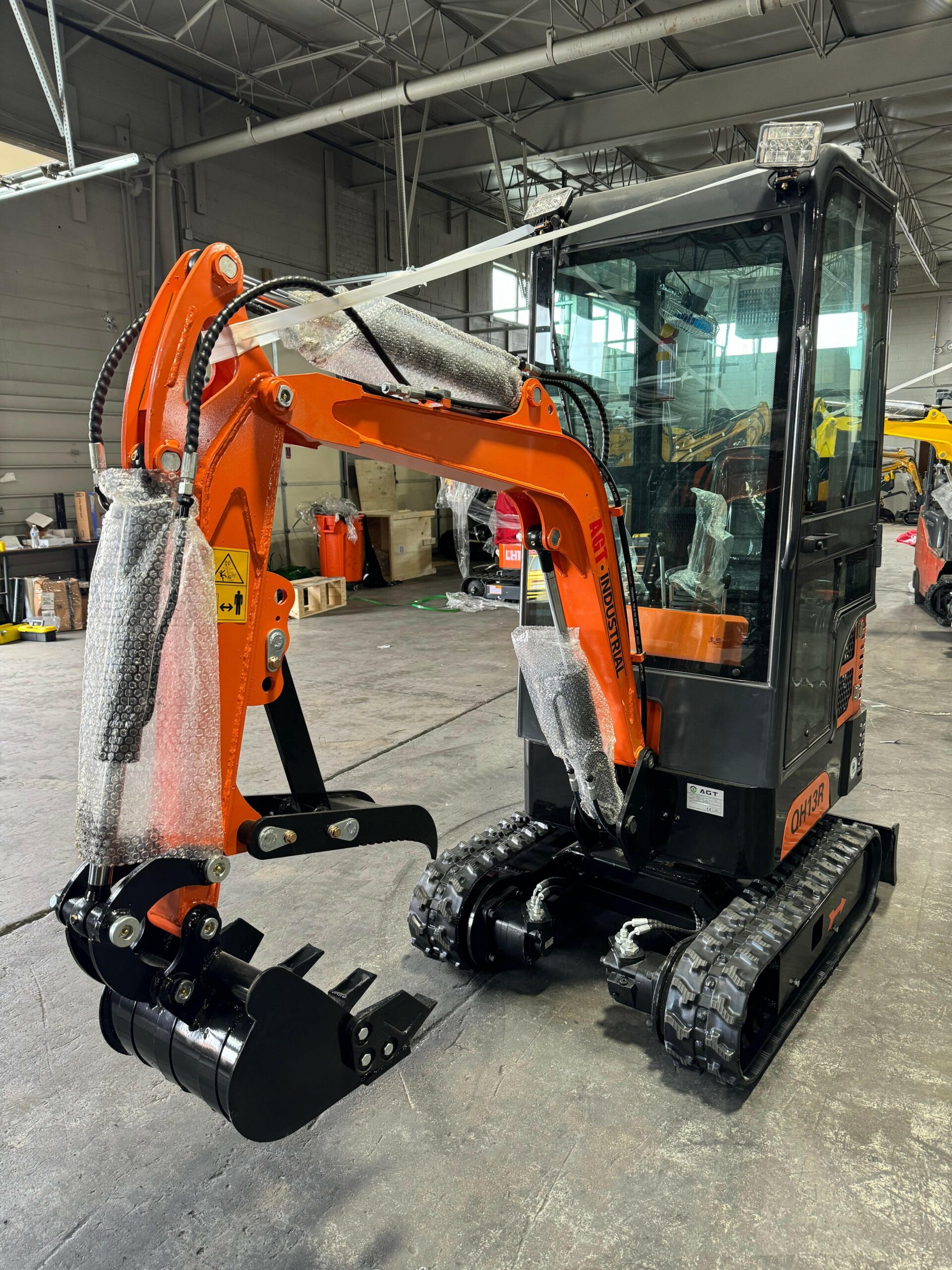

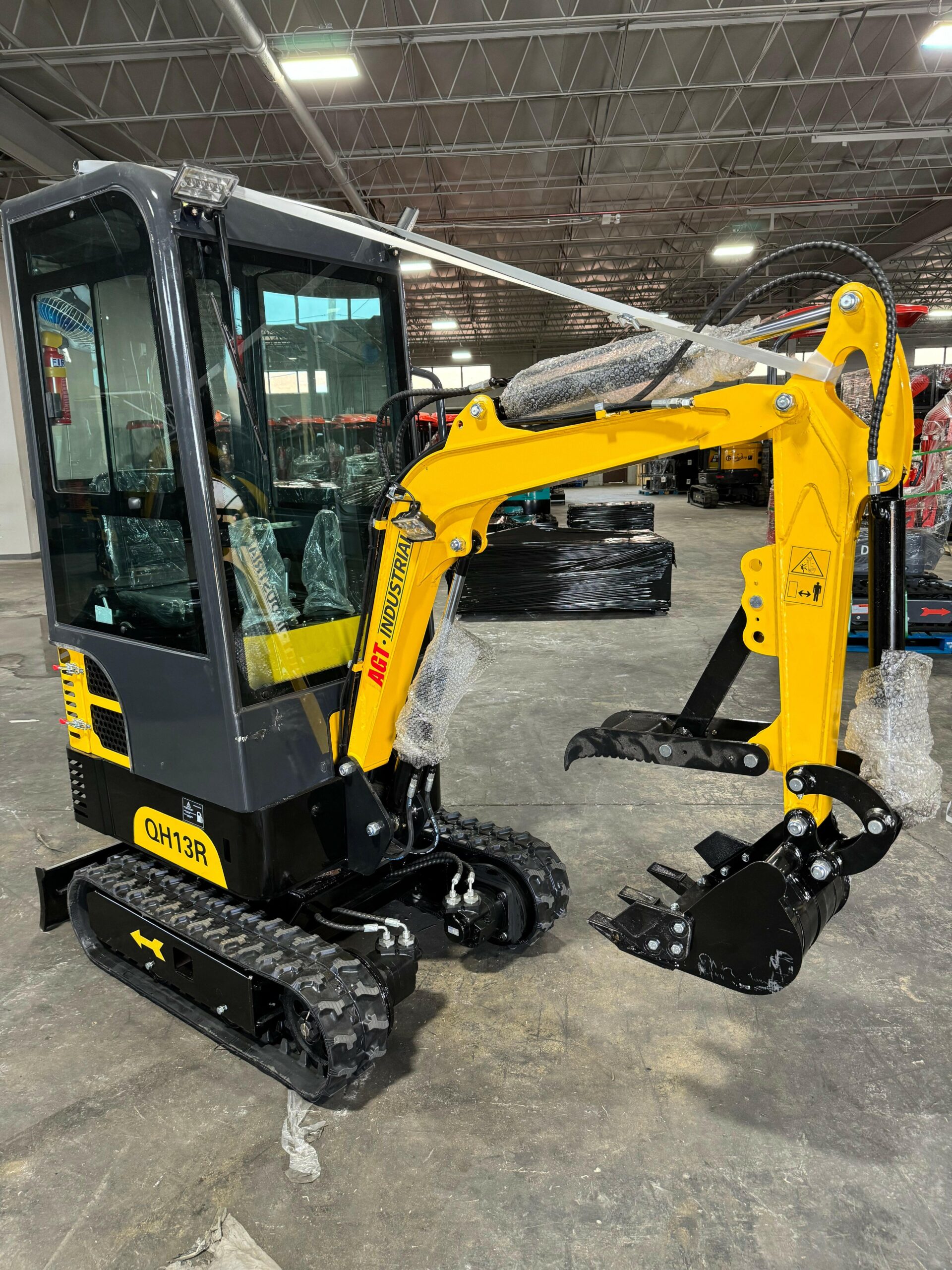

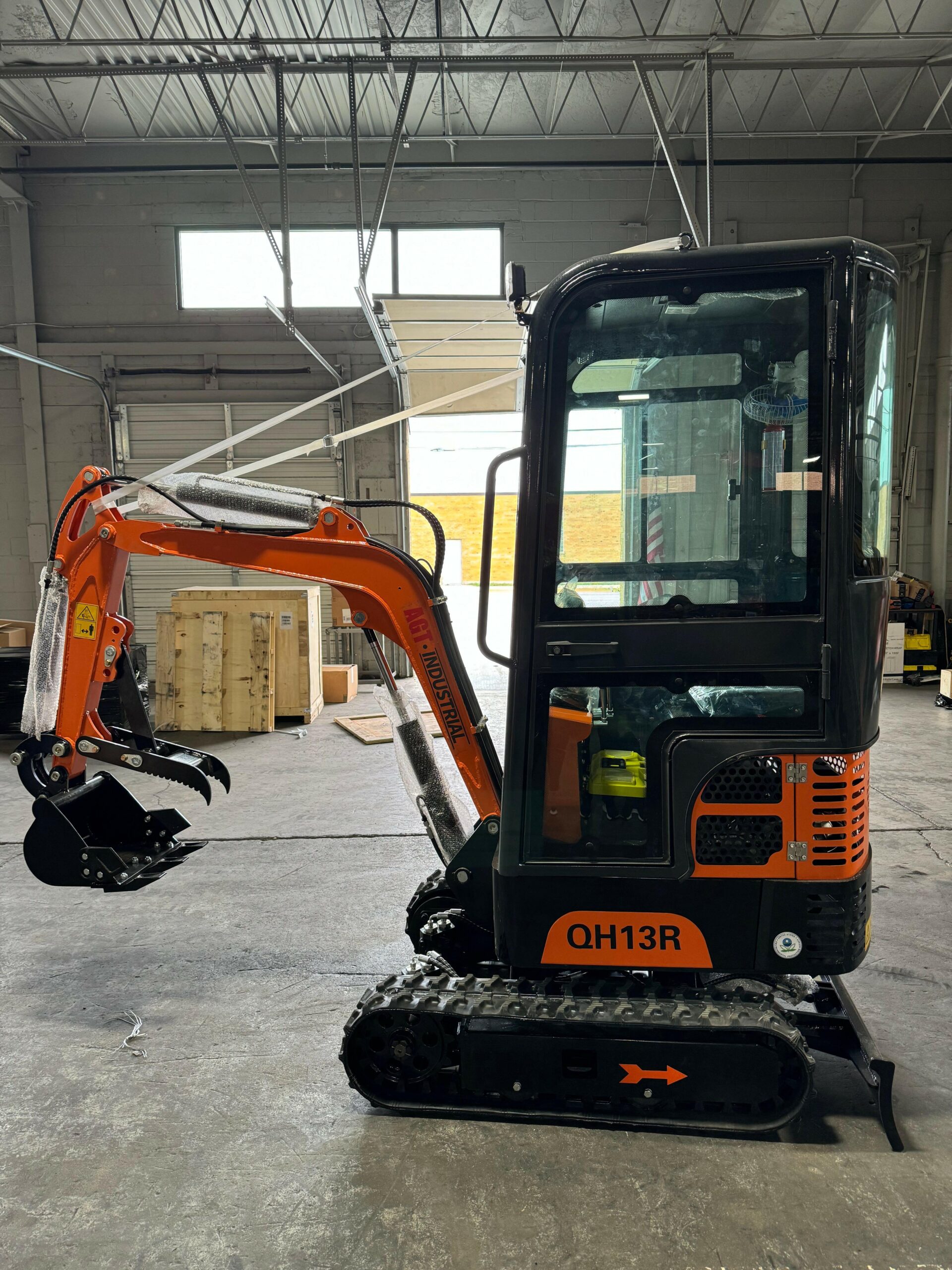

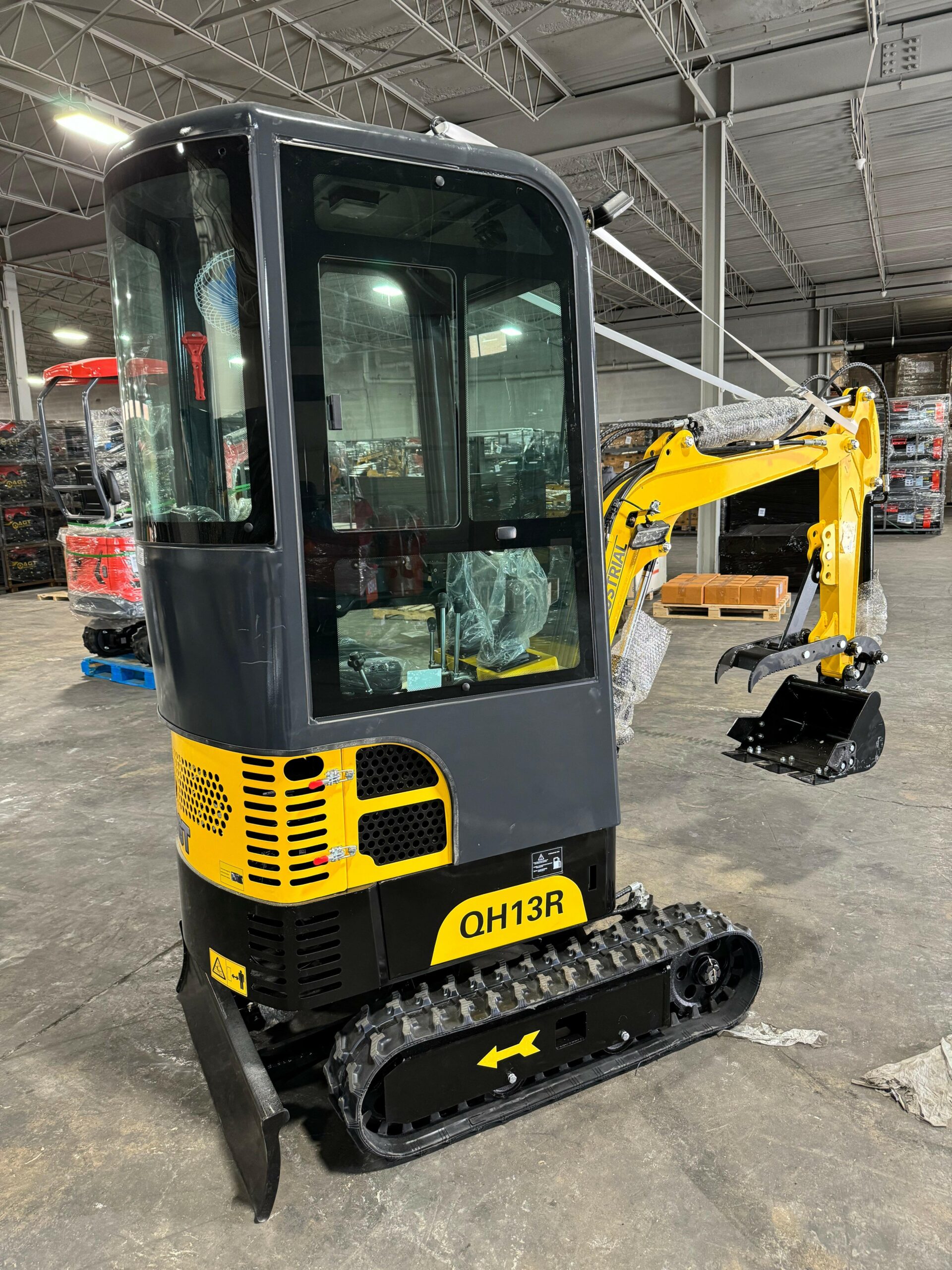

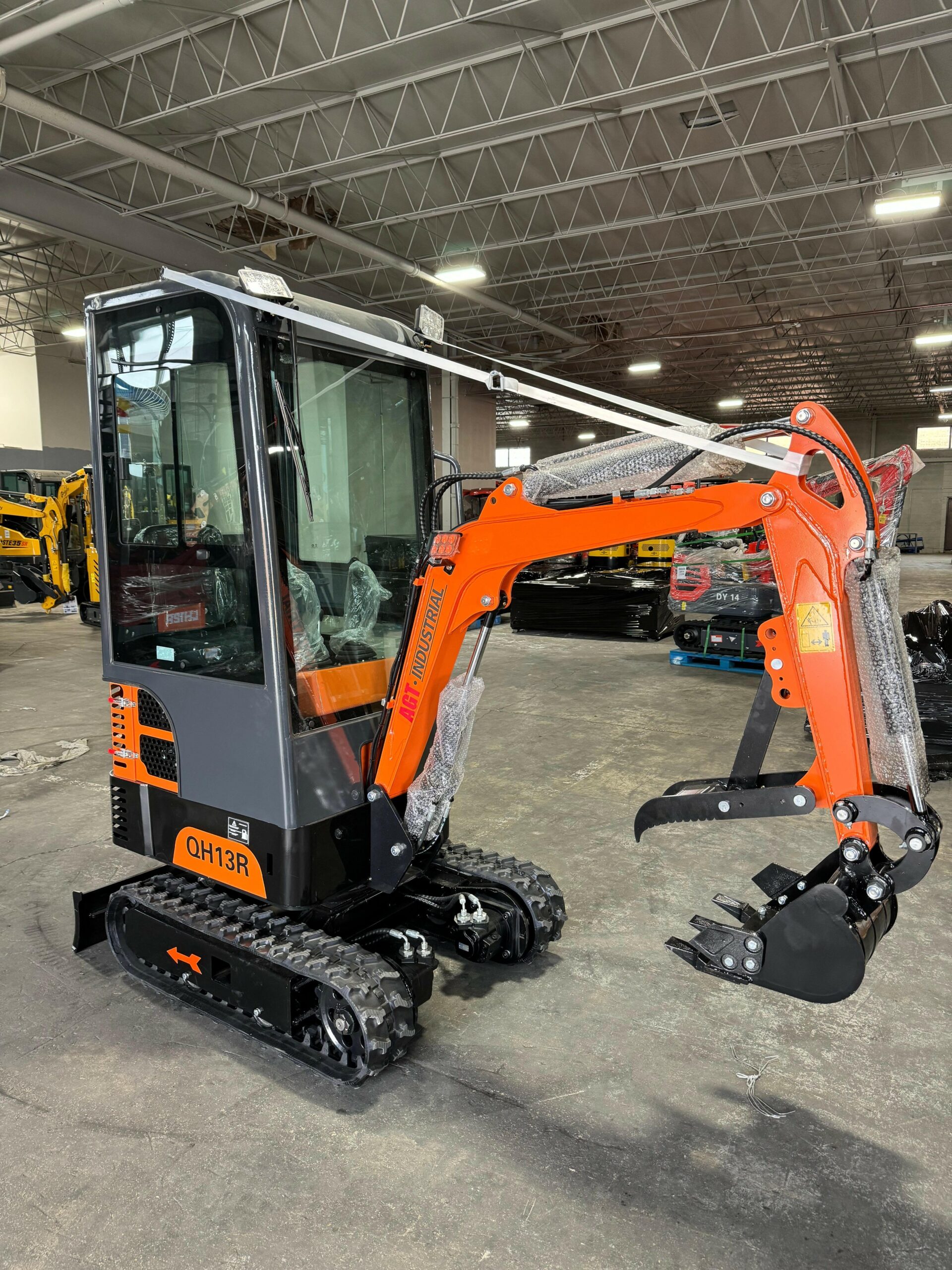

AGT QH13R 1-Ton Mini Excavator
A 1-ton mini excavator purpose-built for operator comfort and all-conditions performance. The QH13R’s fully enclosed cab shields from noise, dust, and weather during extended operation — with large windshield and side windows for clear site visibility. Powered by a Rato R420D 420cc gasoline engine with a premium 8-circuit valve, named BM2-315 and BM6-315 hydraulic motors, and LED work light as standard.

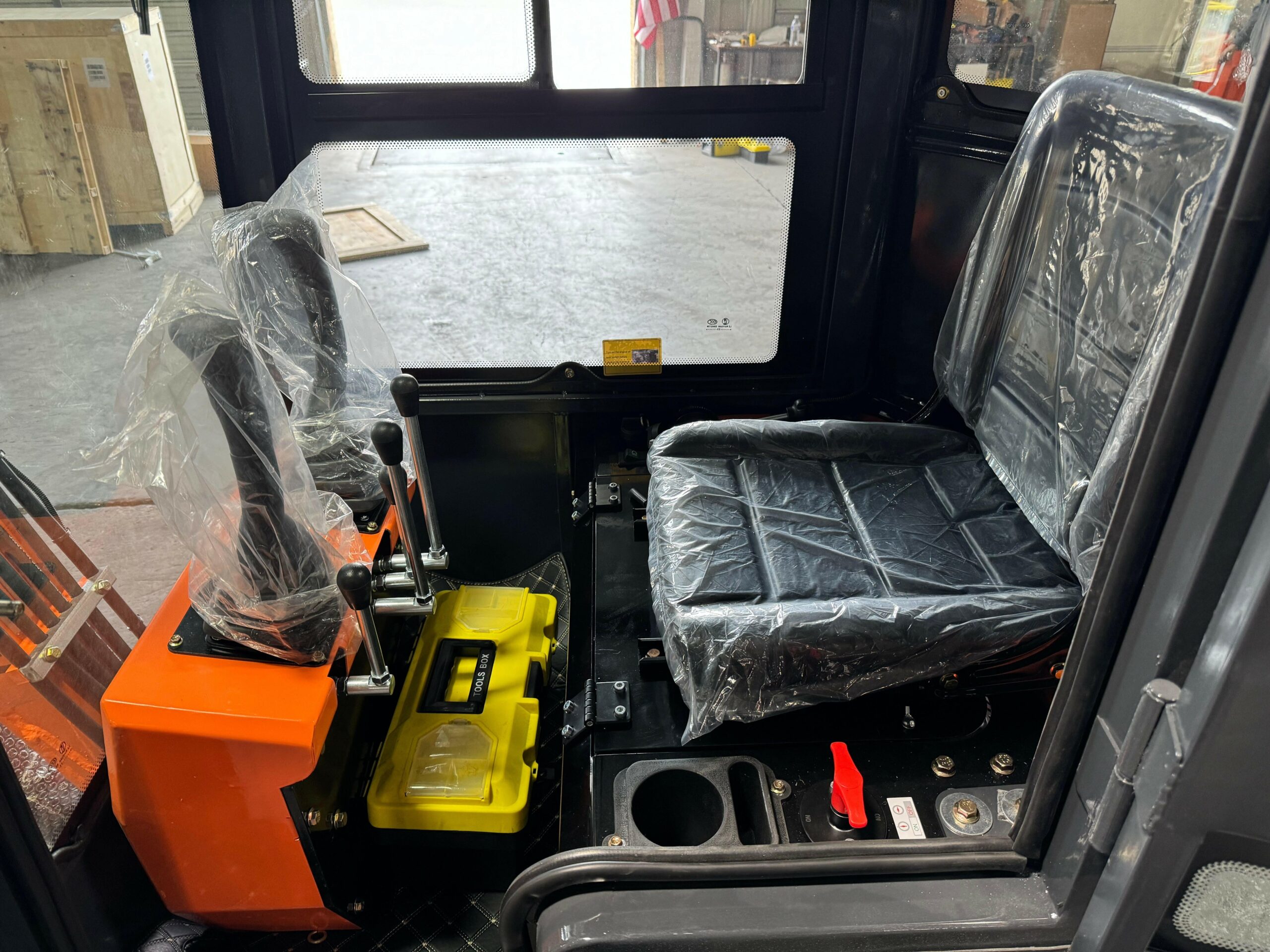

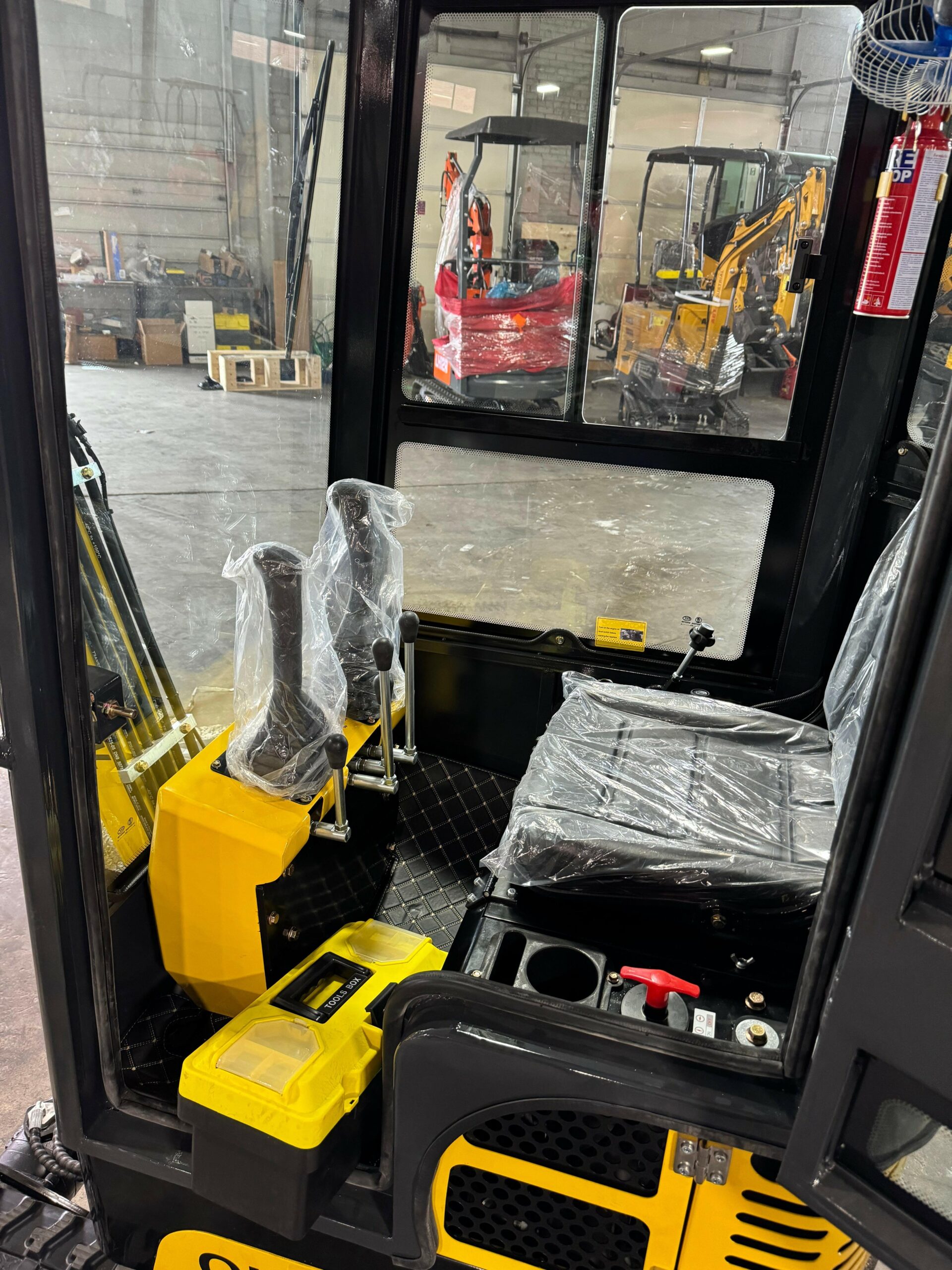

Fully enclosed cab with large windshield, side windows, protective doors, and emergency escape window. Reduces noise, dust, and environmental distractions — purpose-built for extended daily operation in demanding conditions.
8-joint multi-way hydraulic valve — more circuits than most 1-ton class machines. More simultaneous hydraulic functions and responsive control across all machine operations.
BM6-315 travel motor and BM2-315 rotary motor — industrial-grade named components with defined specifications. Not generic motors.
| Engine Brand & Model | Rato R420D |
| Fuel Type | Gasoline #92 |
| Rated Power | 13.5 HP (10 kW) |
| Displacement | 420 cc |
| Cylinders | 1 |
| Cooling Method | Fan Cooled |
| Max Speed | 3,600 RPM |
| Fuel Tank | 6.6 L / 1.7 gal |
| Fuel Consumption | 0.5 – 1.2 L/hr |
| Engine Oil Capacity | 1.16 quarts |
| Main Pump Type | Gear Pump/06 |
| Hydraulic Pressure | 16 MPa / 2,320 PSI |
| Hydraulic Flow Rate | 21.6 L/min / 5.7 GPM |
| Multi-Way Valve | 8-Joint Multi-Way |
| Travel Hydraulic Motor | BM6-315 |
| Rotary Hydraulic Motor | BM2-315 |
| Hydraulic Tank | 18 L / 4.7 gal |
| Operating Weight | 1 Ton / ~2,200 lbs |
| Bucket Capacity | 0.039 cubic yards |
| Max Digging Depth | 1,693 mm / 66.5 in |
| Max Digging Height | 2,560 mm / 100 in |
| Max Dumping Height | 1,800 mm / 71 in |
| Max Reach at Ground | 3,060 mm / 120.5 in |
| Travel Speed | 0 – 1.1 mph |
| Climbing Ability | 30° |
| Overall Length | 2,422 mm / 95 in |
| Overall Width | 958 mm / 37.5 in |
| Overall Height | 2,422 mm / 95 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 37 |
| Blade Width | 900 mm / 35.5 in |
| Blade Height | 400 mm / 15.75 in |
Rato R420D 420cc 13.5 HP Engine
Enclosed Cab
LED Work Light
8-Joint Multi-Way Valve
BM6-315 Travel Motor
BM2-315 Rotary Motor
16 MPa Hydraulic System
Dozer Blade (35.5″ wide)
Rubber Tracks (180×72×37)
Bucket
1-Year Warranty on Parts
Rato R420D 420cc 13.5 HP Gasoline
Gear Pump/06 (16 MPa / 5.7 GPM)
8-Joint Multi-Way Valve
BM6-315 Travel Motor
BM2-315 Rotary Motor
Enclosed Cab
Large Windshield & Side Windows
Emergency Escape Window
LED Work Light
Rubber Tracks (180×72×37)
Dozer Blade (900mm / 35.5″)
Bucket
1-Year Warranty on Parts
