1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | AGT-DM12-C
Original price was: $6,182.31.$3,894.99Current price is: $3,894.99.

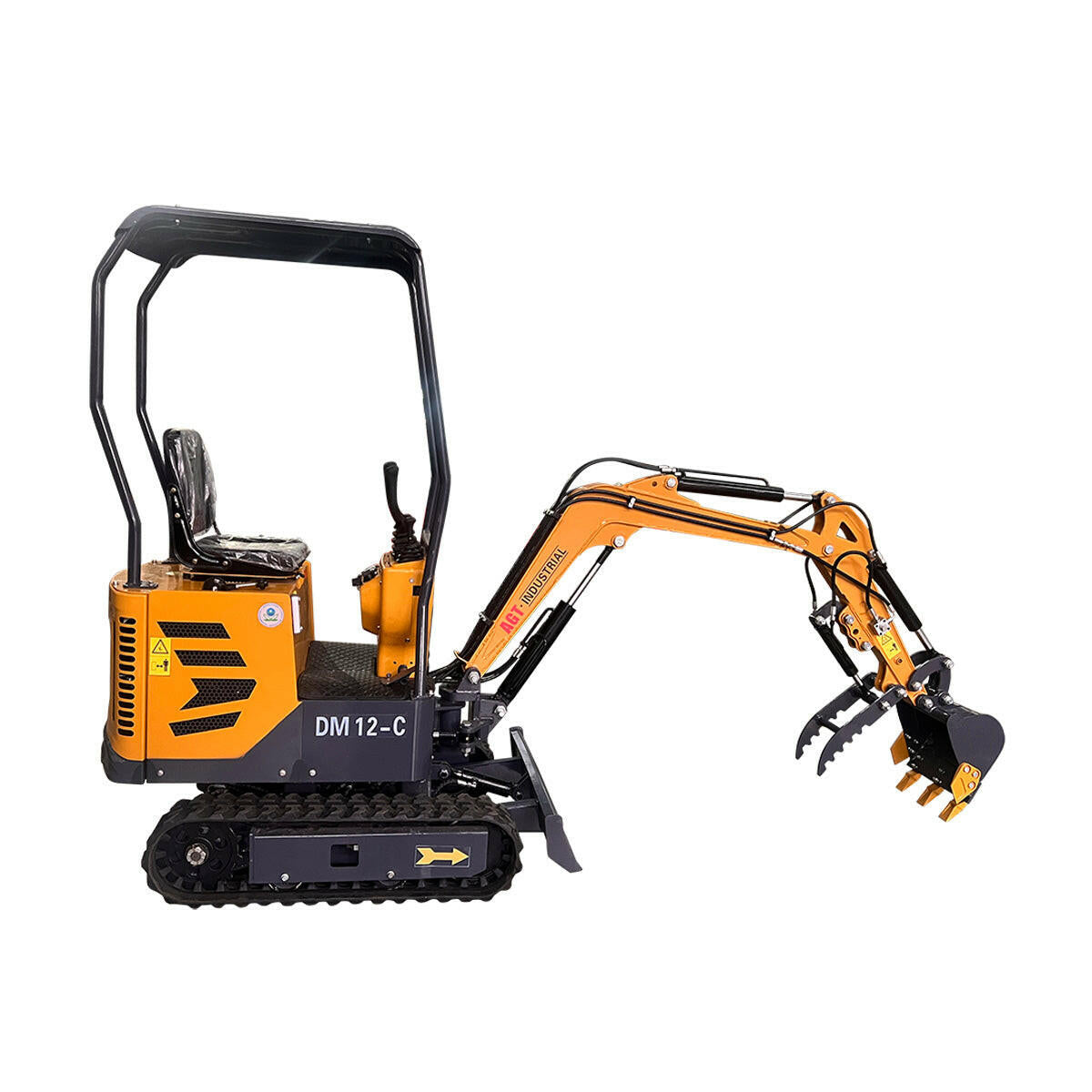

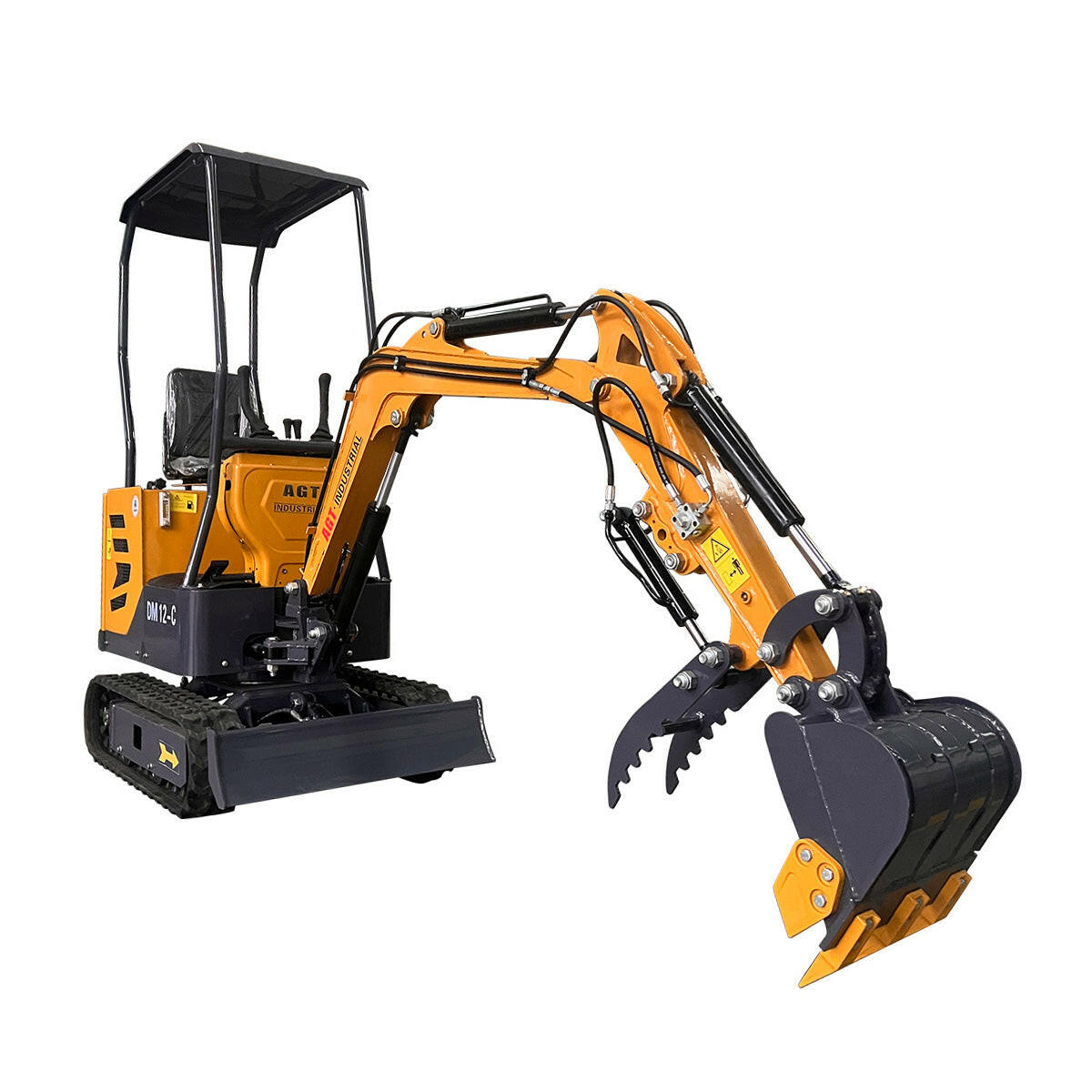

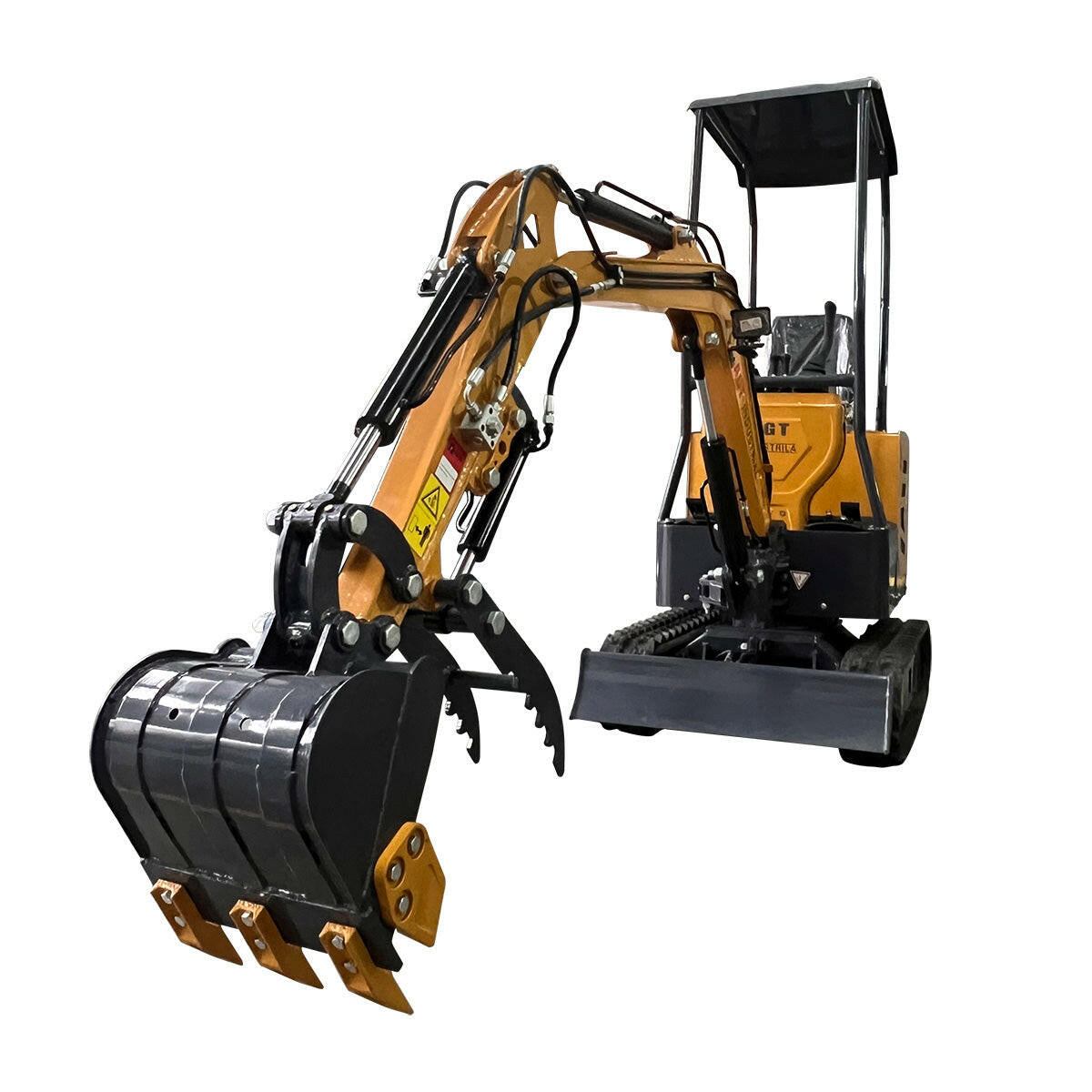

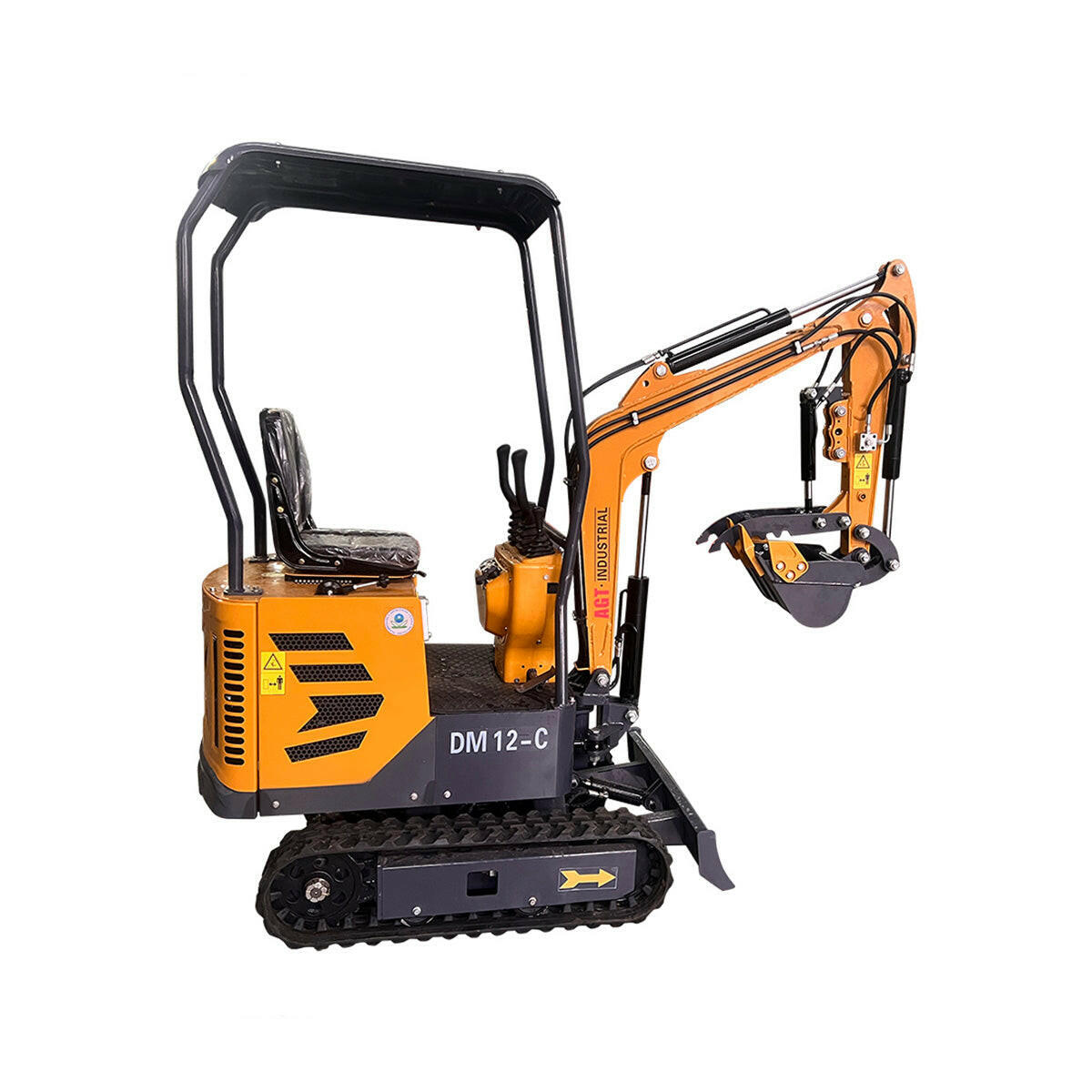

AGT DM12-C Mini Excavator
A well-equipped 0.9-ton mini excavator combining four practical features in a short 89″ overall length. The DM12-C packages a swing boom, hydraulic thumb, foot pedal, and LED worklight — with named industrial BM6-310 and BM2-250 hydraulic motors — all powered by a B&S XR 420cc gasoline engine. An impressive reach of 134″ at ground level for a sub-1-ton machine.

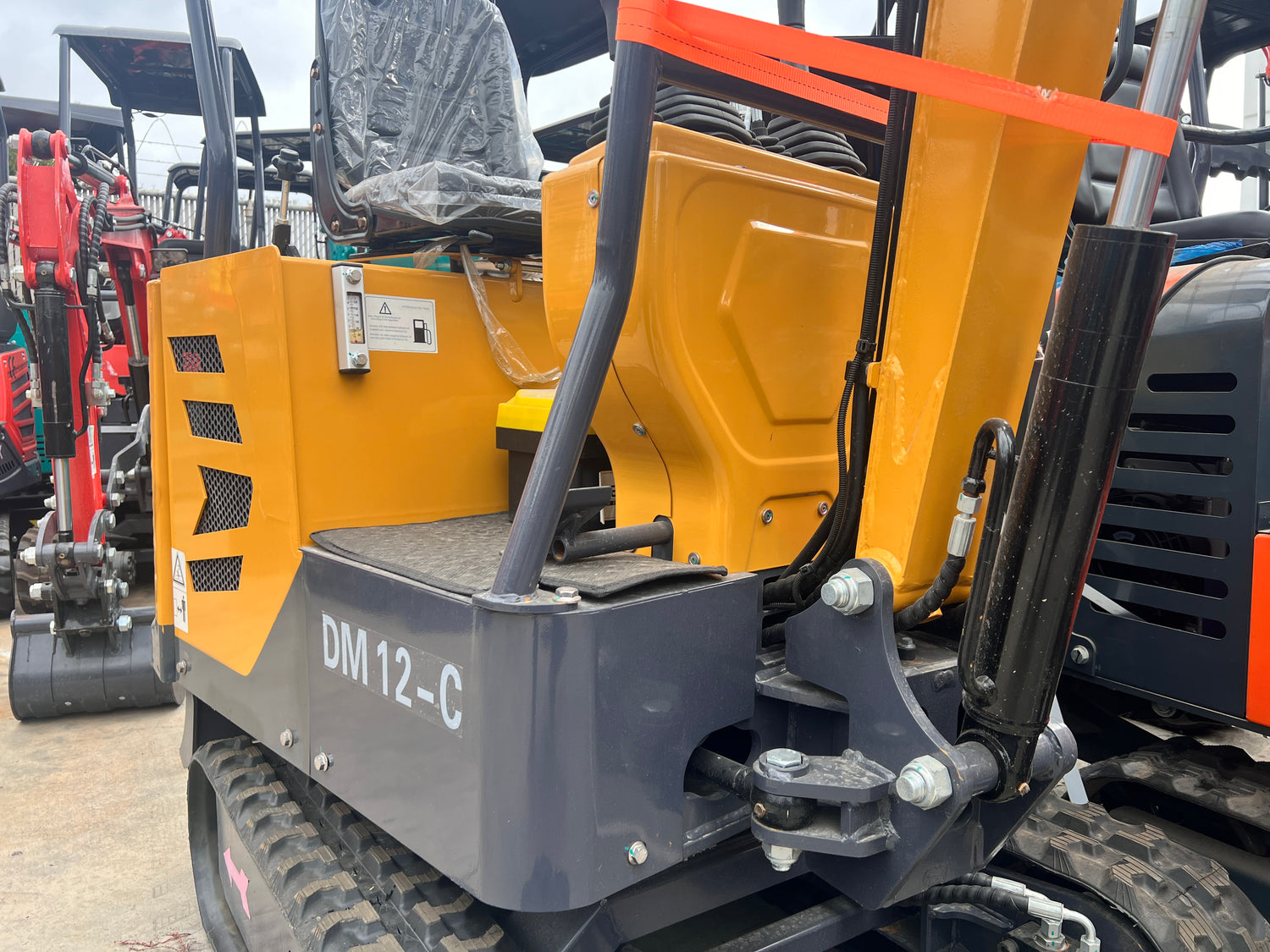

Factory swing boom for digging alongside walls, fences, and structures without repositioning — essential for confined residential and commercial sites.

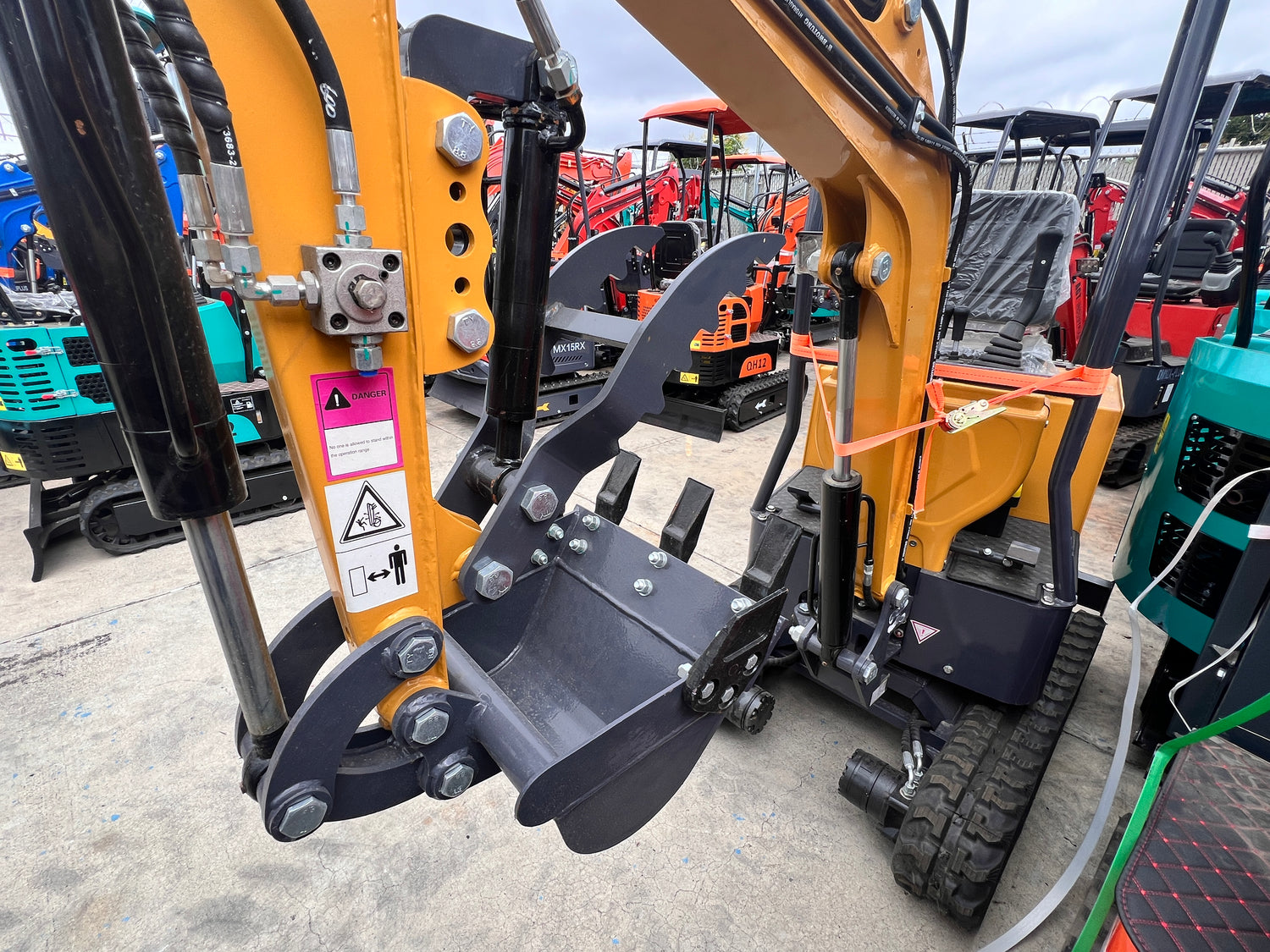

Included hydraulic thumb for gripping rocks, branches, and debris — controlled from the operator seat. No attachment changes needed for material handling.

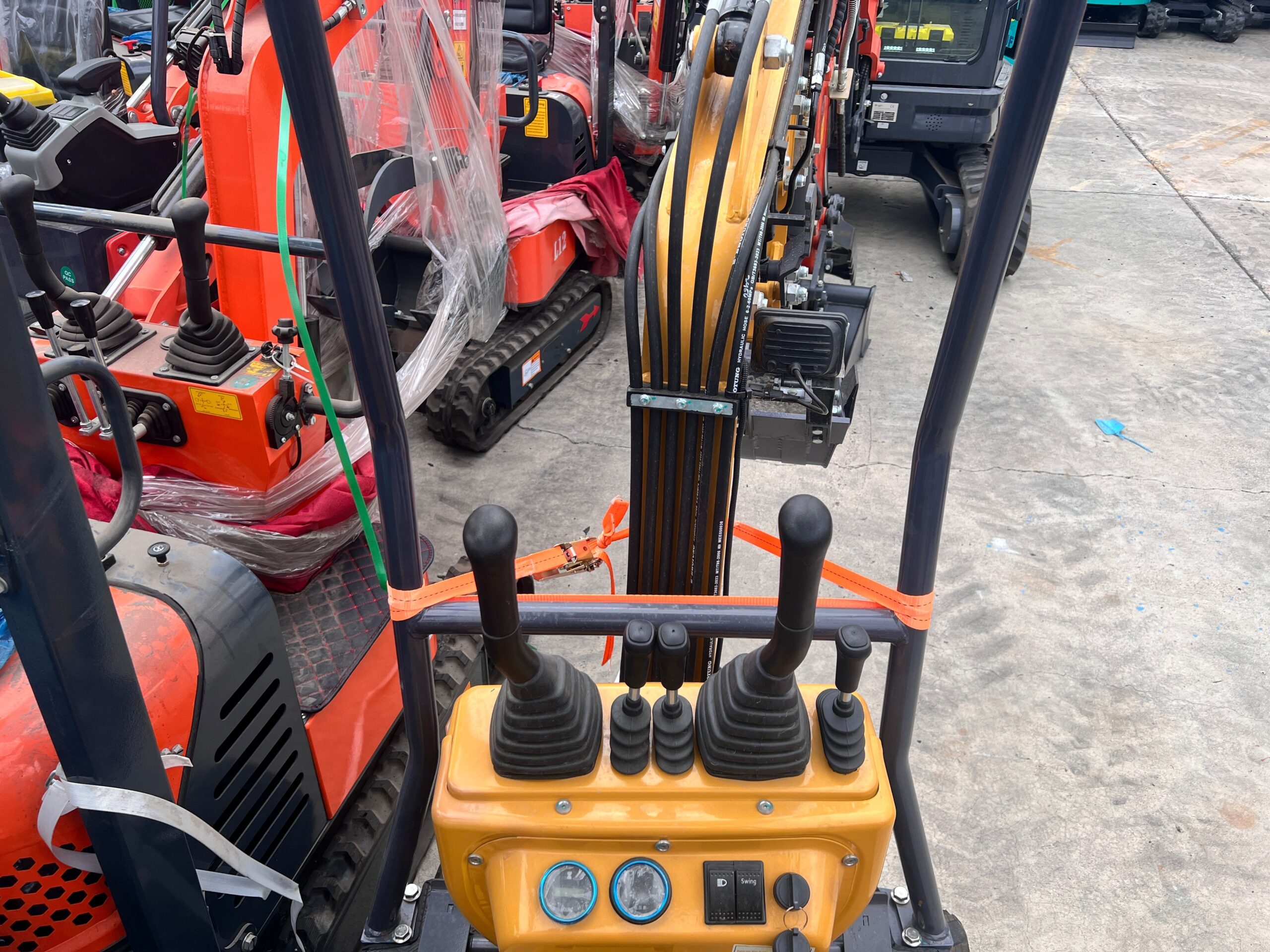

Foot pedal control for thumb or auxiliary attachment operation — keeps both hands on the joysticks for full machine control and improved precision during material handling tasks.
3,400mm (134″) of maximum reach at ground level — exceptional for a 0.9-ton machine, enabling work at distance without constant repositioning.
| Engine Brand & Model | Briggs & Stratton XR |
| Fuel Type | Gasoline |
| Rated Power | 13.5 HP (10.5 kW) |
| Displacement | 420 cc |
| Fuel Tank | 6.6 L / 1.7 gal |
| Fuel Consumption | 0.5 – 1.2 L/hr |
| Battery | 12V, 45–60Ah |
| Hydraulic Flow Rate | 21.6 L/min / 5.7 GPM |
| Hydraulic Pressure | 16 MPa / 2,300 PSI |
| Hydraulic Tank | 18 L / 4.8 gal |
| Travel Motor | BM6-310 |
| Rotary Motor | BM2-250 |
| Operating Weight | 0.9 Ton / 1,985 lbs |
| Max Digging Depth | 1,764 mm / 69.5 in |
| Max Digging Height | 2,670 mm / 105 in |
| Max Dumping Height | 1,900 mm / 75 in |
| Max Reach at Ground | 3,400 mm / 134 in |
| Overall Length | 2,260 mm / 89 in |
| Overall Width | 958 mm / 37.7 in |
| Overall Height | 2,200 mm / 86.5 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 37 |
| Blade Width | 910 mm / 36 in |
| Blade Height | 200 mm / 8 in |

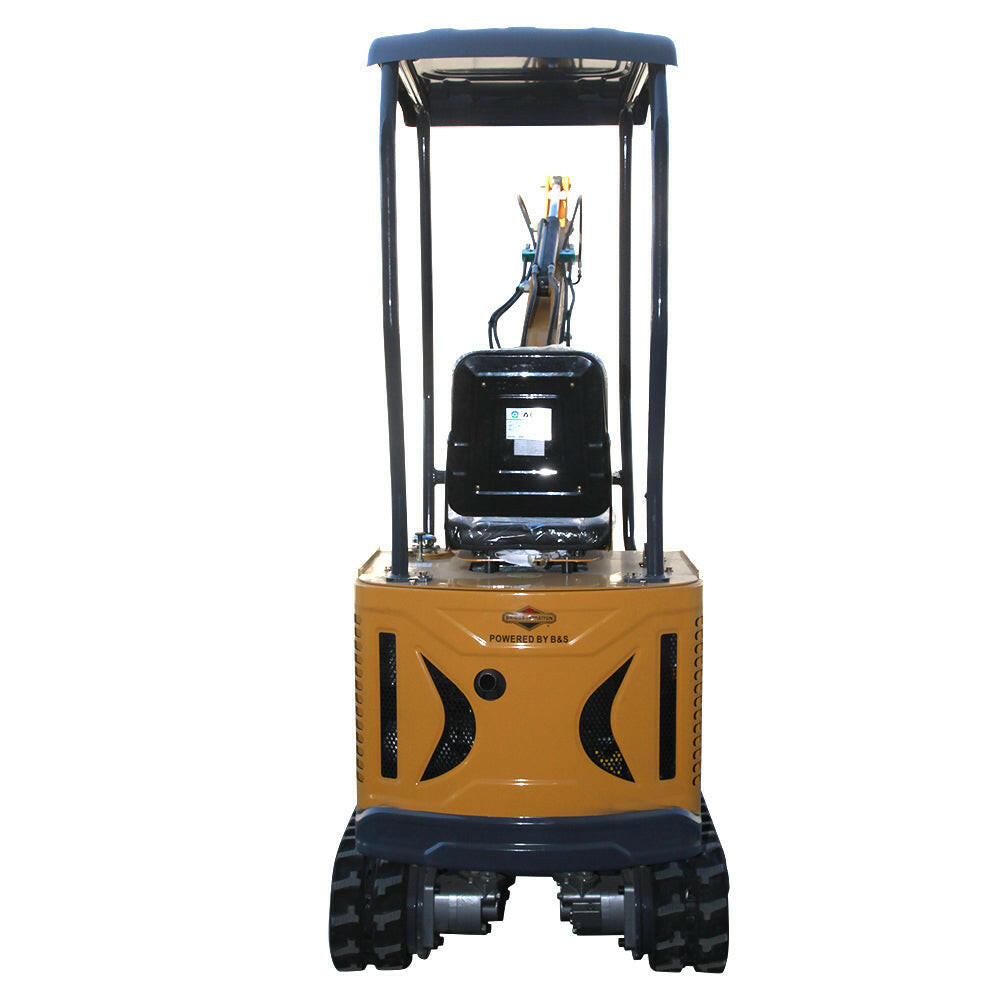

B&S XR 420cc 13.5 HP Engine
Swing Boom
Hydraulic Thumb
Foot Pedal Control

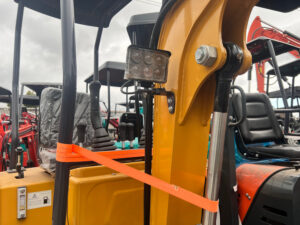

LED Worklight
16 MPa Hydraulic System
BM6-310 Travel Motor
BM2-250 Rotary Motor
Dozer Blade (36″ wide)
Rubber Tracks (180×72×37)
Bucket
1-Year Warranty on Parts
B&S XR 420cc 13.5 HP Gasoline
16 MPa Hydraulic System (5.7 GPM)
BM6-310 Travel Motor
BM2-250 Rotary Motor
Foot Pedal Control
ROPS Canopy
LED Worklight
Rubber Tracks (180×72×37)
Dozer Blade (910mm / 36″)
Swing Boom
Hydraulic Thumb
Bucket
1-Year Warranty on Parts
