AGT Equipment · AGT-H15R · 1-Ton Mini Excavator

AGT-H15R 1-Ton Mini Excavator

Name: 1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R
SKU: AGT-H15R
Availability: InStock

Rato R420D Engine — Pilot Control System — LED Light

A purpose-built 1-ton micro excavator with a pilot control system for smooth, precise hydraulic operation. The AGT-H15R features a Rato R420D 420cc gasoline engine, 18 MPa hydraulic system, and a compact 40″ wide footprint — ideal for gardens, farms, orchards, public parks, and any tight-access job where a larger machine simply won’t fit.

Available in teal/blue or yellow. Colour may vary by availability.

Rato Engine

Rato R420D — 420cc · 13.5 HP · 10 kW · Gasoline, air-cooled. 18 MPa hydraulic pressure with 45 L/min (4.2 GPM) flow rate. Fuel consumption 0.5–1.1 L/hr for economical daily operation. 6.6 L (1.7 gal) fuel tank.

Colour note: You may receive a teal/blue or yellow machine depending on current availability. Both are identical in specification and performance.

13.5 HP

Rato R420D

2,200 lbs

Operating Weight

65″

Max Dig Depth

111″

Max Ground Reach

Key Features

Rato R420D 420cc Engine

420cc air-cooled gasoline engine delivering 13.5 HP (10 kW). Fuel consumption of just 0.5–1.1 L/hr for economical operation throughout the day. 6.6 L fuel tank for extended run time between refuels.

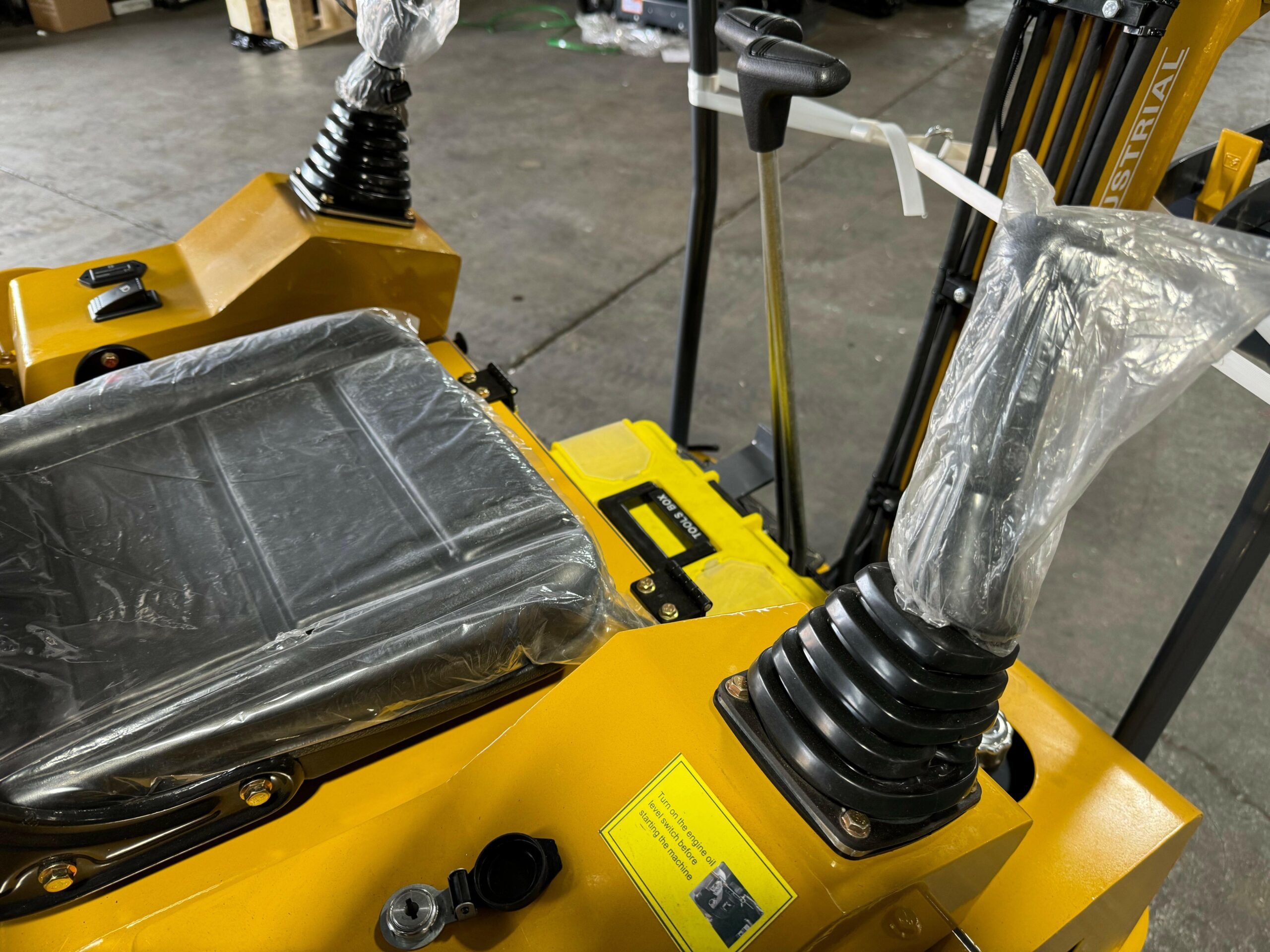

Pilot Control System

Full pilot-operated joystick control system for smooth, responsive, and precise hydraulic machine handling. Reduces operator fatigue during extended use and provides the fine control needed for detailed digging work.

18 MPa Hydraulic System

18 MPa (2,320 PSI) hydraulic system with 45 L/min (4.2 GPM) flow rate and 18 L (4.7 gal) tank capacity. Consistent hydraulic pressure for reliable attachment performance and digging force throughout operation.

Ultra-Compact 40″ Width

At just 1,000mm (40″) overall width, the H15R passes through narrow gates, garden access points, and confined spaces with ease — one of the narrowest footprints available in a 1-ton class machine.

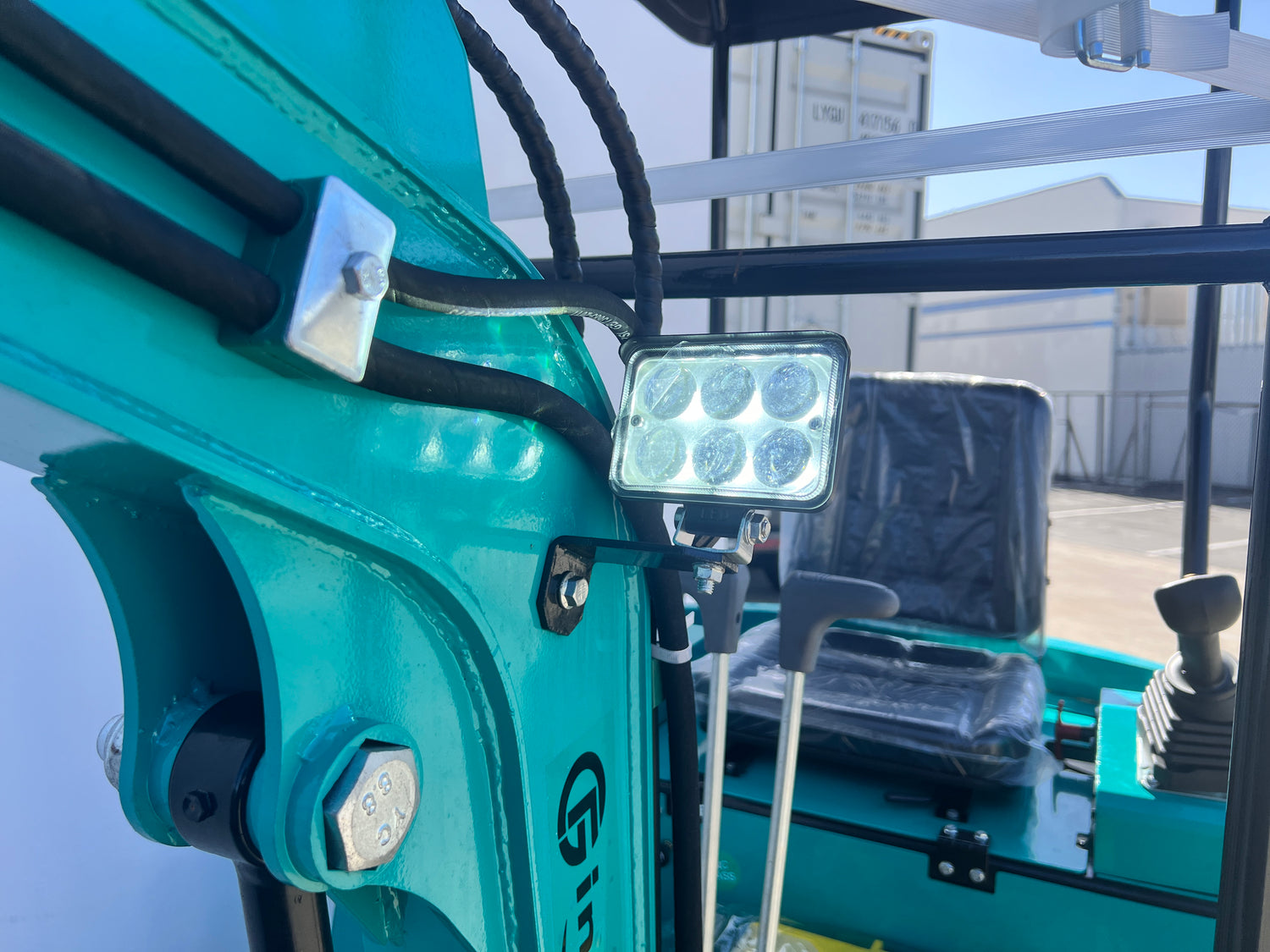

LED Light

LED work light for early morning and late evening operation — reliable, low-power illumination of the work area included as standard on every machine.

Dozer Blade

950mm (37″) wide dozer blade with 11.5″ of lift height and 10.5″ of drop depth — for backfilling, grading, and levelling after digging operations. Integrated into the undercarriage for stability.

Full Specifications

Engine

Engine Brand	Rato
Engine Model	R420D
Fuel Type	Gasoline
Rated Power	13.5 HP (10 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.1 L/hr

Hydraulic System

Hydraulic Flow Rate	45 L/min / 4.2 GPM
Hydraulic Pressure	18 MPa / 2,320 PSI
Hydraulic Tank	18 L / 4.7 gal

Performance

Operating Weight	1 Ton / 2,200 lbs
Max Digging Depth	1,650 mm / 65 in
Max Digging Height	2,610 mm / 102.5 in
Max Dumping Height	1,850 mm / 73 in
Max Reach at Ground	2,815 mm / 111 in

Dimensions

Overall Length	2,140 mm / 84 in
Overall Width	1,000 mm / 40 in
Overall Height	2,190 mm / 86 in
Track Width × Pitch × Links	180 × 72 × 37

Dozer Blade

Blade Width	950 mm / 37 in
Blade Height	220 mm / 8.5 in
Blade Max Lifting Height	295 mm / 11.5 in
Blade Max Drop Depth	270 mm / 10.5 in

Everything Included

✓

Rato R420D 420cc Gasoline Engine

✓

Pilot Control System

✓

LED Work Light

✓

Dozer Blade (37″ wide)

✓

Bucket

✓

Operator Manual (PDF)

✓

1-Year Warranty on Parts

Included — By Category

Engine & Hydraulics

Rato R420D 420cc 13.5 HP Gasoline

18 MPa Hydraulic System

Pilot Control System

Cab & Visibility

ROPS Canopy

LED Work Light

Undercarriage

Dozer Blade (37″ wide)

Attachments & Warranty

Bucket

Operator Manual (PDF)

1-Year Warranty on Parts

Built For

Residential Backyards

Gardens & Orchards

Public Parks

Narrow Access Sites

Farm Maintenance

Light Landscaping

Small Drainage Trenches

Tree Removal

Tight Indoor Spaces

-37%

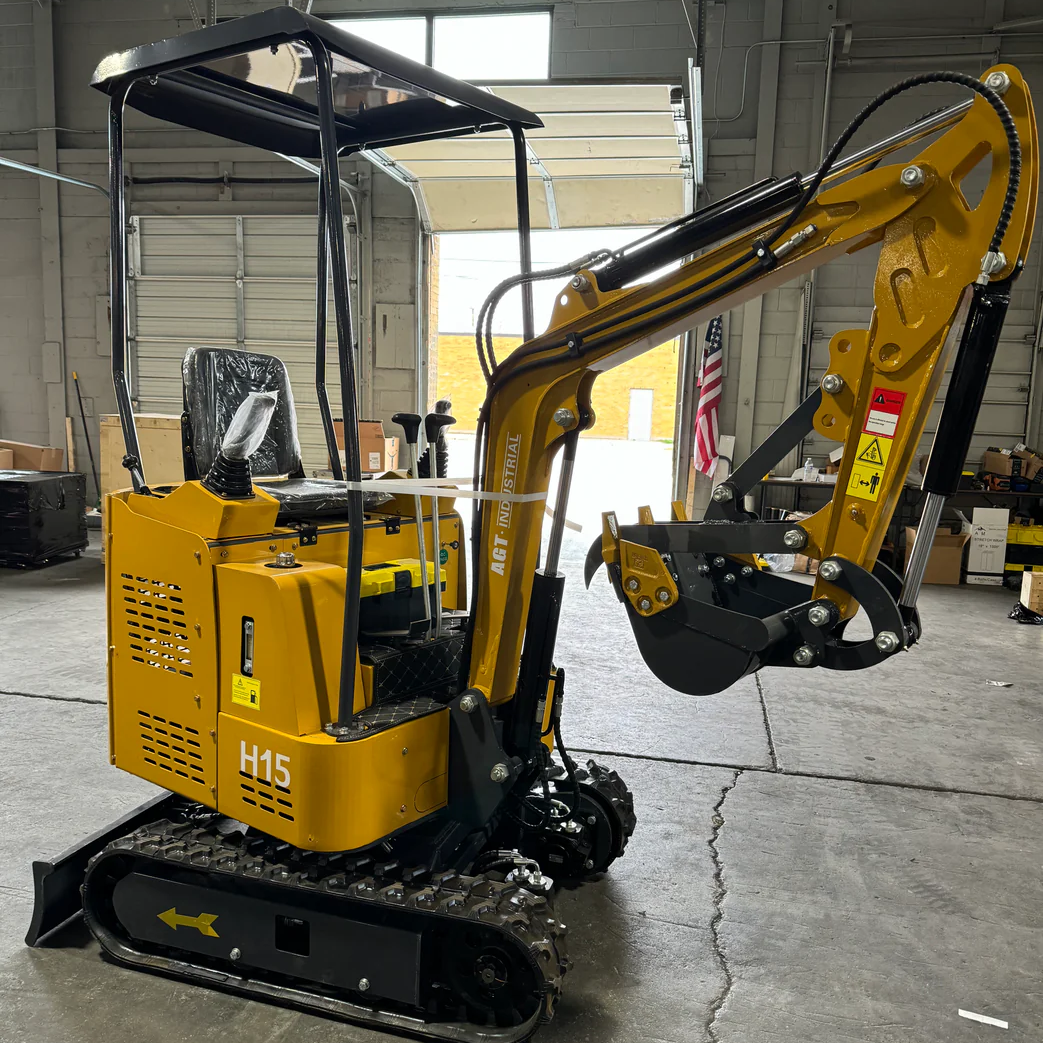

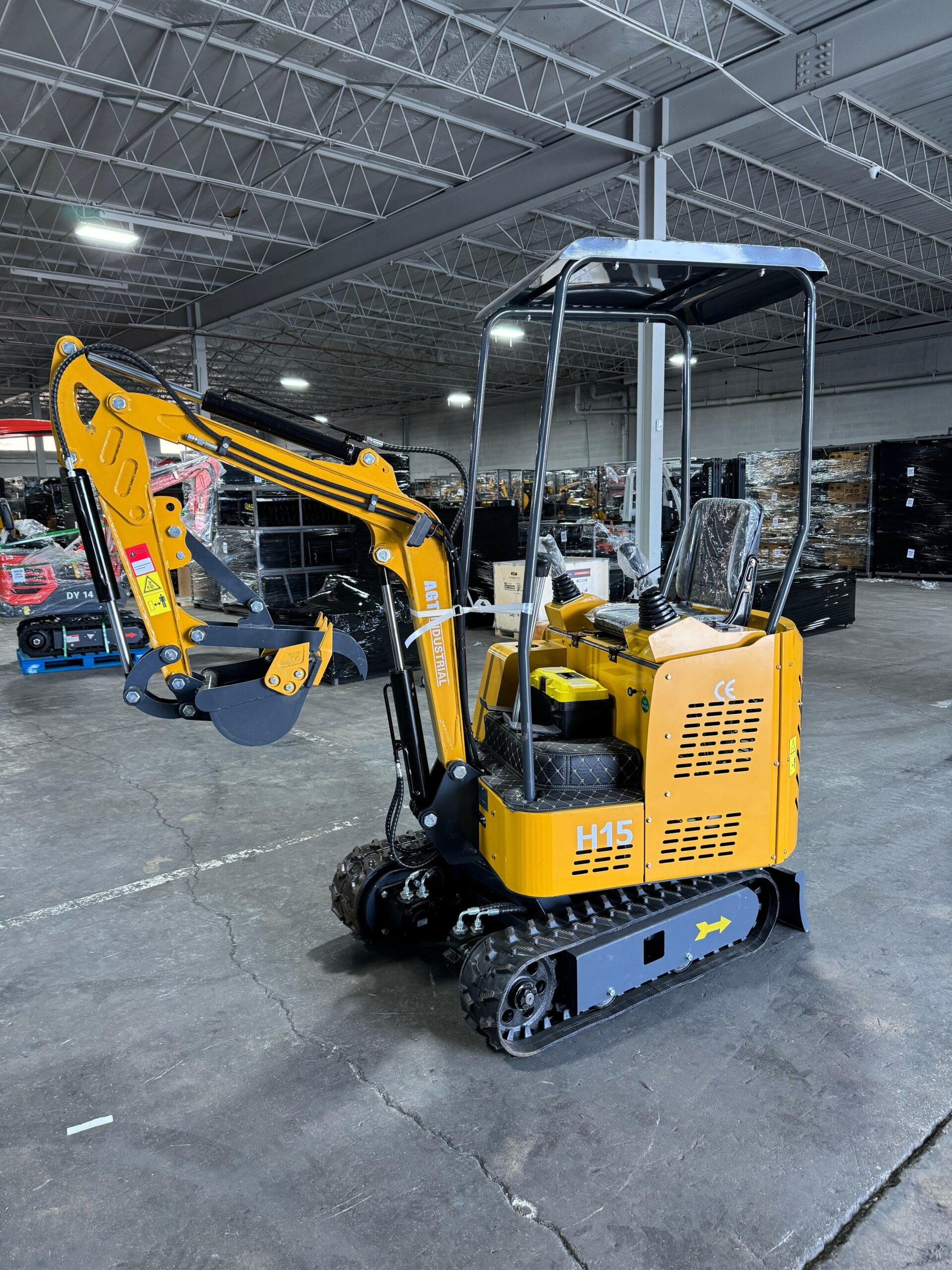

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 1

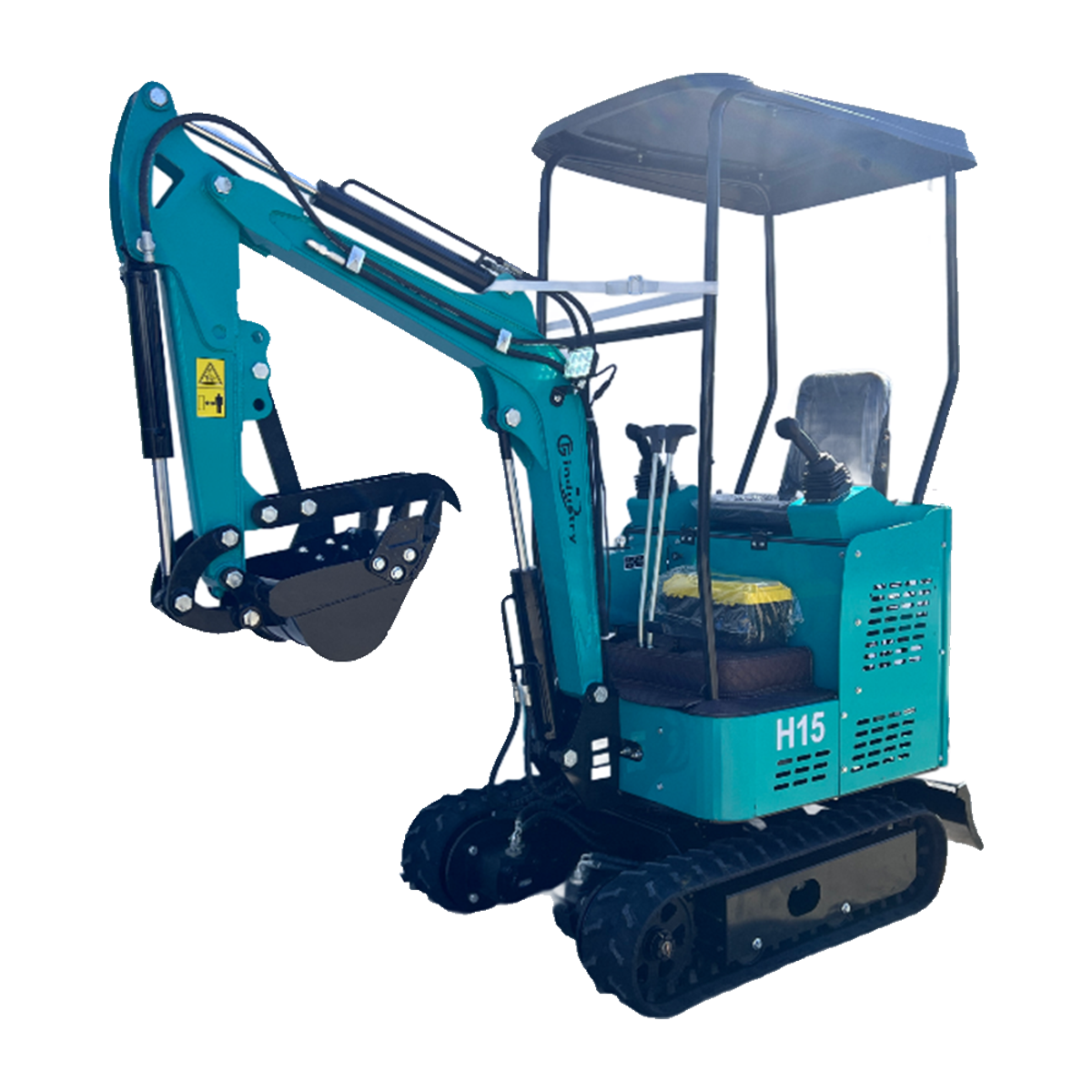

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 2

Click to enlarge

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 3

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 4

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 5

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 6

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 7

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 8

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 9

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 10

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 11

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 12

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 13

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 14

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 15

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 18

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 19

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R - Image 20

Original price was: $5,981.06.Current price is: $3,767.99.

Add to wishlist

SKU: AGT-H15R Categories: AGT Equipment, Mini Excavators

Description

Engine Brand	Rato
Engine Model	R420D
Fuel Type	Gasoline
Rated Power	13.5 HP (10 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.1 L/hr

Hydraulic Flow Rate	45 L/min / 4.2 GPM
Hydraulic Pressure	18 MPa / 2,320 PSI
Hydraulic Tank	18 L / 4.7 gal

Operating Weight	1 Ton / 2,200 lbs
Max Digging Depth	1,650 mm / 65 in
Max Digging Height	2,610 mm / 102.5 in
Max Dumping Height	1,850 mm / 73 in
Max Reach at Ground	2,815 mm / 111 in

Overall Length	2,140 mm / 84 in
Overall Width	1,000 mm / 40 in
Overall Height	2,190 mm / 86 in
Track Width × Pitch × Links	180 × 72 × 37

Blade Width	950 mm / 37 in
Blade Height	220 mm / 8.5 in
Blade Max Lifting Height	295 mm / 11.5 in
Blade Max Drop Depth	270 mm / 10.5 in
