AGT Equipment · KH16R · 1-Ton Rato Mini Excavator

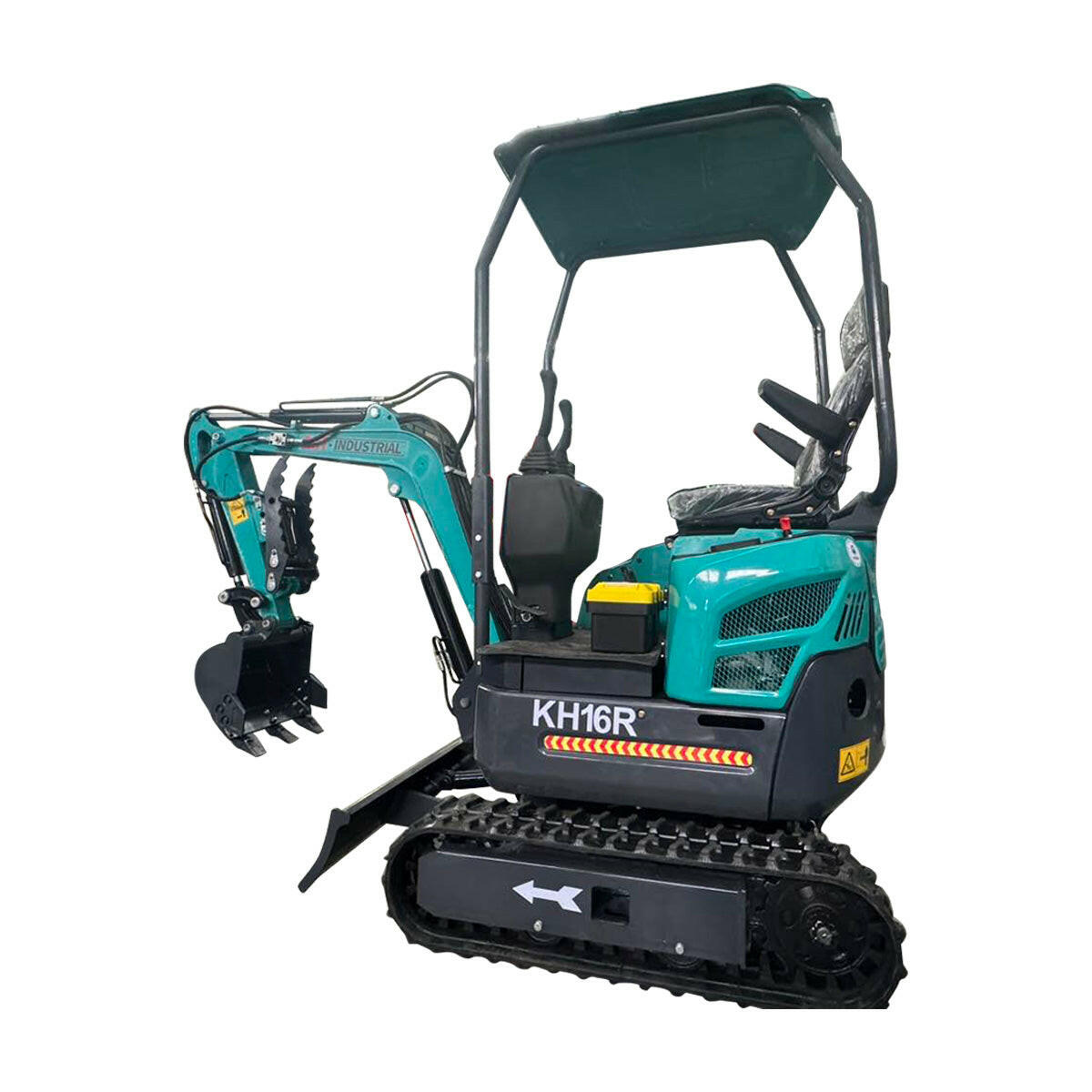

AGT KH16R 1-Ton Mini Small Excavator

Name: 1 Ton, RATO Mini Small Excavator w/ Hydraulic Thumb | AGT-KH16R
SKU: AGT-KH16R
Availability: InStock

Rato R420D Engine — Hydraulic Thumb — Foot Pedal — LED Light — Aux Hydraulics

A compact and versatile 1-ton mini excavator built for various excavation tasks. The KH16R is powered by a Rato R420D 420cc gasoline engine delivering 13.5 HP — with hydraulic thumb, foot pedal control, LED light, and auxiliary hydraulics all included as standard. At just 36″ wide and 0.9 tons, it accesses sites that larger machines can’t reach.

Rato R420D

Rato R420D — 420cc · 13.5 HP (10 kW) · Gasoline · 16 MPa hydraulic system · 21.6 L/min (5.7 GPM) flow rate · 6.6 L fuel tank · 0.5–1.2 L/hr fuel consumption

13.5 HP

Rato R420D

0.9 Ton

Operating Weight

65.5″

Max Dig Depth

36″

Overall Width

Key Features

Rato R420D 420cc Engine

420cc Rato R420D gasoline engine delivering 13.5 HP (10 kW). Fuel consumption of 0.5–1.2 L/hr for economical daily operation. 6.6 L fuel tank for extended run time. Easy fueling without diesel infrastructure on residential sites.

Hydraulic Thumb

Included hydraulic thumb for picking up rocks, branches, and debris. Adjustable positioning for precise material handling — controlled directly from the operator seat without stopping work.

Foot Pedal Control

Foot pedal for thumb or auxiliary attachment operation — keeps both hands on the joysticks at all times for full machine control. Improves precision and reduces fatigue during material handling tasks.

LED Work Light

LED work light for early morning and late evening operation. Low-power, long-life illumination of the digging area — included as standard on every machine.

Auxiliary Hydraulics

Auxiliary hydraulic circuits included as standard — supporting powered attachments such as augers and breakers beyond the standard bucket. Expand capability without additional hydraulic purchases.

36″ Compact Width

910mm (36″) overall width — passes through narrow gates, garden access points, and confined residential spaces. At just 0.9 tons, it’s light enough to minimise ground disturbance on surface-sensitive sites.

Full Specifications

Engine

Engine Brand & Model	Rato R420D
Fuel Type	Gasoline
Rated Power	13.5 HP (10 kW)
Displacement	420 cc
Fuel Tank	6.6 L / 1.7 gal
Fuel Consumption	0.5 – 1.2 L/hr

Hydraulic System

Hydraulic Flow Rate	21.6 L/min / 5.7 GPM
Hydraulic Pressure	16 MPa / 2,320 PSI
Auxiliary Hydraulics	Included

Performance

Operating Weight	0.9 Ton / 1,984 lbs
Max Digging Depth	1,670 mm / 65.5 in
Max Digging Height	2,400 mm / 94.5 in
Max Dumping Height	1,960 mm / 77 in
Max Reach at Ground	3,060 mm / 120.5 in
Climbing Ability	30°
