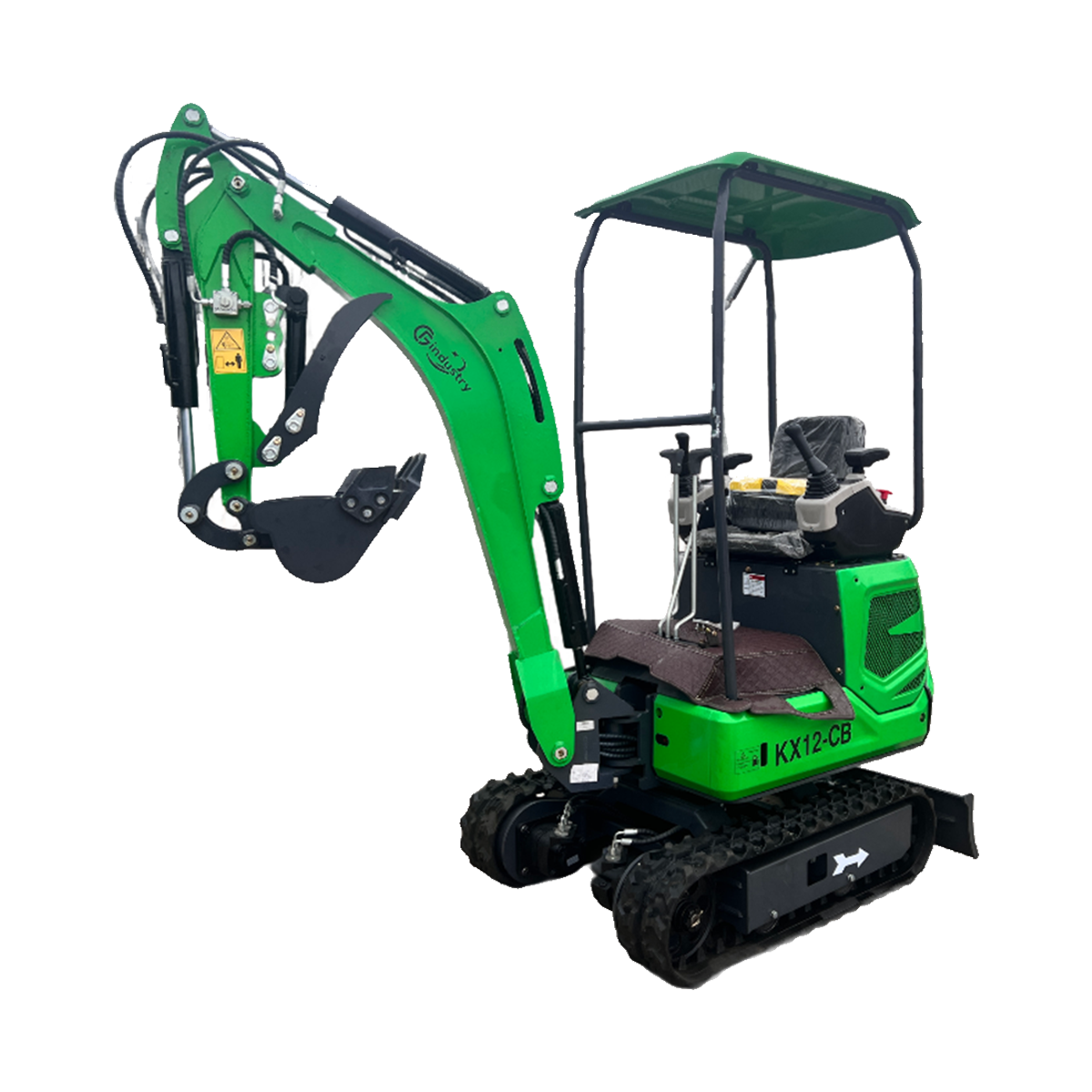

1 Ton, B&S Engine Mini Excavator w/ Hydraulic Thumb & Swing Boom | KX12-CB
Original price was: $5,961.64.$3,755.99Current price is: $3,755.99.

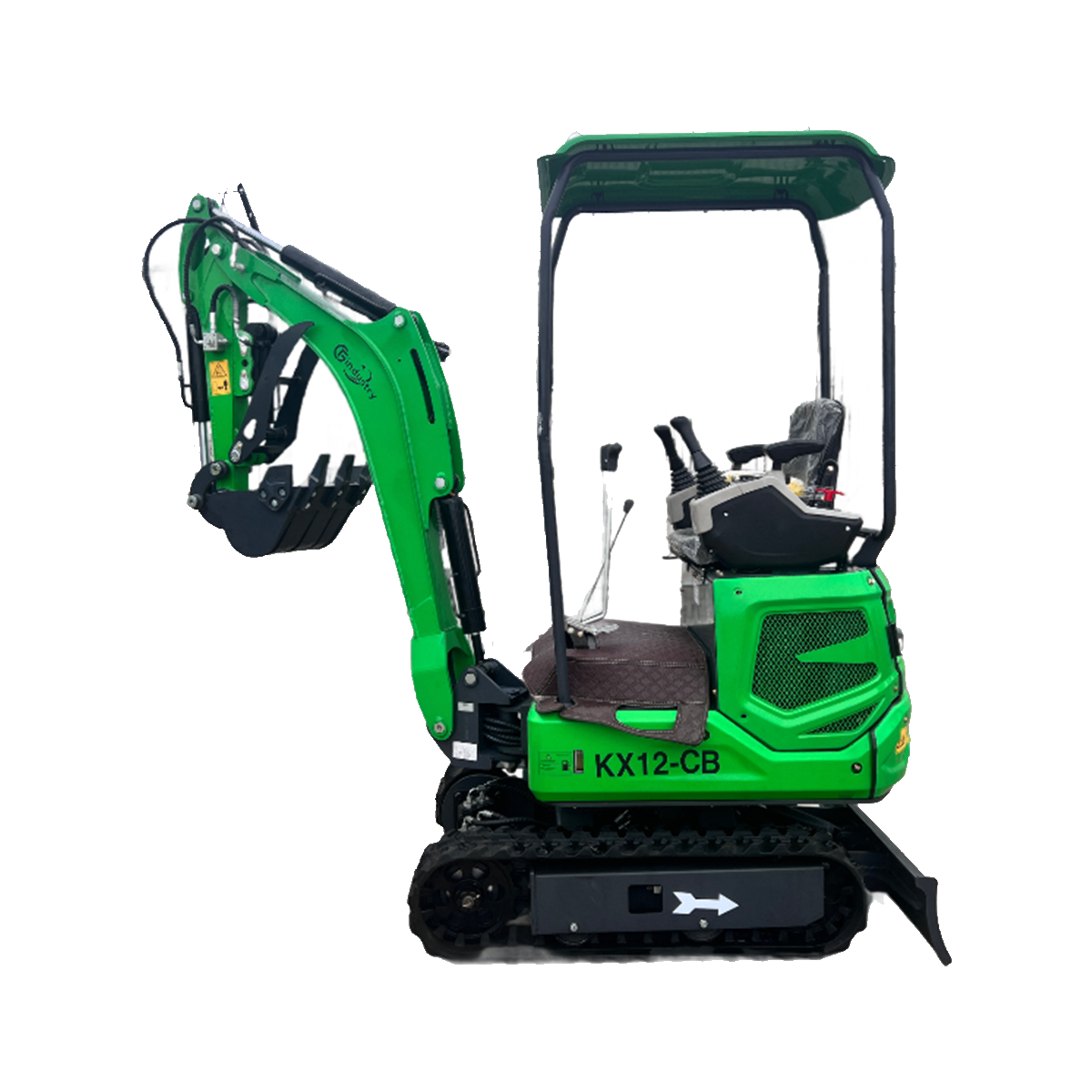

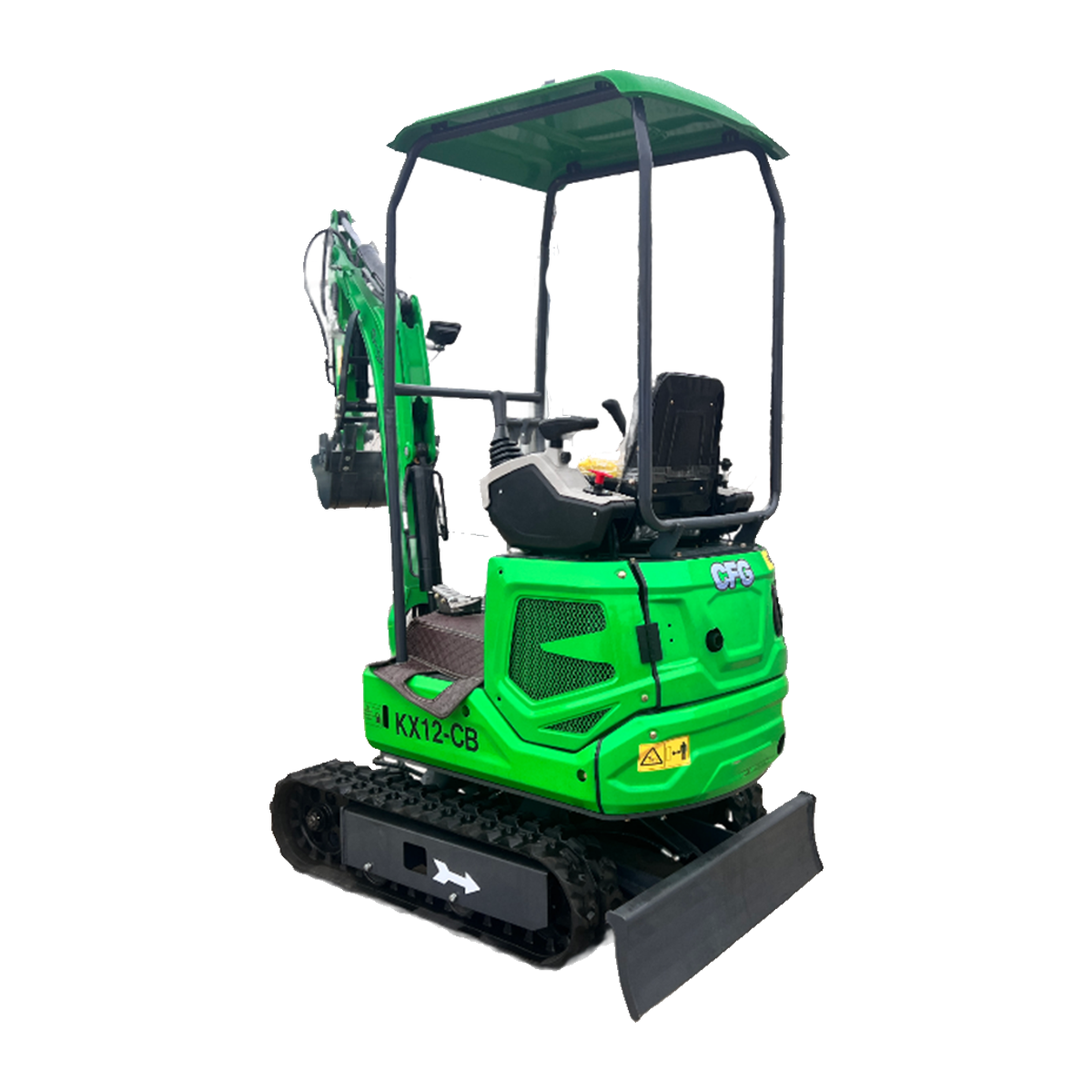

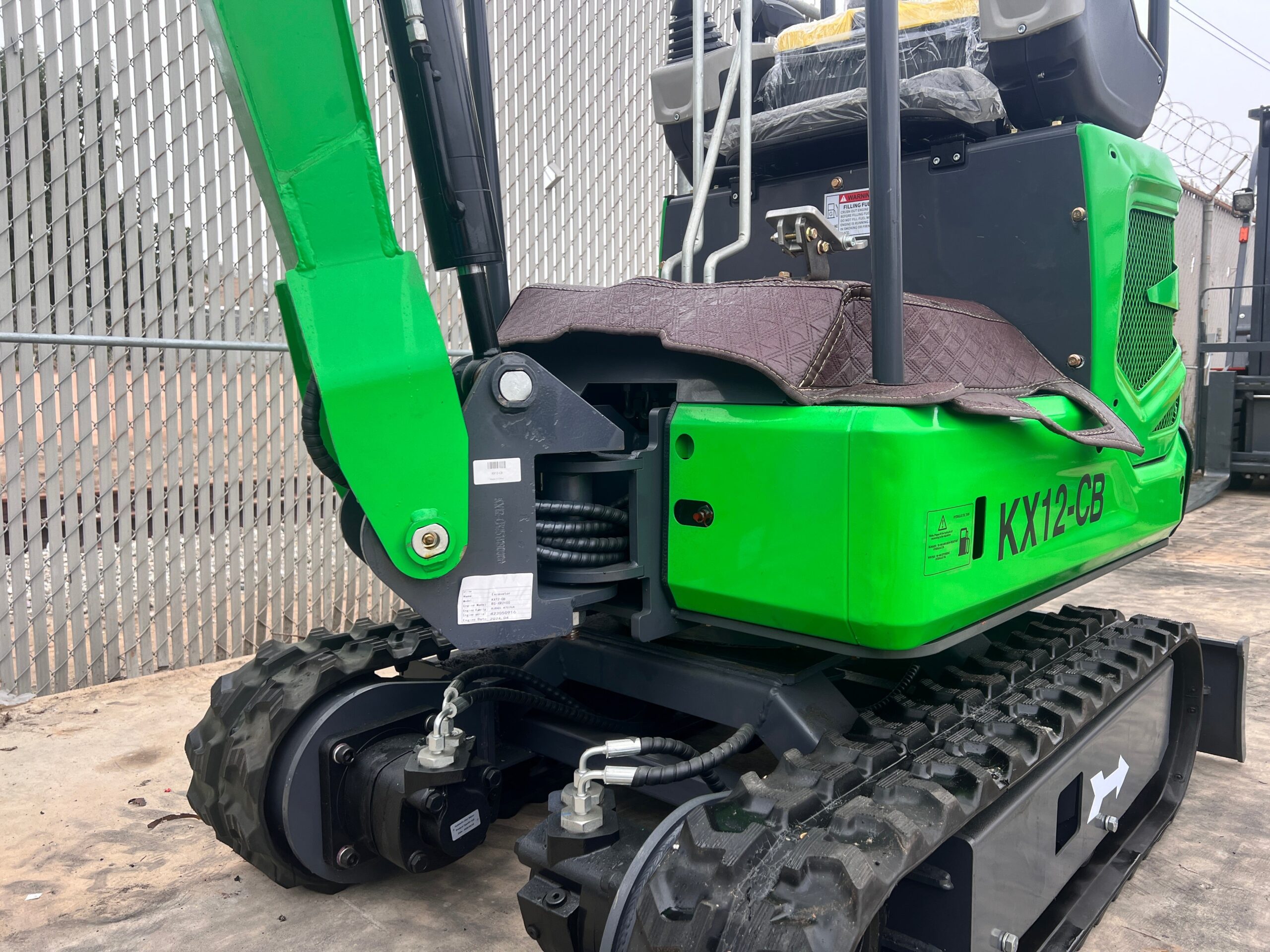

AGT KX12-CB Mini Excavator
A feature-packed 0.9-ton mini excavator combining four premium capabilities in a compact fixed-track chassis: swing boom, hydraulic thumb, inverted boom cylinder, and pilot controls. The KX12-CB delivers purpose-built confined-space excavation performance powered by a B&S XR 420cc gasoline engine — all at 1,984 lbs and 39″ wide.

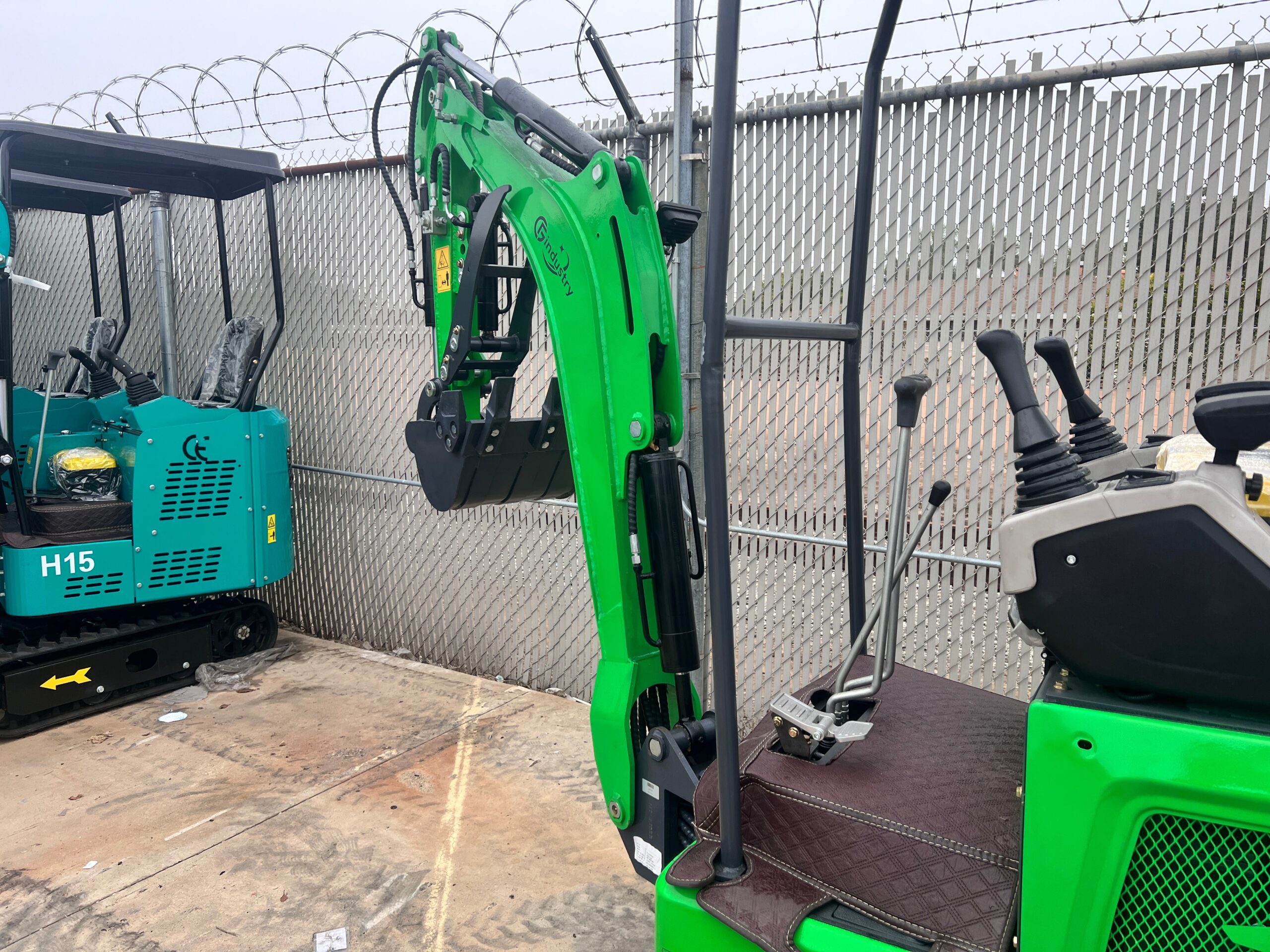

Factory swing boom for working alongside walls, fences, and confined site edges without repositioning. Essential for trench work and tight residential sites.

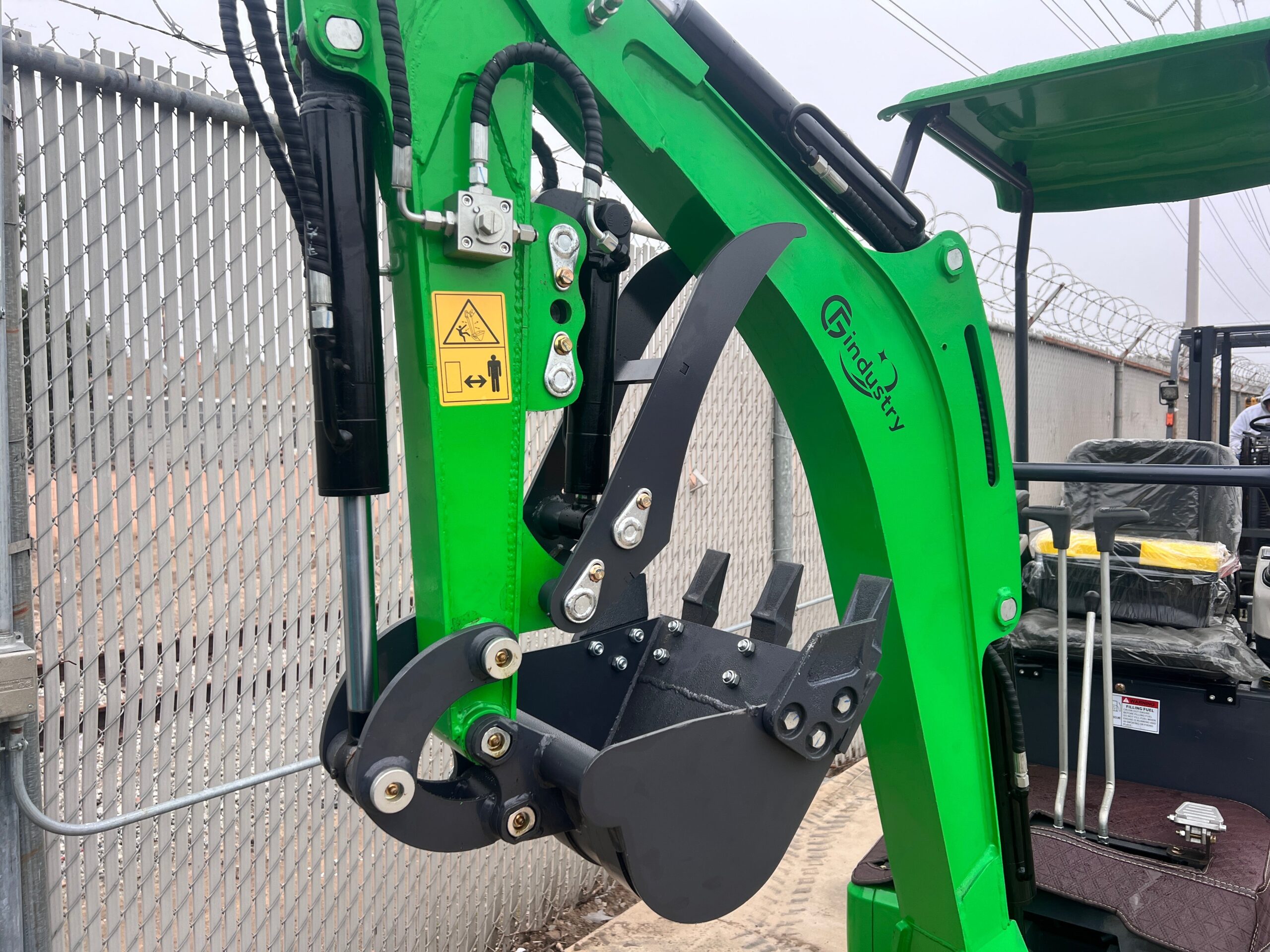

Included hydraulic thumb for gripping and placing rocks, branches, and debris — controlled from the operator seat at all times. No attachment changes needed.

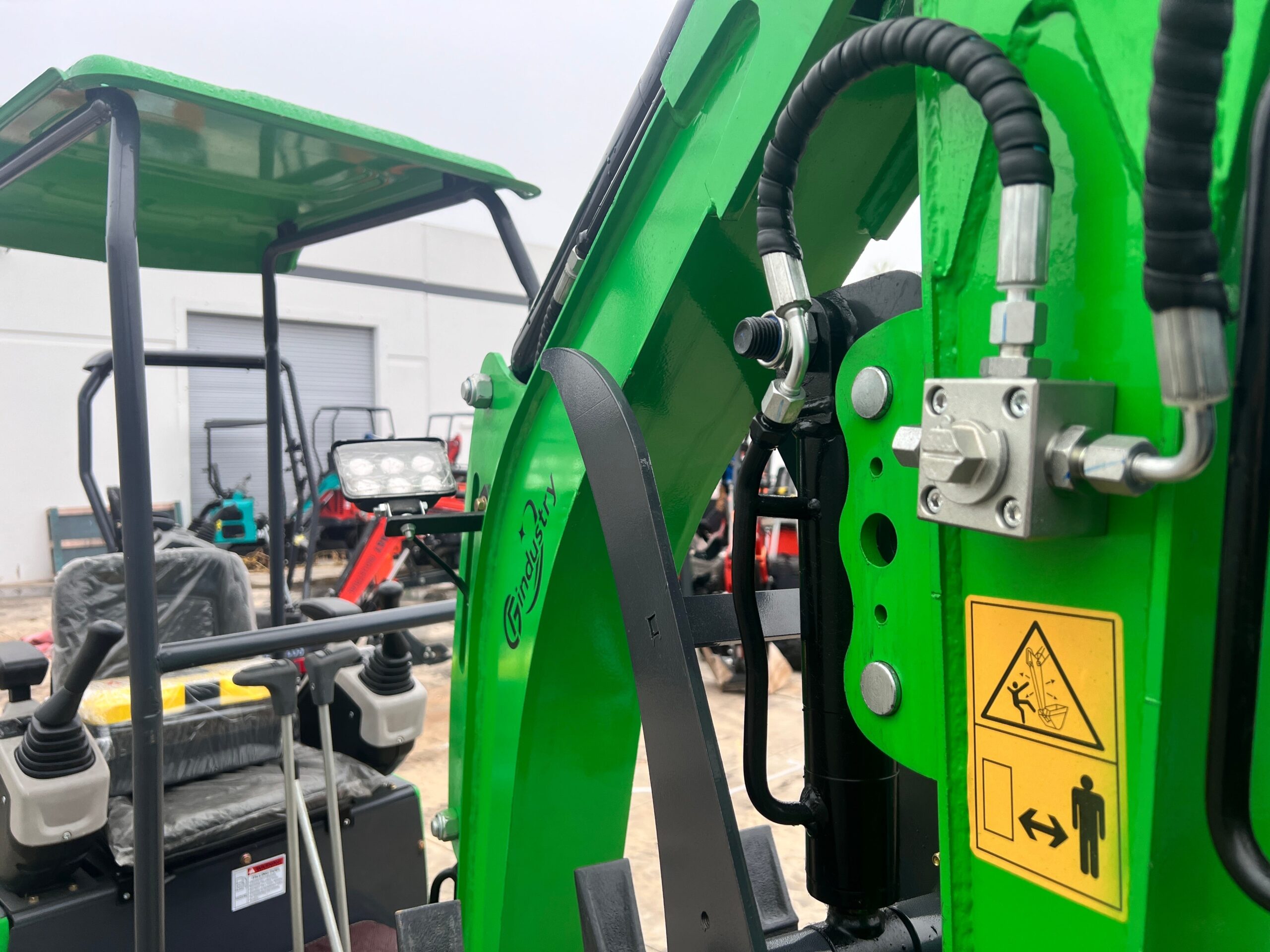

Inverted cylinder placement improves boom clearance, reduces damage risk in tight spaces, and improves digging geometry in confined conditions.

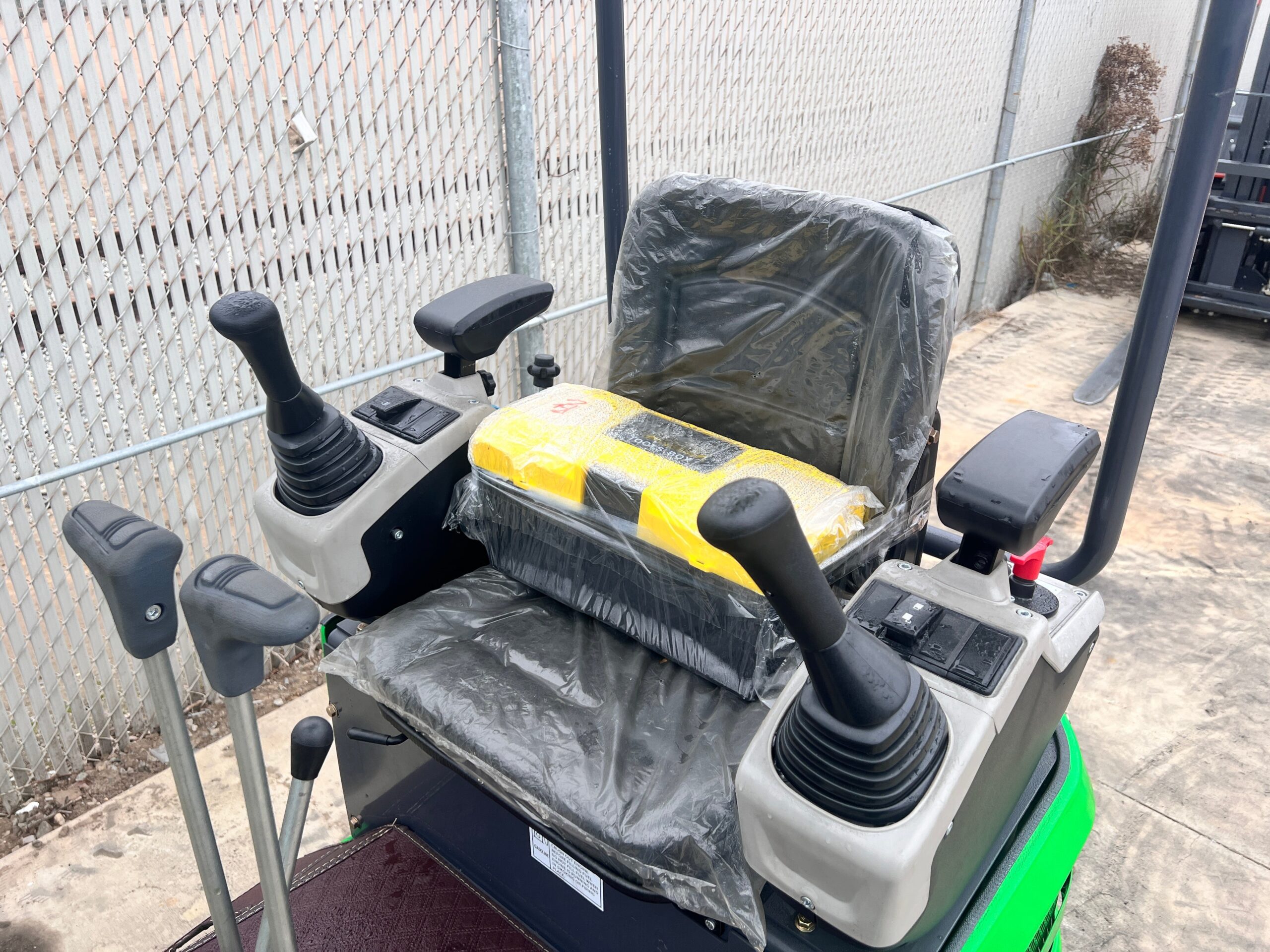

Smooth, low-effort pilot-operated joystick controls for precise and comfortable machine handling — reducing operator fatigue during detailed confined-space work.
| Engine Brand & Model | Briggs & Stratton XR |
| Fuel Type | Gasoline |
| Rated Power | 13.3 HP (10 kW) |
| Displacement | 420 cc |
| Fuel Tank | 6.6 L / 1.7 gal |
| Battery | 12V, 45–60Ah |
| Hydraulic Flow Rate | 21.6 L/min / 5.7 GPM |
| Hydraulic Pressure | 16 MPa / 2,320 PSI |
| Hydraulic Tank | 18 L / 4.7 gal |
| Operating Weight | 0.9 Ton / 1,984 lbs |
| Max Digging Height | 2,900 mm / 114 in |
| Max Dumping Height | 2,100 mm / 82.5 in |
| Max Reach at Ground | 3,250 mm / 128 in |
| Overall Length | 3,240 mm / 127.5 in |
| Overall Width | 990 mm / 39 in |
| Overall Height | 2,200 mm / 86.5 in |
| Track Size (W × Pitch × Links) | 180 × 72 × 37 |
| Blade Width | 950 mm / 37 in |
| Blade Height | 230 mm / 9 in |
| Max Lifting Height | 190 mm / 7.5 in |
| Max Drop Depth | 190 mm / 7.5 in |

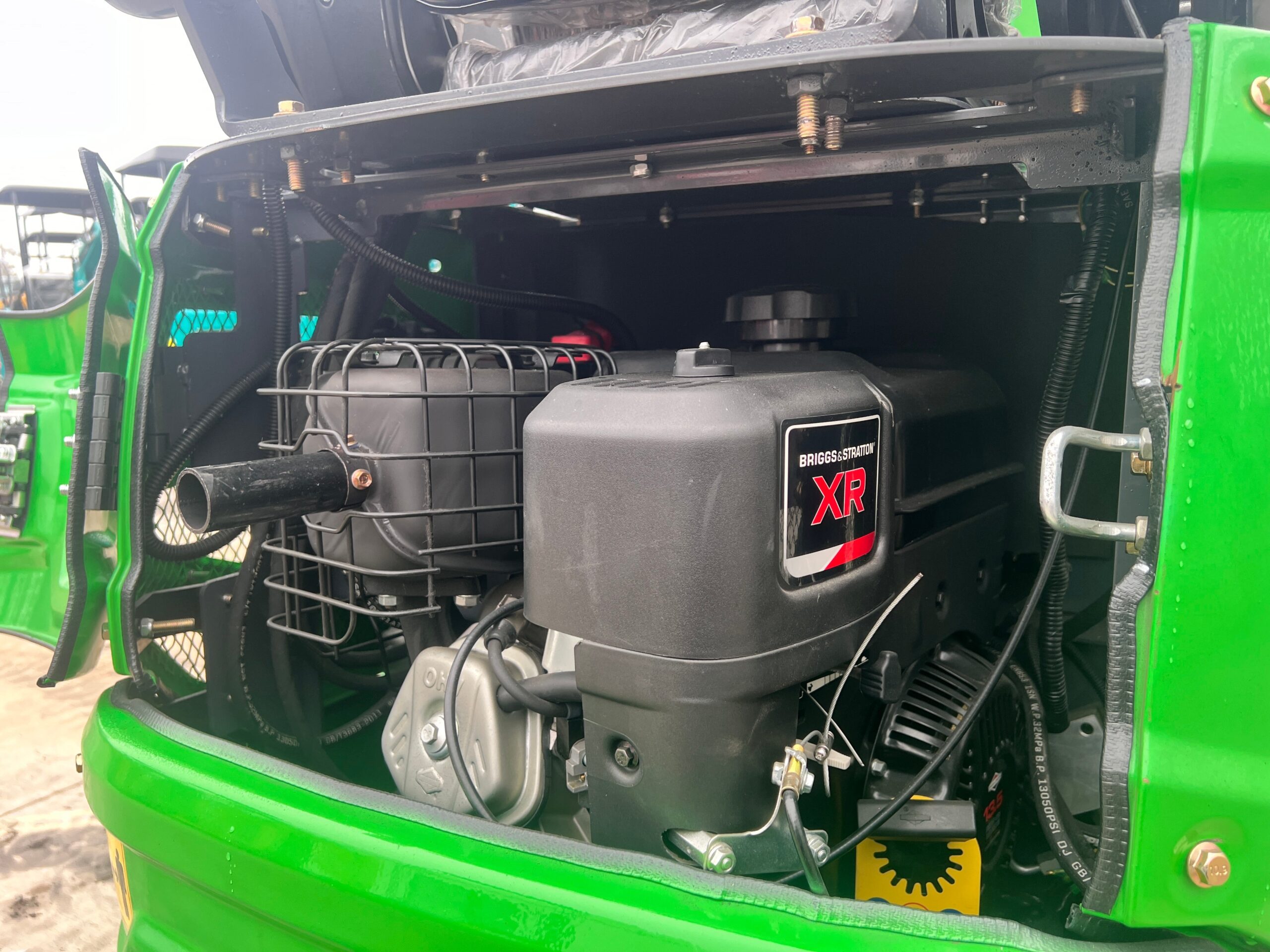

B&S XR 420cc 13.3 HP Engine
Swing Boom
Inverted Boom Cylinder
Pilot Controls
Hydraulic Thumb
16 MPa Hydraulic System
Dozer Blade (37″ wide)
Rubber Tracks (180×72×37)
Bucket
ROPS Canopy
1-Year Warranty on Parts
B&S XR 420cc 13.3 HP Gasoline
16 MPa Hydraulic System (5.7 GPM)
Pilot Controls
ROPS Canopy
Rubber Tracks (180×72×37)
Dozer Blade (950mm)
Swing Boom
Inverted Boom Cylinder
Hydraulic Thumb
Bucket
1-Year Warranty on Parts
