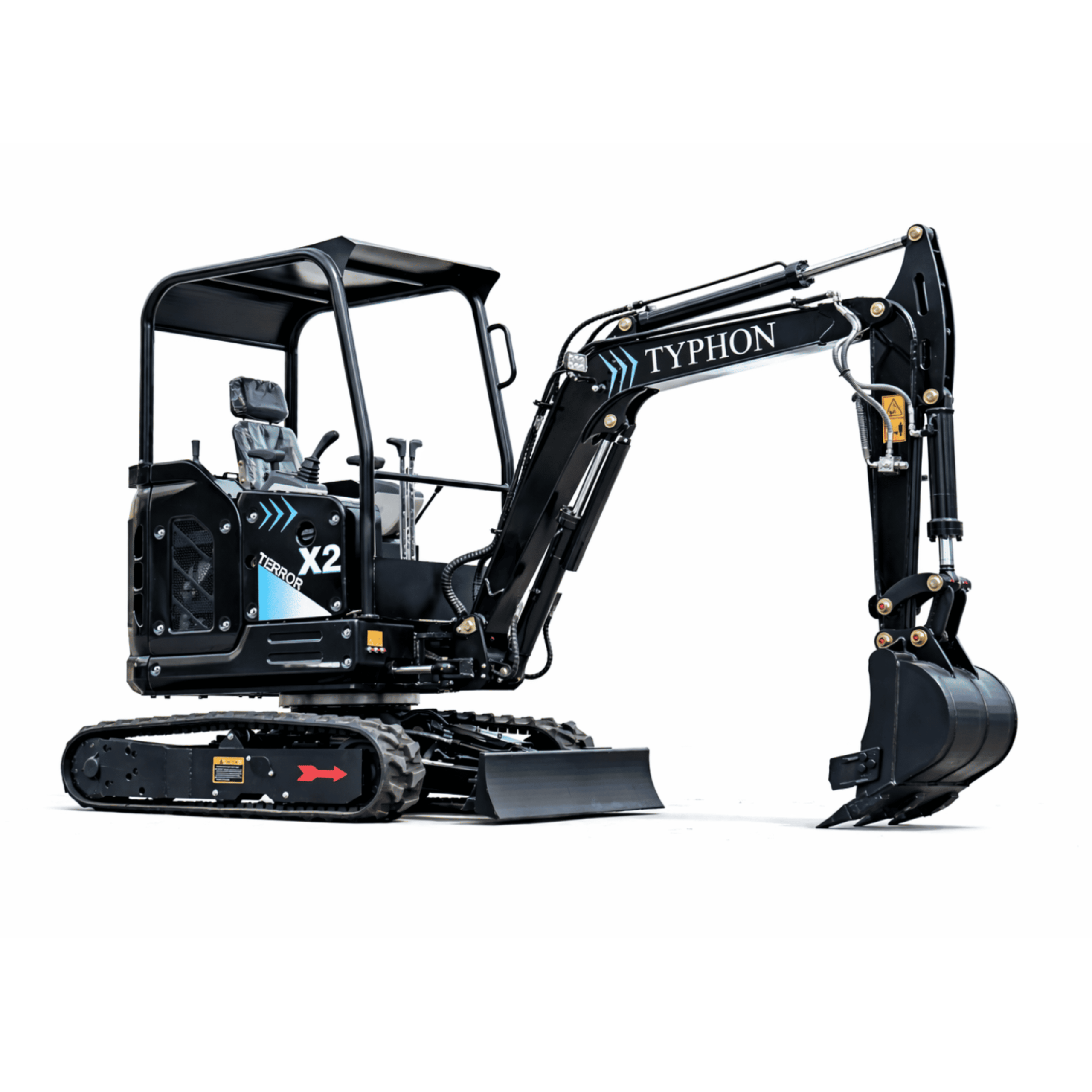

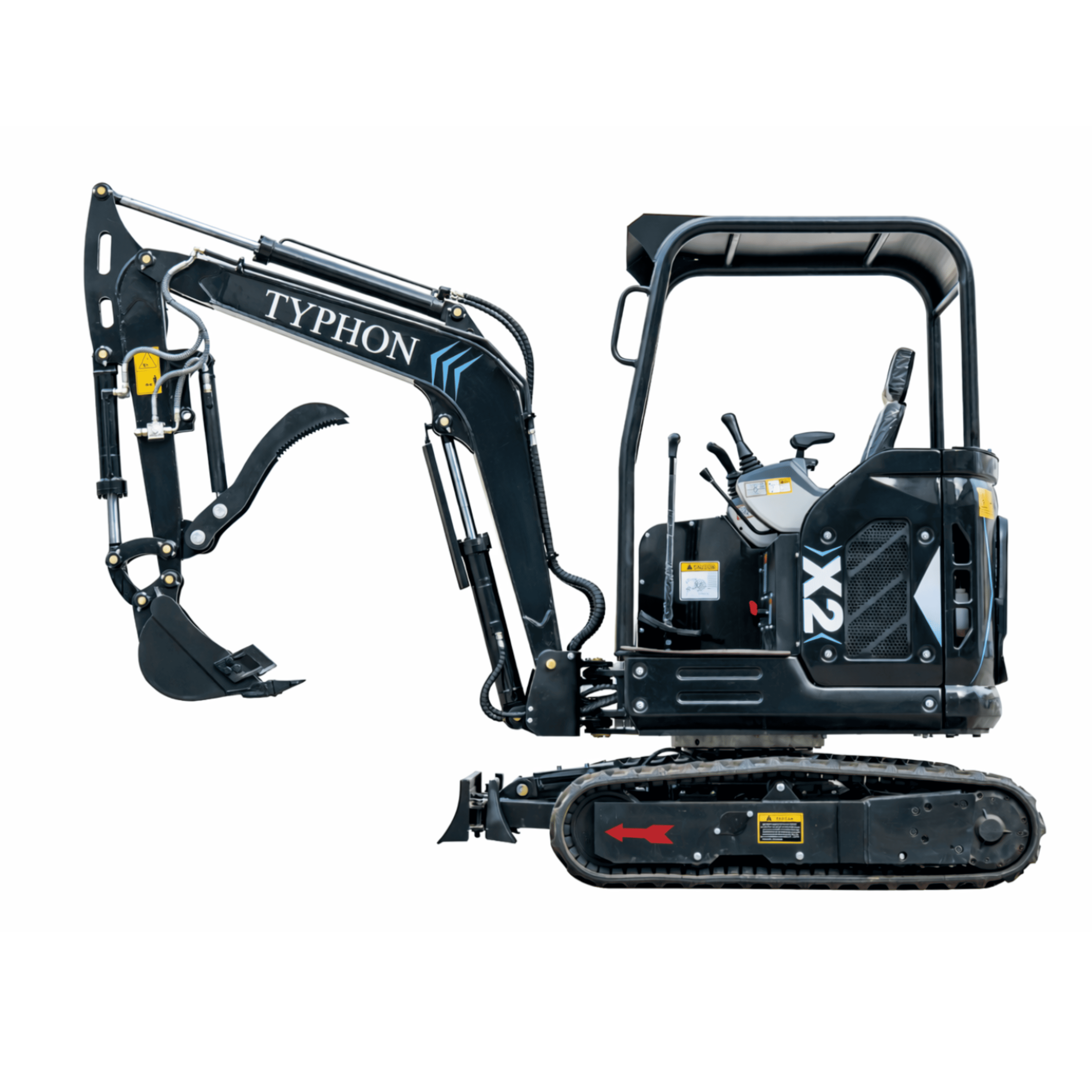

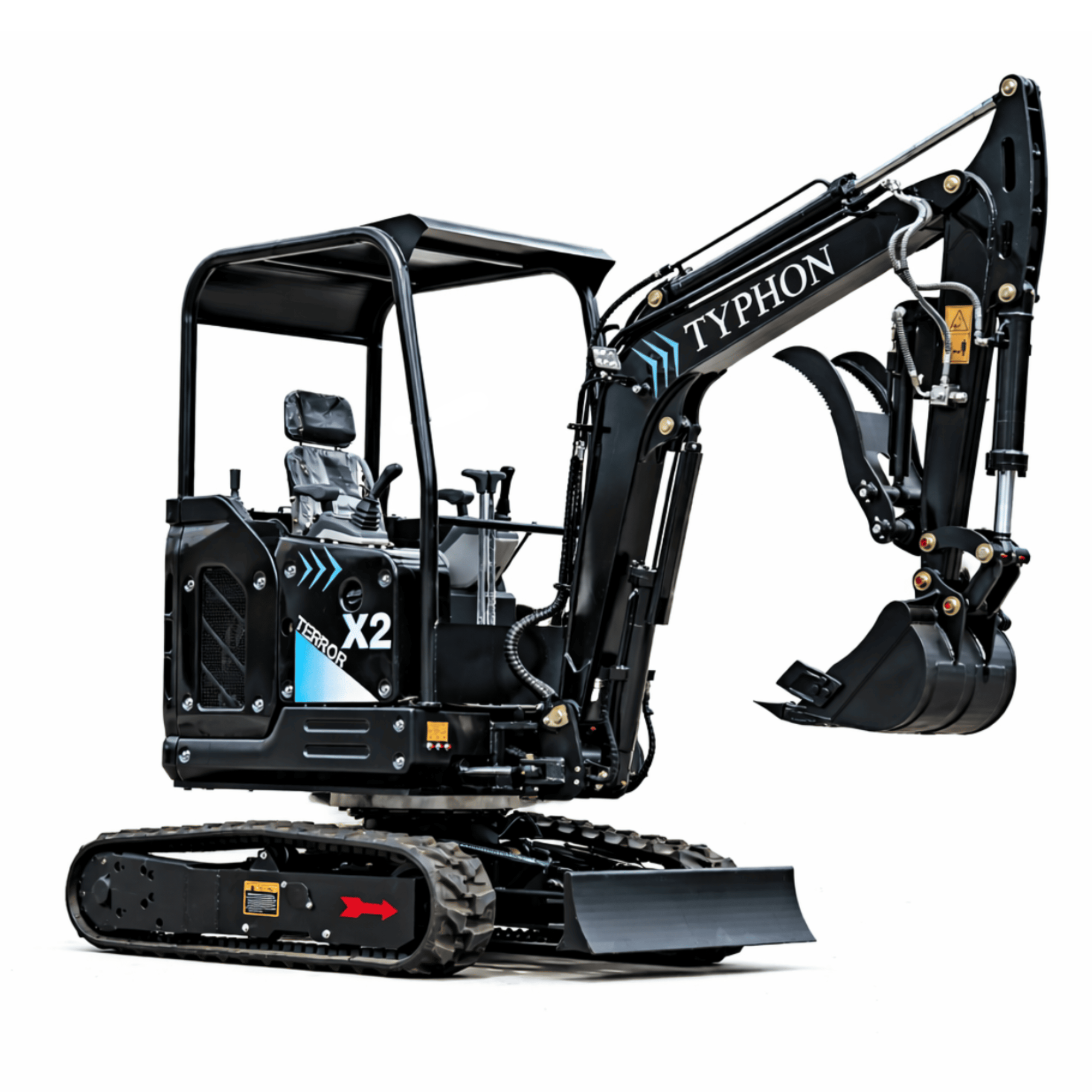

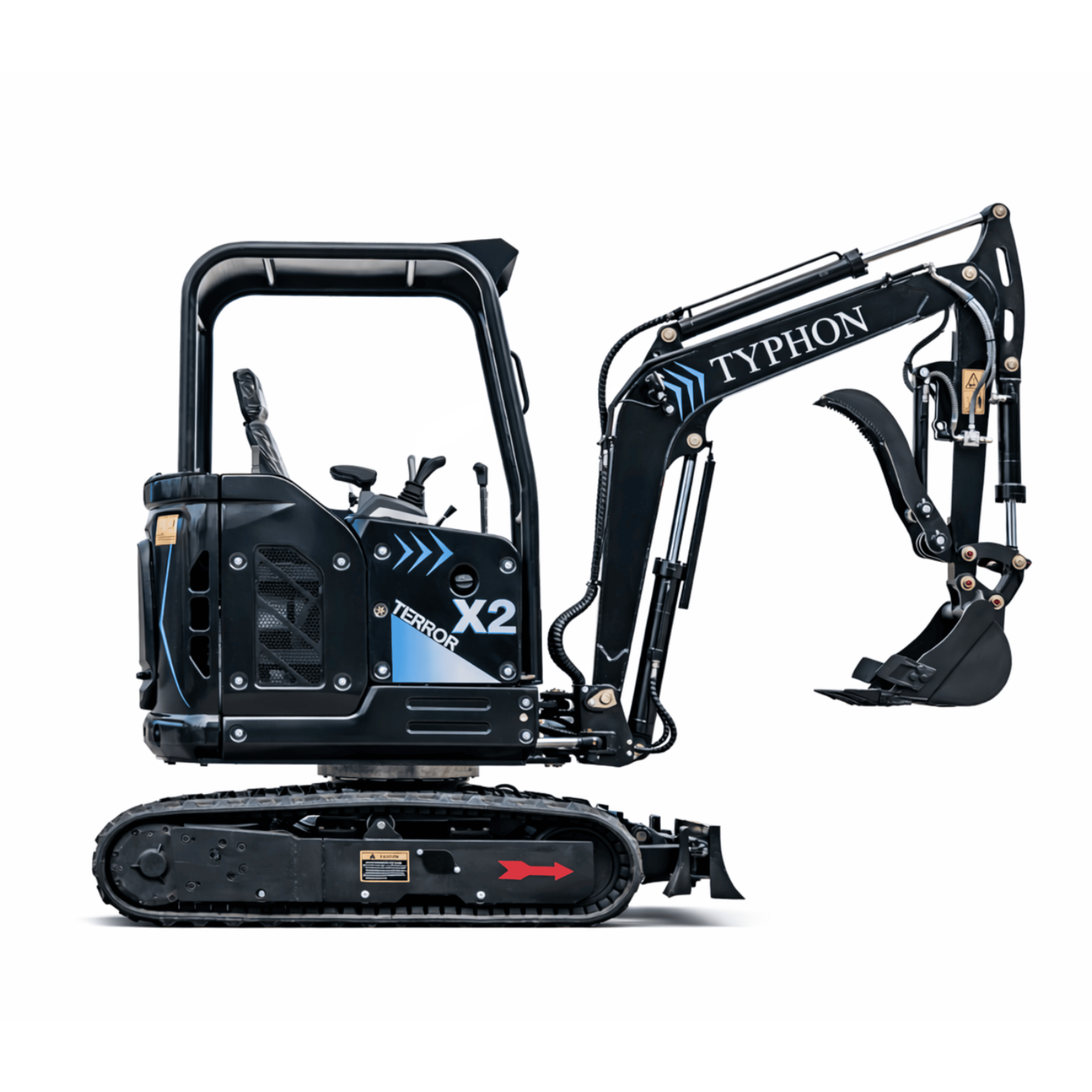

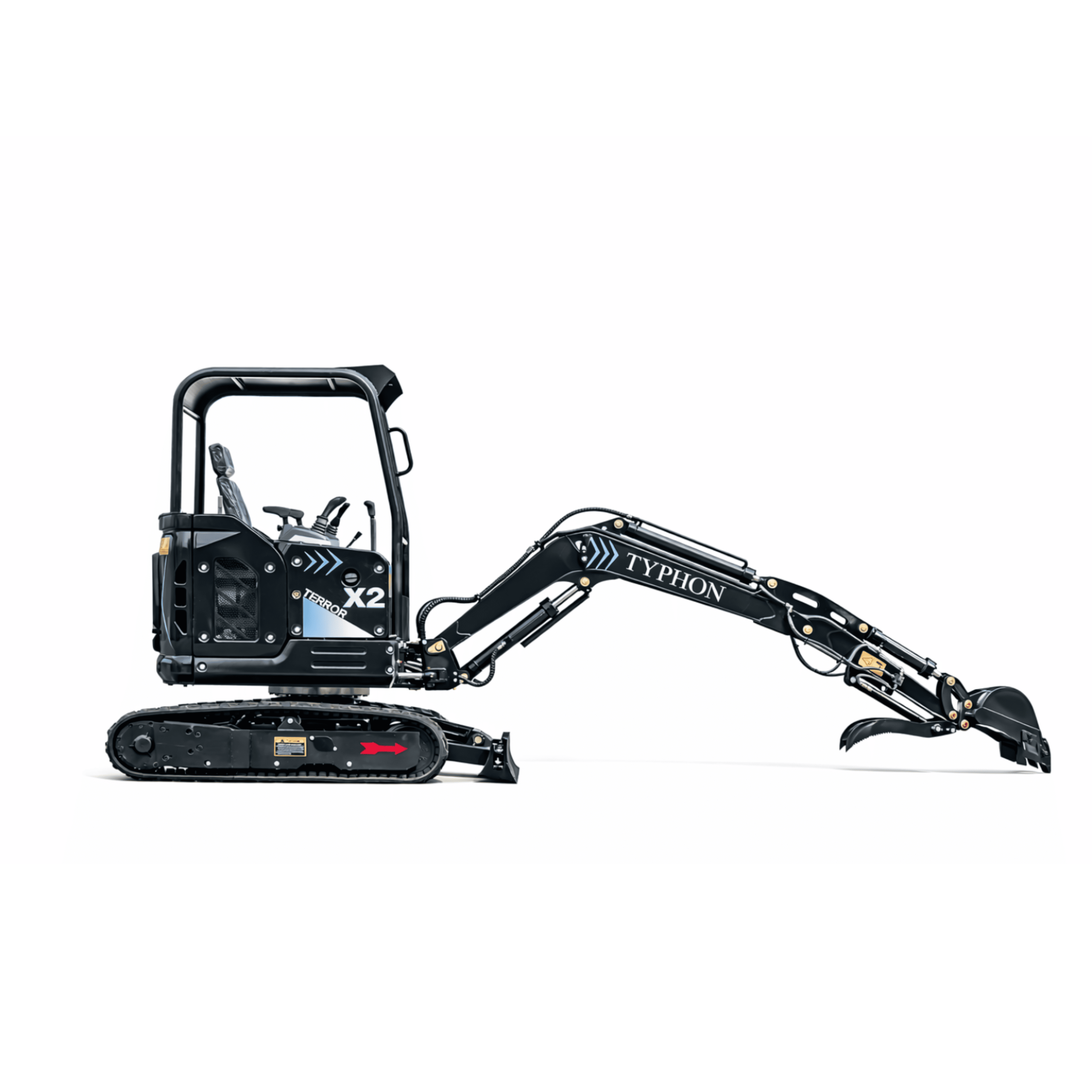

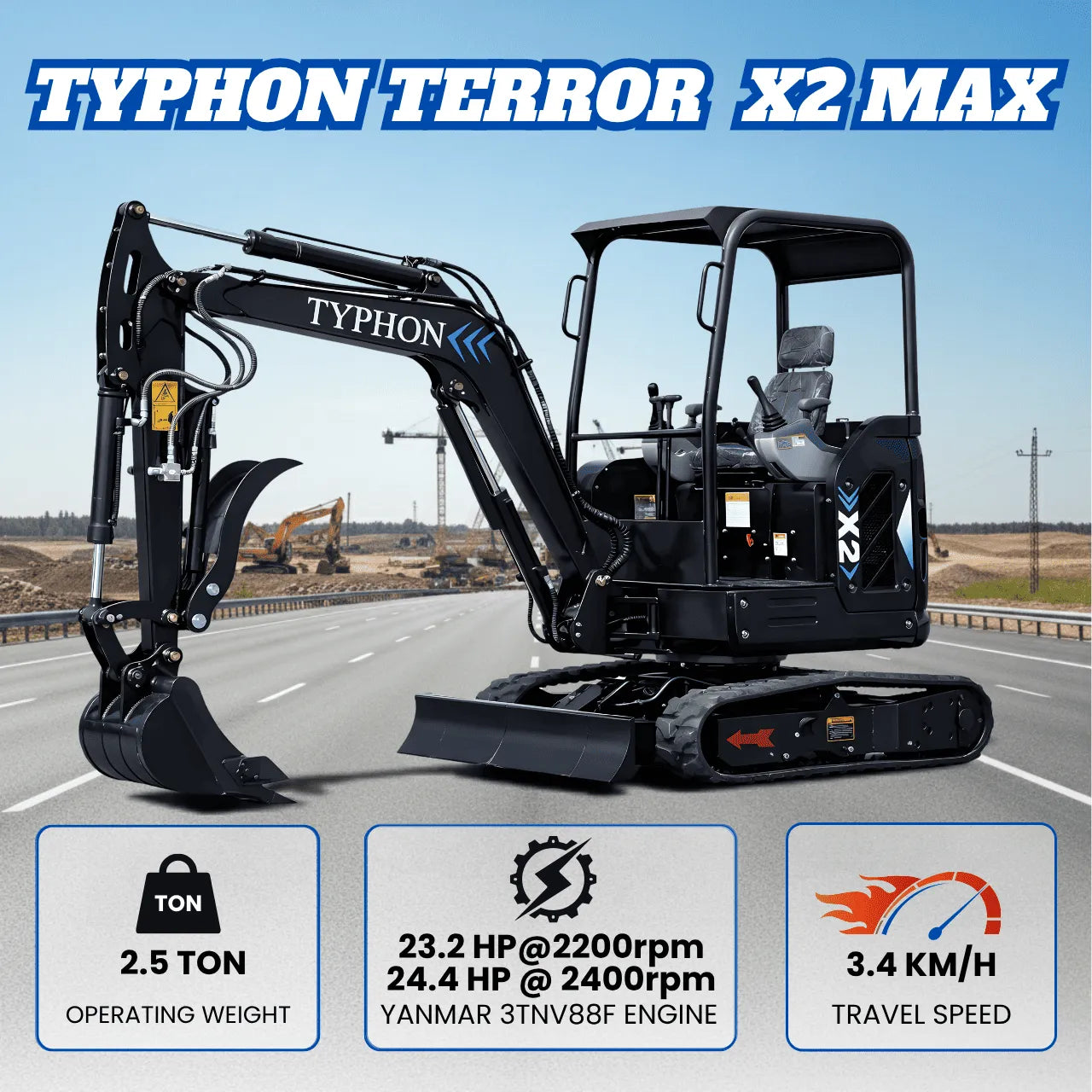

TYPHON TERROR X2 Max Canopy Mini Excavator Powerful 2.5 Ton Compact Machine with Yanmar Engine Advanced Hydraulic System
Original price was: $20,000.00.$12,599.99Current price is: $12,599.99.
TERROR X2 MAX
The TYPHON TERROR X2 MAX Mini Excavator delivers professional-grade excavation performance in a compact and highly maneuverable package. Built for landscaping, construction, trenching, utility work, and confined-space operation, this 2.5 Ton machine combines powerful digging force, advanced hydraulic control, and exceptional operator comfort for demanding job sites.

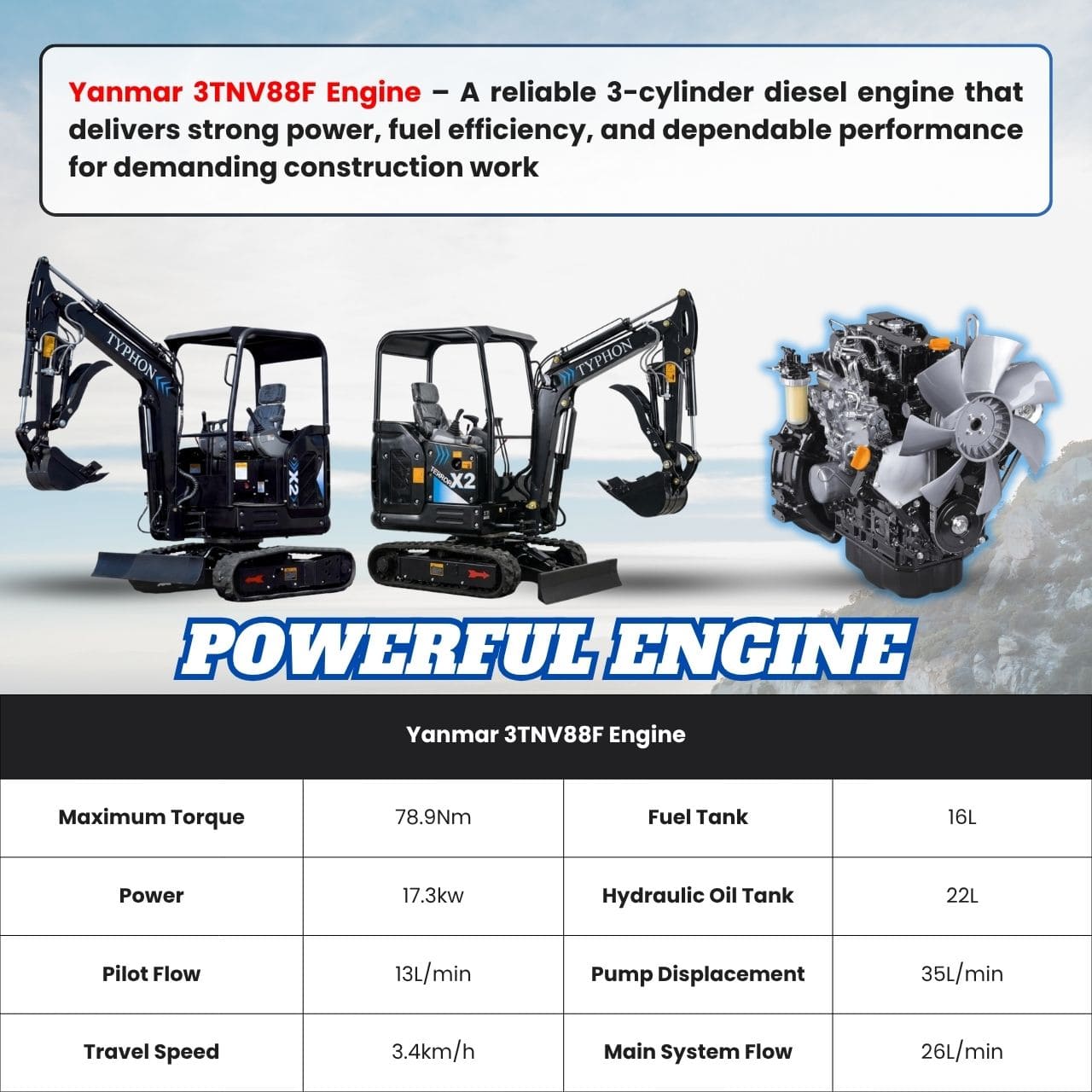

Reliable Yanmar 3TNV88F diesel engine delivers strong and efficient performance.
Excellent digging capability for trenching, landscaping, and utility projects.
High digging force for efficient excavation and material handling.
Compact machine design with excellent balance, maneuverability, and stability.

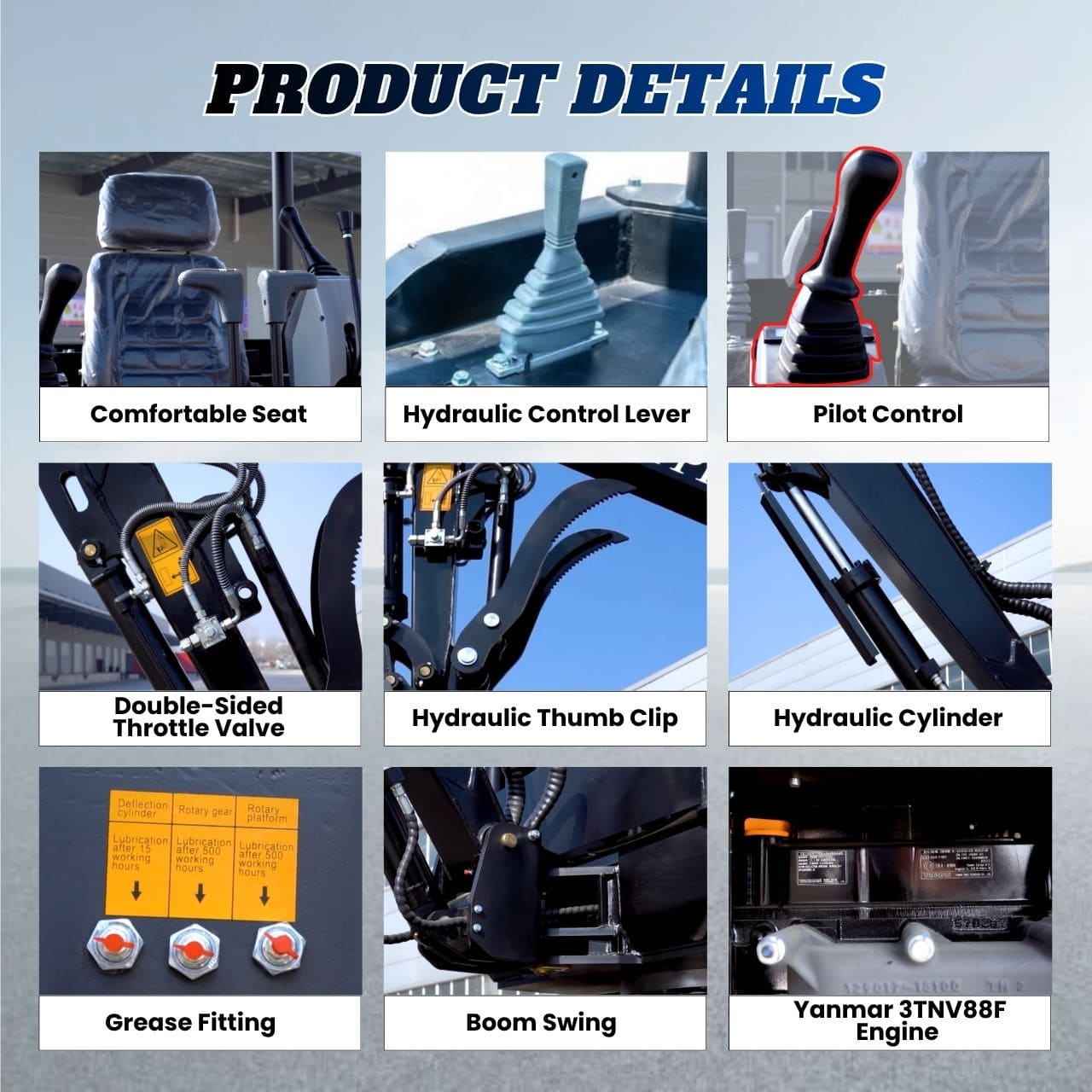

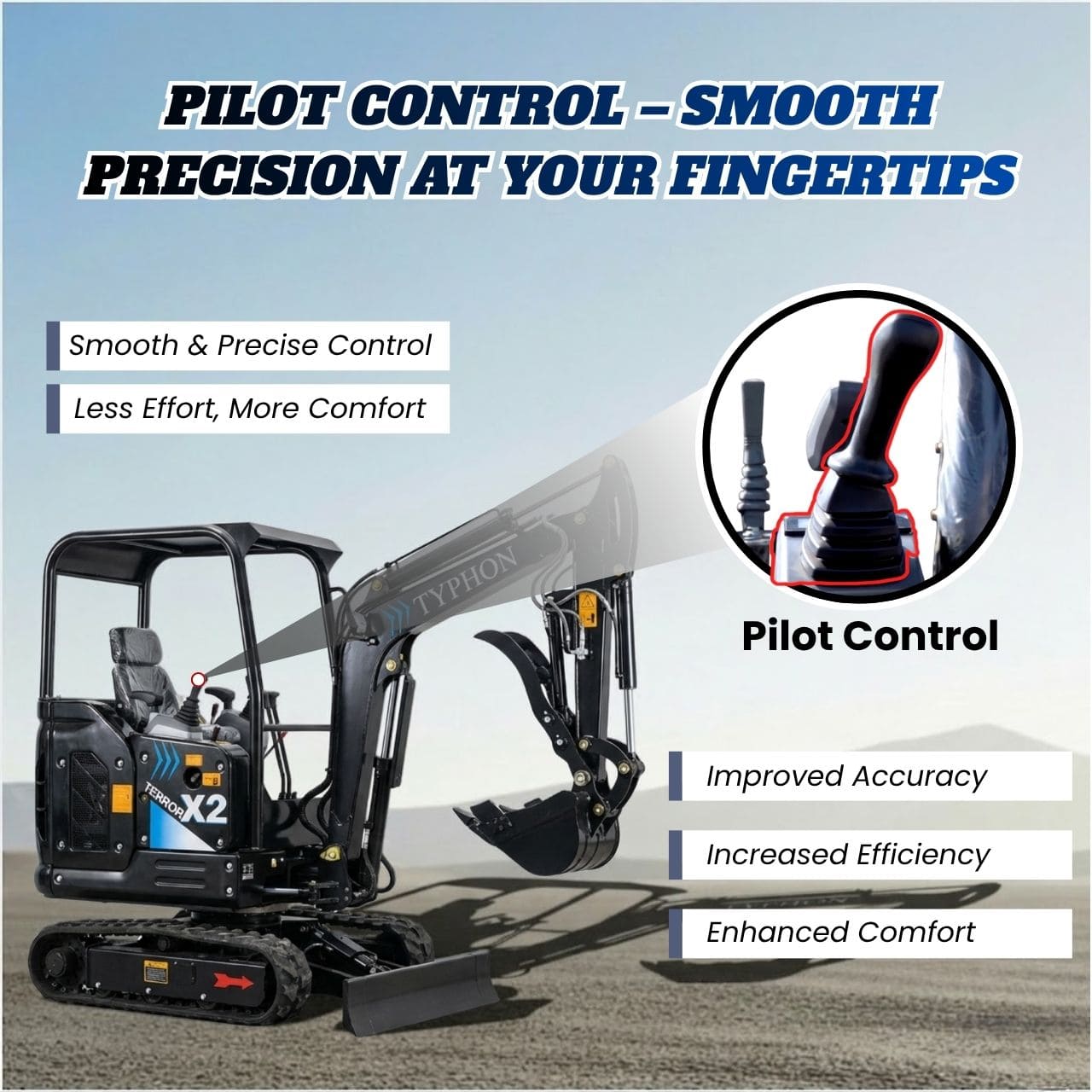

Equipped with pilot controls, oil-cooled hydraulics, Danfoss swing motor, and hydraulic thumb clip, the TERROR X2 MAX provides smooth, responsive operation with excellent control accuracy and reduced operator fatigue during long working hours.
Compact Powerhouse
Built for professional contractors and demanding worksites, the TERROR X2 MAX combines strong excavation performance with compact dimensions for easy operation in tight-access job environments.
Precision & Comfort

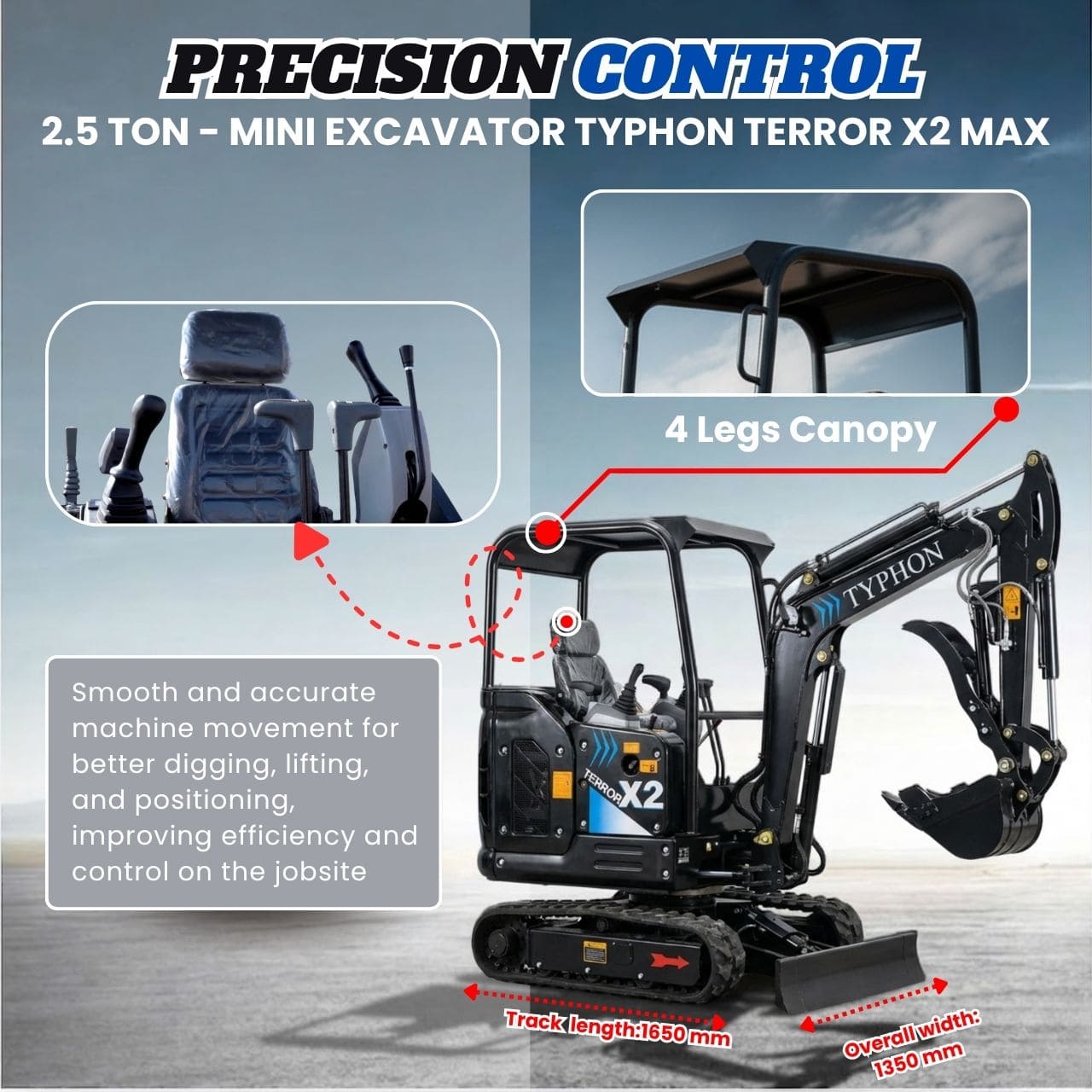

Featuring ergonomic armrests, pilot control operation, LED work lights, and a durable 4-leg canopy, the TERROR X2 MAX delivers comfortable and precise machine handling all day long.
Specifications
| Model | TYPHON TERROR X2 MAX |
| Machine Type | 2.5 Ton Mini Excavator |
| Engine | Yanmar 3TNV88F |
| Engine Power | 23.2HP – 24.4HP |
| Operating Weight | 2.5 Ton |
| Bucket Capacity | 0.07m³ |
| Maximum Digging Depth | 2915mm |
| Maximum Digging Height | 3530mm |

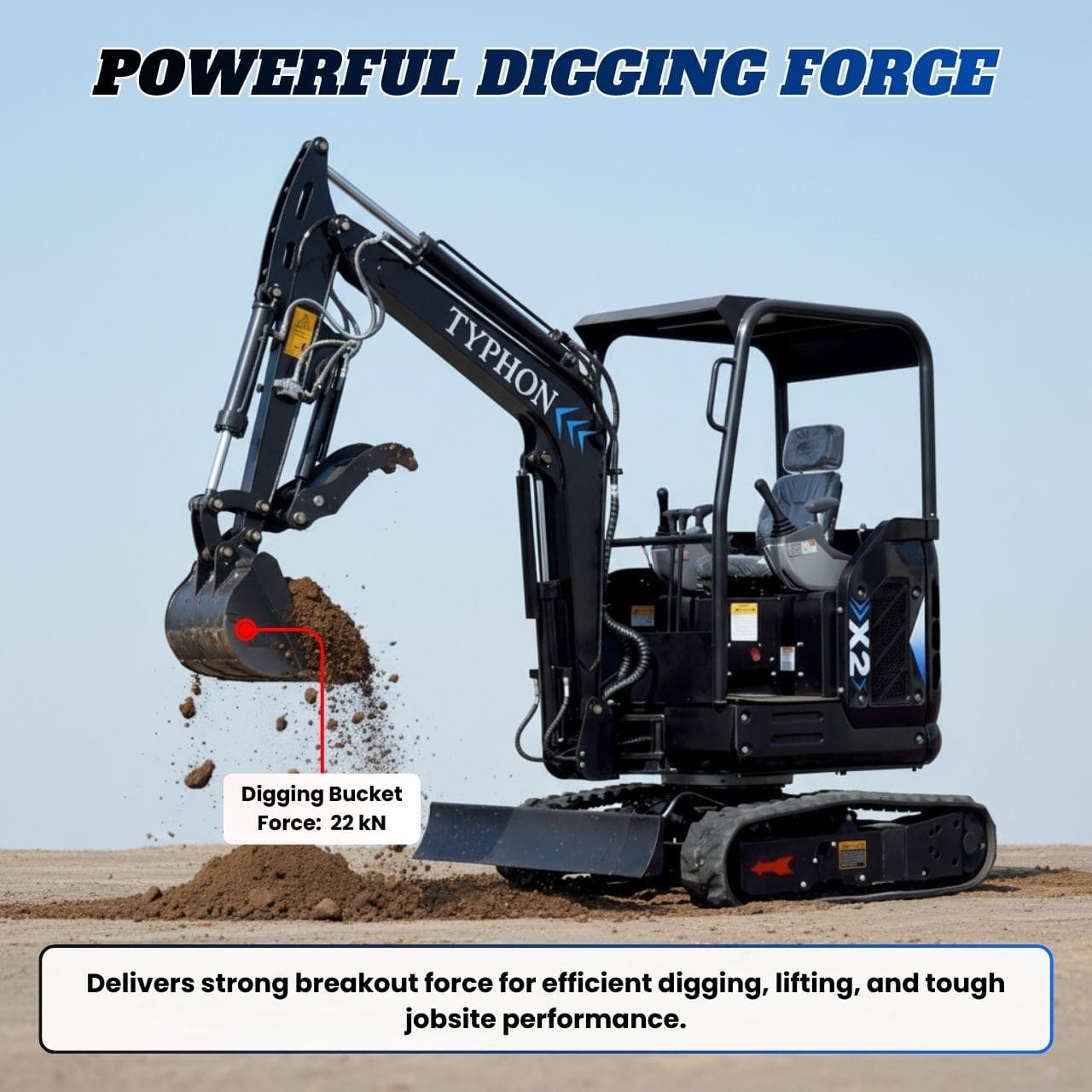

| Digging Force | 22KN |

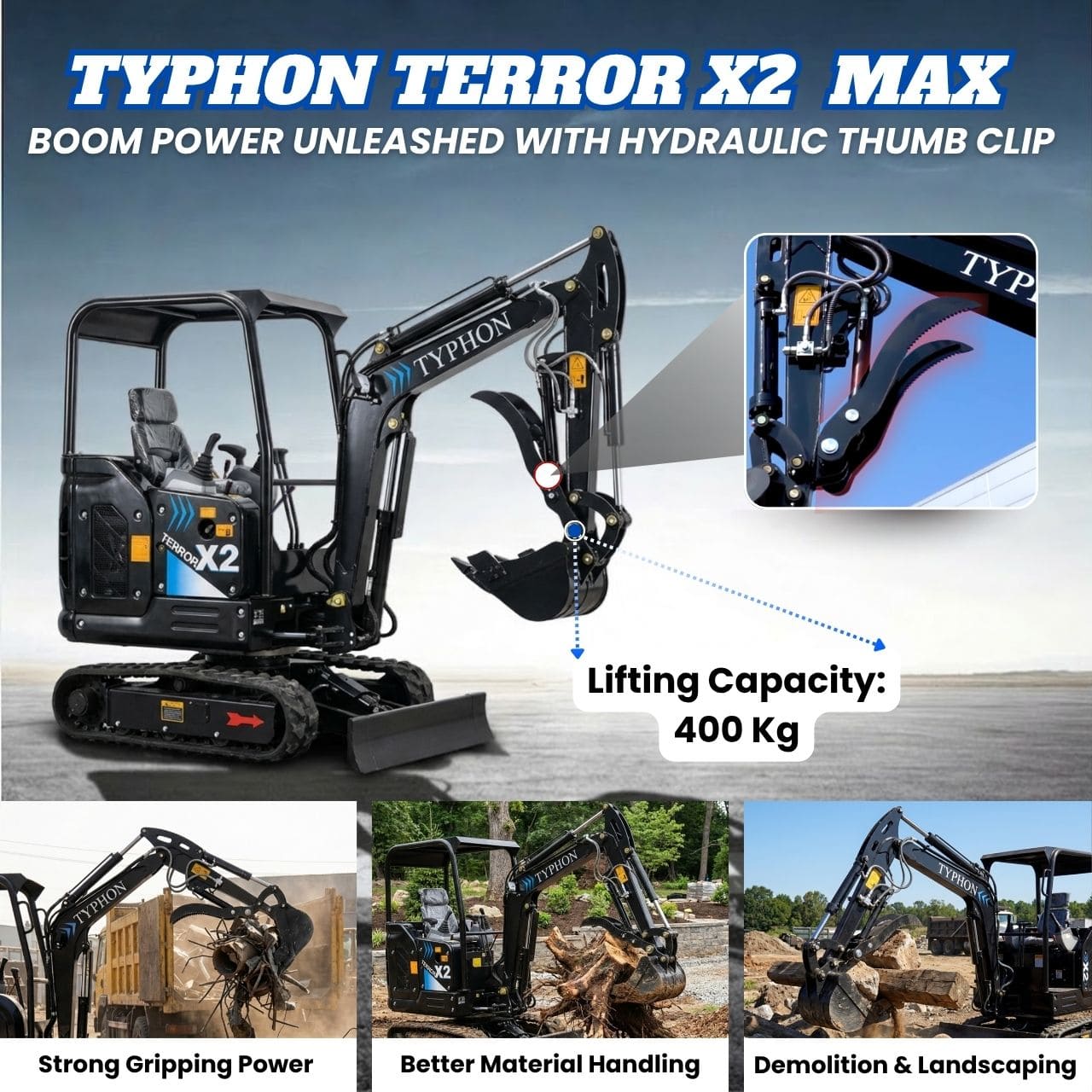

| Boom Lifting Capacity | 400kg |

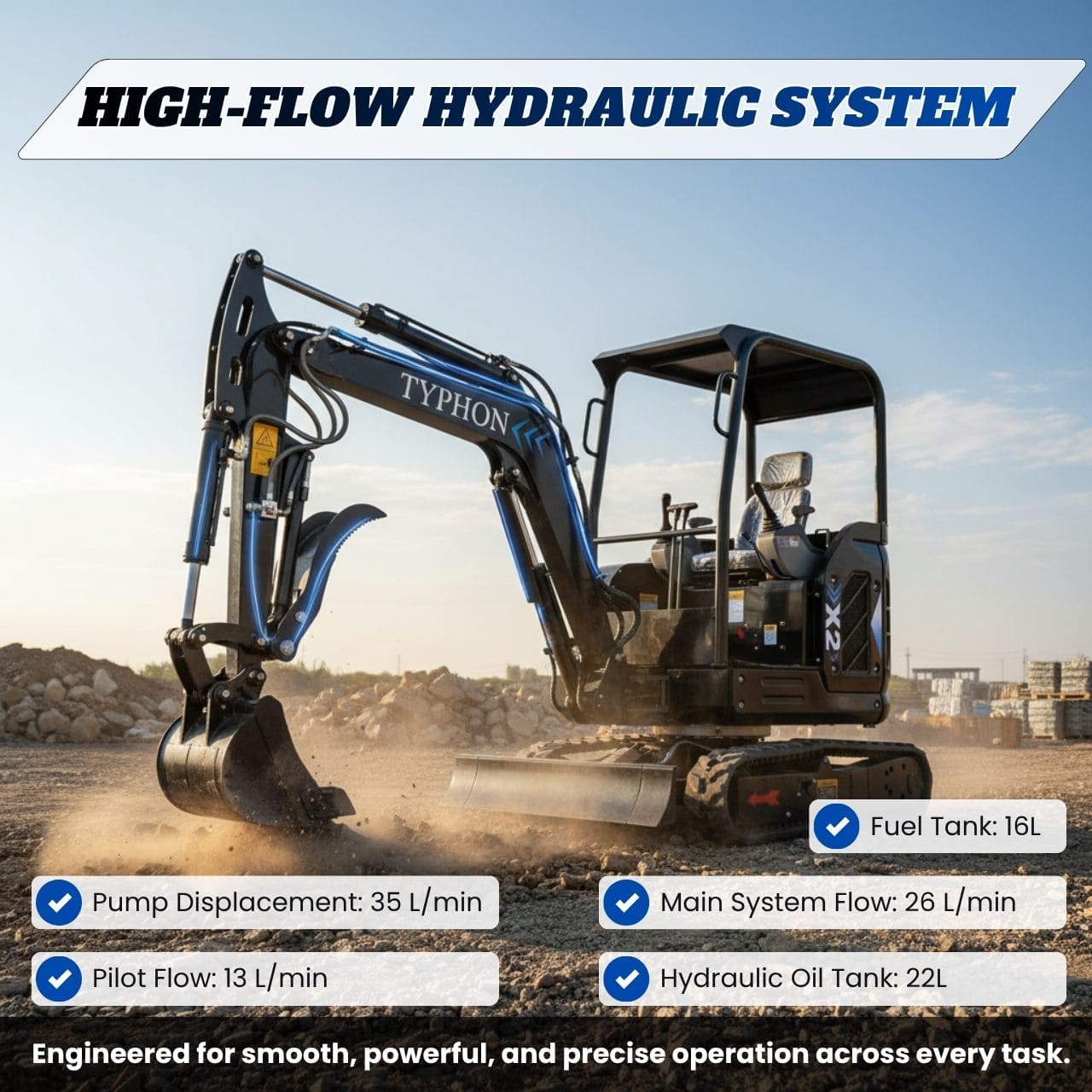

| Hydraulic Pump Flow | 35L/min |
| Main Hydraulic Flow | 26L/min |
| Pilot Flow | 13L/min |

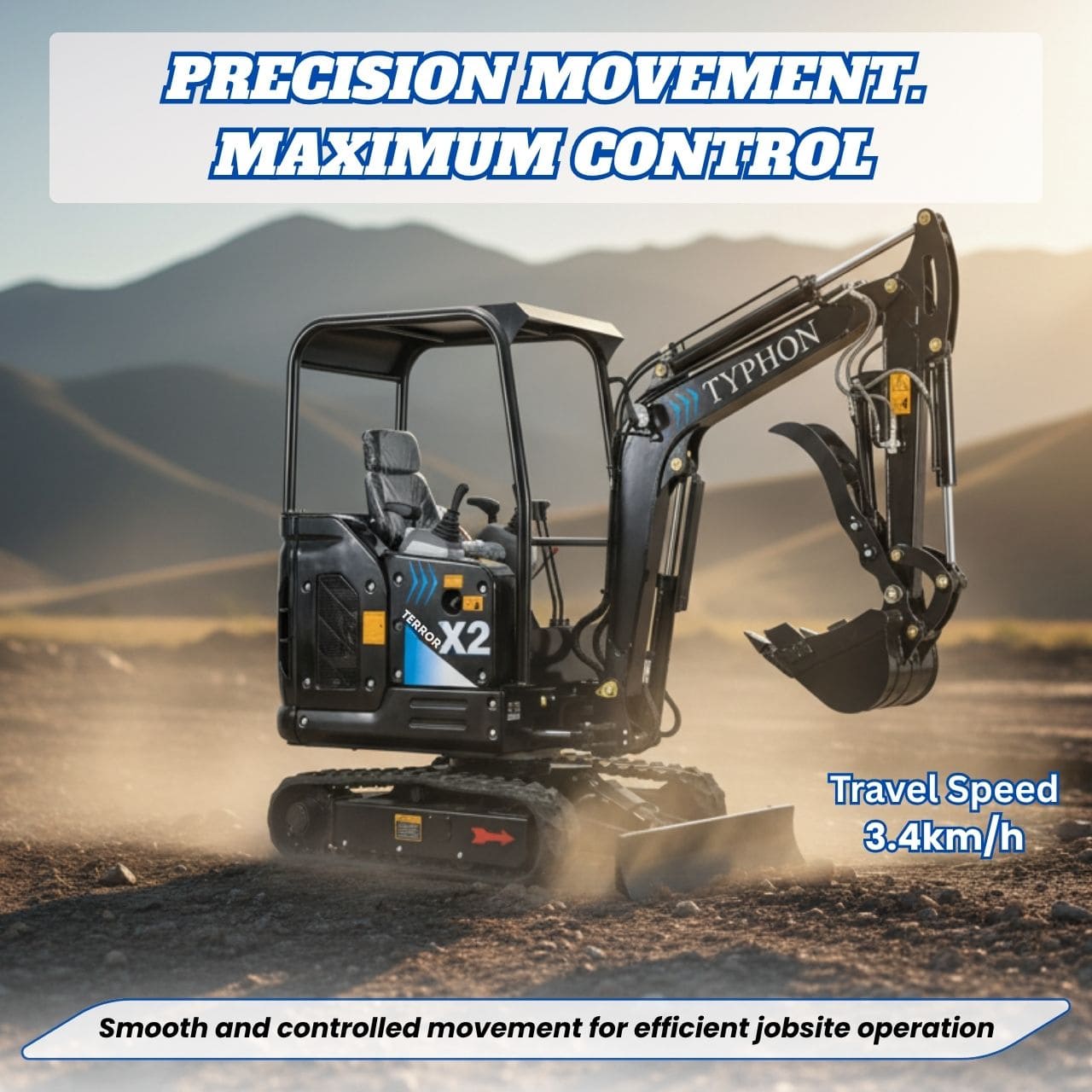

| Travel Speed | 3.4 km/h |
| Swing Speed | 10 r/min |
| Gradeability | 35° |
| Fuel Tank Capacity | 16L |
| Hydraulic Oil Capacity | 22L |
| Track Width Range | 1060mm – 1350mm |

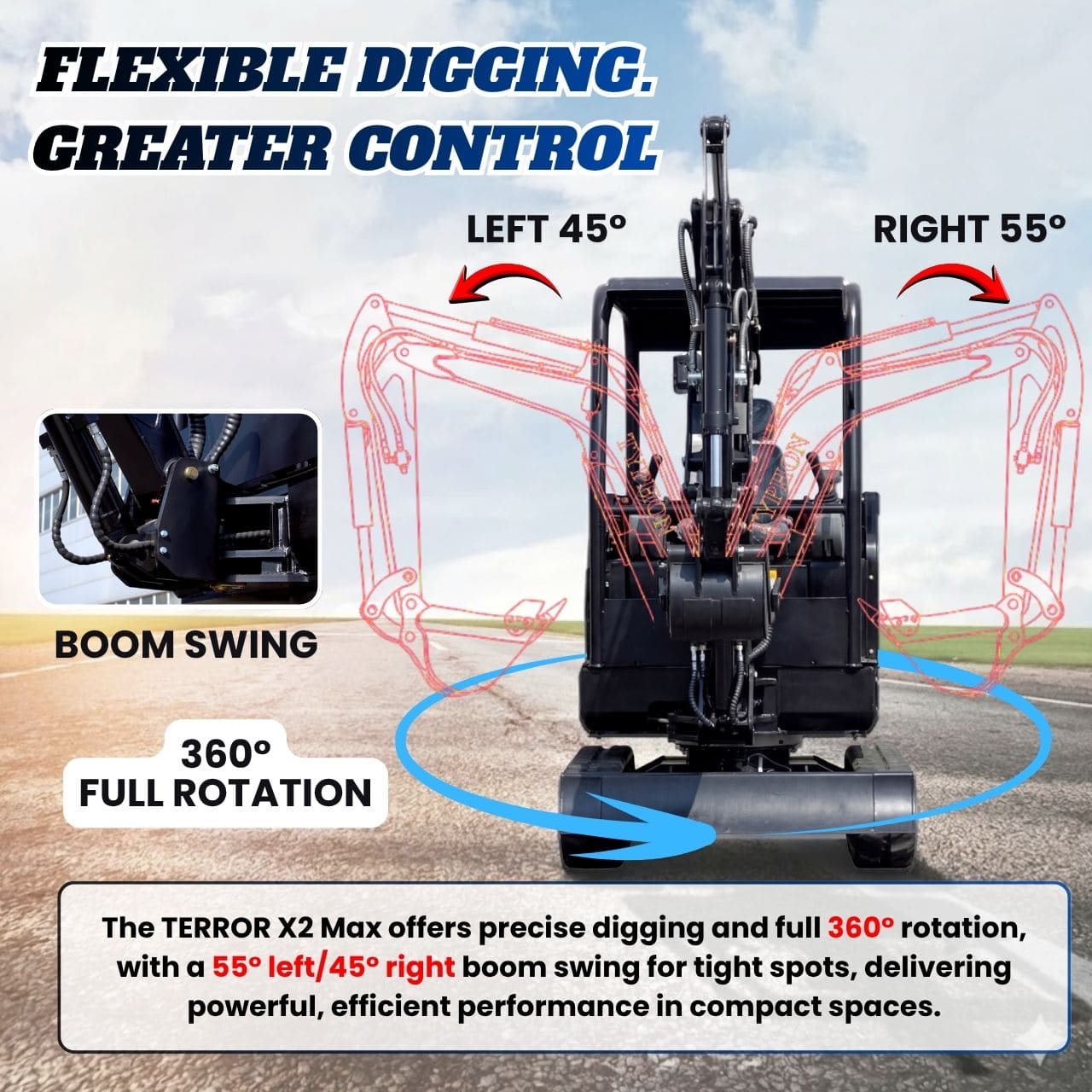

| Boom Swing | 55° Left / 45° Right |
