HUAYEE USA · HY14F · Mini Excavator with Pilot Controls & Enclosed Cab

CE · Euro 5 · ISO Certified · 1-Year Warranty

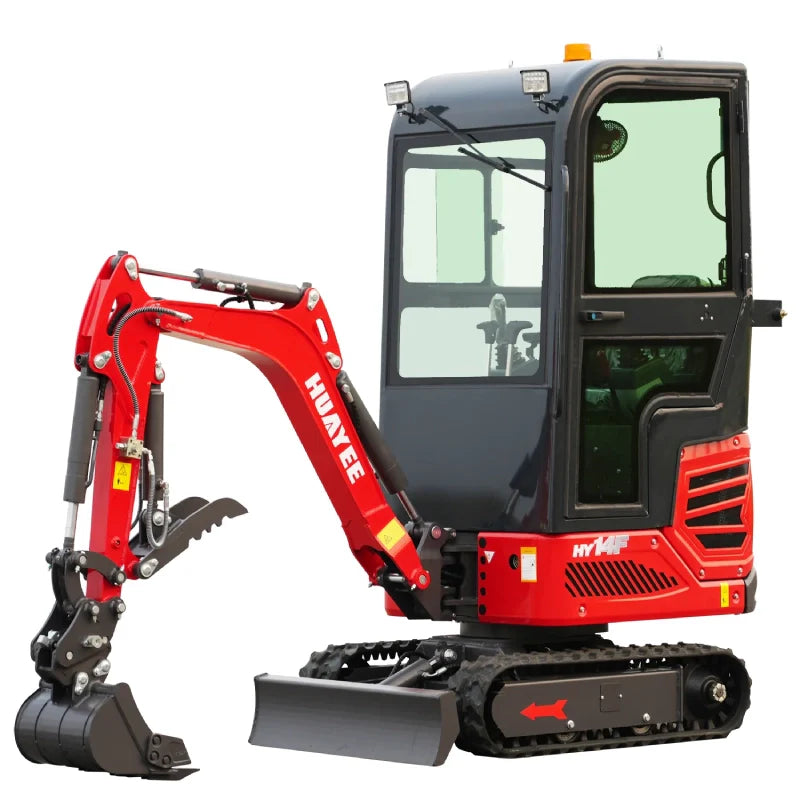

HUAYEE HY14F Mini Excavator

Name: Mini Excavator with Pilot Controls &amp; Cab | 13.5 hp B&amp;S Engine | HUAYEE HY14F
SKU: HY14F
Availability: InStock

B&S XR2100 — 13.5 HP — Enclosed Cab — Pilot Controls — CE + Euro 5 + ISO

A compact 1.4-ton mini excavator combining an enclosed cab and pilot controls with CE, Euro 5, and ISO certification — standards typically found in larger professional machines. Powered by a B&S XR2100 420cc engine, the HY14F delivers 5’5″ of dig depth, 10′ of reach, and a 0.3 kpa/cm² ground pressure that minimises lawn and surface damage. Fits through standard gates at 37″ wide.

Certifications

CE Certified

Euro 5 Emissions

ISO Certified

1-Year Warranty from Shipment

24-Hr Troubleshooting Support

Enclosed Cab

Pilot

Controls Included

Full enclosed cab with pilot controls — operator comfort and precision typically found in larger machines.

Dig Depth

5’5″

1,670 mm / 65.7 in

Utility trenches, foundation work, and drainage installation at residential and light commercial depth.

Ground Pressure

0.3

kpa/cm²

Exceptionally low ground pressure — minimises lawn damage and protects sensitive surfaces.

Width

37″

Fits Standard Gates

80″L × 37″W × 90″H — compact enough for residential gate access and tight-space sites.

B&S XR2100

Briggs & Stratton XR2100 — 420cc · 13.5 HP — Gasoline · Gear pump · 16 MPa working pressure · 22L+11L/min hydraulic flow · 22L hydraulic tank · 6.6L fuel tank · 1,200mm track length · 180mm track width · Mechanical tightening

13.5 HP

B&S XR2100

1,400 kg

Operating Weight

10 ft

Max Reach

37″

Machine Width

Key Features

Enclosed Cab with Pilot Controls

The HY14F’s fully enclosed cab with pilot controls is the feature that sets it apart in the 1.4-ton class. Enclosed cabs protect operators from dust, noise, and weather; pilot controls provide smooth, precise, low-fatigue operation typically found on machines twice the size. All-day operator comfort for contractors and professional users.

CE, Euro 5 & ISO Certified

CE (European safety compliance), Euro 5 (clean emissions standard), and ISO (international quality management) certified — three independent certifications that confirm the machine meets professional international standards. More rigorous certification than many competing compact excavators in this class.

0.3 kpa/cm² Ground Pressure

At just 0.3 kpa/cm², the HY14F exerts exceptionally low ground pressure through its 180mm wide, 1,200mm long rubber tracks with mechanical tightening. Minimises lawn damage and surface disruption on residential sites where turf, pavers, and landscaping must be protected.

B&S XR2100 — 420cc Gasoline

Briggs & Stratton XR2100 420cc engine at 13.5 HP — the XR is B&S’s commercial-tier designation for professional equipment durability. Gear pump hydraulics at 16 MPa with 22L+11L/min dual-circuit flow. 6.6L fuel tank for extended daily operation.

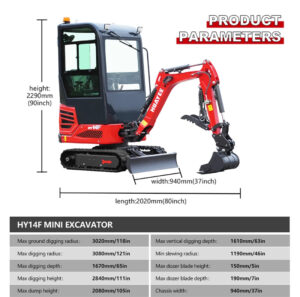

5’5″ Dig Depth & 10′ Reach

1,670mm (5’5” / 65.7 in) of maximum digging depth and 3,080mm (10’ / 121 in) of maximum ground reach. Maximum digging height of 2,840mm (9’4”) handles the full range of residential and light commercial excavation needs.

Compact Dimensions — 37″ Wide

80”L × 37”W × 90”H — the 37” width passes through standard residential gates and into confined access areas. The enclosed cab adds no width to the machine footprint, making the HY14F as access-friendly as open-canopy alternatives while providing full operator enclosure.

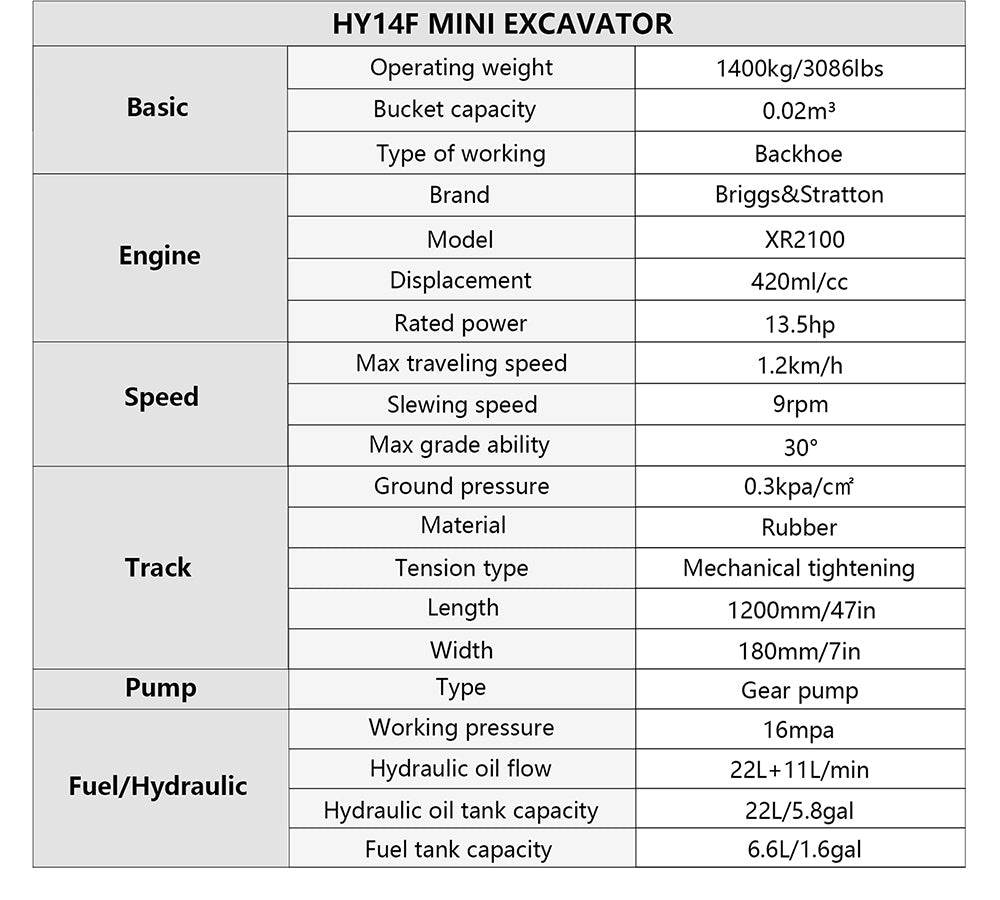

Full Specifications

Basic

Operating Weight	1,400 kg / 3,086 lbs
Bucket Capacity	0.02 m³
Type of Working	Backhoe
Max Slope Grade	30°

Engine

Engine Brand & Model	Briggs & Stratton XR2100
Displacement	420 ml/cc
Rated Power	13.5 HP
Fuel Type	Gasoline
Fuel Tank	6.6 L / 1.6 gal

Hydraulic System

Pump Type	Gear Pump
Working Pressure	16 MPa
Hydraulic Oil Flow	22L + 11L/min (dual circuit)
Hydraulic Tank	22 L / 5.8 gal

Performance

Max Digging Depth	1,670 mm / 65.7 in / 5’5”
Max Digging Radius	3,080 mm / 121.3 in / 10’
Max Digging Height	2,840 mm / 111.8 in / 9’4”

Dimensions

Overall Length	80 in (2,032 mm)
Overall Width	37 in (940 mm)
Overall Height	90 in (2,286 mm)

Track

Track Material	Rubber
Track Length	1,200 mm / 47 in
Track Width	180 mm / 7 in
Ground Pressure	0.3 kpa/cm²
Tension Type	Mechanical Tightening

Certifications & Warranty

Safety Certification	CE Certified
Emissions Standard	Euro 5
Quality Standard	ISO Certified
Warranty	1 Year from Shipment
Support	24-Hr Troubleshooting / One-to-One Service
