AGT Equipment · CFG-DY16 · 1-Ton Kubota Mini Excavator

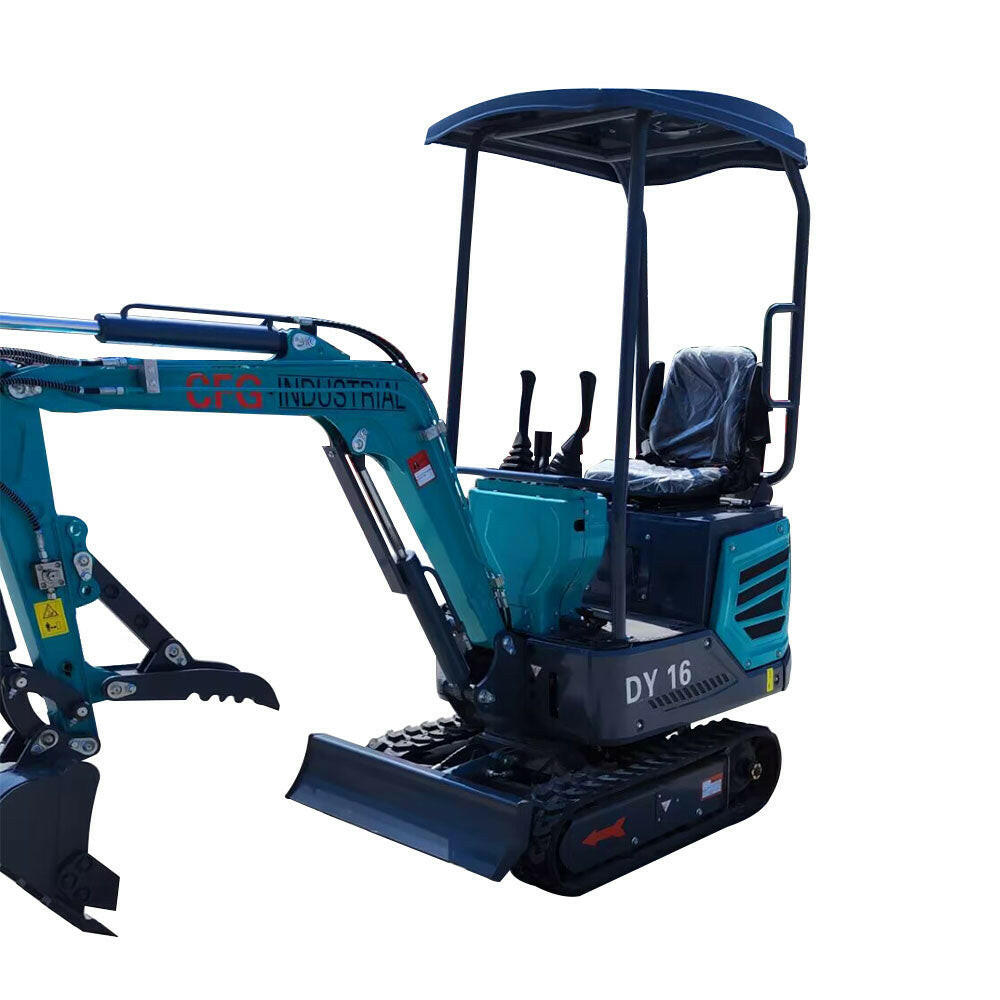

AGT CFG-DY16 1-Ton Kubota Mini Excavator

Name: 1 Ton, Kubota Engine Mini Excavator | CFG-DY16
SKU: CFG-DY16
Availability: InStock

Kubota D722 Diesel — Compact & Versatile — Backhoe Working Device

A compact and versatile 1-ton mini excavator designed for construction and landscaping tasks in tight spaces. The CFG-DY16 is powered by a Kubota D722-E4B diesel engine — bringing Kubota reliability and fuel efficiency to one of the lightest machines in the AGT range. At 930mm (36.6″) wide with a 16 MPa hydraulic system, it punches well above its weight class.

Kubota D722-E4B-2FM-1 — 10.2 kW (13.7 HP) · 2,500 RPM · Max torque 42.9 N·m at 2,000 RPM. The D722 is a proven 3-cylinder diesel engine widely used in compact equipment for its reliability and long service intervals. Diesel-powered for greater fuel efficiency and longevity over gasoline alternatives.

13.7 HP

Kubota D722

1,050 kg

Operating Weight

67.8″

Max Dig Depth

119.4″

Max Reach

Key Features

Kubota D722-E4B Diesel Engine

10.2 kW (13.7 HP) at 2,500 RPM with a maximum torque of 42.9 N·m at 2,000 RPM. Kubota’s D722 is one of the most trusted compact diesel engines in the industry — fuel-efficient, low-maintenance, and built for sustained daily operation in demanding environments.

Diesel Advantage in a 1-Ton Class

Most 1-ton mini excavators run gasoline engines. The CFG-DY16’s Kubota diesel delivers better fuel economy, longer service intervals, and greater torque at low RPM — meaningful advantages for operators using the machine heavily day-to-day.

16 MPa Hydraulic System

Gear pump hydraulic system running at 16 MPa with 17.6 L/min flow rate and a 15 L hydraulic tank. Consistent pressure and flow for reliable digging force and attachment operation throughout the working day.

Generous 16 L Fuel Tank

At 16 litres, the fuel tank is notably large for a 1-ton class machine — supporting extended operation without frequent refuelling stops, and reducing downtime on full-day jobs.

Compact 930mm Width

930mm (36.6″) total width — compact enough to work in narrow access points, garden paths, and restricted residential sites while the diesel engine provides the sustained output for demanding tasks.

Full Dozer Blade

937mm wide dozer blade with 170mm lift height and 240mm drop depth — for backfilling, levelling, and grading after excavation. More drop depth than lift height, making it well-suited to material pushing and site cleanup.

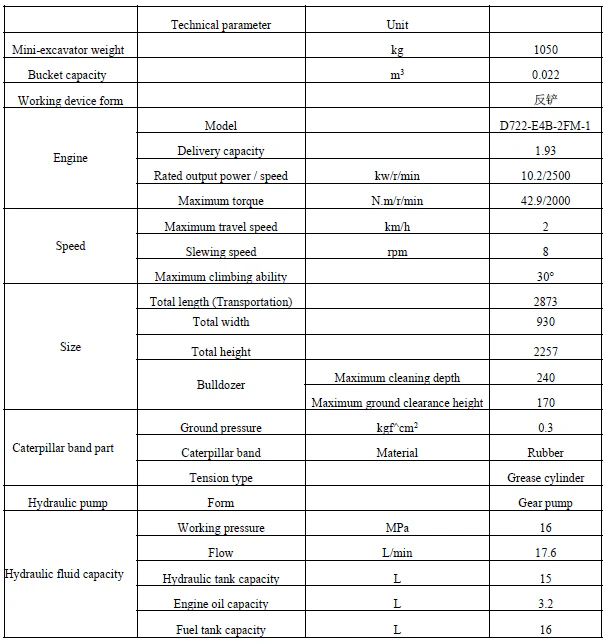

Full Specifications

Engine

Engine Model	Kubota D722-E4B-2FM-1
Fuel Type	Diesel
Rated Output Power	10.2 kW (13.7 HP) at 2,500 RPM
Maximum Torque	42.9 N·m at 2,000 RPM
Delivery Capacity	1.93
Fuel Tank	16 L
Engine Oil Capacity	3.5 L

Hydraulic System

Pump Type	Gear Pump
Working Pressure	16 MPa
Flow Rate	17.6 L/min
Hydraulic Tank	15 L

Performance

Operating Weight	1,050 kg (~2,315 lbs)
Bucket Capacity	0.022 m³
Working Device	Backhoe
Maximum Travel Speed	2 km/h
Slewing Speed	8 RPM
Maximum Climbing Ability	30°
Ground Pressure	0.3 kgf/cm²

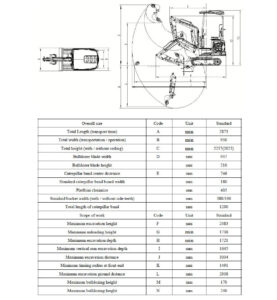

Scope of Work

Maximum Excavation Depth	1,721 mm / 67.8 in
Maximum Vertical Arm Depth	1,645 mm / 64.8 in
Maximum Excavation Height	2,483 mm / 97.8 in
Maximum Unloading Height	1,738 mm / 68.4 in
Maximum Excavation Distance	3,034 mm / 119.4 in
Maximum Excavation Ground Distance	2,938 mm / 115.7 in
Minimum Turning Radius (Front End)	1,941 mm / 76.4 in

Dimensions

Total Length (Transportation)	2,873 mm / 113.1 in
Total Width	930 mm / 36.6 in
Total Height (with canopy)	2,257 mm / 88.9 in
Total Height (without canopy)	2,025 mm / 79.7 in
